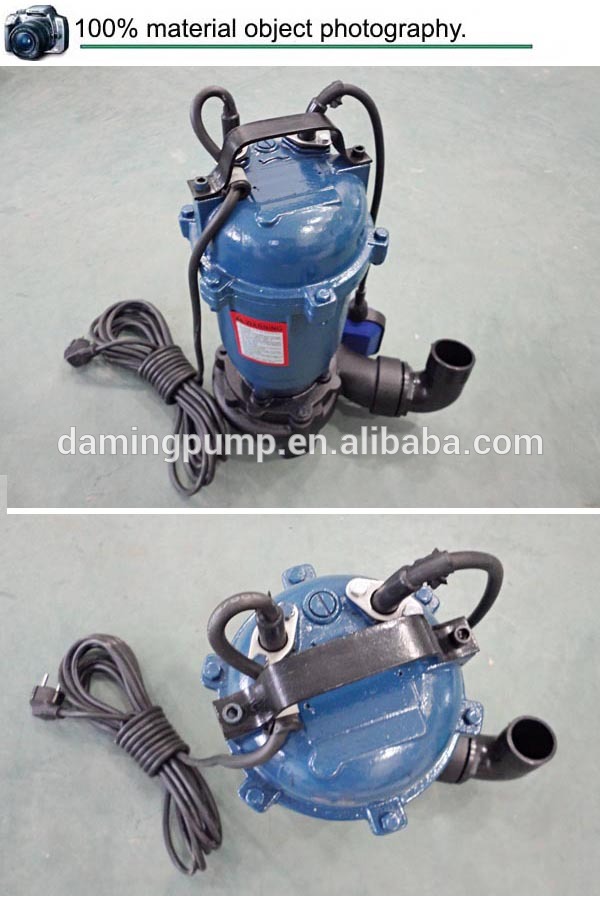

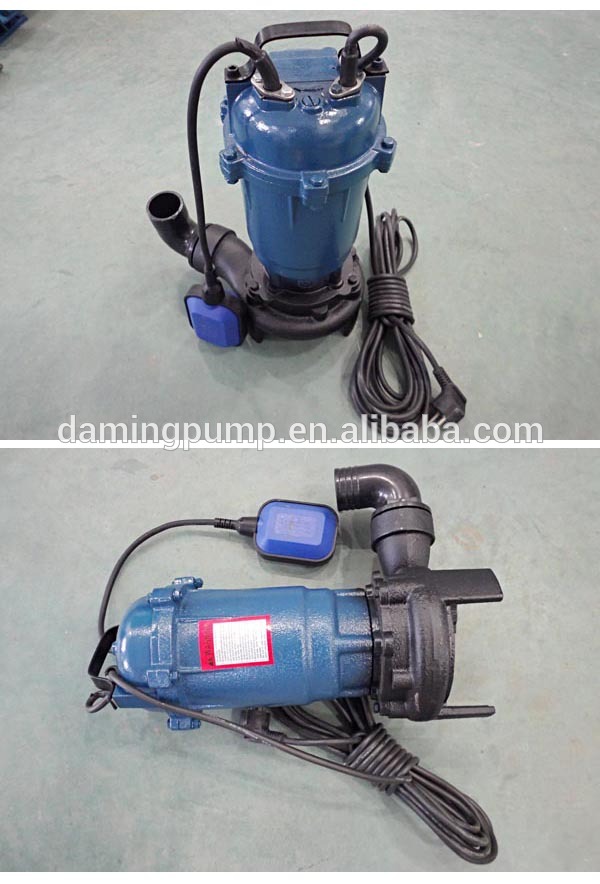

new cutting pump submerisble sewage pump
(Only made by our factory)
Pump Applications:
This model has cutting design for dirty water,can cut small rubbishes, short fibre..wastepaper and so on. it is also an ideal equipment for irrigation.
Working Conditions:
1) Medium temperature: must not above 40°C
2) PH range of medium: between 6.5-8.5
3) Degree of protection :IP54
4) Insulation class: B
Pump Materials:
[Pump body]: Cast iron
[Mechanical Seal]:Ceramic-Graphite,Silicon
[Motor support]: Cast iron
[Motor shaft]: 45# or S420
[Impeller]: Cast iron

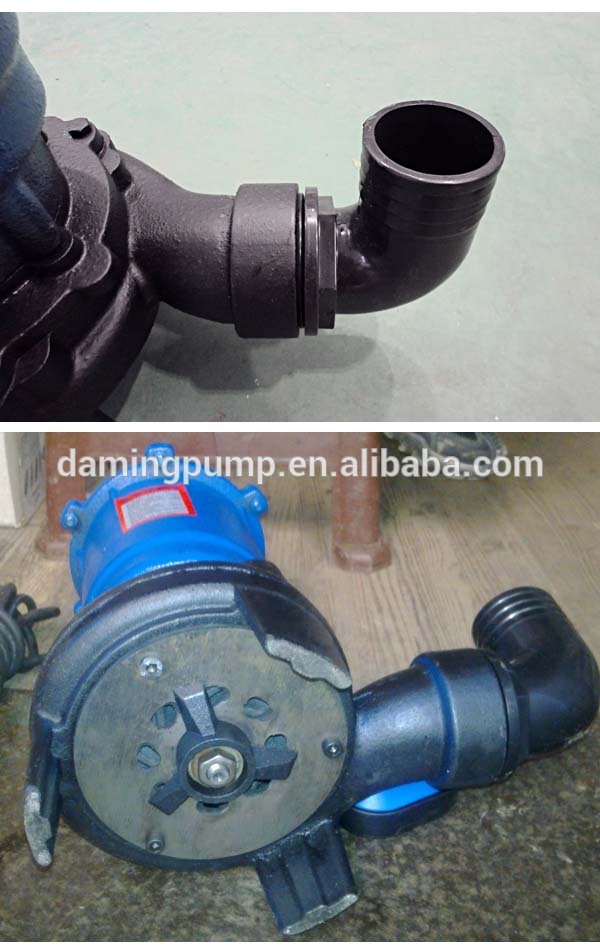

[The cutting edge]: Stainless steel
Sewage pump with Cutting knifes | |||||||||
PUMP MODEL | POWER | Q rat | H rat | PIPE | Current | GW | PACKING | 20 FT | |
KW | HP | m³/H | M | MM | A | Kg | MM | PCS | |
WQD-750D | 0.75 | 1 | 10 | 8 | 51 | 4.07 | 17.0 | 440*260*230 | 1250 |
WQD-950D | 0.95 | 1.3 | 12 | 10 | 51 | 5.2 | 19.0 | 450*260*250 | 1020 |
