Standard or Nonstandard and high pressure hot selling centrifugal pump
high flow rate hot oil hot water centrifugal pump
| ♦♦ Detailed Introduction |
RGP series high temperature centrifugal pump is widely used in TCL, leather processing machine, reaction kettle , wood processing machine and other area . The pump transfer the non flammable and explosion liquid without the particles, fiber.
| ♦♦ Technical Parameter |
Type | Diameter | Motor | performance parameter | Pump Weight (kg) | |||||
(KW) power | (Hp) | Voltage(V) | Frequency (Hz | Speed (r/min) | Max Head (m) | Max Capacity (l/min) | |||
RGP-10 | G1”,G1.2” G1.5” | 0.75 | 1 | 3ø-380 | 50 | 2760 | 20 | 165 | 18 |
| ♦♦ Material |
Item | Name | Material | Technical Feature |
01 | Pump Cover | Cast Iron | High Tensile , High Hardness , Bright , Superior Hydraulic Performance
|
02 | Shaft Seal Base | ||
03 | Motor | H Varnished Wire+SUS Spindle +CRS | Inserting Line Automatically , Vacuum Paint Dipping, SUS304 Spindle , F class Insulation , IP54, Imported High temperature Bearing |
04 | Mechanical Seal | Carborundum +Graphite+Rubber+SUS spring | Heat-Resistant , Good Abrasion Performance, Stable Performance (Customizing According to the Medium ) |
05 | Impeller | Copper | Precision Casting , High Density , High Manufacturing Precision , Superior Hydraulic Performance |

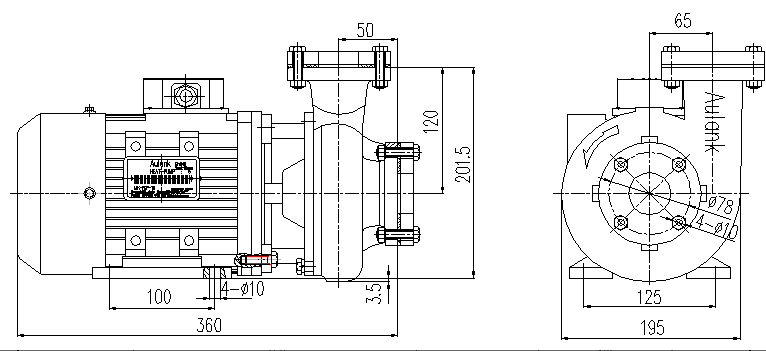

| ♦♦ Installing Drawing |

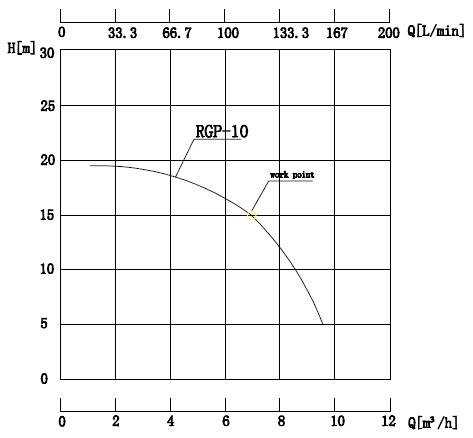

| ♦♦ Performance Chart |
Testing Base: The above characteristic testing is based on the water transferring with the normal speed under 20 degrees. The error of the capacity and head is about 10%, characters ‘error is about 10%. The pump characters change according to the difference of the liquid mediums’ proportion and density.
| ♦♦ Application Scope |
Single Stage Impeller , Axial Suction , Radial water Absorption
Compact Structure, Water and Pump and Motor Connecting directly ,Coaxial Mounting .
Fine performance , High Efficiency
Fast Flow , High Temperature Resistant ,Stable sealing performance
Low Noisy ,Small Vibration
Easy to Remove , Low repairing Cost
| ♦♦ Using Condition |
Thermal Conductivity Water | +5℃ - +160℃ |
Thermal conductivity oil | +5℃ - +200℃ |
Ethyleneglycol | -35℃ - +120℃ |
The working temperature | -5℃ - +40℃ |
The maximum elevation | 1000m |
The maximum morking pressure | 10bar |

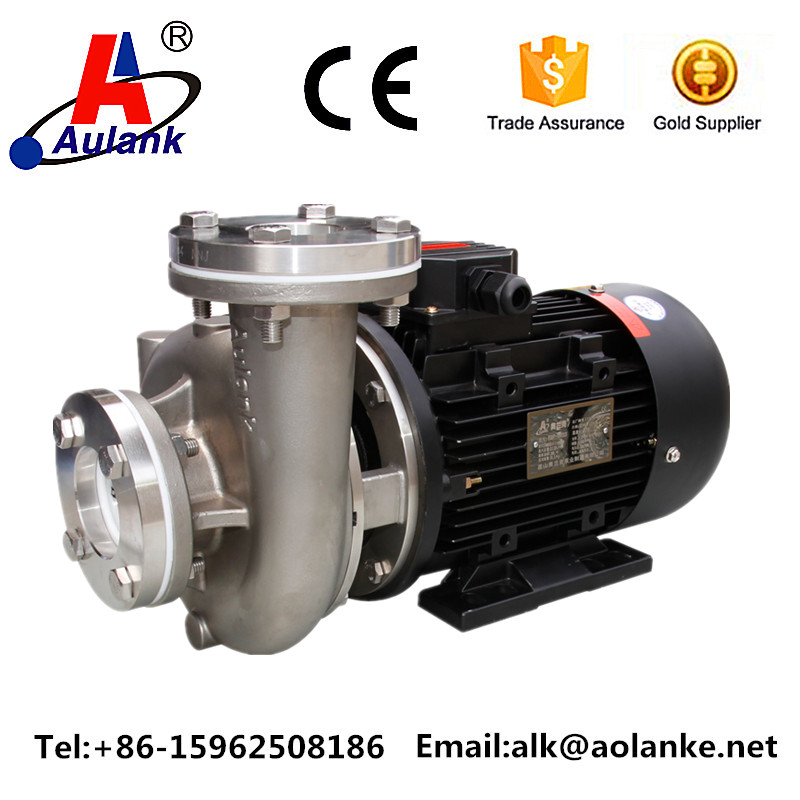

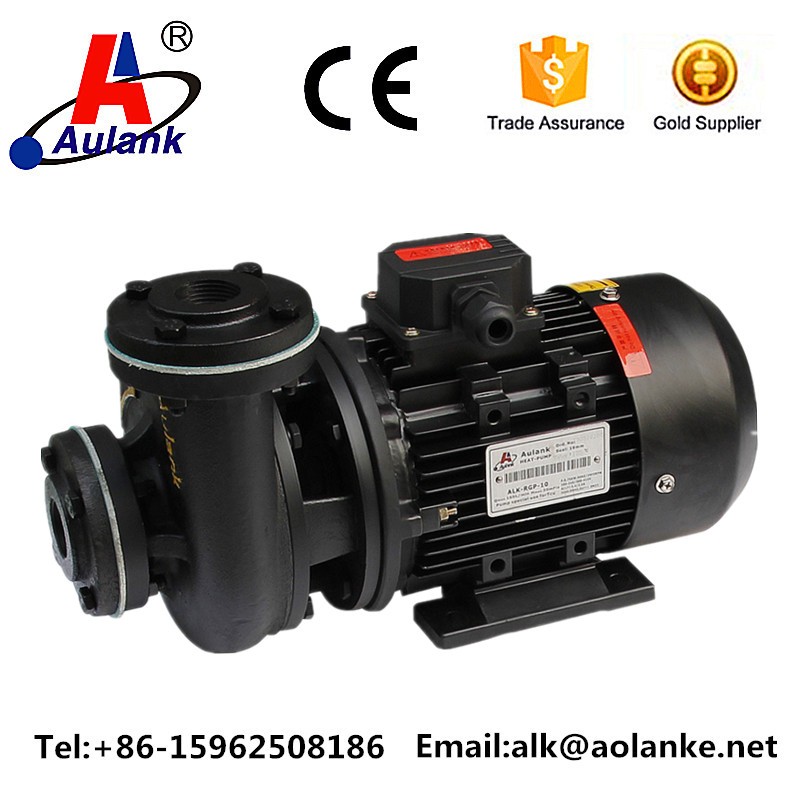

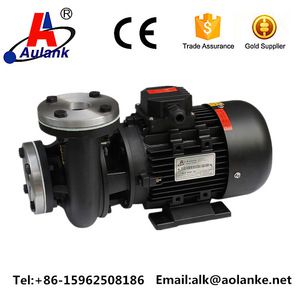

| ♦♦ Product |

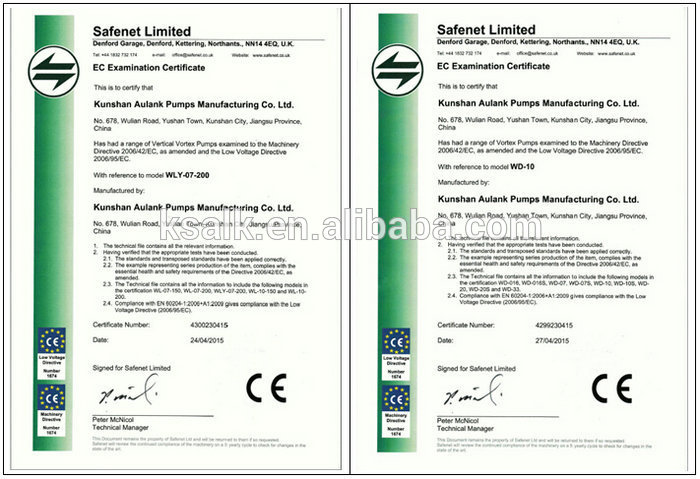

| ♦♦ Certificate |
| ♦♦ Trade Details |
MOQ | 1 sets centrifugal pump |
Port | Shanghai |
Packaging | Standard wooden case and carbon |
Payment | L/C, T/T, Western Union |
Delivery | Within 10 days after receiving deposit |
Shippment | By air, by sea, by truck, express |
| ♦♦ Our Service |
1. According to your requirements, we supply you the high quality product with the best price, more better suggestions are offered to you.
2. We will arrange the delivery the product when receiving your deposite. Generally speaking, It will taked about 5 -10 days to arrange.
3. The warranty period is 1 years except the wear parts. We will supply you free replaced parts (except wear parts ) if the product is damaged caused by the machine itself during warranty period . For online instruction service is free. For the wear parts, we will supply you by the lowest price if necessary.
| ♦♦ About Us |
Name | Kunshan Aulank Pumps Manufacturing Co., Ltd. |
Business type | Manufacturer centrifugal pump Specialize in manufacture, R&D and sales of temperature control equipment |
Established | 1. First founded in Hong Kong in 1996. 2. AODE Machinery Group set up its headquarter in Kunshan, Jiangsu province in 2012. 3. Three manufacture plants in Shenzhen City, Suzhou City and Tianjin City in 2004, 2007 and 2010. 4. Kunshan Aulank Pumps Manufacturing Co.,Ltd is founded in 2007, located in KunShan city, JiangSu province, which is subsidiary company of AODE Machinery Group. |
Area | 14000 sq.m. |
Main Product | Kinds of Pumps, kinds of chillers, etc. |
Certificate | ISO, CE Certificate |
Company Advantage | AODE has been the first brand TCU supplier of China. |
Main Market | Japan, America, Italy, Brazil, Southeast Asia, Africa, etc. |
Website |

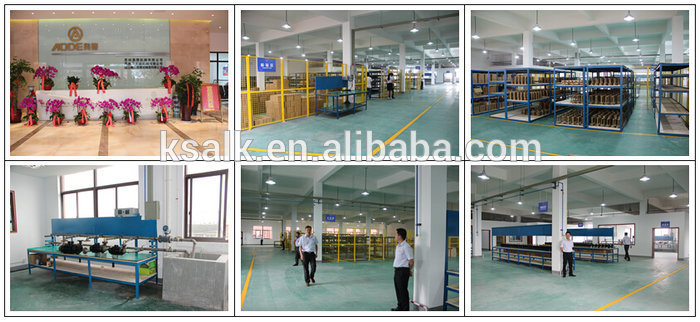

| ♦♦ Our Team and Partner |
