High capacity centrifugal sand gravel pump for dredging
Application
Gravel sand pump is designed for continuously handing the most difficult higher abrasive slurries which contain too big solids. The gravel sand pump is suitable for delivering strong abrasive slurry containing bigger particles in mining, explosive sludge in metal melting, dredging and so on. The advantages of the pump are heavy flow, easy installation and operation, good performance of NPSH and abrasion resistance.
Features
1. the gravel pump is horizontal, single pump casing structure centrifugal pump.
2. Use special clamp clamping pump body and pump cover, the pump outlet can be adjusted in the any direction of 360 degrees, easy to install and use.
3. The bearing components with cylindrical structure, easy to adjust the gap between the impeller and the pump body to keep long working life .
4. Bearing with grease lubrication.
5.Gravel pump has three kinds of shaft seal including packing seal, vice impeller seal, mechanical seal.
6. Wide flow channel , good cavitation performance, high efficiency, abrasion resistance.
7.Transmission methods are: V-shaped V-belt driven, flexible coupling driven, gearbox transmission, hydraulic coupling driven, thyristor speed control speed and so on.
8.Over-flow components Material: nickel-containing high-chromium wear-resistant alloy.
9.Using variety speed and variants, making the pump running in the best conditions .
10. Long working life and high operating efficiency can meet a variety of bad working conditions .
Applicable to: sand dredge pumping , dredge river, mining and transport metal smelting .Flow range: 36-3800 m 3 / h Head range: 3.5-80 m. Maximum through particle size: 254 mm .Maximum efficiency: 72% Cavitation allowance: 2-8 NPSH (r).
Techincal Parameters
TYPE | FLOW | HEAD | RPM | EFF. | NPSH | DIA. METRE | INLET | MAX. PARTICLE |
(L/s) | (m) | (r/min) | (%) | (m) | (mm) | (mm | (mm) | |
ZS150 | 10-70 | 3.5-51 | 600-1400 | 30-50 | 2.5-3.5 | 100 | 150 | 82 |
ZS200 | 38-160 | 10-48 | 800-1400 | 50-60 | 3-4.5 | 150 | 200 | 127 |
ZS250 | 60-272 | 13-50 | 500-1000 | 45-65 | 3-7.5 | 200 | 250 | 178 |
ZS300 | 100-420 | 11-58 | 400-850 | 50-70 | 2-4.5 | 250 | 300 | 220 |
ZS350 | 140-880 | 6-66 | 300-700 | 60-68 | 40947 | 300 | 350 | 241 |
ZS450 | 240-1060 | 9-48 | 250-500 | 60-72 | 40974 | 400 | 450 | 254 |
ZS300-H | 170-620 | 28-78 | 350-700 | 60-72 | 40947 | 250 | 300 | 210 |
ZS250-H | 110-360 | 18-80 | 500-950 | 60-72 | 40944 | 200 | 250 | 180 |

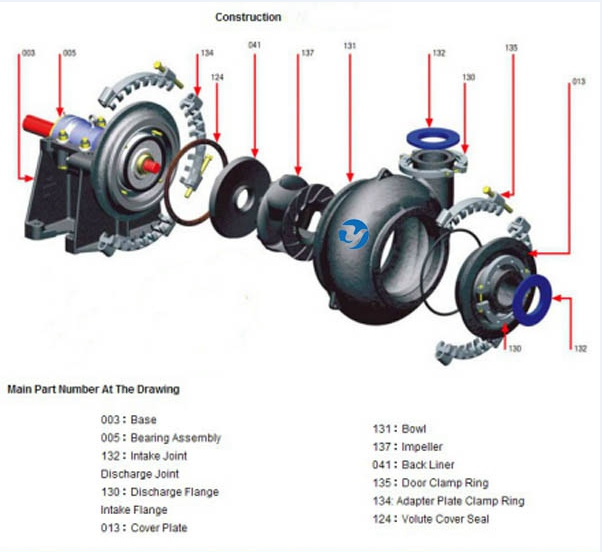

Structures

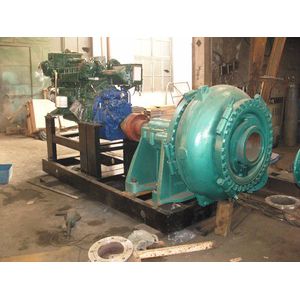

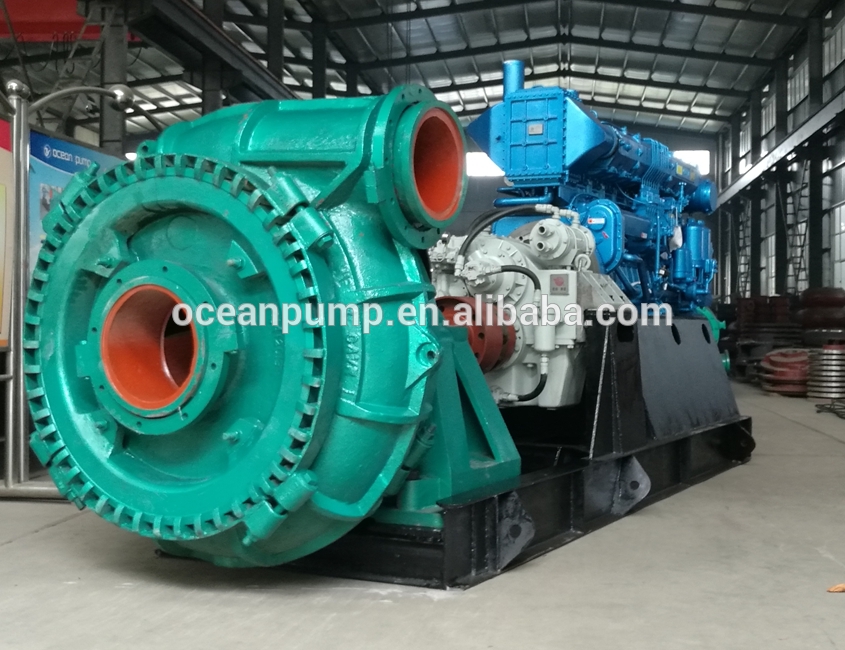

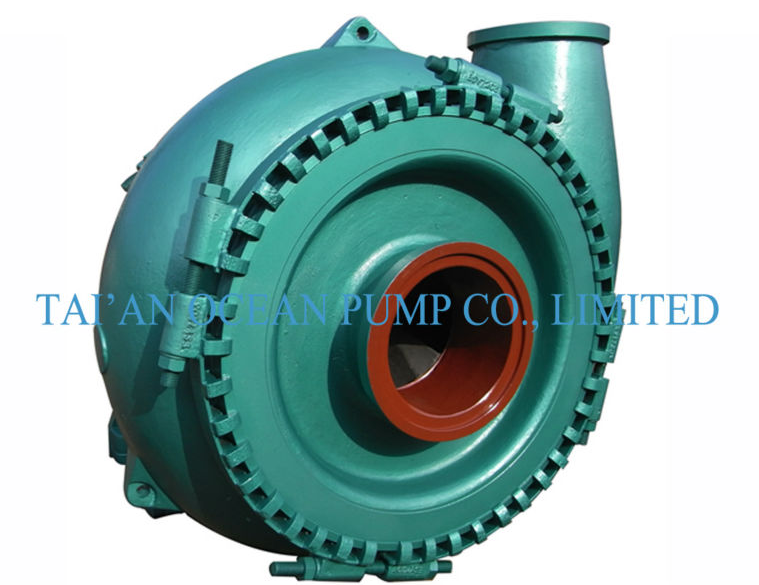

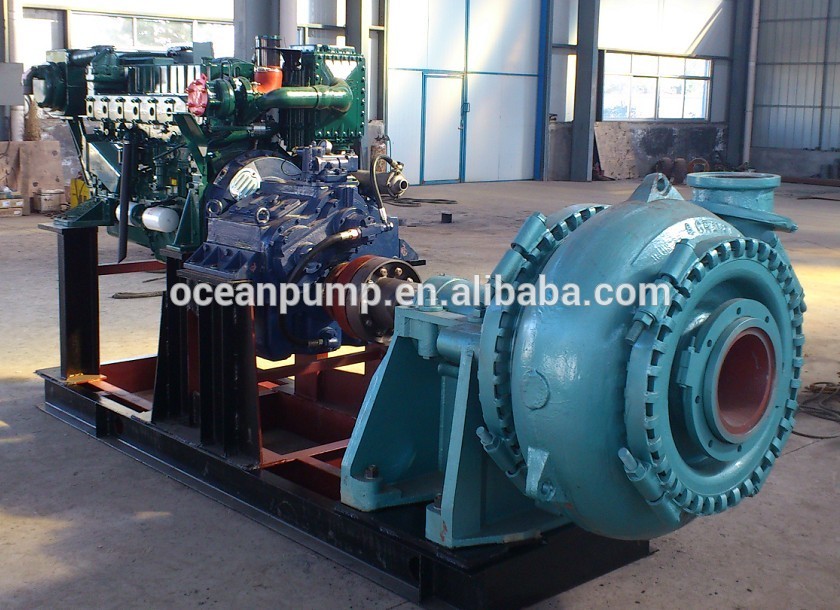

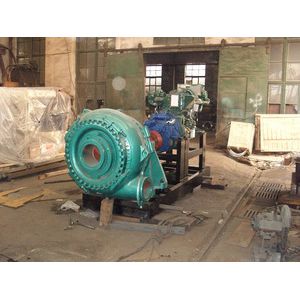

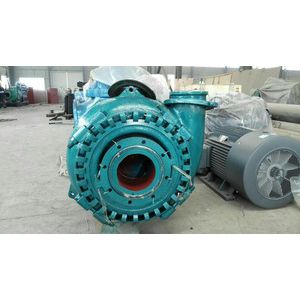

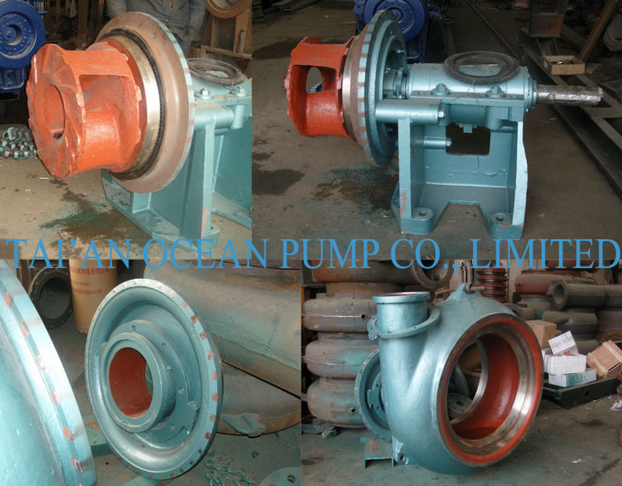

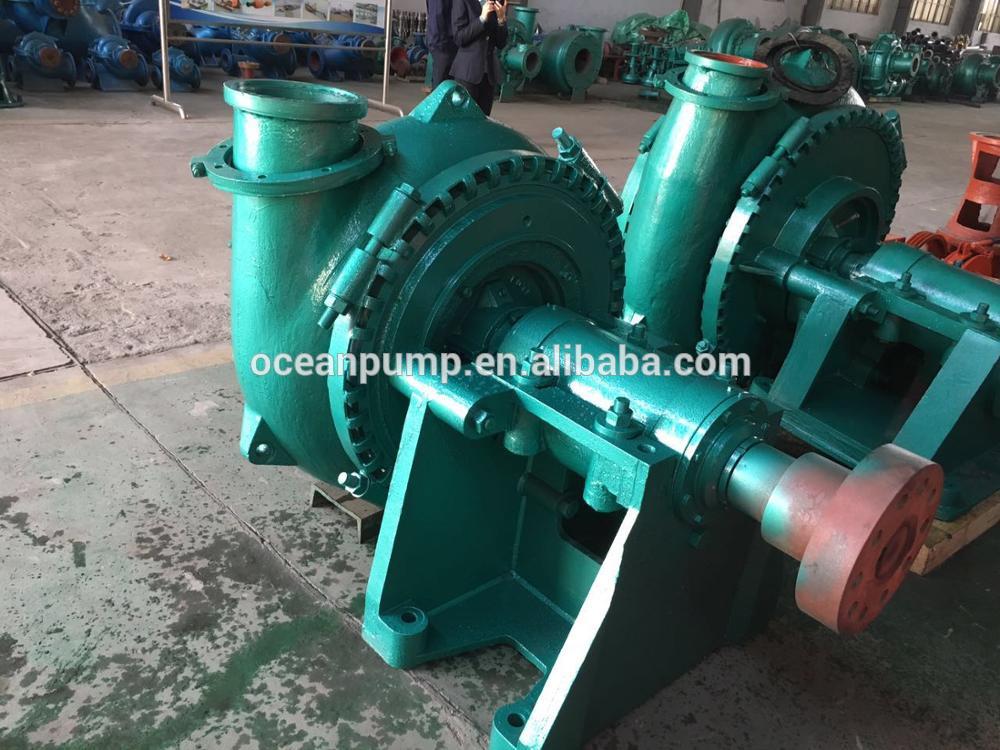

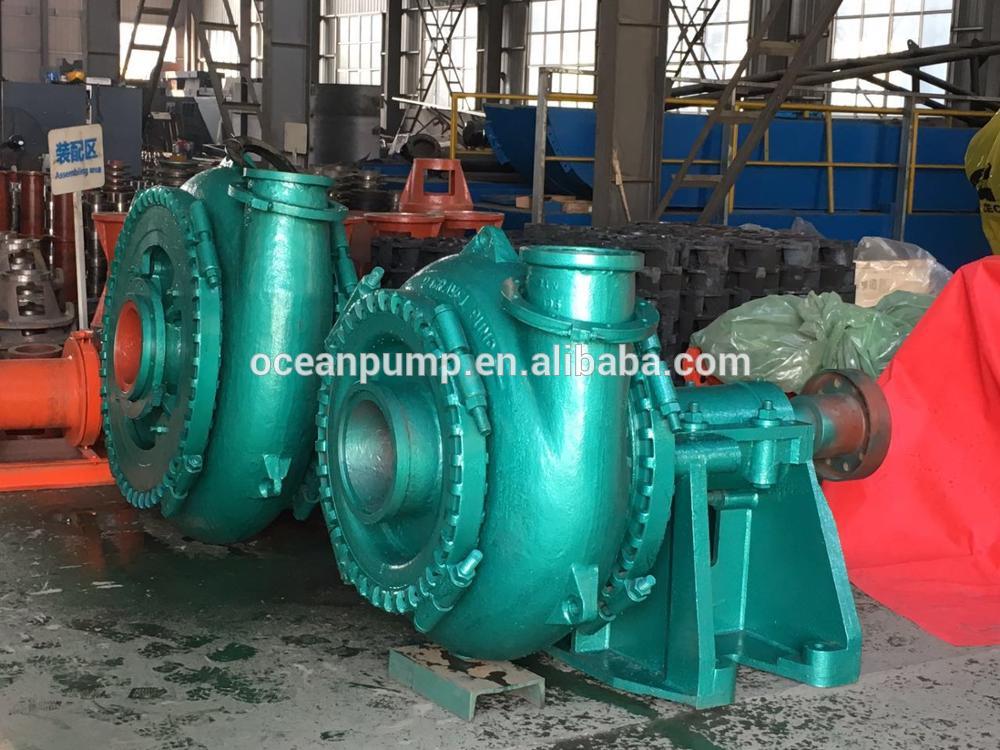

Pictures of product

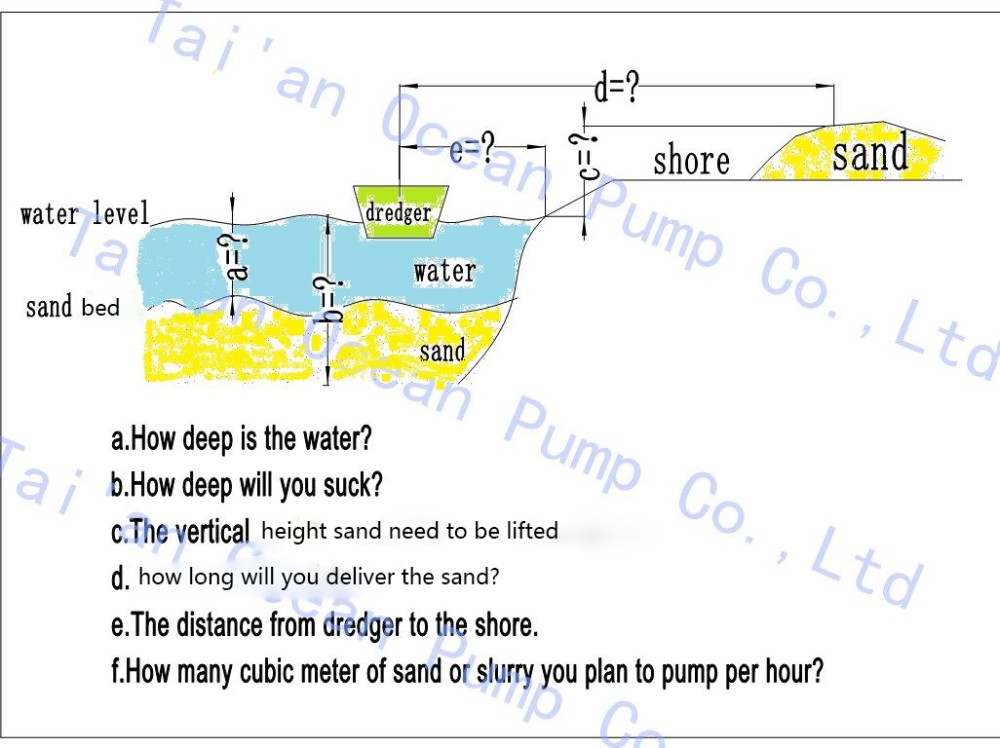

How to choose the suitable pump or dredger? This drawing will help you:
OCEAN Pump is the leading sand pump machine designer, manufacturer and exporter dedicated in supplying sand pumping equipment and dredging equipment to worldwide customers. We have more than 30 talented sand pumping experts and 15,000 square meters factory. More than 4 series 20 kinds of sand pumps, slurry pumps, gravel pumps, sand dredgers and related parts had been manufactured to satisfy your pumping requirements. Our main products include simple sand pump, slurry pump, gravel pump, submersible slurry pump, dredge pump, mining pumps, sand dredging pumps, small dredging equipment, dredger, dredger ship, submersible dredge, suction dredger, cutter dredger, mechanical cutter suction dredger, hydraulic cutter suction dredger, dredging equipment, sand pipe, floater, rubber hose. Product innovation and customer satisfaction are our continuous commitment to all our partners. We had been provided professional pump solutions and services to over 60 countries. Hope to become your pumping partners.
One Stop Solution
for All Your Sand Pump and Dredger Requirements
OCEAN Pump had been manufacturing and exporting sand pump machines since 1997.
Why Choose Us ?
We have an excellent development, production and service team.
(1) Well trained are able to answer all you inquiries in English of course.
(2) Our experienced shipping coordinators can help you to solve delivery issues.
(3) Our professional workers will produce the perfect products to meet your request.
(4) Payment:30%TT deposit and 70%TT for balance before shipping .
(5) Your business relationship with us will be confidential to any third party.
Q1. How long is the delivery time?
A1: 10 working days after received the deposit.
Q2. Are you a trading company or a manufacturer?
A2: We are both trading company and manufacturer.
Q3. What is your payment items?
A3:T/T, L/C, Western Union, MoneyGram and other items.
Q4. Can you arrange the shipment ?
A4: Sure, we have our own ship agent, and we have advantage shipment price.
Q5. What is the warranty?
A5: 12 months (not including the normal wear of the pump quick wear parts)
Q6: What is the package ?
A6: Nude or standard wooden package .
