puffed sinking floating fish feed extruder

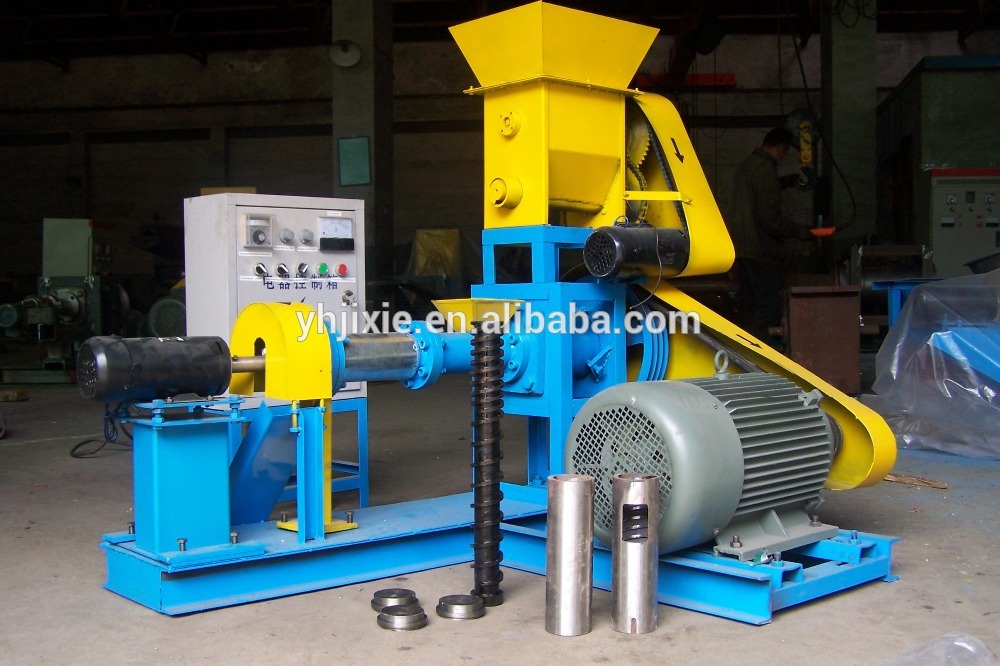

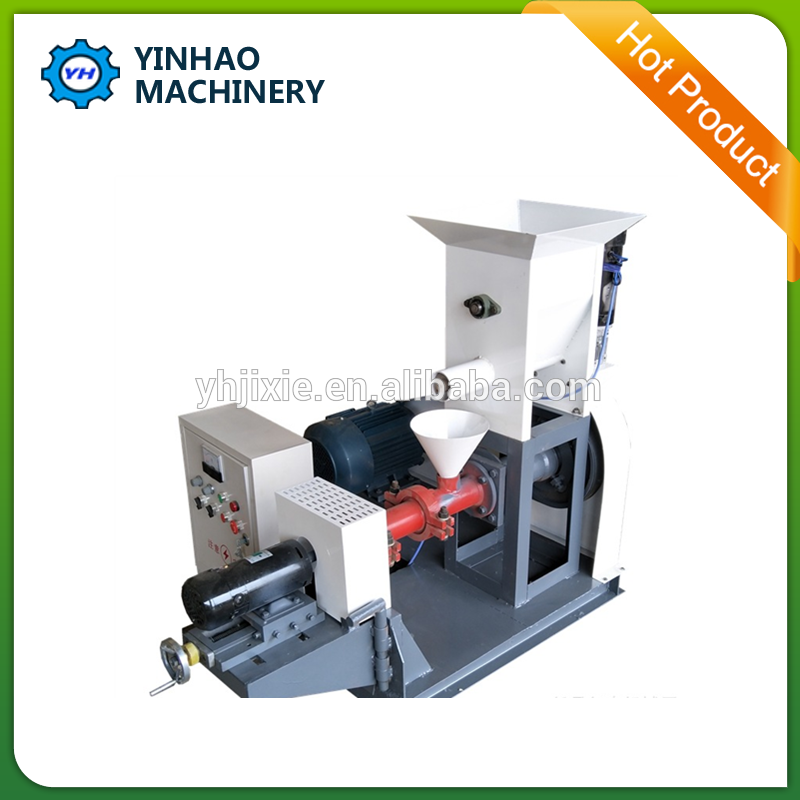

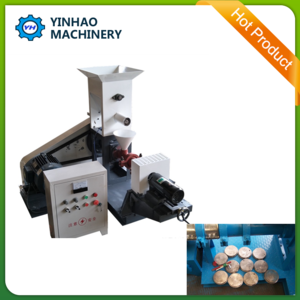

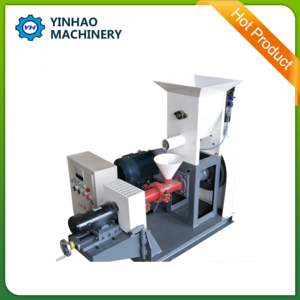

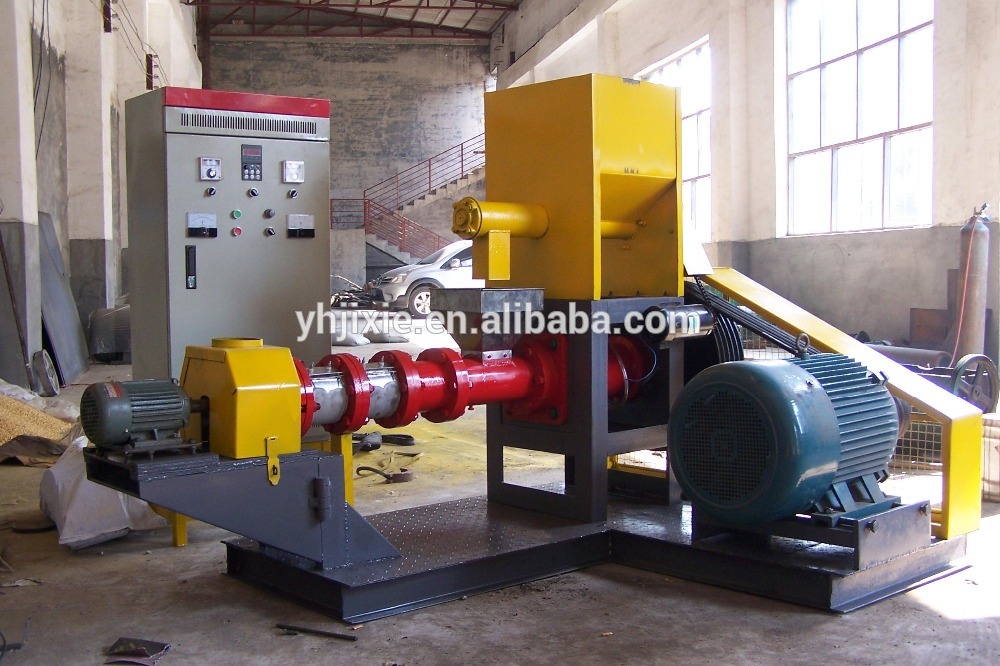

Introduction for puffed sinking floating fish pellet extruder
It is widely used for producing maize flour, soybean flour or compound powder, wheat bran into high grade aquatic feed pellets for fish, catfish, shrimps, dog,.cat etc. The puffing fish feed pellets can float on the water surface for over12 hours without water polution. According to your requirement and production scale, floating fish feed machine can be classified into dry type machine and wet type machine.
Working principle for fish feeding machine
After the material is sent into feeding device, they will be extruded and expanded by the screw shaft with high pressure and temperature which makes the raw material fully cooked and sterilized. Then the expanded material will be formed into pellets by shaping mould. You can change different moulds to make pellets with different diameters. After that a cutting device will cut the formed pellets into different length as required.
Features for puffed sinking floating fish pellet extruder
1.According to different requirements, variety shapes of high-grade feed pellets for fish, shrimps .etc

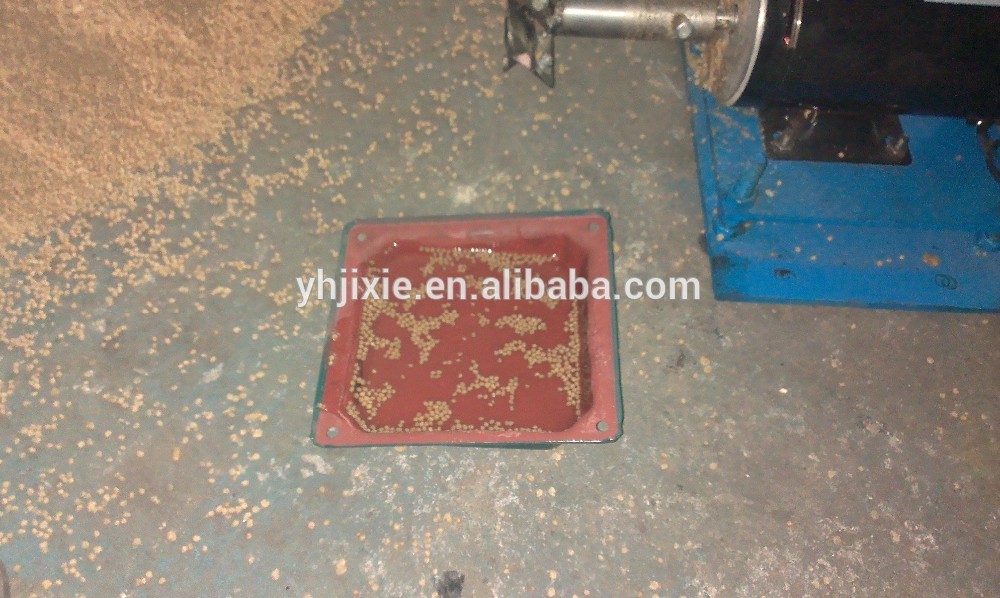

2.The finished pellets can keep floating for 12 hours without pollution to water.
3.The floating time can be controlled by the puffing degree adjustment

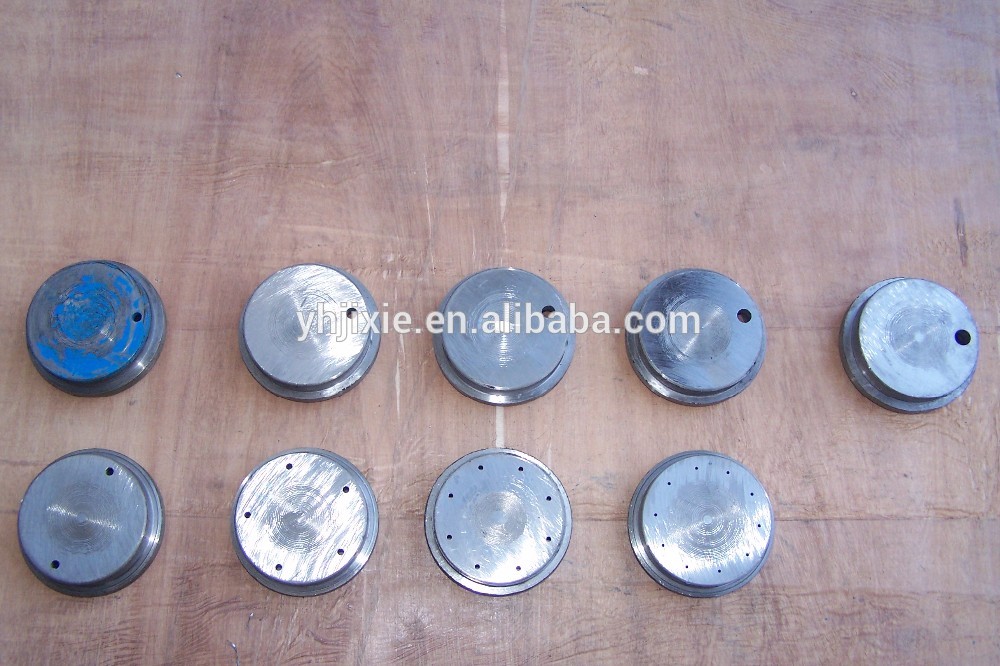

4.Floating fish feed machine can make pellet from diameter 1mm-12mm just by changing the mould.
5.Electric heating device is adopted which can improve the feed expansion rate and pellets floating time.
6.High temperature and high pressure cooking process can kill the salmonellosis and bacterial infections and also makes the pellets easily to digest.
7.The cutting device can be adjusted to make pellets of different length.

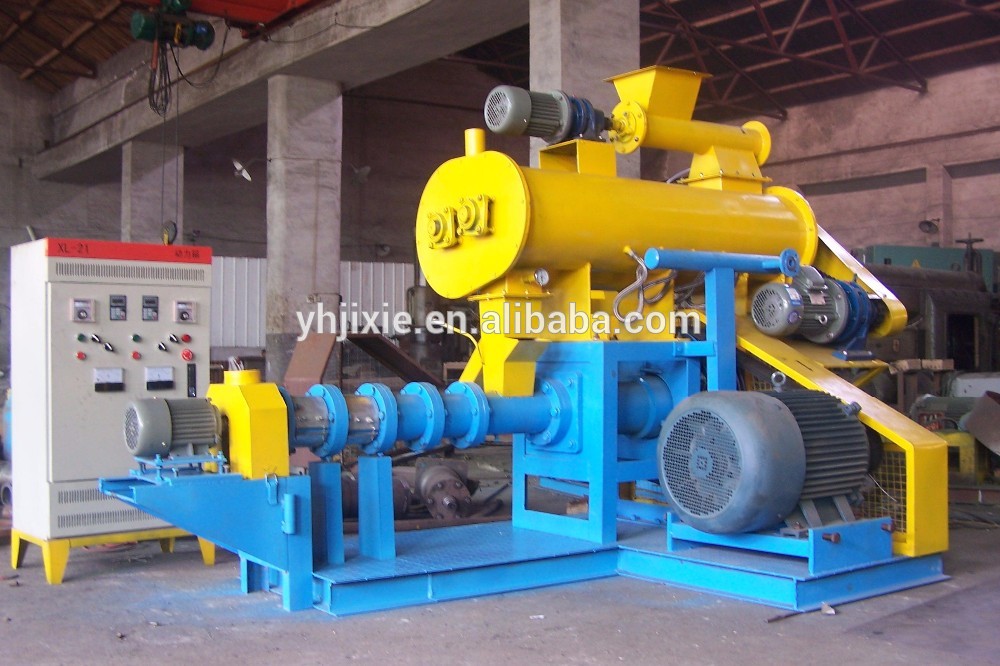

8.The wet type machine needs a boiler to make steam which can conduct steam to the conditioner and ripen the raw material in advance.
Complete flow chart for puffed sinking floating pellet extruder
Raw material preprocessing--crushing--mixing--extruder--cooler--dryer--flavoring
Technical datas for puffed sinking floating pellet extruder
Model | Capacity kg/h | Motor Power kw | Cutting Power | Screw Diameter |
YHFP50 | 60-80 | 11 kw | 0.4 kw | 50 mm |
YHFP60 | 120-150 | 15 kw | 0.4 kw | 60 mm |
YHFP70 | 180-250 | 18.5 kw | 0.4 kw | 70 mm |
YHFP80 | 300-350 | 22 kw | 0.4 kw | 80 mm |
YHFP90 | 400-450 | 30 kw | 1.1 kw | 90 mm |
YHFP120 | 500-700 | 55 kw | 1.1 kw | 120 mm |
YHFP135 | 800-1000 | 75 kw | 1.1 kw | 133 mm |
YHFP160 | 1200-1500 | 90 kw | 1.5 kw | 155 mm |
YHFP200 | 1800-2000 | 132 | 1.5 | 195 |
1,What is the raw material for making fish feed pellet?
The raw material can be corn flour, wheat meal, bone meal, meat meal, fish meal, etc. All can be sued for making fish feed pellet. the size should be 60-80 mesh.the moisture should be 20-25%
2,What is the size of the final fish feed pellet?
The fish feed pellet is 1-12mm size, you can choose the size you need , with differnet moulds , you can make different sizes of the final pellets .
3, The fish feed pellet machine is a single machine or a complete production line?
It is depend on your needs . if you need the small capacity , one or two machines are ok for you , if you need big capacity , you need a produiction line . you can choose machines as you need .
4, What is the production chart for the whole production line?
the production line is goes as follows: material crushing----mixing----making pellets---pellets flavoring----pellet drying----pellet packing.

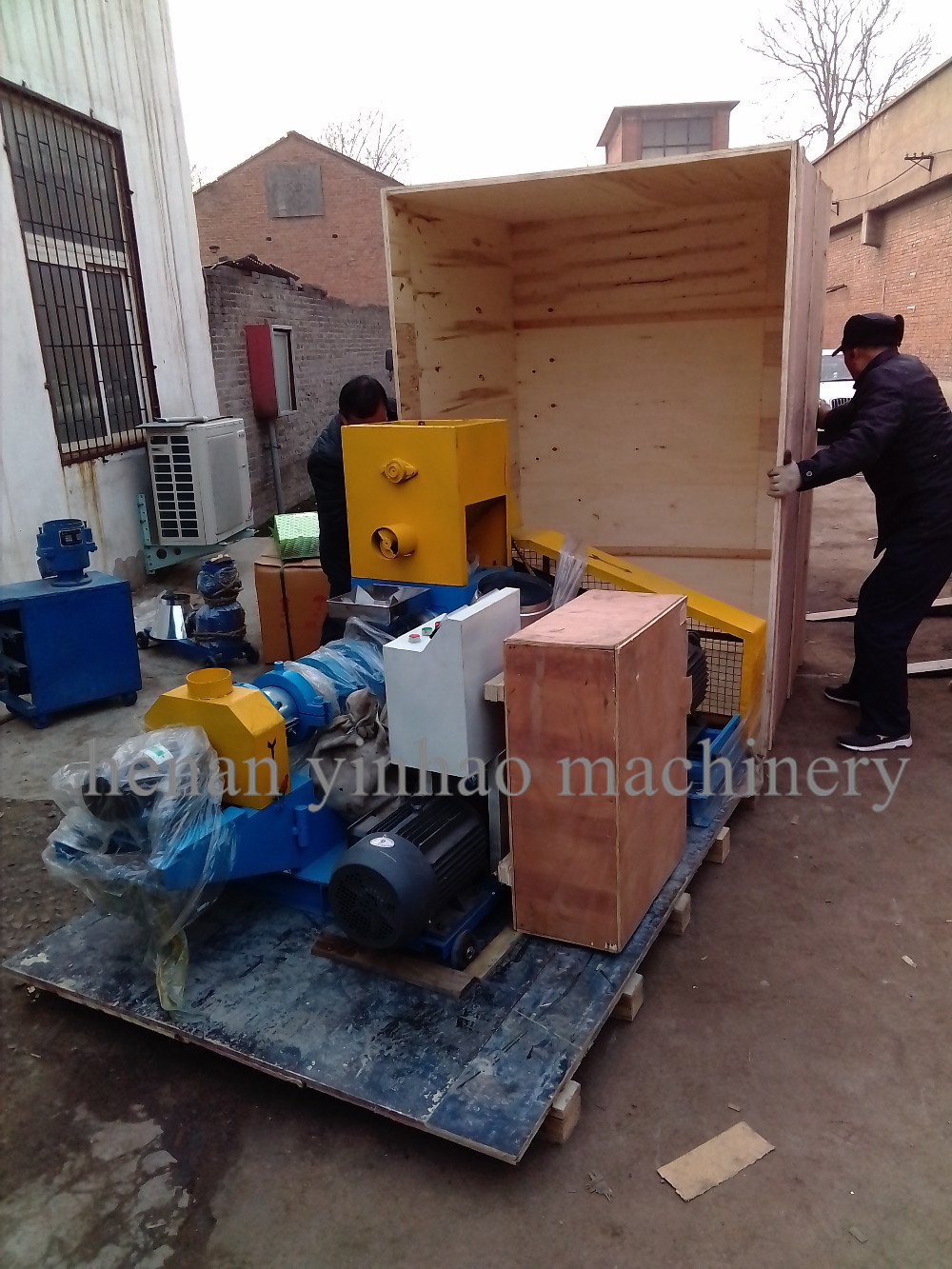

5,What is the delivery time of the fish feed pellet machine?
Usually the single machine can be sent within 7days days after getting the deposit. for the production line ,it takes about 10-15 days for the production .
