Auxiliary system advantages:

1.Complete new auxiliary systems.

2. Auxiliary systems equipment selection of leading brand and imported brand equipment.

3. The auxiliary systems are long service life, high-performance, high-quality, low-loss.

4. Stainless steel fittings materials are all adopt SUS304/316, applicable beer equipment to ensure the safety of food grade.

5 electrical accessories reach CE export standards.

6. Various auxiliary systems role in the whole equipment system, supporting reliable (available free matching).

7. Supporting auxiliary system voltage and frequency match exactly.

8. Stable quality, superior performance, strict quality control.

Product Description:

Configuration Details:

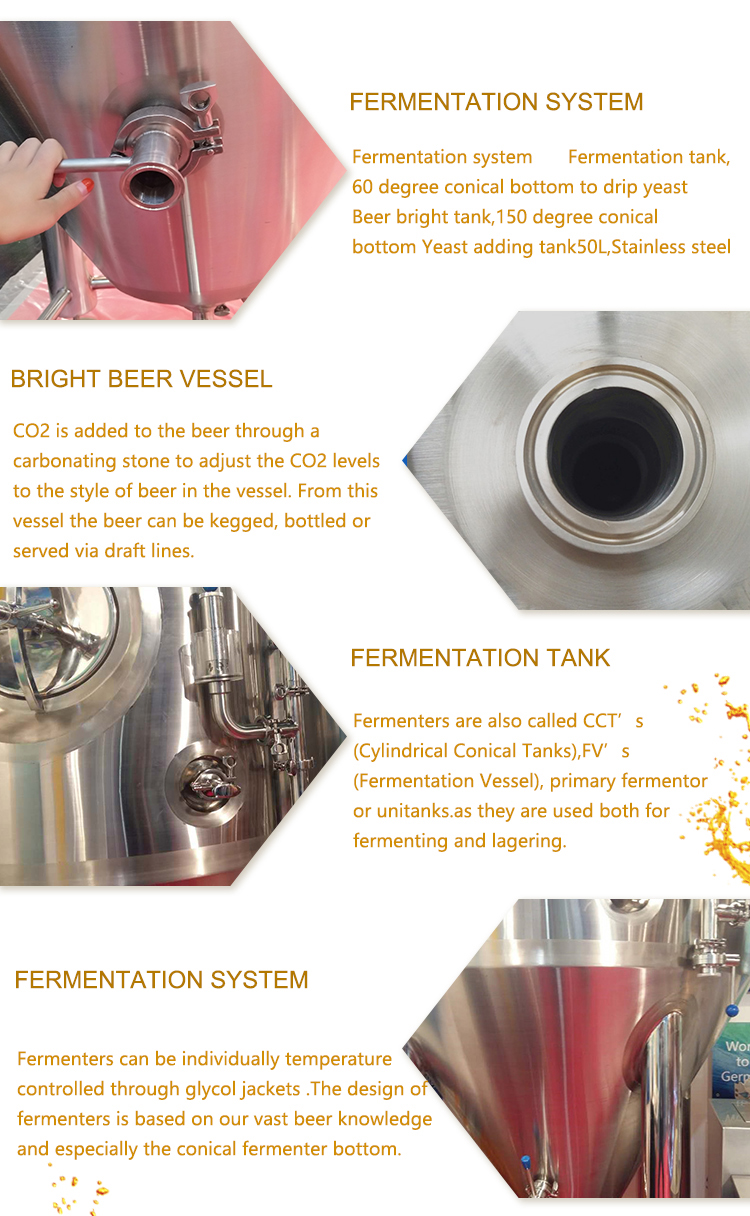

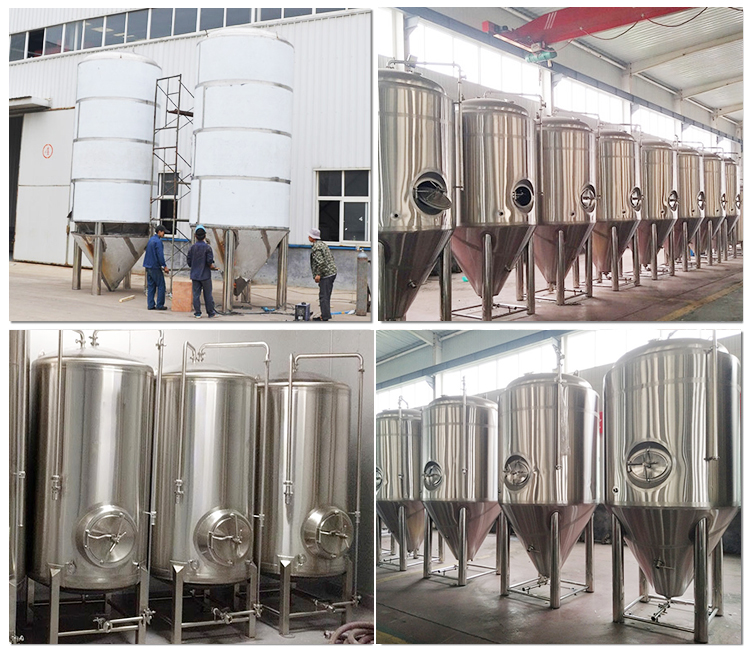

Fermenters are also called CCT’s (Cylindrical Conical Tanks),FV’s (Fermentation Vessel), primary fermentor or unitanks.as they are used both for fermenting and maturation.

Fermenting is the process during which the yeast transforms the wort into beer.

Maturation takes place after fermenting and is the time given to the beer to stabilize and age after fermenting.Fermenters can be individually temperature controlled through glycol jackets .The design of fermenters is based on our vast beer knowledgeand especially the conical fermenter bottom.We combine fermentation and maturation in the same vessel s very important.When calculating your fermenting and storage capacity and configuration sufficient time for fermenting and storage to produce quality beers must be taken into consideration.

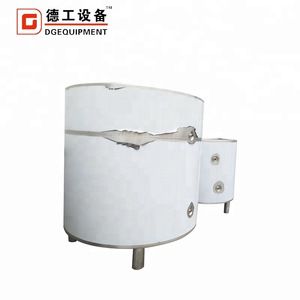

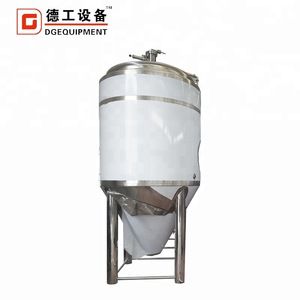

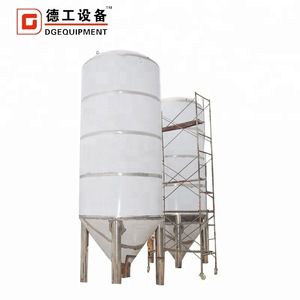

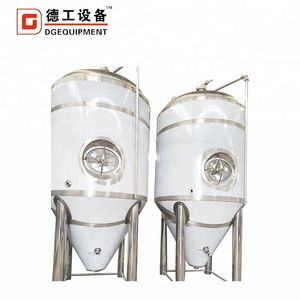

Fermentation tank:

1. 60 or 72 degree cone bottom to drip the yeast.

2. 3-sections cooling jackets. There are two sections on the cylinder and one section on the conical bottom.

3.Thd cooling medium is glycol.

4. inner thickness is 3.0mm,the outer thickness is 2.0mm,the external jacket is 1.5mm.

5.The jacket design pressure is 0.3mpa,the working pressure is 0.12-0.15mpa

6.dished head,breathing valve,cleaning ball,L pipeline,pressure gauge,machanical safety valve,  thermomer, sample valve, temperature sensor, butterfly valve,pipelines, pipe surport

Applications:

To make the best beer possible, the brewhouse is the key. On the basis of absorbing European
advanced and experienced beer machinery technology, Our Brew house can fulfill various brewing technologies, variable tastes or specific capacities.
10BBL | 20BBL | 30BBL | 40BBL | 50BBL brewhouse sizes are produced standardly, or even larger for customers. The Brew house can be heated with Steam, Gas fired, Electric etc. The system composed of Mash Tun , Lauter Tun, Brew Kettle, Whirlpool Tank etc. The four tanks can be combined together to meet different requirement of brew system.
All the tanks certified stainless steel material for all tanks, with 100% TIG welded joints and seams with sanitary interior polish. All tanks use Tri-clamp connections, are designed for up to 14.7 PSI and tested at 30 PSI.
We can custom fabricate any tank to meet your brewery’s space and height restrictions.

Our company has experienced managers, engineers, brewers, manufacturing, and other technical personnel with many years of practical experience. Our customers can choose from standard tanks and system designs, they can supply their own design, or we can customer design any tank or system you require.Complete planning, design, fabrication, installation and start-up support Affordable tanks, systems, controls and complete turnkey system designs.Evaluation of used equipment, field support, and troubleshooting Standard and custom engineering, designs and design packages for sale Piping, valves, glycol chilling, controls, electrical, and manifold system designs Steam and direct filed systems

After-service:

- Installation, commissioning

- 3 beer recipes.

- Winemaker Training.

- 12-month quality warranty

 Specifications

This beer equipment is used for small beer factory or hotel, restaurant.

This beer equipment is used for small beer manufacturer or hotel and restaurant.

It mainly contains the following equipments:

1. malt milling machine

2. saccharification system including the saccharification tank, boiling tank, lautering tank etc.

3. refrigeration system.

4. fermentation system including the fermentation tank, sterilization and lautering tank etc.

5. beer sales machine.

1.Packaging: Iron frame and wooden case or customized

2. Payment terms: T/T, L/C, Moneygram.

3. If the total amount paid one-off, it can be lower than the quatation.

4. Trade terms: FOB Qingdao /CIF/CFR.

5. Offer validity: the offer will be valid in 25 days.

6. Shipment method: by sea or suitable for your requirement.

7. Stock up period: within 40 days based on the capacity of equipment.

8. Conditions of payment: 30%, advance payment after signing the contract; 70%, after preparation of the equipment for shipment/ 3 days before  shipment.

 List some questions below we think you may want to know, if you have more doubts, we are right here to help you.

1. Can we visit your factory?

We do welcome our new and regular friends come here to have a visit. Besides,Wecan pick you up at the airport or the train station

2.If we donot know how to use the machine,can you teach us?

Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.

3.How about your after-sales service?

We offer you 24 hours service phone,skype or MSN.

4.How about your guarantee period?

One year and during the time,if you have  any questions ,we will solve it for free.

5.Q: What is your available port of shipment?

 A:Qingdao port,shanghai etc.

6.Q: Is customized available ?

A: Yes, according to your detailed drawings you provide

7.Q:Ask:how to install the machine ?

Answer:we can intrust the install the machine by vedio, email ,picture.....if large project , we can arrange the worker help you to install it in your country .

8.Q: How long is your delivery time?

A: Generally single tanks need 20-30 days,
