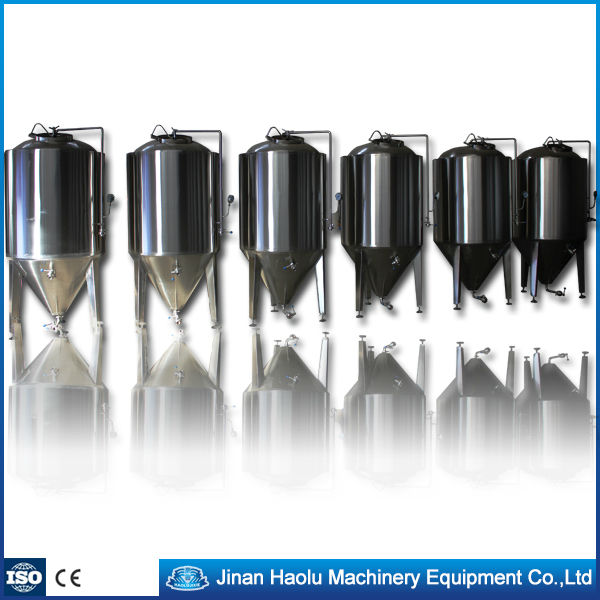

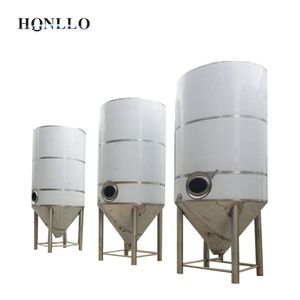

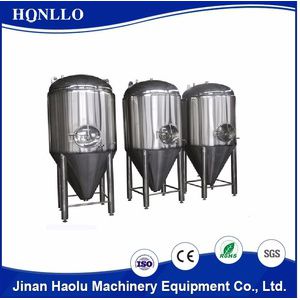

Micro beer home fermentor / fermentation tank

PRIMARY PARAMETERS

Processing

Fermenting Equipment, welded

Condition

New

Place of Origin

Shandong, China (Mainland)

Brand Name

HAOLU

Model Number

HL1000

Processing Types

beer ,juice ,beverage

Voltage

220V-380V

Power(W)

depends

Dimension(L*W*H)

User Requirements

Weight

1~5 Tons

Certification

CE ISO

Warranty

2 years

After-sales Service Provided

Engineers available to service machinery overseas

Materials

stainless steel 304

Type

beer conical fermenter

Capacity

100L-6000L

Thickness

3mm

Jacketed

with jacketed

DETAIL DESCRIPTION

Title

stainless steel home brew conical fermenter/micro beer home fermentor / fermentation tank

Product Description

mateial:stainless steel 304

Type:conical fermenter

Capacity:100L-6000L

Thicknessw:3mm

1. Usage

This Fermentation Tank( seed tank, crystallizing tank) is widely applied in beer fermentation,beverage, pharmacy, fine chemical engineering and biological engineering industries.

2.Constructure and advantage

1) The tank body has interlayer and heat-insulating layer (for heating, cooling or heat insulating) The tank body, upper and lower closure heads(or taper) all adopt spinning R-angle processing. The internal wall of the tank has got mirror polishing with finish Ra≤0.4μm.

2) It has no sanitary dead corner and its wholly-enclosed design ensures that materials are always mixed and ferment at non-pollution state.

3) It is equipped with devices including air respirator, cleaning ball, sanitation inlet, viewing mirror, and viewing lamp. The fermentation process of Pharmacy, fine chemical engineering and biological products is aseptic and untainted.

4) Fermentation tank adopts aseptic system which helps avoid microorganism pollution in the air and greatly extends quality warranty period and purity of the products. We specially designed and installed aseptic respiratory air hole or aseptic normal-pressure fermentation system, which can finish circulating heat-up and cooling through medium heat-up and cooling.

The parts that contact materials are all made of stainless steel SUS304 or SUS316L. Heat preservation adopts polyurethane blister or pearl cotton. External surface adopts sand grinding surface polishing treatment. All is in accordance with GMP standard. Volume has different specifications ranging from 100-50000L.

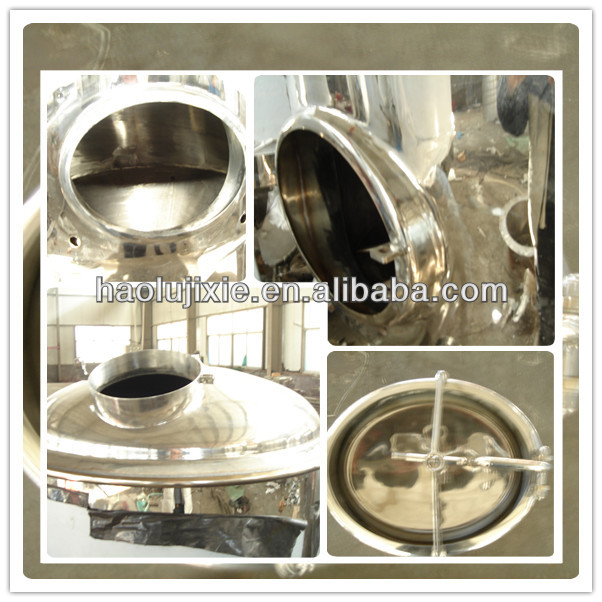

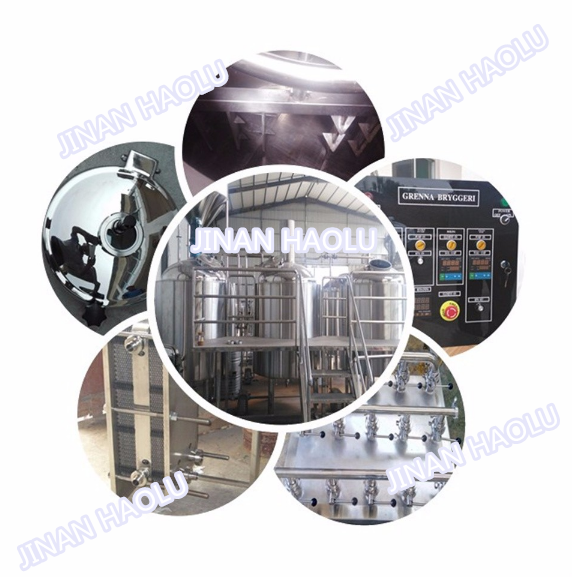

Production details

3.Technical parameter

Model and specification	100L	200L	500L	1000L	2000L	5000L	10000L	20000L	50000L
Diameter (mm)	400	500	700	900	1200	1500	1800	2300	3100
Height(mm)	2000	2300	2650	2900	3800	4480	5250	6550	8550
Pressure inside tank(Mpa)	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2
Pressure inside jacket(Mpa)	0.30	0.3	0.3	0.3	0.3	0.3	Pipe 0.3	Pipe 0.3	Pipe 0.3
Impeller number	2	2	2	2	2	3	3	4	4
Mixing speed (r/min)	400	360	265	220	180	160	145	125	110
Rotor power (r/min)	0.55	0.75	1.5	2.2	4	7.5	17	30	55
Cooling type	Jacket	tube

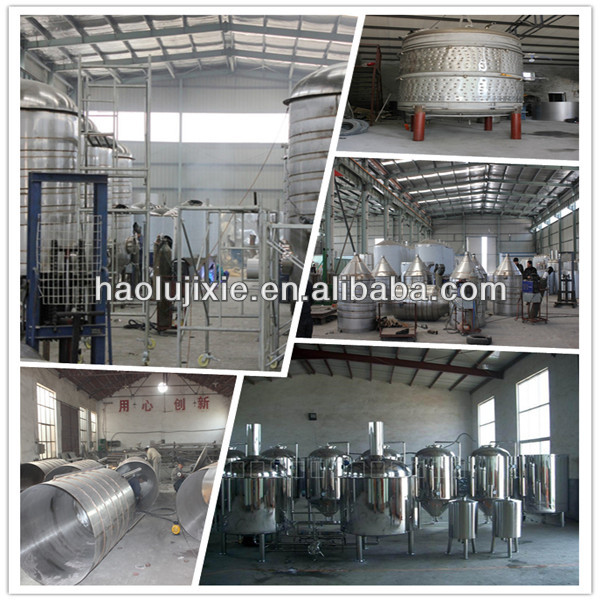

Production process:

Packaging & Shipping

Our Services

1).We dispatch our engineer to all the customers who need.

2).. Customer can ask for engineer dispatching service not only at installing,training and debugging, also at the whole working life of the machine we delivery.
3).The engineer will come to the agreed place at the confirmation of after-sale Department, and no longer than 10days after all the documents include Visa and airticket finished.
4). Customer will bear the cost of above document and daily life of engineer in oversea.
5). All the spare parts will be offered at the price confirmed by After-sale Department.
6). Spare parts will be sent out in 24hours after payment finished.
7). The spare parts are free offered in the warranty period of machine.
