Coupling stainless steel fermentation tank/ parallel fermentation tank Industrial fermentation tank, large-scale fermentation engineering, fermentation engineering,stainless steel fermenter, fermentation tank,fermentor,bioreactor,laboratory fermentor
Coupling stainless steel fermentation tank/ parallel fermentation tank use for test project of yeast, enzymes, microorganisms such as fungi and bacteria culture test.
Application
Screening of microbial fermentation medium
Optimization fermentation process parameters
Verification production process and bacteria

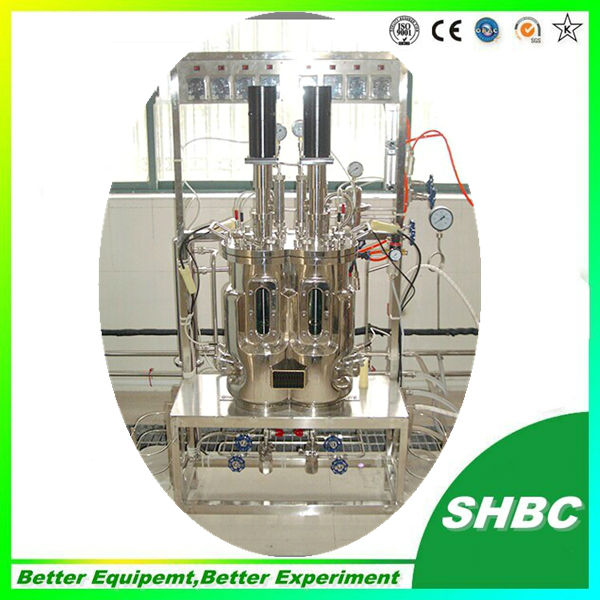

Coupling stainless steel fermentation tank is coupled with the same specifications of two fermentation tank. The middle parts are same but have separator. In addition to species barrier, the culture medium can move around each other. Each one has an independent control system.
Coupling stainless steel fermentation tank integrated design, compact, small space. Equipment exquisite, beautiful imported equipment can be rivaled. Three major components: 1. tank, 2.piping and 3.control system. Tank is SUS316L stainless, jacket is made by SUS304. Stainless steel polished precision Ra≤0.4 inside, Ra≤0.6 outside, equipment design, manufacture in accordance with GMP standards.
Model | CPFT-10L to 100L |
Size | 10L,15L,20L,30L,50L,70L,100L. Feeding volume:70% |
Combination | Multi fermentation system composed by two same specifications tanks. |
Tank | Diameter:Hight ratio 1:2to3, Tank made by SUS316L stainless steel. Jacket is SUS304 stainless steel. |
Stir | Mechanical seal, top mechanical agitation / magnetic stirring. Two straight blade impeller, a mechanical defoaming paddle, four baffle plates |
Inoculation | Flame protection act, vaccination pressure method |
Gas inlet | Rotameter + sterile filter + air distributor |
Exhaust | Stainless steel exhaust condenser |
industrial fermentation tank, large-scale fermentation engineering, fermentation engineering,
stainless steel fermentation tank,animal cell culture tank, desktop glass fermentation tank, plant cell culture tank laboratory fermenter, mini lab fermentation, bioreactor, bio fermentation,yeast,enzymes,microorganisms fermenting vessel, fermentor,small scale fermentation tank,pilot fermentation, industries fermentation, beer fermentation tanks, fermentation pot, fermentation reactor, glass fermentation jar, wine fermentation tank , stainless steel fermenter, fermenter tank, fermenter machine
Control parameters
Speed control | Intelligent automatic PID control, 10L, 20L rare earth DC + pulse width modulation transmission, variable speed, accuracy ± 5 ‰ 30L -100L Germany SEW gear motor + Fuji frequency transformer, variable speed, accuracy of ± 5 ‰ |
DO control | PID intelligent automatic control, imported Swiss electrodes and cables Measuring range: 0-150%, control accuracy: ± 3%. Resolution 0.1%, according to the fermentation process controlled by fermentation time sequence(DO automatic variable control, multi-segment), can associated control with speed, air flow, pressure, feeding and other parameters |
PH control | Intelligent PID automatic control, imported Swiss electrodes and cables, two peristaltic pumps. Display range: 0.00 to 14.00 ± 0.01, control range: 2.00 to 12.00 ± 0.02. Online detection, automatic alarm, automatically add acid/alkali solution by peristaltic pump pH value curve analysis, acid/alkali volume curve analysis, quantitative analysis batch report, The cumulative amount of acid/alkali added display records, Control the fermentation process by fermentation time sequence(pH automatic variable controller, multi-segment) |
Temperature control | Intelligent PID automatic control, thermostatic bath + PT100 temperature sensor + electric heating + solenoid valve range; cooling water temperature +3 -60 ℃, accuracy of ± 0.2 ℃, 0.1 ℃ resolution |
Feeding control | Air ratio control switch can be set to 1-100%, automatic flow and measured. Supplement feeding amount curve analysis, the amount accumulated, display records, save of batch reports analyze. Control the fermentation process segment by fermentation time sequence(automatic feeding variables, multi-segment) . Dedicated pins and needles feeding sets, to ensure safe operation of feeding. |
Defoaming control | Intelligent PID automatic control, electrode detection, adding defoamer by peristaltic pump, sensitivity 100-100000Ω, can supplement quantitative and timing. |
Ventilation | Manual adjustment, the flow meter measure, ventilation 1: 1-2VVM |
Pressure | Manual adjustment, pressure gauge measure ,the range 0-0.2MPa |
Sterilization | Manual adjustment, the program assisted sterilization, sterilization reign / off-site. |
Control system | Based on the German scene controller S7-200 Siemens programmable logic controller series as the core. Imported 5.7 "true color touch screen. Independent control software, matte stainless steel control cabinet. Data processing can be performed and the curve displayed. Data A / D or D / A conversion, data capture to display, each control loop tuning PID operation and setpoint control, timing control and host communications. |
Exhaust | Stainless steel exhaust condenser exhaust |
Optional Parameters
Function | PC remote control Automatic sterilization Exhaust O2, CO2 detection Oxidation-reduction detection Automatic ventilation Automatic tank pressure Tank weighing Feeding weighing |
Product | Size |

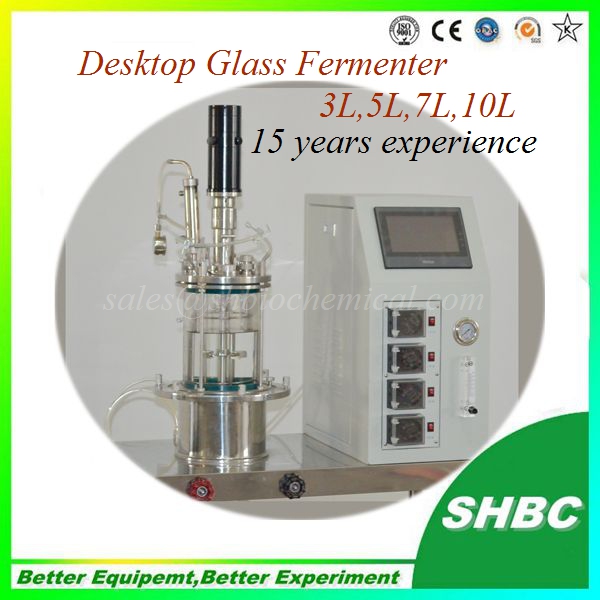

3L, 5L, 7L, 10L | |
3L, 5L, 7L, 10L | |

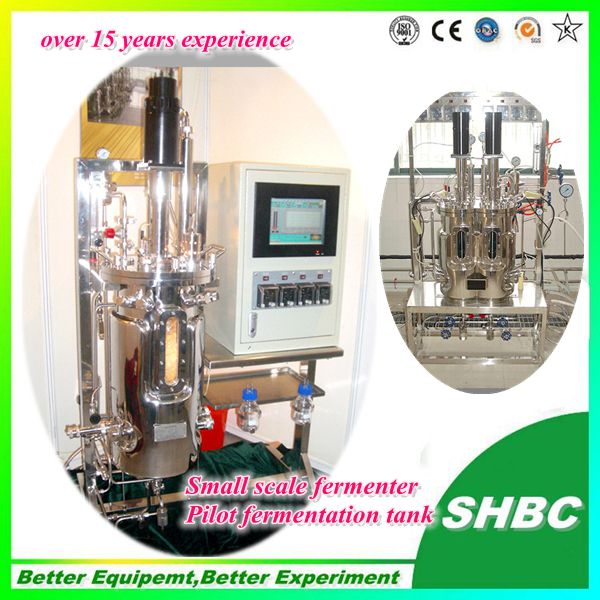

10L, 15L, 20L, 30L, 50L, 70L, 100L, 200L, 300L, 500L | |
Two-union stainless steel fermentation tank | 10L, 15L, 20L, 30L, 50L, 70L, 100L |
3L, 5L, 7L, 10L | |
3L, 5L, 7L, 10L | |

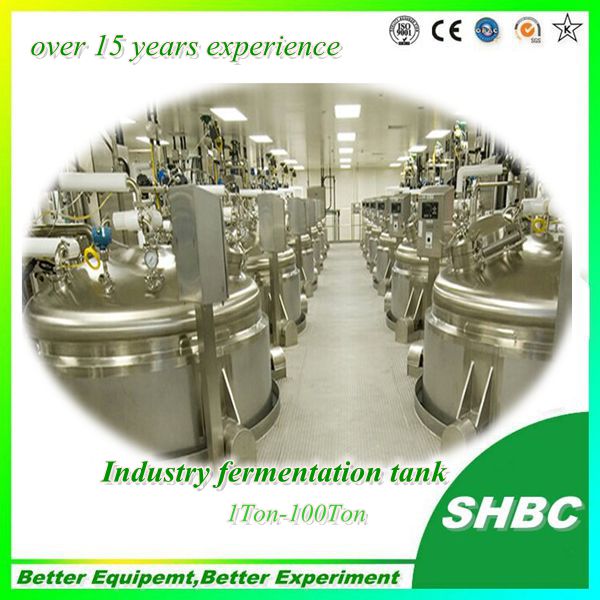

Fermentation Engineering | 1ton-100ton |
industrial fermentation tank, large-scale fermentation engineering, fermentation engineering,stainless steel fermentation tank,animal cell culture tank, desktop glass fermentation tank, plant cell culture tank laboratory fermenter, mini lab fermentation, bioreactor, bio fermentation,yeast,enzymes,microorganisms fermenting vessel, fermentor,small scale fermentation tank,pilot fermentation, industries fermentation, beer fermentation tanks, fermentation pot, fermentation reactor, glass fermentation jar, wine fermentation tank , stainless steel fermenter, fermenter tank, fermenter machine

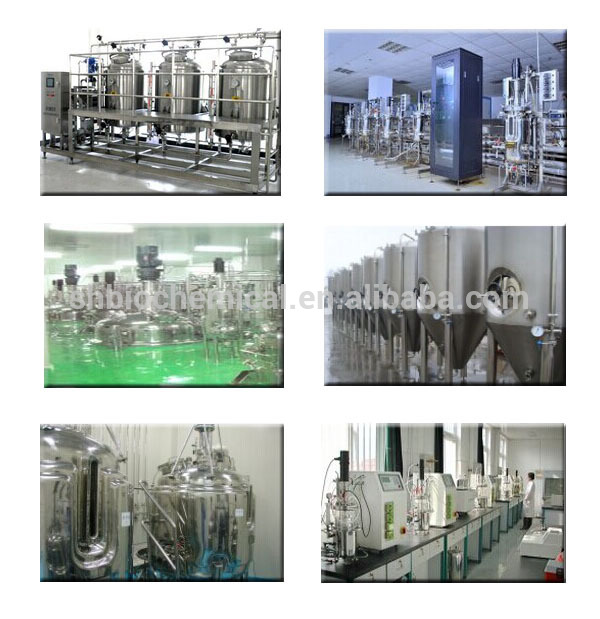

Successful cases
industrial fermentation tank, large-scale fermentation engineering, fermentation engineering,stainless steel fermentation tank, animal cell culture tank, desktop glass fermentation tank, plant cell culture tank laboratory fermenter, mini lab fermentation, bioreactor, bio fermentation,yeast,enzymes,microorganisms fermenting vessel, fermentor,small scale fermentation tank,pilot fermentation, industries fermentation, beer fermentation tanks, fermentation pot, fermentation reactor, glass fermentation jar, wine fermentation tank , stainless steel fermenter, fermenter tank, fermenter machine
Q: What’s your MOQ?
A: 1 unit
Q: Do you accept special order?
A: Yes, we do and keep secret.
Q: Can you make a design for us?
A: Yes.
Q: Do you provide after sales service?
A: Yes.
Q: Have warranty or not?
A: Yes, 1 year international warranty.
Q: Can you guide for installation and come to installation place?
A: Yes.
How to Place an Order ?
Step1 : Getting inquiry
Step2 : Design based on details provided
Step3 : Confirmation design layout
Step4 : Make quotation
Step5 : Quotation confirmation
Step6 : Shipping notice
Step7 : Getting the freight and balance
Step8 : Shipment
Step9 : After-sale service
industrial fermentation tank, large-scale fermentation engineering, fermentation engineering, stainless steel fermentation tank, animal cell culture tank, desktop glass fermentation tank, plant cell culture tank laboratory fermenter, mini lab fermentation, bioreactor, bio fermentation,yeast,enzymes,microorganisms fermenting vessel, fermentor,small scale fermentation tank,pilot fermentation, industries fermentation, beer fermentation tanks, fermentation pot, fermentation reactor, glass fermentation jar, wine fermentation tank , stainless steel fermenter, fermenter tank, fermenter machine
Our Advantages:
1. Factory sales equipment.
