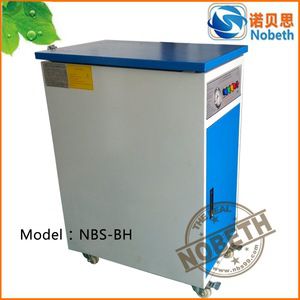

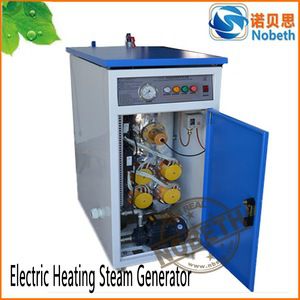

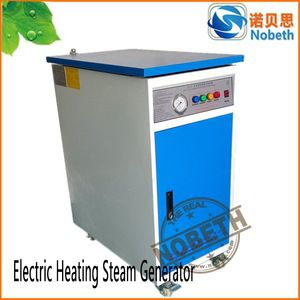

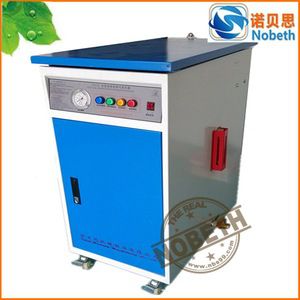

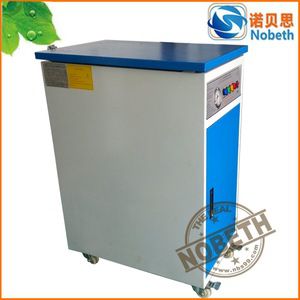

small size move easy electric steam generator for fermentor
1.Checking automatic high or low level water, can prevent heating without water.
Protect safe and also can extend the service life of the hearing pipes and boilers
2.High safe multiple automatic control circuit, along with not normal detection system is easy to operate.
It can be used after 8-10 minutes warming
3.Have universal wheel with brake, easy to move freely
4.Electric heating without seeing fire and security risks
5.Control the water level by mechanical float.
Pure water can be accepted
Certifications of product
Five security:
1. Stop heating automatically when reaching the setting temperature
2. Stop heating automatically when reaching the setting pressure
3. The safety valve relief automatically when the pressure reached the setting pressure
4. Stop heating automatically when there is no water in the tank
5. Stop heating automatically when stainless steel mechanical adjustable pressure
controller reached the setting pressure.

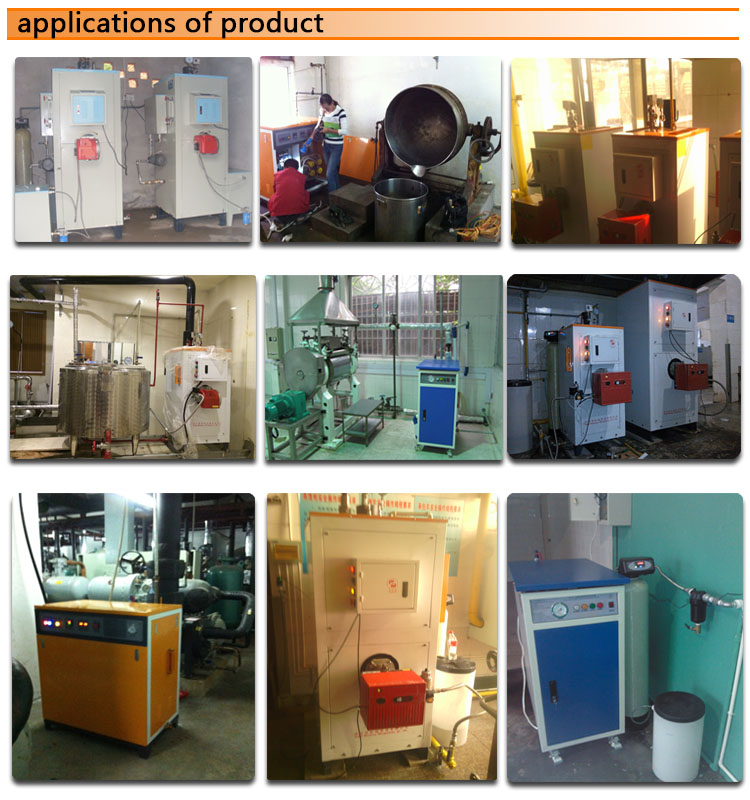

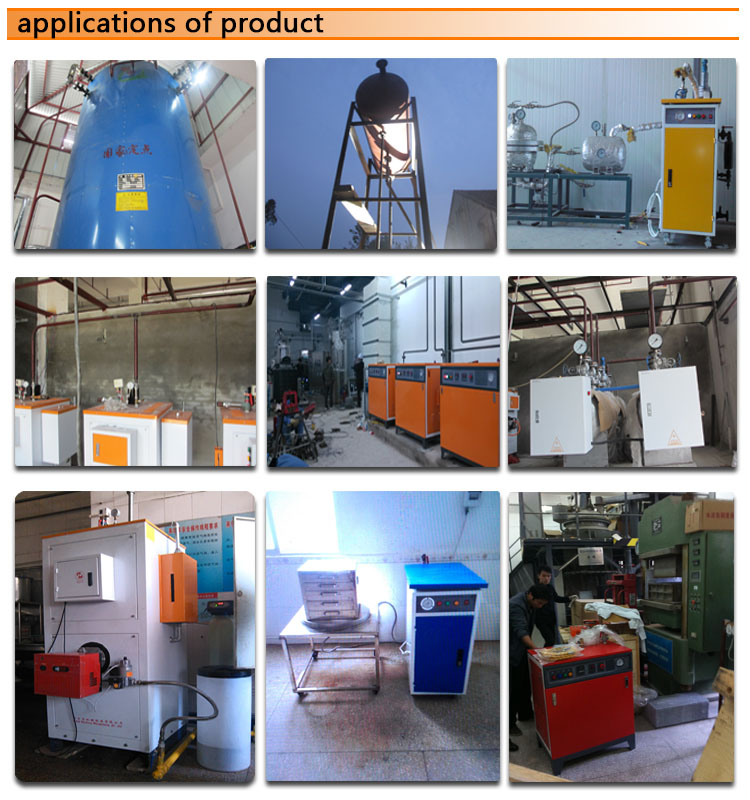

Applications of product
1. medical and pharmaceutical industry
2. biological and chemical industry
3. experiment and scientific research
4. restaurant and food industry
5. packing and machinery industry
6. clothing and washing ironing industry
7. railway bridge construction industry
8. industrial equipment
1. civil: steam soya-bean milk, snack and other soups, small washing clothes for ironing
2. industry use: small clothes factory, chemical production line using, food machinery
and equipment, medical machinery, chemical machinery, tea fermentation, ironing
hotel steaming meal, and so on.
3. lab use: laboratory with small KW steam generator, teaching experiment
4. hospital use:disinfect medical machine and medicine, and so on
model | NBSBH48 | NBSBH54 | NBSBH60 | NBSBH72 | NBSBH90 |
power(KW) | 48 | 54 | 60 | 72 | 90 |
rated pressure(MPA) | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 |
rated steam capacity(kg/h) | 65 | 75 | 83 | 100 | 125 |
Saturated steam temperature(℃) | 171 | 171 | 171 | 171 | 171 |
Envelop dimensions(mm) | 870*630*1160 | 870*630*1160 | 870*630*1160 | 870*630*1160 | 870*630*1160 |
Six major advantage of the steam generator
1. Boiler tank design: inner tank is designed in according with 10 years of service life
Steam storage space is more 30% larger, pure steam without water
Thermal efficiency is above 98%, 100% pure steam.quadruple security system
2. Custom by customer needs, meet customer request in according with the highest technical
Professional technical team, custom by usage request (High pressure, anti-explosion,
no dirty design, digital-display flow, power speed can be infinitely adjusted,
charging movable generator, Foreign voltage, electricity and oil dual-use boiler,
biomass ethanol boiler, 24V safe voltage generator )
3. Use natural magnet full copper ball float level controller, which is anti-oxidative and
regardless of water quality, can prolong 2 times the service life, to recycle remaining heat,
save power more than 30%
Safety: Electric heating without seeing fire and security risks
Energy saving: Thermal efficiency is above 98%, fast warming, can be used about 8 minutes
Environmental protection: Zero emissions, zero pollution
4. Appearance design: Fine structure, easy to install and move
Have universal wheel with brake, complete machine delivery, can be operated freely if
no professional person
5. Use soften water and pure water, can extend more 3-5 years service life of the boiler,
save power over 50%
Soft water: The hardness of water is less than 8 degrees called soft water
(Does not contain or contain a very small amount of calcium and magnesium compounds )
Hard water: The hardness of water is more than 8 degrees called hard water
( Contains more calcium and magnesium compounds)
Hard water will affect the detergent effect; High hardness boiler water will be very dangerous,
it will not only waste fuel, but also will produce more scale in the boiler tank and heating pipe
6. We have a strong product R&D team and production capacity, products are exported
all over the world
We have our own R&D team, mastered the core technology of steam generator,
have 15 years experience of technical research and development production

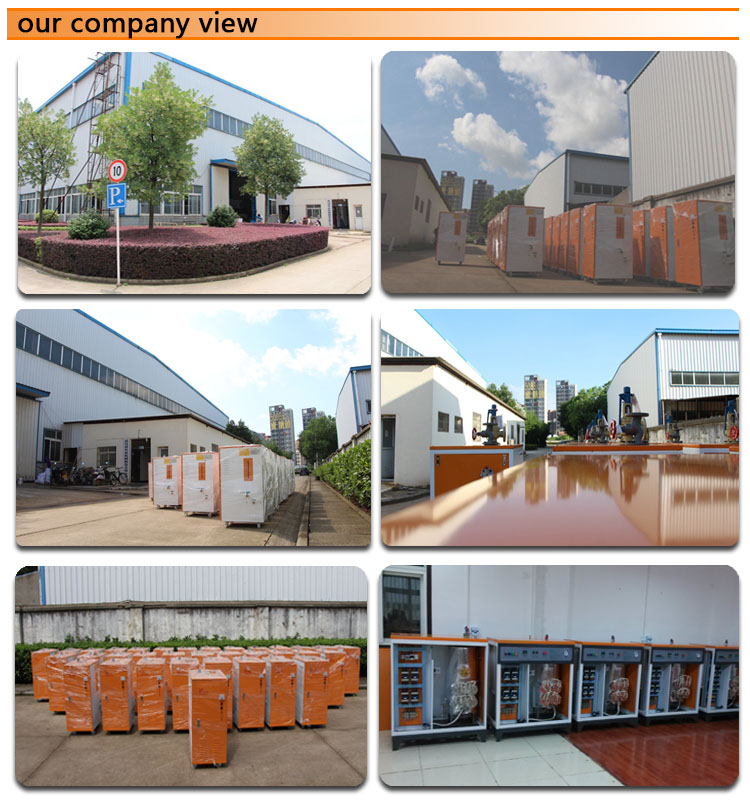

Our company profile:
Wuhan Nobeth machinery manufacturing co., ltd. is a industrial equipment company, approved and registered by the relevant departments of the state registration. it is the steam generator and pressure kettle leader of research and development, design, produce, sale and service. Located in the capital city of Hubei Province-wuhan city. nearing the industrial park, technology park, and universities, Nobeth work hard to supply better technology, better quality product, for best humanization, diversification, intelligence, internationalization.
Nobeth is the one of the first batch manufacturers of obtaining special equipment manufacturing license in Hubei Province(license number: TS2242185-2018).Since beginning, we have the professional and independent R&D team. With geographical advantages, we cooperated with the Huazhong University of Science and Technology, Wuhan University, Wuhan University of Technology and other famous universities. we have developed by ourselves more than 10series including more than 200kinds of products: full automatic electric heating steam generator, electric circulating hot water heat transfer equipment, chemical reaction kettle, full automatic gas steam boiler, full automatic fuel steam boiler, environmental protection type Biomass pellet boiler, high temperature and high pressure steam cleaning equipment, high temperature and high pressure steam medical disinfection pharmaceutical equipment.
On the basis of studying the advanced technology of European, combining with the actual situation of Chinese market ,we get a number of national technology invention patents, are also the first one that got the GB/T19001-2008/ISO9001:2008 international quality management system certification. Our recent development of oil and electricity dual-purpose type electric heating steam generator, full automatic computer control of PLC steam generator, antifreeze electric heating steam generator, fill the vacancy of domestic industry. It provides safe, convenient, reliable thermal energy for the biological pharmaceutical machinery industry, the school scientific research , the industrial chemical industry, the cleaning industry, the coal oil industry, the food machinery industry, the washing ironing industry and hotel, railway bridge construction.
“One button, fully operation” is the customer service concept of nobeth , from the user's needs, the user's status. On the basis of assuring the safety performance of the machine, it save the human, reduce production costs. We are insisting "customer first" principle, better to meet customer needs. Each Nobeth customers grow up Nobeth brand.
Nobeth --- with 361 degrees of enthusiasm, 6.0MPa move, best quality, provides heat source power for your success!
FAQ:
1. How can we fix after buy ?
our steam generator is sent out to u in whole machine.
You only need to connect water pipe and electricity, it is installed by our instruction. Easy for you.
2. Steam generator have four security safety to deal with safety problem
Safety valve protection
Pressure controller protection
Low water level controller protection
Leakage electric protection
3. How to delivery machine as big weight?
Machine have universal wheel with brake.
You can move it freely .
4. How many time will it have steam when open ?
About 8-10minutes.
Exhibiton:
Buyer know:
1. Do not use water from well, river and lake. because there are many minerals of these
untreated water. Although some water looks very clear without turbidity, after repeated
boiling in generator, the minerals in the water can cause serious chemical reaction and stick on
the heating pipe and water level controller, then bring troubles as below:
1) Too much dirt outside heating pipe will prolong heating time,increase power consumption
2) Too much dirt will decrease the service life of heating pipe
3) Too much dirt on the water level controller will cause trouble when using, may broke
the heating pipes
2. This machine should be operated by the certain people who is very familiar with the
instruction. Do operate as the notice on front of generator and use intruction
3. The machine must be on the ground
4. Check the power and add water to the water tank, before power on
5. Promptly release the steam and water in the boiler before power off, close power.
if not, the steam inside will become false gas after cooling, then the pressure will rise very
soon next day, but you will find it is water when opening the valve
6. Timely blow off dirty when using this machine, twice daily is the best.
Blowing off dirty should be with pressure 0.156MPA, so prevent clogging pipes. Pay attention
to the proper connection of the blow-off dirty pipe, avoid scald.
7. Using the machine in proper way will greatly increase the service life, also can save
electricity cost
8. Any technical questions, please contact us
