hot sale stainless steel tank vertical agitator motor mixer with fast dalivery
| TYPE | BIOTECH-1/2/3/7/10BG |
| Total Volume | 1/2/3/7/10 |
| Vessel | 316L Stainless Steel +Borosilicate Glass |
| Stirrer | Magnetically Driven(Cell lift impeller Marine Blade impeller pitched blade impeller for option） |
| Sterilization | In Autoclave |
| Basic Features | Temperature，RPM,PH,DO,Antifoam，Feed，Aeration，Pressure，4-Gas system |
| Advanced Features | Level，Weight Feed，Multi-Feeds，Mehanol&Ethanol，Exhaust O2&CO2 |
| Controller | BIOTECH-7000 Technical parameter | |
| Parameter | Guideline | Controller data processing function |
| pH | Displaying range: 0.00~14.00±0.01 Auto-control range:2.00~12.00±0.05 Fermentation process control (According to the fermentation time, auto- control pH fluent, at least10 parts) | pH value historical and trend curve analysis Acid, alkali dosage curve analysis Batch report form analysis Acid, alkali total dosage record Keep |
| Antifoam | Automatic PID control and alarm Fermentation process control (According to the fermentation time, auto- control antifoam fluent, at least10 parts) | Antifoam value historical and trend curve analysis Foam error state record antifoam total dosage record Batch report form analysis Keep |
| Rpm | Automatic enactment and control（50~1000rpm±5‰） Fermentation process control (According to the fermentation time, auto-control rev fluent, at least10 parts) | Rpm value historical and trend curve analysis Batch report form analysis Keep and deliver data |
| Temperature | Temperature of cooling water: +5℃-65℃±0.2℃ Fermentation process control (According to the fermentation time, auto- control temperature fluent, at least10 parts) | Temperature value historical and trend curve analysis Batch report form analysis Keep |
| Feeding | PID automatic enactment and control Fermentation process control (According to the fermentation time, auto- control feeding fluent, at least10 parts) | Feeding value historical and trend curve analysis Feeding total dosage record Batch report form analysis keep |
| Pressure | Manual control, instrument display | |
| Air flux | Manual control, instrument display |
| Performance parameter | ||
| Equipment | Item | Reqirements and manufacturers |

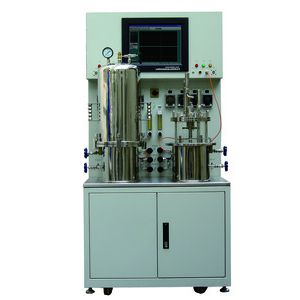

| . BIOTECH-5L reactor tank | reactor body | glass and strainless steel cylinder, 5L litres total volume, 2.5~4 litres working volume, sterilizable in situ, magnetic force stirrer |
| Aeration system | include pressure control valve, rotameter, aeration filter(0.2μm) | |
| Agitation system | bottom magnetic force stirrer, AC motor, ca.50~1200rpm，±1% | |
| Temperature control | double walled dished base for temperature control, cooling water temp.+5~65℃，±0.5℃ | |
| Anti foam control | antifoam probe check and add antifoam agent by one peristaltic pump | |
| Feeding control | feeding by one peristaltic pump，≥3.7ml/min | |
| pH control | PID control of two pumps to add acid or alkali, pH display range:0~14，±0.01, pH electrode: Swiss Mettler-Toledo | |
| DO control | DO display range:0~150%，±1, DO electrode: Swiss Mettler-Toledo | |
| Control system | The essential part of BOITECH-7000 consists of10.5”touch prainter and PLC. The standard display is used as showing interface and the keyboard and mouse can be used to operate. One controller can control 2~12 fermenters at the same time and the fermenters can work at the same time. Software: Siemens S7+ FORCE CONTORL Data collection and control module: S200 PLC controller and data collection and control module Driving relay: OMRON, Japan Electrical driver: Panasonic, Japan |
product list
1.fermenter 2.glass fermentor 3.bioreactor/GMP Fermentation tank 4.pharmaceutical fermentation 5.situ fermenter 6.industry pilot fermentor, 7.microbial fermenter 8.glass fermenter 9.Stainless steel fermenter 10.Multi-stage fermenter 11.Multi-couplet stainless fermenter 12.Airlift fermenter 13.Plant cell bioreactor(illumination) 14.Animal cell bioreactor 15.Solid fermentor 16.Enzyme Bioreactor 17.Vaccine Bioreactor 18.The bottom agitation bioreactor 19.Advanced Fermentor(weighing) 20.Production fermentation system 21.GMP standard fermentation tank 22.Mixing tank 23.Exhaust analyzer 24.Advanced analysis software 15.laboratory fermenter
2003, BIOTCH fermenter and control system was got the reward of “Trustworthy product of China”
2003, Patented for the auto-control photosynthetic culture of liquid, Chinese patent No. ZL03229738.6
2006, Patented for the automatically controlled reactor for solid-liquid reactions coupled with solid separation, Chinese patent No. ZL200620043429X
2007, Registered software copyright for Baoxing Ferment Process Control System V 6.0
2008, Project of the automatically controlled reactor for solid-liquid reactions coupled with solid separation gained Small and medium enterprise innovation fund
2011, Patented for Automatically Seed Germination Device, Chinese patent No. ZL200910094602.7
2012, Project of Automatically Seed Germination Device gained Small and medium enterprise innovation fund
2012.Registered trademark of Baoxing and Baoxing Biotech
2014, Patented Cell Culture Settling Device, Multi-layer Filling Bed Reactor, Centrifugal Lifting Rotate Device for Reactor.
2015, Certified of class I & II pressure vessel manufacturing.

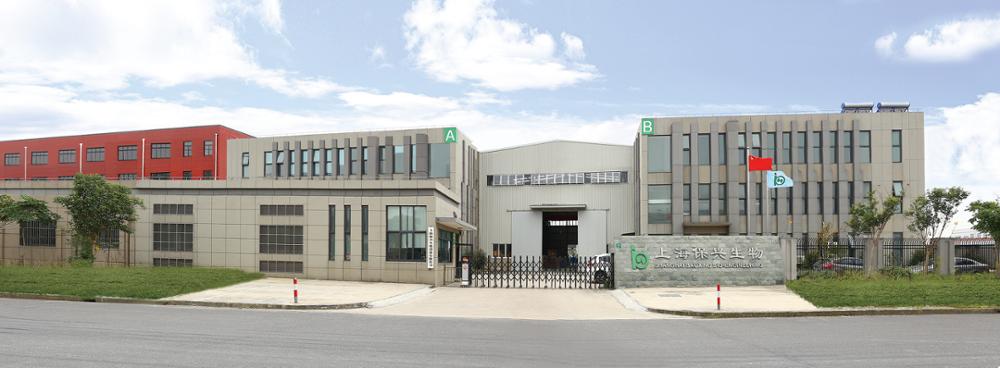

Shanghai Baoxing Bio-Engineering Equipment Co., Ltd.
Shanghai Baoxing Bio-Engineering Equipment Co., Ltd. (BXBIO) was found in 1997. BXBIO is an experienced manufacturer of bio-reactors (fermenter), bioprocess controllers and a provider of bio-engineering services. BXBIO and its engineering team with experience of designing and manufacturing fermenters devote themselves to studying, improving, and development of fermenters, the BIOTECH series fermenters and controllers have satisfied their users all over the world because of our advanced and high quality products and the satisfying, timely after services. The BXBIO products have been widely used in education, scientific research, bio-manufacture etc., and there are over 6 thousands BXBIO products working perfectly nowadays.
We offer produce list：1.fermenter 2.glass fermentor 3.bioreactor/GMP Fermentation tank 4.pharmaceutical fermentation 5.situ fermenter 6.industry pilot fermentor, 7.microbial fermenter 8.glass fermenter 9.Stainless steel fermenter 10.Multi-stage fermenter 11.Multi-couplet stainless fermenter 12.Airlift fermenter 13.Plant cell bioreactor(illumination) 14.Animal cell bioreactor 15.Solid fermentor 16.Enzyme Bioreactor 17.Vaccine Bioreactor 18.The bottom agitation bioreactor 19.Advanced Fermentor(weighing) 20.Production fermentation system 21.GMP standard fermentation tank 22.Mixing tank 23.Exhaust analyzer 24.Advanced analysis software 15.laboratory fermenter
Q: Are you Manufacturer of Trade company?
A: We are manufacture.
Q: Are you Fermenter is high tech, control -pH, DO, temparature,anti-foaming, aeration,SS316L?
A: Yes. And we have ORP and pO2 controller for customer option.
Q:Do you accept customize or OEM?
A:Yes.
Q: Warranty?
A: 1 year international warranty.
Q: How is the MOQ?
A: 1 unit.
Q: Do you have overseas installation service?
A: Yes.
Q:What can you produce?
A:1.fermenter 2.glass fermentor 3.bioreactor/GMP Fermentation tank 4.pharmaceutical fermentation 5.situ fermenter 6.industry pilot fermentor, 7.microbial fermenter 8.glass fermenter 9.Stainless steel fermenter 10.Multi-stage fermenter 11.Multi-couplet stainless fermenter 12.Airlift fermenter 13.Plant cell bioreactor(illumination) 14.Animal cell bioreactor 15.Solid fermentor 16.Enzyme Bioreactor 17.Vaccine Bioreactor 18.The bottom agitation bioreactor 19.Advanced Fermentor(weighing) 20.Production fermentation system 21.GMP standard fermentation tank 22.Mixing tank 23.Exhaust analyzer 24.Advanced analysis software 15.laboratory fermenter
