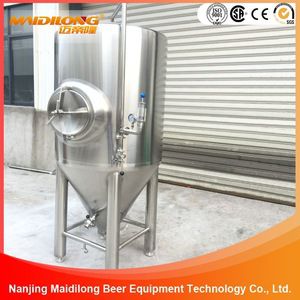

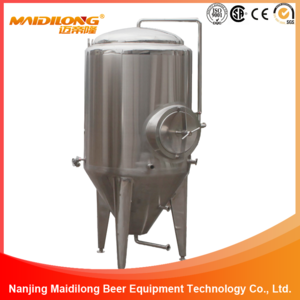

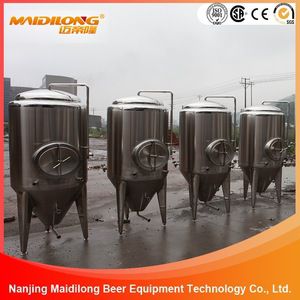

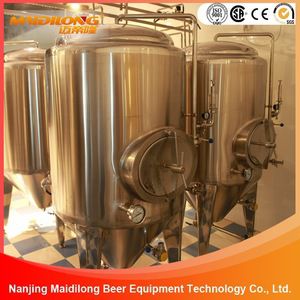

High Quality Vertical Food Grade Stainless Steel Beer Fermentor
System | Component | Specification | Quantity |

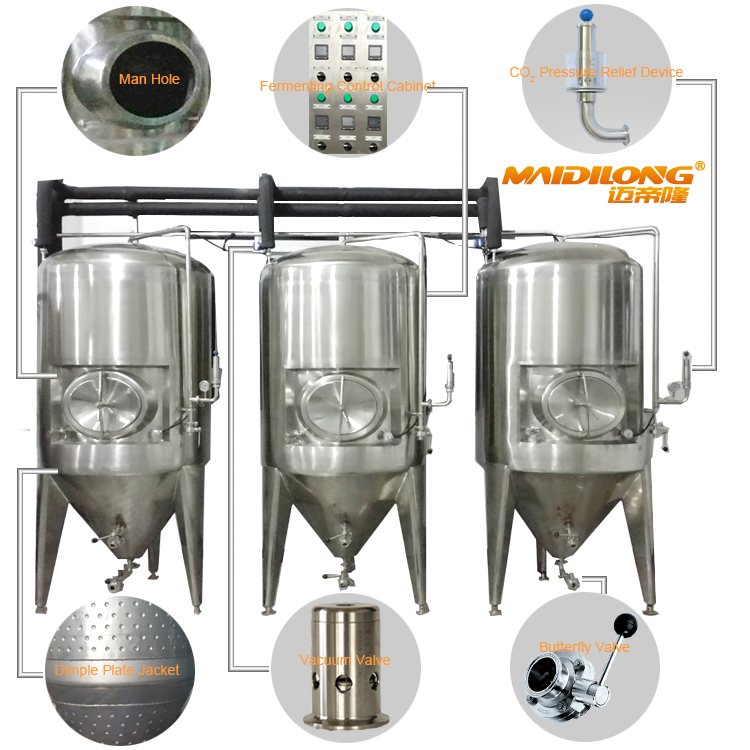

Fermenting System | Fermenter / Fermentation Tank | material: SUS304, dimension: Φ1450*3570mm, volume: effective 2000L, shape: dish top and 60° conical bottom, three layers thickness: interior 3mm, mirror polishing processing Ra≤0.4um sanitary standard, dimple plate jacket 1.5mm, insulating 75mm polyurethane, exterior 2mm matt. accessories: CIP cleaning ball, vacuum valve, butterfly valve, sampling valve, Pt100 persistence temperature gauge, | 1 set |
CO2 Pressure ReliefDevice | 0.02-0.3Mpa, watch fermentation intensity through adjustment of spring, diaphragm through hole. | 1 set | |
Fermenting Control Cabinet | dimension: 400X500X200mm, | 1 pc | |
Cooling Pipe Accessories | material: SUS304 | 1 set |
Maidilong Beer Equipment Technology Co., Ltd. is a professional designer and manufacturer of Mini Beer Equipment since 2001, which factory is located in Wenzhou and office is located in Nanjing. Our main products are Craft Beer Equipment, Home Brewing Equipment, Brewhouse Equipment, Fermentation Tank, Bright Beer Tank, Distillation Equipment, and accessories with good quality. We exported for 15 years and passed the certificate of ISO9001, CE, SGS, CSA, etc., one of our clients include Canada’s Brewery, Singapore’s Red Dot and Indonesia's Batam Island, furthermore our brewing equipment are also very popular for many brewpub or bar, restaurant, company party with high reputation in domestic China.
Pre-Sale Service:
1. Turnkey brewery projects plan and design services
2. Provide Layout plan of customer's brewery in CAD drawings
After-Sale Service:
1. Provide three years complete warranty for main body parts and life-time maintenance service, except for human factors damage.
2. Provide technical engineers available to service reasonable suggestion, installation, guidance of brewing draft beer, but customer need pay the expenses for air ticket fee, accommodation and food.
1. Can you do OEM or ODM?
Yes, we can do.
2. What's the fermenter pressure?
We will show ≤ 1 bar just for the customs clearance, but actual designed pressure ≤ 3 bar.
3. Can you do PLC control system?
Yes, we can do. You only need throw the malt and hop, then it will brew beer by itself, our PLC system has passed CSA certificate.
4. How to do temperature control?
The PLC or digital display meter can control the temperature via connecting with the PT100 sensor. Insulation keep the temperature.
