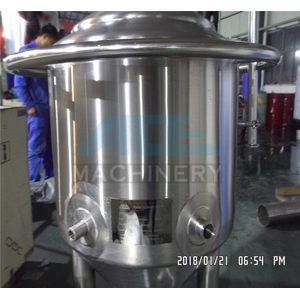

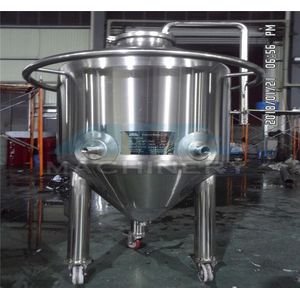

Imported SUS304 polished both inside and outside, outside
polished bright process.

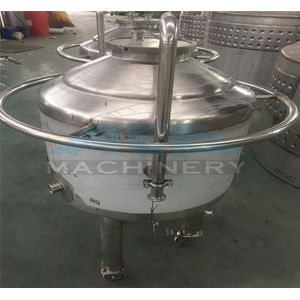

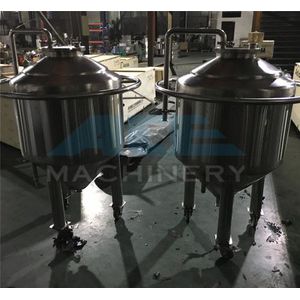

The description of application: Adding yeast to tank, then use
oxygen pressure .Push the yeast into the fermentation tank.
Note: Dosing tank need cleaning and strict disinfection before
use and after use.
All the fermentation tanks are TIG welded by the skilled workers, and the seams are mirror polished.
Making the fermentation tank both beautiful and durable.
All the butterfly valves are tested fully functional and reliable to make sure that our equipment can
work perfectly and brew the stable quality craft beer.
The glass tube is to help the brew master to monitor the condition of the craft beer, to make sure the
fermentation process is exactly the brew master wanted.
Only use high quality and most durable motors to drive the equipment.
All the raw materials are from the largest stainless steel manufacturing company and the material can
meet your local food and baverage standard.
When the factory make the equipment, there is no way to prevent the scratch on the surface, and if
the factory don't do any treatment to the scratch on the surface, when you brew the craft beer,
the acid in the beer can corrode the scratch and make the beer taste like metal.
But our equipment inner tank use the passivation process when it's completed to prevent that happen.
We provide 2 years warranty for our equipment and lifelong maintaining service. So the quality of the equipment is the least problem you have to worry about.
Main Features
Effective volume:200L-10000L
Inner container: SUS304,Thickness 3mm, 2B finished.
Outer container: SUS304, thickness 2mm, Grind arenaceous.
Shell jacket: SUS304, thickness 1.5mm.
Insulation Material: polyurethane, thickness: 80mm.
Ribbon polished for the welded place.

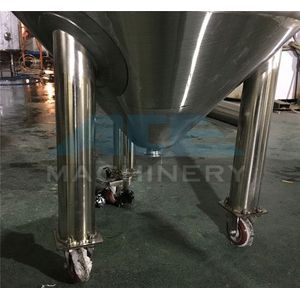

Conical top/ Cylinder/ conical bottom/ shell jacket(one or two sections) / bottom jacket / insulation both on shell and bottom / with adjustable legs.
Connections:level interface/ steam Import and Export/ Pt100 interface/ top manhole / respirator/ Inlet/ Outlet.
Our production line
1. Advanced and reliable craft beer processing technology.
2. Energy-saving, water-saving, labor-saving and little pollution. hot recycling close type production and the process water will be recycled .
3.Mostly machinery with fully stainless steel to be sure these is no corrosion.
4. Advanced surface treatment craft. Oil and dirty resisting.
5. Many various capacity option from 50-2000 Lpd
The best solution project and highest possible quality machines will be offered according to your Demands. Maximum your cost performance.
| Capacity | Cylinder(ODxH) | OAH | Inner Thickness |
| 7BBL | 1000 x 1250mm | 2530mm | 3mm |
| 10BBL | 1150 x 1250mm | 2670mm | 3mm |
| 15BBL | 1250 x 1680mm | 3250mm | 3mm |
| 20BBL | 1400 x 1700mm | 3400mm | 3mm |
| 30BBL | 1650 x 1850mm | 3740mm | 3mm |
| 40BBL | 1750 x 2050mm | 4040mm | 3mm |
Fermenter system
Refrigerating System
Based on the absorption of the foreign technology and innovate, there are more than 20 invention patents. All the parts are made of stainless steel 304(pipeline and inside and outside of tanks are polished very well). In the production process, we will make a very strict inspection on welding. The quality of our products reaches the first class in China.
Inner (SUS304) thickness: 3.0mm,
External-jacket (SUS304) thickness: 2.0mm, Insulation: Polyurethane-thickness 80 mm,
Internal and external panel protection, weld slinging band; Valves, accessories supporting. Temperature mode: PT100 temperature probe, temperature transmitting, temperature control panel display.
Feeding method:
Ethylene glycol or alcohol water from the tank top manhole door an injection, refrigeration water since the ice water tank top into. Discharging method: Ethylene glycol water from ice water tank bottom ethylene glycol out pipe discharge, cooling water from ice water tank bottom cooling water return pipe out.
The refrigerating unit for water tank water cooling, through the cycle to fermentation tank cooling, through the plate heat exchanger to heat wort cooling.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
| Packaging | |
| Size | According to requirement |
| Weight | 100KGS---5000KGS |
| Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tighter, we will use pe film for packing or pack it according to customers special request. |
| Loading | |
| Size | Customized the diameter to fit. |
| Weight | 100KGS---5000KGS |
| Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
