Microwave drying and sterilizing device for rose extract

The heating material itself becomes a heating element,and the process of heat conduction is not required.

Technical Feature

  • New
  • Drying Oven
  • Shandong, China (Mainland)
  • JOYANG
  • JY-Microwave Rose Extract Machine
  • 220v/380v
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$100~15

PRIMARY PARAMETERS

Condition
New
Type
Drying Oven
Place of Origin
Shandong, China (Mainland)
Brand Name
JOYANG
Model Number
JY-Microwave Rose Extract Machine
Voltage
220v/380v
Power(W)
20-200KW
Dimension(L*W*H)
(10000*1450*2400)mm
Weight
5T
Certification
CE
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Machine Name
Microwave Rose Extract Machine
Application
Chemical & Pharmaceutical
Heating Way
Microwave Heating
Control System
PLC
Design Deperature
35-120 Degree
Function
Drying and Sterilizing
Germicidal Temperature
Low Temperature Sterilization
Working Type
Continuous
Material
SUS304
Cooling Method
Water-Cooling/Air-Cooling

DETAIL DESCRIPTION

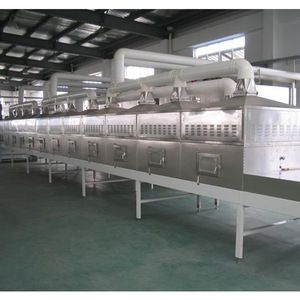

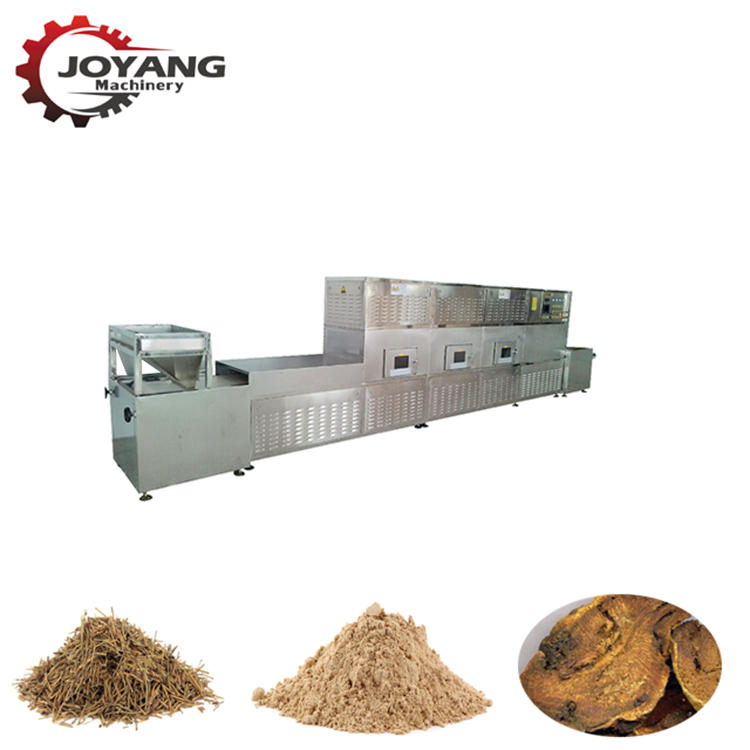

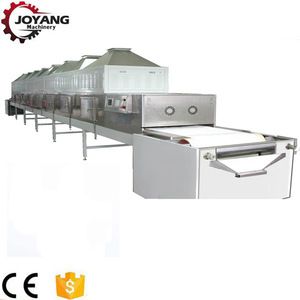

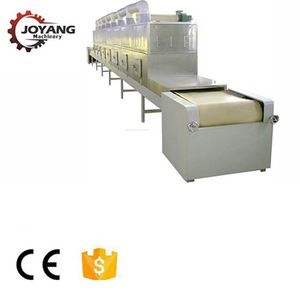

Microwave Rose Extract Machine

Product Description





Description of Rose Extract Machine:

Industrial microwave drying process than the traditional technology to reduce energy consumption by more than 40%,more than 50 times to improve the power of revolutionary to reduce production costs, to bring the core competitiveness of enterprises, by the majority of users of the trust.







The Characteristic of the Microwave Rose Extract Machine:

1.After the heating speed. The heating material itself becomes a heating element,and the process of heat conduction is not required.

2.This energy effcient. In addition to a small amount of transmission loss, almost no other loss.

3.Environmental protection, no pollution .Microwave drying equipment dose not produce high temperature, smoke and noise, no waste water in the process of operation, no waste gas, no waste generation.

4.No unfirm heating. Regardless of the shape of the body parts,microwave heating can make the object inside and outside the unfirm penetration of electromagnetic waves and heat energy.

5.This advanced technology, easy to control. Microwave heating only need water, the basic conditions of electricity, as long as the control of microwave power can be achieved immediately heating or termination .

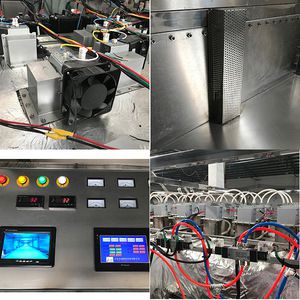

The Main Components of microwave Rose Extract Machine :



1.PLC and touch screen control system
2.Transmission system
3.Temperature controllingsystem ;Humidity controlling system ;Cooling system
4.Hot air recycling and circulatory system
5.Microwave box  and more



Details











Product Name

Microwave Tea Leaf Drying Machine
Device typeTransmission belt
Microwave frequency2450±50MHz
Power20-200kw
Size(10000*1450*2400)mm
Transmission speed0-5m/minute
Cooling tethodWater cooling/Air cooling/Oil cooling
Weight5t
Dehydration rate40-50kg/h
The whole materialsus304
Microwave leakage limit≤5mW/cm²
Ambinet teme perature-10-40°c
working  time24 hours





About us



Packaging & Shipping



1. Daub coal oil on the surface of the machines.

2. Plastic film as the inner packing.

3. Standard export wooden case as the outer packing.

4. Train, ship or depend on clients' requirement
