UV lamp sterilization system for water treatment with cleaning device

UV units can be effective water treatment tools, but it is important to recognize what UV can do, what its limitations are, and what maintenance is required.

Technical Feature

  • Jiangsu, China (Mainland)
  • YLD
  • YLCn-300
  • stainess steel 304/316L
  • stainless steel,carbon steel
  • > continuous 9000 hours
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$5~800

PRIMARY PARAMETERS

Place of Origin
Jiangsu, China (Mainland)
Brand Name
YLD
Model Number
YLCn-300
Material for UV sterilizer
stainess steel 304/316L
material for control box
stainless steel,carbon steel
lifaspan of UV lamp/bulb
> continuous 9000 hours
Capacity
12m3/h
interface at water inlet/outletr
flange
brand of UV lamp
domestic brands,imported Philips,etc
power supply
Customized
working pressure
0.6Mpa
working temperature
0-60u2103
power of one UV lamp
25/40/80/105/120/150/320W

DETAIL DESCRIPTION

UV lamp sterilization system for water treatment with cleaning device

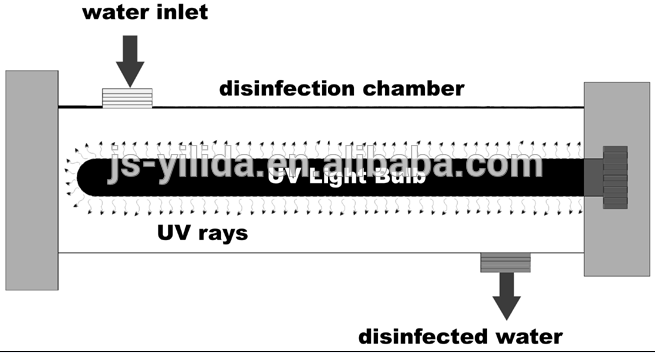

Working Principle



Special low-pressure mercury vapor lamps produce ultraviolet radiation at 254 nm, the optimal wavelength for disinfection and ozone destruction. The UV lamp never contacts the water; it is either housed in a quartz glass sleeve inside the water chamber or mounted external to the water which flows through UV transparent Teflon tubes. Some ultrapure water systems use 185 nm UV units for reducing TOC (total organic carbon).

Ultraviolet (UV) sanitizing units are used in many water purification systems to control bacteria and have certain applications in animal drinking water systems. UV units can be effective water treatment tools, but it is important to recognize what UV can do, what its limitations are, and what maintenance is required.





UV sterilizers are not a replacement for good biological and mechanical filtration, regular water changes, or proper control of the nitrogen cycle.









Limitation of use

The UV water disinfection system NOT intended for the treatment of water that has an obvious contamination or intentional source, such as raw sewage, nor is the unit intended to convert waste water to microbiologically safe drinking water.





Product Description

Water Quality(in)

Water quality plays a major role in the transmission of germicidal UV rays. It is recommended that the water does not exceed following maximum concentration levels.



Maximum Concentration Levels (Very Important)



Total iron content

Less than 0.3ppm(0.3mg/L)

H2S

Less than 0.05ppm(0.05mg/L)

Total suspended matter

Less than 10 mg/L

Manganese content

Less than 0.05 mg/L

Water hardness

Less than 120 mg/L

Water Temp.

5-60Centigrade

PH value

6.5-8



Technical parameter







Application

Ultraviolet water purification systems are used in many applications that includes home/residential(both well water and municipal water supplies), commercial, and industrial. Here is a list of several applications where the power of UV water sterilizers are commonly used to treat and protect the water supply for contaminates such as bacteria and viruses. UV systems applications include private wells, campgrounds, hotels, bottlers, aquaculture, hospitals, food, cottages, restaurants, breweries, water systems, laboratories, marine, pharmaceutical, dairies and many other applications.





To Customers



1.What is the water flow of your water system?

2.What is your raw water to be disinfected?

3.Do you need the accessories like flow switch,UV intensity detector,timer,etc?

4.Do you also require other kinds of filters together with the UV sterilizer for your water system





Product Show
