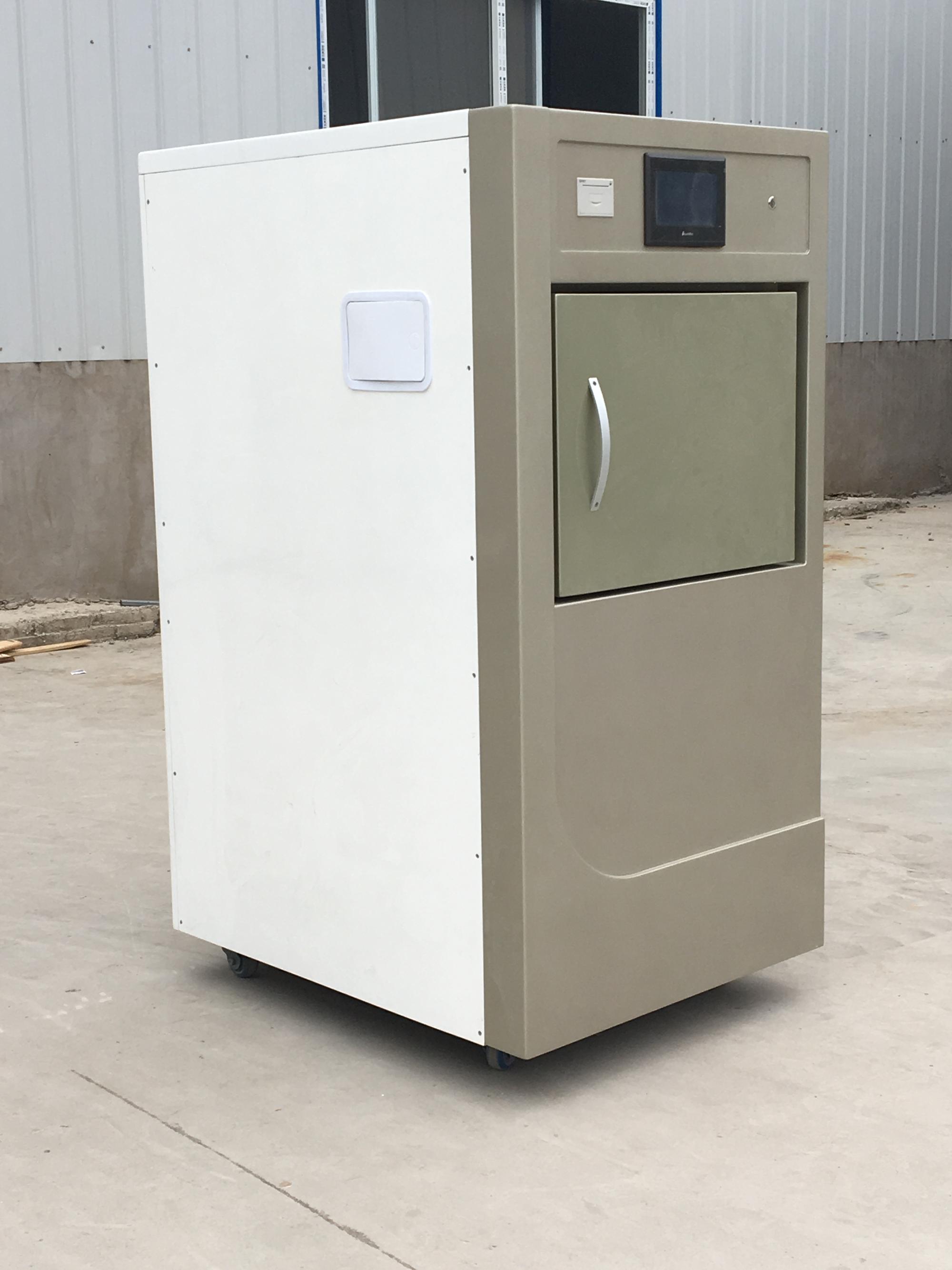

60L Hospital Stainless Steel Medical Devices Continuous Electric
Sanqiang brand low temperature plasma sterilization system is in low temperature,vacuum,plasma generated by high frequency electric field in the sterilization chamber,wherein the active material and the microbial metabolism of protein and nucleic acid react to destroy microorganisms and disrupt the microbial survival function,with H2O2 as a medium role in the microbial cell,further on killing microorganism.
| Product Name | 60L Hospital Stainless Steel Medical Devices Continuous Electric |
| Model | SQ-D-60 |
| Type | Vertical (Manual door) |
| Power supply | AC220V,50Hz |
| Install environment | 5-45℃ |
| Sterilizing temperature | 50℃ |
| Working pressure | -50pa |
| Sterilize agent | Hydrogen peroxide solution(H202) |
| Sterilizing time | 45-50min |
| Vacuum speed | Absorb to -50pa in five minutes |
| Temperature display | LCD touch screen |

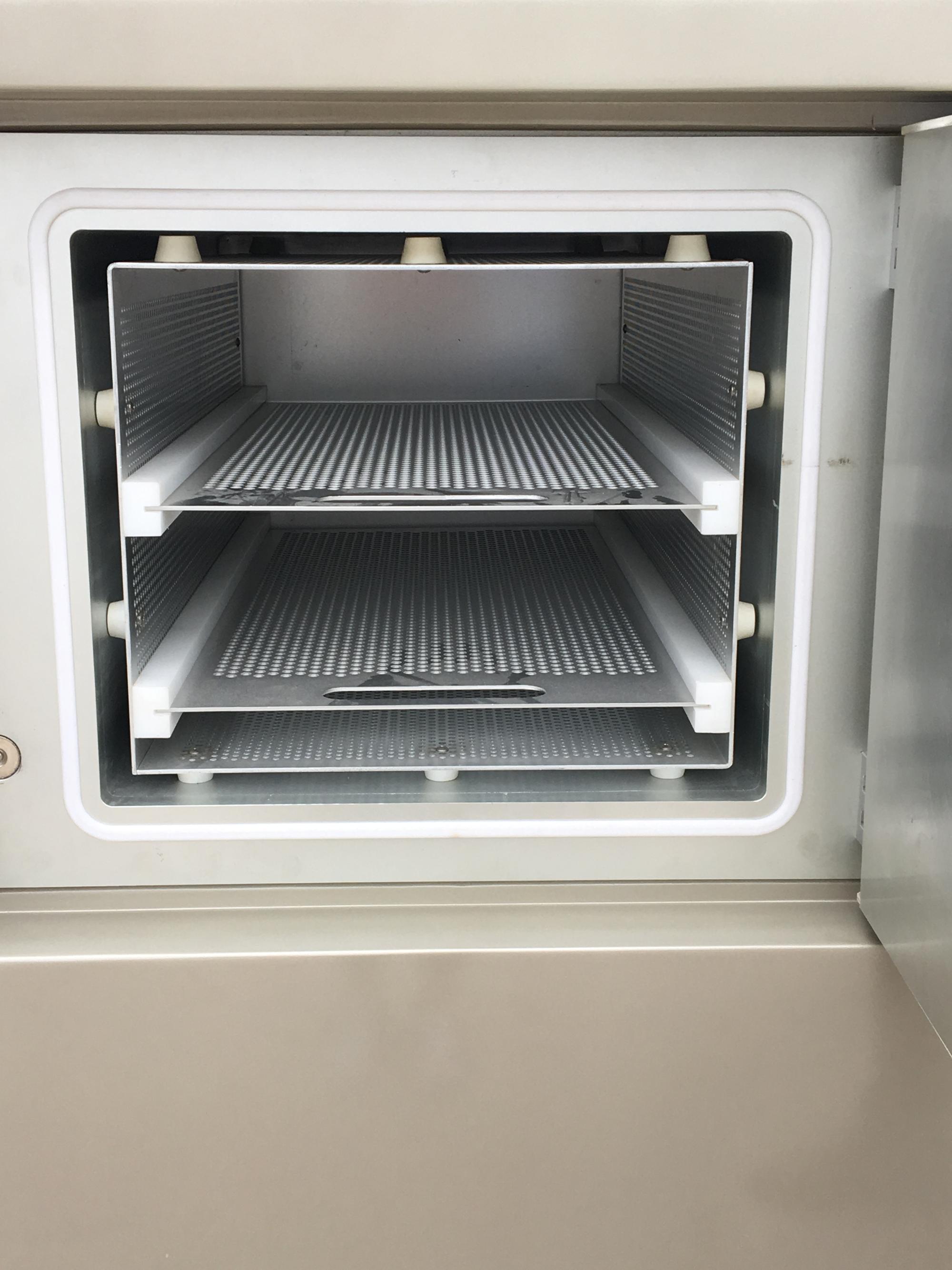

| Chamber material | The chamber structure is rectangular,can improve the space utilization; It use 304 anti-corrosion type stainless steel or aluminum 5052, thickness ≥ 8mm, with excellent thermal conductivity, to ensure that hydrogen peroxide to maintain 100% gaseous. |
| Door open mode | Manual right door |
| Door protection function | With door barrier switch function, when touch the barrier switch, the door automatically stop, to prevent injure the operator and damage the items. |
| Full automatic control system | LCD touch screen display, PLC intelligent control system. One button to control from start to end and finish automatically with showing temperature, pressure, sterilization time. The system can maintenance and upgrade. |
| PLC | Use imported Simens smart series PLC control system |
| Heating system | Adapting to anti-explosion and fire resistance heating system, temperature is more precise, more convenient and fast. |
| Pressure sensor | Inner with pressure sensor which imported from Japan to check chamber pressure automatically, to ensure that the chamber pressure is accurate and effective. |
| Various protective function | It has set up over temperature protection function and show on LCD screen if fault, to make the after sales-service dealing with fault more efficiently. |
| Alarming system | Equipped with high&low temperature alarming system |
| Category | Class II medical equipment |
1.WHY CHOOSE US ?
HENAN SANQIANG MEDICAL EQUIPMENT LABILITY CO., LTD IS A RESEARCH AND DEVELOPMENT, PRODUCTION AND SALE OF MEDICAL EQUIPMENT AS ONE OF THE INNOVATIVE TECHNOLOGY COMPANIES.
2.OUR PAYMENT METHOD ?
30% DEPOSIT AND 70% BALANCE AGAINST OF B/L COPY .
3.WHAT IS THE LEAD TIME FOR REGULAR ORDER?
3-21 DAYS FOR ORDER QUANTITY LOWER THAN 10PCS ; FOR MORE QUANTITY , USUALLY 30 DAYS .
4.DO YOU INSPECT THE FINISHED PRODUCTS?
YES,EACH STEP OF PRODUCTION AND FINISHED PRODUCTS WILL BE INSPECT BY QC DEPARTMENT BEFORE SHIPPING.
