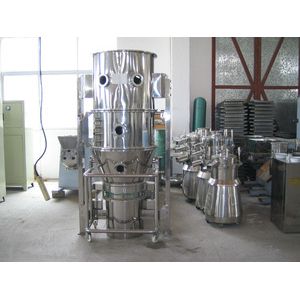

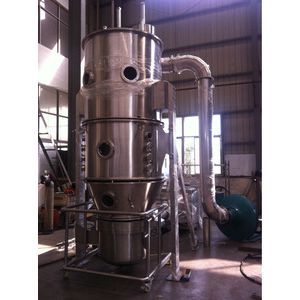

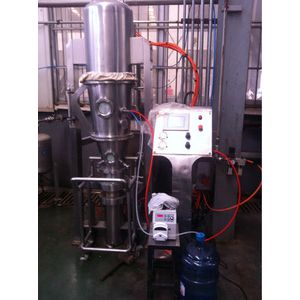

Fluid bed granulator dryer
Principle of Fluid bed dryer granulator :
The powder granule in the container (fluidization bed) appear the state of fluidization. It is preheated and mixed with clean and hot air. At the same time the solutionof adhesive solvent is fogged and sprayed into the container. It makes some of particles become granulating that contains adhesive. Being of unceasing fry through hot air, the moisture in the granulating is evaporated and the adhesive is solidification. The process is carried out continuously. Finally it forms ideal. uniform and porous granules.
Features of Fluid bed dryer granulator :
Through powder granulating, the flow property is improved and the dust is reduced;
Through powder granulating, its solving property is improved;
The mixing,granulating and drying can be completed in one step inside the machine;
The operation of equipment is safe because the anti static filtering cloth is adopted;
The operation personnel can not be damaged if explosion take place because of the releasing hole;
The equipment has no deadcorner. Therefore the loading and unloading, quick and light and clean. It can meet the requirement of GMP.
Applications of fluidized granulator:
Pharmaceutical industry: tablet, capsule, low sugar or no sugar granule of Chinese medicine.
Foodstuff: cocoa, coffee, milk powder, juice of granulate, flavoring and so on.
Other industries: peticide, feed chemical fertilizer, pigment, dyestuff and so on.
Drying: powder or granule material
Technical parameters of Fluid bed dryer granulator :
| Item | Unit | Type | ||||||||
| 3 | 5 | 15 | 30 | 60 | 120 | 200 | 300 | 500 | ||
| Volum of container | L | 12 | 22 | 45 | 100 | 220 | 420 | 670 | 1000 | 1500 |
| Diameter of container | mm | 300 | 400 | 550 | 700 | 1000 | 1200 | 1400 | 1600 | 1800 |
| Capability(min) | kg | 1.5 | 4 | 10 | 15 | 30 | 80 | 100 | 150 | 250 |
| Capability(max) | kg | 4.5 | 6 | 20 | 45 | 90 | 160 | 300 | 450 | 750 |
| Capacity of fan | m3⁄h | 1000 | 1200 | 1400 | 1800 | 3000 | 4500 | 6000 | 7000 | 8000 |
| pressure of fan | mm | 375 | 375 | 480 | 480 | 950 | 950 | 950 | 950 | 950 |
| power of fan | kw | 3 | 4 | 5.5 | 7.5 | 11 | 18.5 | 22 | 30 | 45 |
| Steam consumption | kg/h | 9 | 12 | 42 | 70 | 141 | 180 | 282 | 366 | 451 |
| compressed air consumption | m3/min | 0.3 | 0.35 | 0.6 | 0.6 | 0.9 | 0.9 | 1.1 | 2.0 | 2.4 |
| weight of the main body | kg | 500 | 700 | 900 | 1000 | 1100 | 1300 | 1500 | 1800 | 2000 |
| Steam pressure | Mpa | 0.3-0.6 | 0.3-0.6 | 0.3-0.6 | 0.3-0.6 | 0.3-0.6 | 0.3-0.6 | 0.3-0.6 | 0.3-0.6 | 0.3-0.6 |
| Temperature | °c | -- | -- | -- | -- | -- | -- | -- | -- | -- |
| Working time | min | -- | -- | -- | -- | -- | -- | -- | -- | -- |
| Field | % | ≥99 | ≥99 | ≥99 | ≥99 | ≥99 | ≥99 | ≥99 | ≥99 | ≥99 |
| noise | dB(A) | ≤75 | ≤75 | ≤75 | ≤75 | ≤75 | ≤75 | ≤75 | ≤75 | ≤75 |
| Size(L×W×H) | m | 1.0×0.6 × 2.1 | 1.2 × 0.7 × 2.1 | 1.25 × 0.9 × 2 .5 | 1.6 × 1.1 × 2.5 | 1.85 × 1.4 × 3 | 2.2 × 1.65 × 3.3 | 2.34 × 1.7 × 3.8 | 2.8 × 2.0 × 4.0 | 3 × 2.25 × 4.4 |
Company profile:
Xianfeng Drying is a large enterprise in China dryer industry located at changzhou, China and owns an import&export license. It has passed the ISO9001:2008 quality management system and ISO14001:2004 Environment Management system.

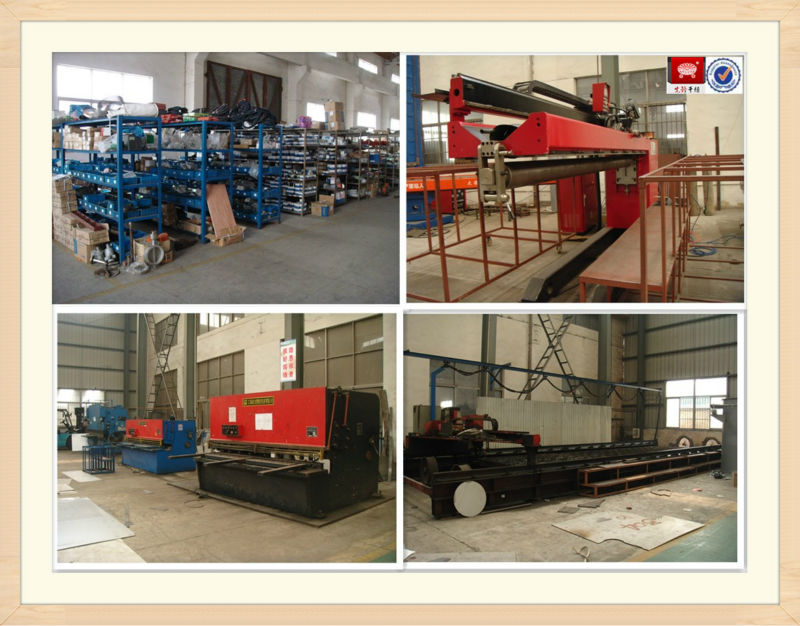

In the passed years, our company is mainly engaged in studying and developing the drying equipment, at the same time, we also made a further study about the granulating( pelleting), coating, mixing equipment, and has good ability to design non-standard equipment, manufacturing and engeering. Achievement plentiful, the result is remarkable. Now our products sell all over the world and have been exported to USA, Israel, Brazil, South Africa, Japan, Sudan, South Korea, Thailand, Vietnam. Indonesia, Philippines and so on.
After-sell service:
All our machines guaranteed for trouble free performance for a period of 12 months from commissioning in buyer place.
Installation, commissioning, training for buyer's technicians and other after sell service all for free.
The buyer shall bear all expenses incurres in the trip of sell's delegation for erection, commissioning and training, including air tickets, meal, hotel accommodation and local transportation.
