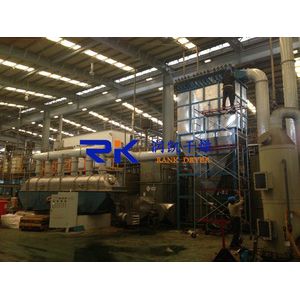

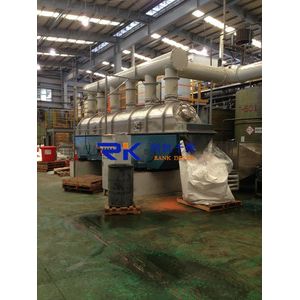

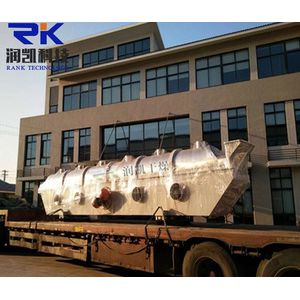

Principle of ZLG vibrating fluidized bed dryer
Raw material is fed into the dryer from the feeding end and moves forward continuously along under the function of vibration. The hot air penetrate fluid bed plate and dry damp raw material. Then the damp air is exhausted out through cyclone separator and dried raw material is discharged through discharge end.
Features of ZLG,SLG vibrating fluidized bed dryer
1. Height of fluidizing chamber and dust collection is by requirement.
2. The vibration is created by motor. It is stable in operation and convenient in maintenance, low noise with long life span.
3. High efficiency, raw material is heated evenly with high efficiency and drying capacity is high. Compared with ordinary dryer, the energy can be saved about 30%.
4. It is good in regulation and wide in suitability. The thickness of raw material, moving speed and the amplitude can be adjusted.
5. It makes minimum damage to the surface of raw material. The equipment can be used for drying easy broken raw materials. The dryer also suitable for drying irregylar shape raw material.
6. The dryer adopt closed operation, protect raw material from cross-contamination, it is in continous production.
Model | Fluidized bed area m2 | Temperature of air in °C | Temperature of air out °C | Capacity of vaporize moisture Kg/h | Vibration motor | |
Model | Power(Kw) | |||||
ZLG3×0.30 | 0.9 | 70~140 | 40~70 | 20~35 | YZS8-6 | 0.75×2 |
ZLG4.5×0.30 | 1.35 | 35~50 | YZS10-6 | 0.75×2 | ||
ZLG4.5×0.45 | 2.025 | 50~70 | YZS15-6 | 1.1×2 | ||
ZLG4.5×0.60 | 2.7 | 70~90 | YZS15-6 | 1.1×2 | ||
ZLG6×0.45 | 2.7 | 80~100 | YZS15-6 | 1.1×2 | ||
ZLG6×0.60 | 3.6 | 100~130 | YZS20-6 | 1.5×2 | ||
ZLG6×0.75 | 4.5 | 120~170 | YZS20-6 | 2.5×2 | ||
ZLG6×0.9 | 5.4 | 140~170 | YZS30-6 | 2.2×2 | ||
ZLG7.5×6.0 | 4.5 | 130~150 | YZS30-6 | 2.2×2 | ||
ZLG7.5×0.75 | 5.625 | 150~180 | YZS40-6 | 3.0×2 | ||
ZLG7.5×0.9 | 6.75 | 160~210 | YZS40-6 | 3.0×2 | ||
ZLG7.5×1.2 | 9 | 200~280 | YZS50-6 | 3.7×2 | ||
ZLG7.5×1.5 | 11.25 | 230~330 | YZS50-6 | 3.7×2 | ||
ZLG8×1.8 | 14.4 | 290~420 | YZS75-6 | 5.5×2 |
