Principle:
Two equipped vibrating motors in the host machine produce exciting force, which makes materials leap forward. Hot air passes material layer through orifice plate in an upward direction to achieve the purpose of dehydration.

Application:
Foodstuff, chemical industry, pharmaceutical industry, feedstuff, plastic, salt manufacture, grain, seed, cigarette, sugar, metallurgy and etc.

Feature:

1. Energy saving
As material leaps around though orifice plate and fully contacts with the hot air, thermal efficiency is very high.
2. Wide use
The changing of vibrating motor exciting force and installation direction angle can change material's running speed and running status, so it's suitable for drying different kinds of materials.
3. Good drying effect
Vibration makes material in leaping status, hot air will play the role of buffering, so material broken rate is low, material worn and torn is very little, and no overheating or leakage blowing phenomenon.
4. Low noise, vibration isolating
The equipment can be put on the floor slab directly, installed and removed conveniently, and sealed well, working condition makes the surroundings nice.
5. If partition is set up in the middle of channel, hot air will pass the first half, and cold air will pass the last part. In this way drying and coding both functions can be achieved.
6. Low investment, low operating cost, simple in structure, sturdy and durable, easy maintenance, light weight.
7. Automatic material feeding device can be installed and feed evenly and continuously. It works the way of an automatic production line.

Main technical parameter:

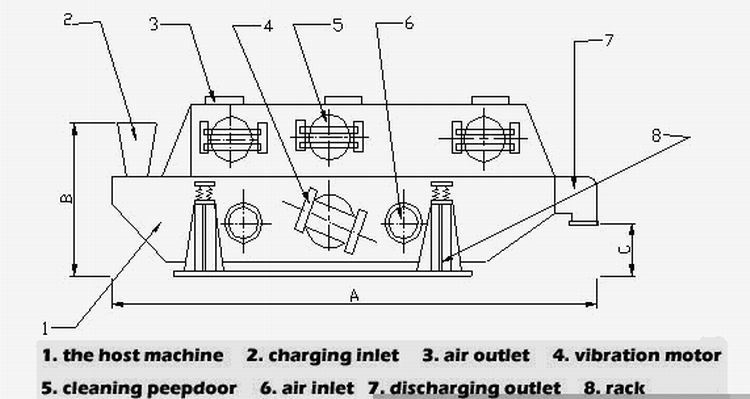

Structure diagram:

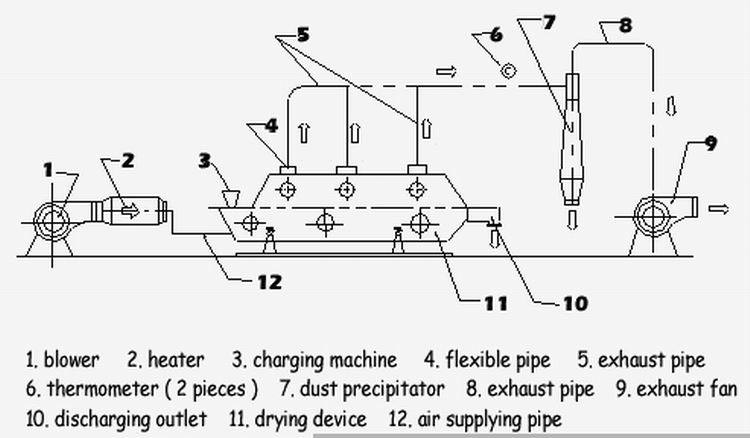

System diagram:

We are one of the largest enterprises in drying industry in China and has passed international quality control system of ISO9001. Our drying machine has won silver award in the 6th Brussel's International Invention Fair in Belgium. There are one research institute and one workshop under our drying equipment factory.

The chief engineer is a reputable professor in Northeastern University of China, the head of drying Research Institute of Northeastern University, the director of drying technology academy of Liaoning province.

There are over 9 series of dryer products and its relative equipments, and those products are widely used in foodstuff industry, pharmaceutical industry, chemical industry and so on. The products were well sold to all over China and exported to Spain, Bangladesh, Burma, Canada, Korea and Russia. In them, the multi-ring rotary drum complete drying equipment is regarded as intensive promoted new products by state technical department
