Solid Sodium Silicate Furnace Production Plant

1. Furnace type: end fire regenerative furnace and recuperative furnace;

2. Melting capacity: 1-160 tons per 24 hours, normal melting rate: 1.4-2.0;

3. Fuel type: natural gas, LPG, coke gas, coal gas, heavy oil or light diesel etc;

4. Design temperature: 1250-1600℃;

5. Specification: Valid melting area 1-80m2, part enhanced thermal insulation and full thermal insulation;

6. Regenerator: arranged in Siemens or octagonal cylindrical brick checker type, newest single or double route waste heat utilization structure;

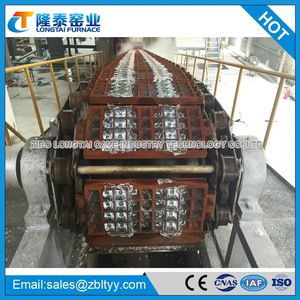

7. Molding method: direct water quenching or chain plate molding machine;

8. PLC automatic control system is adopted to realize the automatic reversal of primary air, secondary air and gas;

9. The most advanced technology of hermetic fixed amount continuous charging and continuous automatic excavating are applied;

10.Application of sodium silicate: silica-alumina catalyst, silica gel, silica hydrated, sodium metasilicate, detergent, dyeing and bleaching, casting materials, soil curing agent, refractory, corrugated board, waterproofing, silicon fertilizer, desiccant, carton binder etc.
