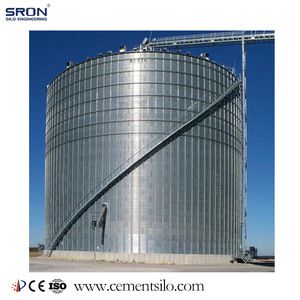

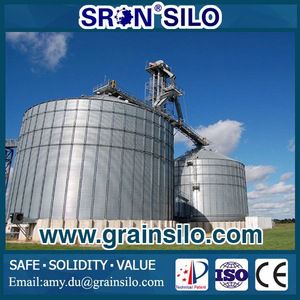

Corrugated Grain Seed SiloTank with 275g/m2 Galvanization
SRON is a strong technical strength BRAND in China specializing in the construction of whole silos system for industries of sea port grain transit center, oil processing center, commercial silo, river grain transit center, farm silo, feed silo, flour mill, starch mill, edible oil production factory, paddy rice mill, special seed etc.
We are dedicated to providing turn-key steel silo system reflecting China National Top Level Technology Engineering Design, Manufacturing and Installation. The founder of SRON and our respected engineers, who are professors from Henan University of Technology, have joined construction of many China National Reserve Silo Systems with the most authoritative practice expertise. (Corrugated Steel Silo tank)
SRON Silo is widely used for grains storage such as wheat, corn, soybean, paddy, rice,soybean meal, barley, malt,sunflower seeds, rapeseeds, peanuts, flour and other powder materials, oat, special grain and seeds etc.
1. How Can We Define A Silo Project as Success? |

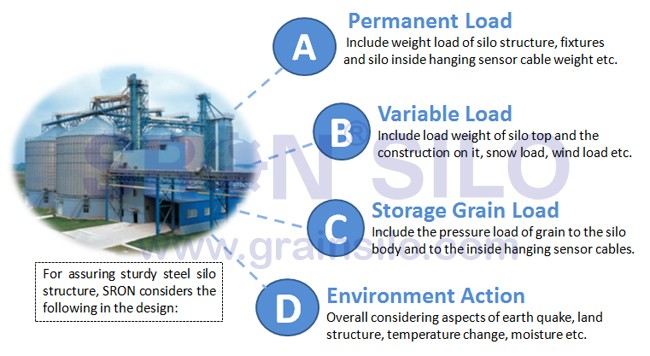

2. How We Assure the Silo Solidity? |
Flat Bottom Silo
| 1. Roof Top: The roof is design to stand up even the harshest environment of extreme snow disaster with echo of top and down part strong structure and connecting radial ribs which is Z interconnected again itself. Roof panels incorporate with ribs with over and under lap profiles ensuring a precise fit.(Corrugated Steel Silo tank)
2. Body Steel Plate: A commercial275g/m2 double galvanized steel coating increases life and durability. 450g/m2 and 600g/m2 coating available for customized order.Each sidewall sheets are manufactured from high-tensile steel that has the ability to overcome extreme power, pressure.
3. Stiffeners: SRON’s high tension stiffener(can be located inside or outside silo) profiles make bins stronger allowing silos to stand well even under extreme hurricane. Base stiffener boots are coated so they won’t rust over time.
4. Wind Ring: For tall silos or that need to resist heavy wind. Wind ring and brackets reduce bolt holes in stiffeners; swaged technology ensure silo power load capacity.
5. High strength bolts and screws: SRON’s high strength bolts paired with sealing washers, coated hardware provides added rotection from rust to ensure your grain bin stands the test of time.
6. Manhole: double layer security locking manhole system.
7. Wide Flange I-Beam Support Structure: Wide flange I-Beam support structure has the strength and durability to support the heavy hopper silo loads long time, and with consideration of wind,snow, seismic requirements. (Corrugated Steel Silo tank) |
3. What More Solid Silo Construction Details? |
4. What are Most Popular Silo Models? |
Scientifically speaking, the silo capacity should be measured with volume (m3). Even in one same silo, the silo capacity will be different for different grains with different density. The following table is calculated based on grain density of 0.75kg/m3, and surely SRON customize silo systems unique for you.(Corrugated Steel Silo tank)
Most Popular Hopper Bottom Steel Silo Technical Specifications | ||||||||
Capacity | 50 ton | 100 ton | 150 ton | 200 ton | 300 ton | 500 ton | 1000 ton | 1500 ton |
Model | TCZK 03605 | TCZK 04506 | TCZK 05506 | TCZK 05509 | TCZK 06410 | TCZK 07313 | TCZK 10013 | TCZK 12811 |
Diameter(m) | 3.667 | 4.584 | 5.5 | 5.5 | 6.417 | 7.334 | 10.084 | 12.834 |
Total Height(m) | 9.56 | 11.41 | 12.13 | 15.49 | 17.33 | 21.42 | 23.61 | 23.51 |
Volume(m3) Density:0.75ton/m3 | 69 | 131 | 195 | 275 | 418 | 699 | 1379 | 2039 |
Most Popular Flat Bottom Steel Silo Technical Specifications | ||||||||
Capacity | 1000 ton | 1500 ton | 2000 ton | 2500 ton | 3000 ton | 5000 ton | 8000 ton | 10000 ton |
Model | TCK 10014 | TCK 10015 | TCK 13715 | TCK 14616 | TCK 15518 | TCK 18321 | TCK 22921 | TCK 26521 |
Diameter(m) | 10.084 | 11.918 | 13.75 | 14.668 | 15.584 | 18.334 | 22.918 | 26.585 |
Total Height(m) | 18.69 | 20.34 | 20.87 | 22.25 | 24.78 | 28.6 | 29.85 | 30.85 |
Volume(m3) Density:0.75ton/m3 | 1335 | 2009 | 2701 | 3278 | 4145 | 6693 | 10640 | 14513 |
5. Why Choose SRON as Expert for Whole Grain Silo System? |
Starting from the initial project analysis, to develop your custom grain silo system plan and to final turnkey completion of the project, SRON’s engineers will stand together with you to get the best matching profitable solution.
SRON has rich experience of building silos, farm used silo, sea port silo group, river transportation silo, flour mill silo, edible oil production factory, pellet line, paddy rice processing factory, starch line, seeds storage etc. (Corrugated Steel Silo tank)

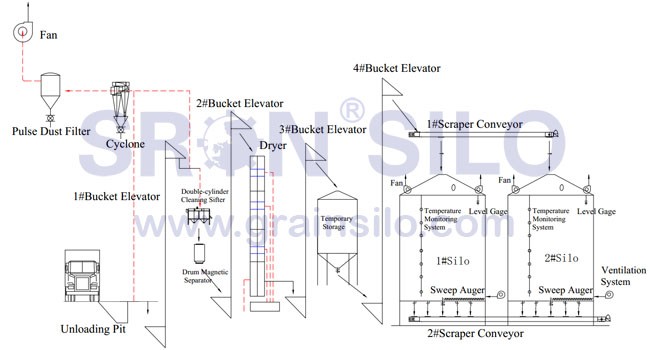

Our grain silo size start from 10tons to 15000ton, with perfect compatible auxiliary systems of grain reception pit,pre-cleaning, drying, lifting, conveying, grain condition monitoring system, unloading, auto-control system etc.
6. What SRON Modern Production Workshop and Equipment? |
Standing on our strong integral solution design power, SRON’ s rich manufacturing expertise guarantees best workmanship of the whole silo system. The bolt steel plate production line is imported assuring bolt plates high precision and max sealing bolt connection. Advanced lathe workshop.(Corrugated Steel Silo tank)

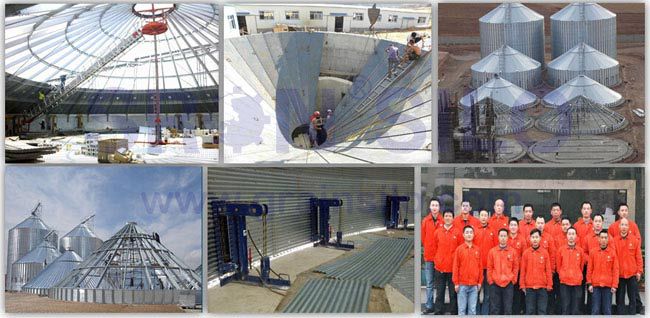

7. Why SRON Installation Team Work at Your Site Make You Trust? |
SRON’ s own experienced and wekk managed installation engineers team plays a respectable role for the success high performance whole silo system. Our motivated team has rich installation experience for various types of silos, work under strict and standardized installation management system, thorough installation cross-checking rules, and they promise one time project acceptance.(Corrugated Steel Silo tank)
8. What After-Sale Service Worry You Free? |
- SRON provide advanced grain safety storage technology to assure your grain 100% quality stability.
- Quality guarantee is one year after installation and commissioning or 18 months after leaving China Port. The maturity is the first.
- 7 days x 24 hours service, within 24 hours reply/solve of any technical issues upon request.
- Routinely telephone track to remove all might be problems or issues guarantying the whole system long lasting safety and reliability.
SRON will consider your all other needs like customs clearance, sea delivery, insurance, customs tax benefit plan, documentations etc. So our respected Users feel so relaxed and easy to get the silo system well. (Corrugated Steel Silo tank)

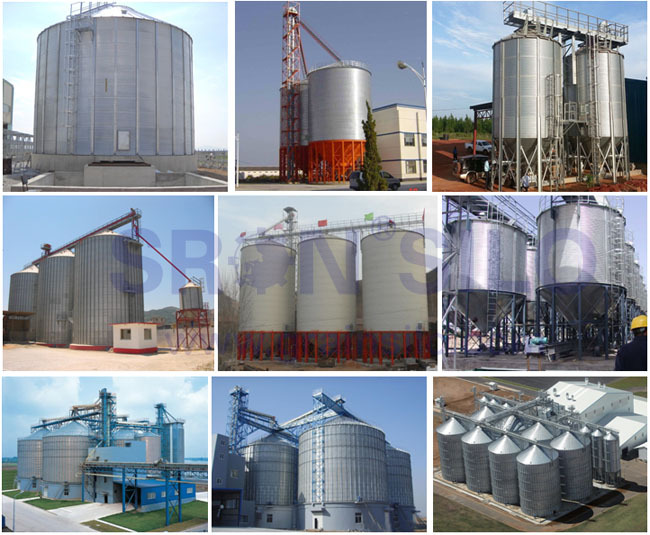

9. What More SRON Part Silo Cases? |
10. Part of Respected Customers Visit, Your Join is Warmly Expected |
Email SRON, Get Professional Overall Solution Immediately!
(Corrugated Grain Seed Silo Tank with 275g/m2 Galvanization)
