I Theoretical Introduction
When oil pressers operating prepared material enters extruding chamber from the hopper and then moves forwards by the rotating pressing screw and that is pressed. Under the high-pressure condition in the chamber, friction between material and screw, between material and chamber, will be created, which also creates frictiono and relative movement amonf material particles.
on the other hand, root diameter of the pressing screw caries larger from one end to the other, hence. When rotating, it not only pushed particles moving forwards but turns them outwards as well, meanwhile, particles adjacent the screw will rotate along with screw totating, causing every particle inside the chamber to possess different speed. Therefore relative movement among particle creates heat which is necessary during manufacturing because of helping protein chang property, damage colloid, increase plasticity, decrease oil's elasticity, resulting high oil productivity.
II. Structure

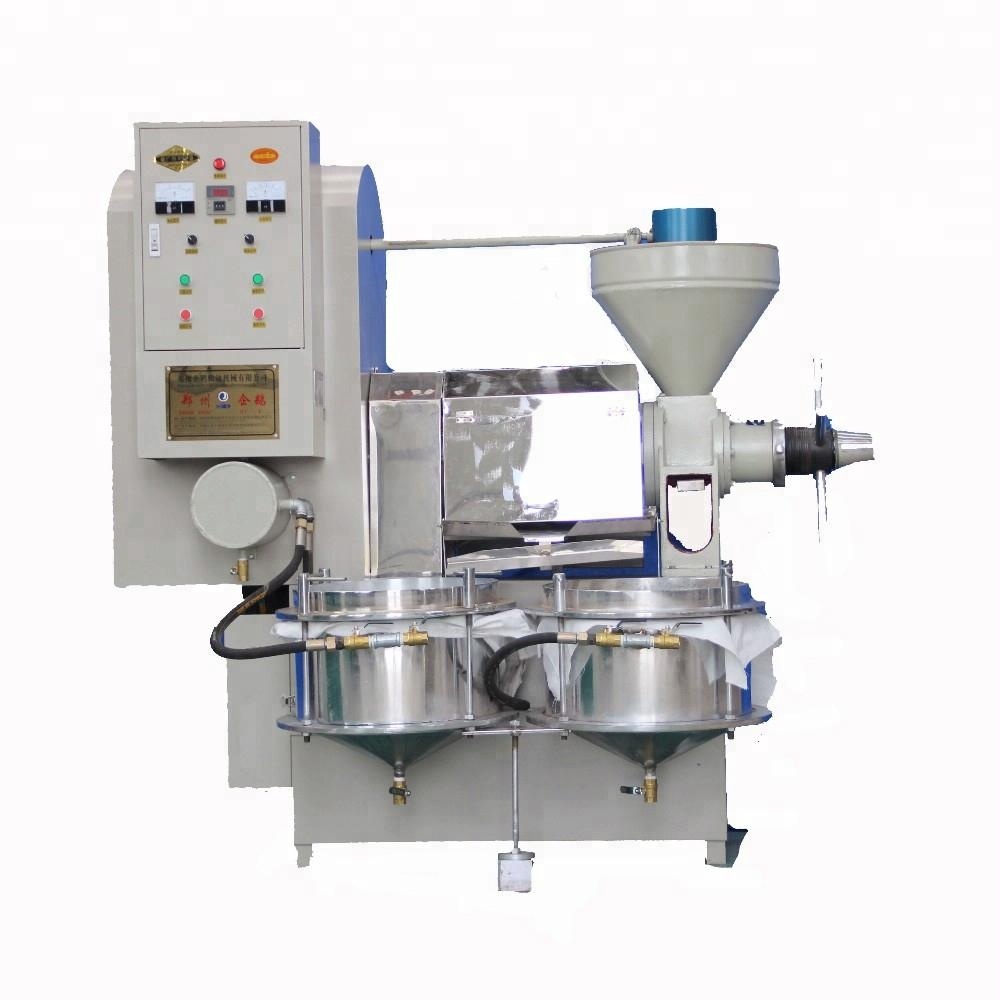

Only some column types screw press has A, B, the two kinds of model, it has the drive mechanism, frame, electric, adjustable cake institutions, negative pressure filtration system parts.
Model | Cold pressing capacity(KG) | Pressing capacity generally per day(KG) | Hot pressing capacity(KG) | Weight(KG) | Size(mm) | Power(KW) |
6YL-80 | 50-80 | 2 | 70-100 | 630 | 1650*1150*1750 | 6-5.5 |
6YL-100 | 100-140 | 3.6 | 120-180 | 870 | 1950*1300*1900 | 6-7.5 |
6YL-120 | 130-220 | 5 | 160-260 | 1280 | 2200*1650*2100 | 6-11 |
6YL-130 | 200-300 | 7 | 240-350 | 1420 | 2250*1650*2150 | 6-15 |
6YL-160 | 300-380 | 9 | 350-460 | 1600 | 2500*1600*2250 | 6-18.5 |
6YL-180 | 360-520 | 12 | 450-550 | 1800 | 2750*1750*2350 | 6-22 |
6YL-185A | 500-720 | 12-18 | 600-820 | 2800 | 2685*1860*2150 | 6-37~45 |
6YL-185B-1 | 500-720 | 15-20 | 600-820 | 2800 | 2710*1985*2886 | 6-37~45 |
6YL-185B-2 | 500-720 | 15-20 | 600-820 | 2800 | 2710*1985*3086 | 6-37~45 |
6YL-204-3 | 500-720 | 70-80 | 600-820 | 2800 | 2750*1750*2950 | 6-30 |
Packaging detail: Plywood, international standard trade packing.
Delivery time: 10-20 days
We are shipping......
Step 1,Products packaged ready for shipping in factory
Step 2,Uploading products
Step 3,Packaged products in container
Step 4,On the road to shipping port
- Henan Best Grain and Oil Machinery Engineering Co., Ltd(hereinafter referred to as BEST) is specialized in undertaking turnkey projects covering Edible Oil Equipmentmt, Flour Milling Equipment, Feed Equipment and other related machineries. BEST is engaged in designing, manufacturing, supply and installation and commissioning of a complete range of machinery/plants on a turnkey basis. The company offers customized turnkey solutions to the clients right from the very begin planning to commissioning and maintainance.
- We are dedicated to supplying safer, more reliable and more environmental-friendly grain andfood processing equipment and engineering services that create value for the clients. And our vision is to grow into a globally respectable market leader in its field.
