Hopper bottom corn seed storage silo bins tank volume can be expanded

process primarily when special colors are requested or thicker layers of glass are required.

Technical Feature

  • Hebei, China (Mainland)
  • Center Enamel
  • ZZKJ-V0016
  • Hopper bottom corn seed storage silo bins
  • Double enamel steel sheet
  • White,blue,green, or as customers' requirement
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$5~50

PRIMARY PARAMETERS

Place of Origin
Hebei, China (Mainland)
Brand Name
Center Enamel
Model Number
ZZKJ-V0016
Name
Hopper bottom corn seed storage silo bins
Material
Double enamel steel sheet
Color
White,blue,green, or as customers' requirement
PH
1-14
Service life
more than 30 years
Holiday test
>1500V
Coating thickness
0.25-0.40mm
Adhesion
3,450 N/cm
Hardness
6.0Mohs
Elastic
around 500 Kn/mm

DETAIL DESCRIPTION

Hopper bottom corn seed storage silo bins tank volume can be expanded

What is our Material

Vitrum ™ is our proprietary titanium Dioxide (TiO2) glassing process applied in a 3-coat, 1-fire (3c1f) process procedure. Vitrum is also produced in a 3-coat, 2-fire (3c2f) process primarily when special colors are requested or thicker layers of glass are required.



Vitrum technology combines the outstanding chemical and phtsical resistant of titanium dioxide-enhanced (TiO2)  glass with a highly engineered,ultra-fine glass bubble structure for durability and flexibility. Vitrum glass-fused-to-steel coating rang from 7-15mils/180-380 microns exterior and 10-18mils/260-460 microns interior in thickness.





Descrition of Goods

Detail photos

Roofs and Fittigs

We are the turnkey professional factory,we can supply you different kinds of roofs with good quality.There are Enamel roof,Aluminum dome roof,Aluminum deck roof, Fiberglass polyester roof,Double membrane roof.Which roof do you prefect,it is belongs to your orders.



Our factory

Center Enamel Co., ltd. is a manufacturer dedicated in vitreous enamel products, since 1989. We are not only the enamel production base in China , but also the first one to produce double -sides enamel hot-rolled steel in China. We are the largest and the most professional enamel bolted tank supplier in China.Covering an area of 80,000 square meters, 2013 total annual turnover nearly 30 million dollars, including 7.6 million dollars for GFS tank. Products have already been exported to more than 20 countries.

Production line

Our Center Enamel Company have the most advanced production line,we are the only one to use the automatic machines Like the laser cutting machine,automatic spaying machine. It is not only greatly improve our quality,make the cutting become more accurate;but also greatly improve our production. High quality anaerobic digestion tank for biogas power plant.



QC,Package

After the enamel steel tank finish burning,it doesn't mean all the things are finished. For each steel sheet we will have the QC test it. Like coating thickness test, holiday test(1500V) ects. After all of the steel tanks are qualifiedwe will pack the good. It can make sure all of our enamel sheets, will be in good condition to come to our customers.



Certifications

Center Enamel has the most advanced  production line, and already  passed ISO9001-2000 quality system certification. Our products and design reach AWWA D103-09 standard, OSHA and meet European standards. We are the only enterprise that can produce AA grade (acid proof and alkali proof ) enameled sheet now. According to customers’ different operating requirements, we can customize various products. Hopper bottom corn seed storage silo bins.



Application

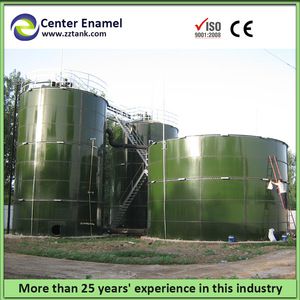

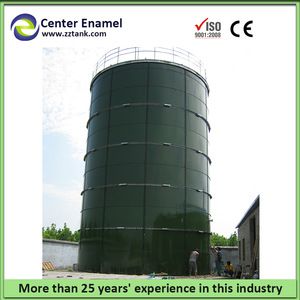

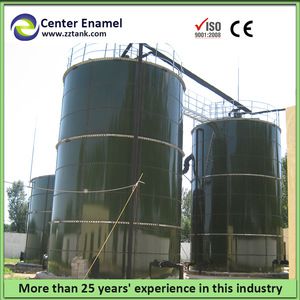

Project reference

* 2008 Beijing Olympic Games sewage treatment system

* Jiuquan satellite launch center sewage treatment system.

* Malaysian Palm Oil Board wastewater project in Sandakan.

* Niger water tank project (China National Nuclear Corporation, Azelik uranium deposits)

* Kazakhastan bio-energy project
