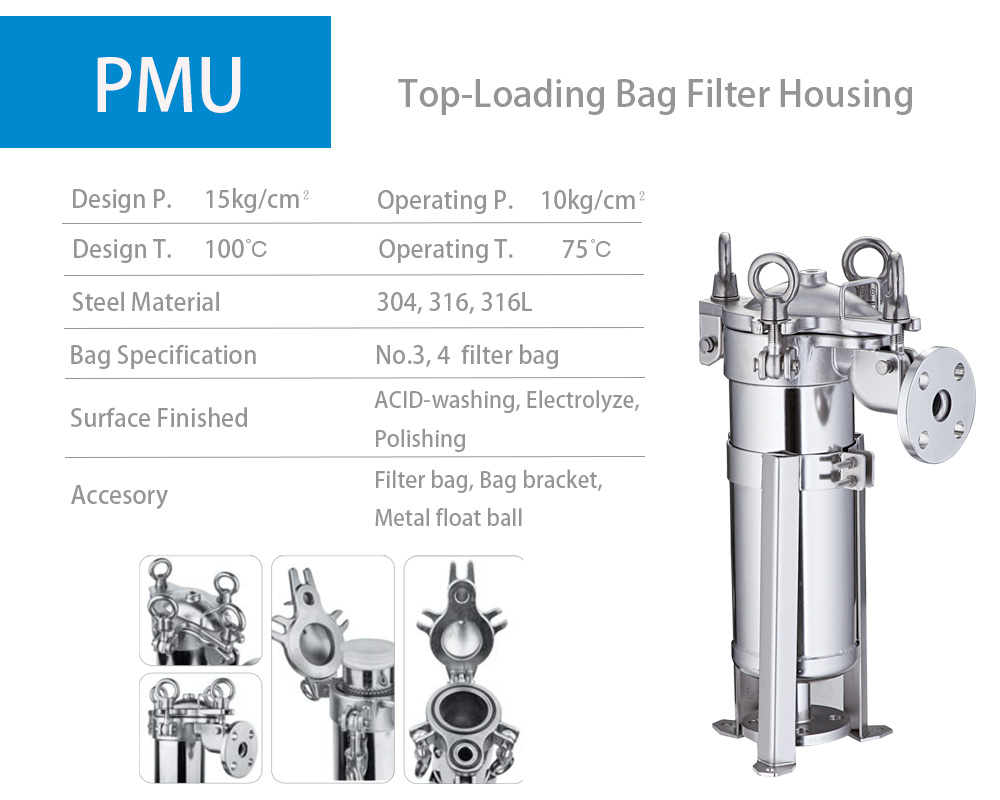

PureMax Taiwan filter bag housing in the water tank

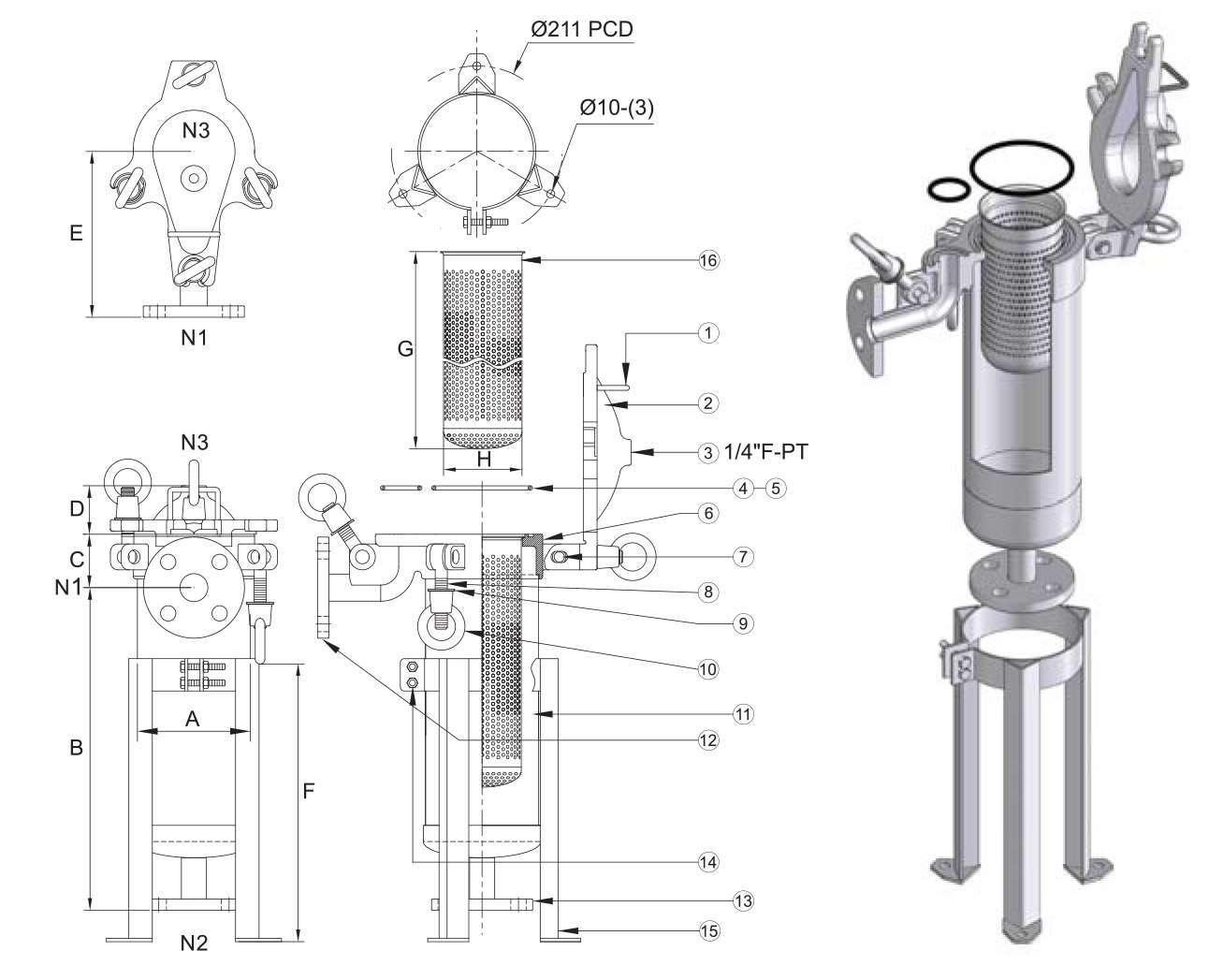

No. | Name | No. | Name |
1 | Handle | 9 | Washer |
2 | Top cover | 10 | Eye nut |
3 | Vent | 11 | Shell |
4 | O-ring | 12 | Port inlet |
5 | O-ring | 13 | Port outlet |
6 | Shell flange | 14 | Bolt |
7 | Spindle | 15 | Support leg |
8 | Eye bolt | 16 | Basket |
Model | A m/m | B m/m | C m/m | D m/m | E m/m | F m/m | G m/m | H m/m | m3/Hr | GPM | Weight | Volume |
PMU1 | Ø216 | 390 | 85 | 80 | 270 | 600 | 350 | Ø 171.5 | 20 | 90 | 40kg | 16L |
PMU2 | Ø216 | 740 | 85 | 80 | 270 | 600 | 730 | Ø 171.5 | 45 | 200 | 48kg | 31L |
PMU3 | Ø139.8 | 399 | 66 | 60 | 205 | 350 | 200 | Ø97 | 4.5 | 20 | 18kg | 3.1L |
PMU4 | Ø139.8 | 399 | 66 | 60 | 205 | 350 | 310 | Ø97 | 9 | 45 | 18kg | 3.1L |
Tech Seed Enterprise Co., Ltd.is an experienced and aggressive group which is specialized in the field of filtration for years. Since 1994, we started to export filter cartridges per customer's request. Gradually, we expand our product ranges to filter bags and filter housings. All our products are mainly for industrial usage. The outstanding performance leads the Made-In-Taiwan products well sold worldwide. We believe in the value of filtration and also honor what we do.
PACKING :standard by carton, pallet / crate are at request
SHIPPING :EMS / courier / air / sea shipment are available
| Q: Do you have any distributor overseas? |
No, we don't have any distributor overseas. We manufacture in Taiwan and have well capacity to export goods with best service. Please contact with us directly.
|
| Q: Can you offer CIF price? Or only FOB price available? |
Generally we offer FOB price. If you prefer CIF or C&F price, we can look up best freight cost for you. Please name your request upon issuing the inquiry.
|
| Q: Can I have your price list? |
Yes, please specify what kind of product you need, such as PP or stainless steel filter housing, filter cartridge or filter bag, etc.
|
| Q: Can we order small quantity? |
Yes, we can produce as your requested. Concerning the price is relative to the quantity, please send us inquiries with your estimated ordering quantity, then we could offer you corresponding quotation.
|
| Can you recommend proper housing for my application? |
Yes, please tell us what kind of fluid you want to filter, including flow rate, operating pressure, temperature, acid value etc.
|
