steam jacketed tank stainless steel fermenter tank fermentation tank

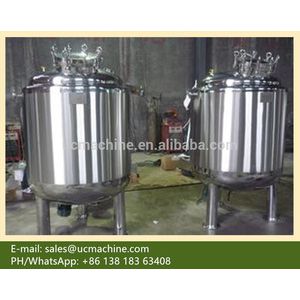

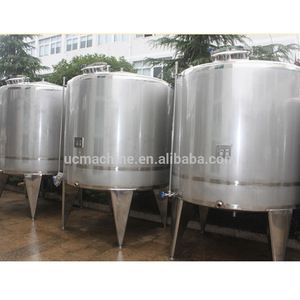

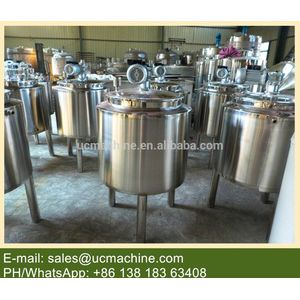

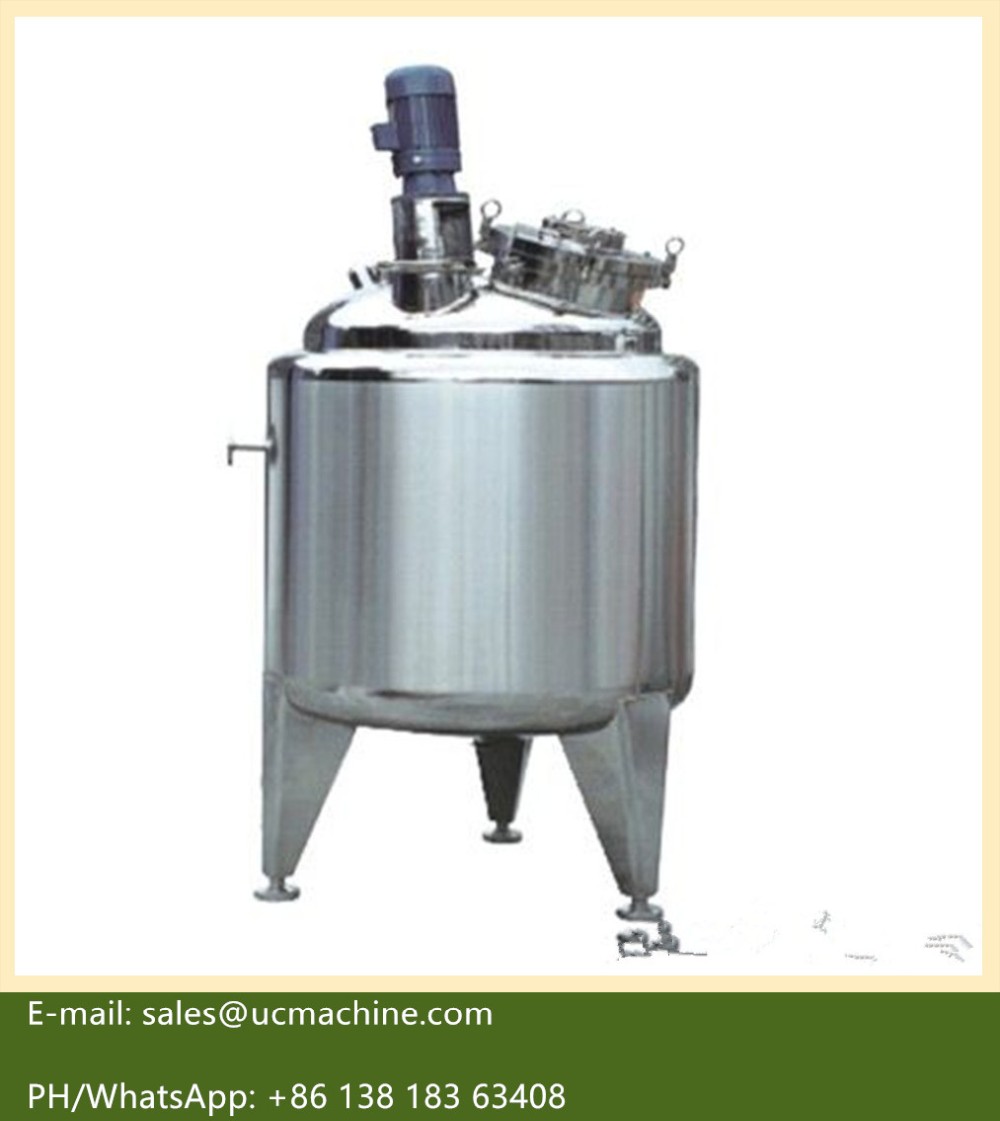

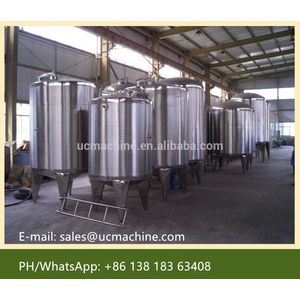

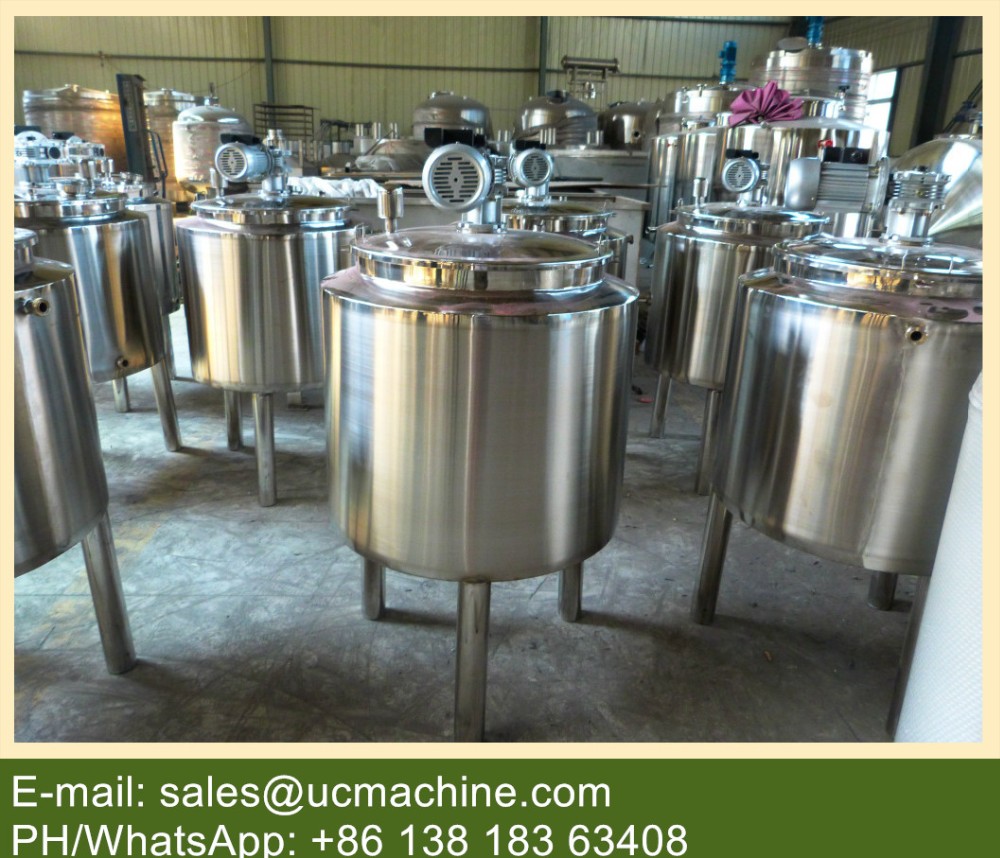

Stainless steel tank Steam heated jacket tank with mixer
for heating, cooling, fermenting ,mixing and blending all kinds of liquid products in pharmaceutical, food, beverage, chemical and biological fields
500litres to 20000litres steam heated stainless steel jacket tank with mixer
Work Volume | Dimension of tank | Total height | Insulated layer | Diameter of inlet&outlet | Motor Power | Mixer /Blender speed |
(L) | (mmxmm) | (mm) | (mm) | (mm) | (kw) | (r/min) |
500 | 840*1000 | 2300 | 60 | 38 | 0.75 | Rotating 20,35,50, 100,500,2900rpm Stepless speed reducer or inverter reducer available |
600 | 920*1000 | 2400 | 60 | 38 | 0.75 | |
700 | 990*1000 | 2400 | 60 | 38 | 0.75 | |
800 | 950*1220 | 2550 | 60 | 38 | 0.75 | |
900 | 1010*1220 | 2700 | 60 | 38 | 0.75 | |
1000 | 1060*1220 | 2700 | 60 | 51 | 1.1 | |
2000 | 1340*1500 | 2750 | 60 | 51 | 2.2 | |
3000 | 1410*2000 | 3500 | 60 | 51 | 4 | |
5000 | 1910*2000 | 3850 | 60 | 51 | 5.5 | |
10000 | 2300*2440 | 4500 | 60 | 51 | 7.5 | |
15000 | 2530*3000 | 5200 | 60 | 51 | 7.5 | |
20000 | 2640*3660 | 5800 | 60 | 51 | 7.5 |
1. The above dimension is only for reference, we can make up to 30000L ,
and we can make special dimension according to client specific requirement
2. Mixer type: stirrer,high shear homogenizer,scrap mixer( can be made according to your products specific requirement)
3. Motor can be produced according to your factory electricity 110v/220v/240v/380v/415v/460v (50/60hz)Single phase or 3Phases
4. Tank material: sus304. Ss316 5. Tank structure: inside shell, jacket shell, PU insulation wall, outside shell

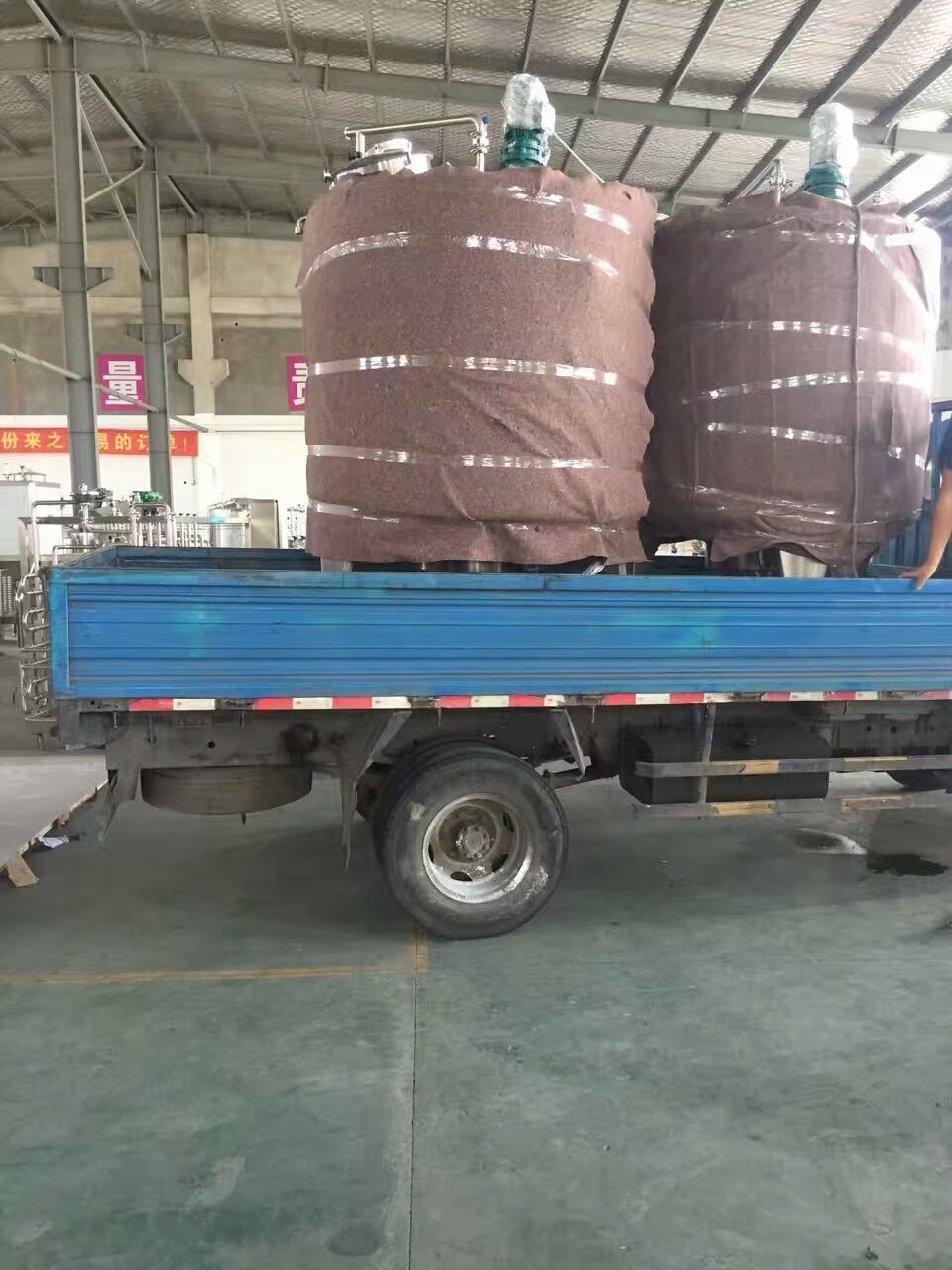

Standard export Wood pallet or Plywood case for protecting stainless steel tanks
Delivery details within 15 to 20 days after receiving T/T down payment, special customized need negotiation
1.Technical service customized design, quick production,
2.Convenient and fast delivery, good forward with best price and good custom clearance service , 3.Warranty for Stainless Steel tank one year whole life technical service
1.Product Name | Heating mixing tank/ steam heated tank/Storage tan/mixing tank/blending vessel/emulsifying tank/jacketed kettle /reactor HS Code: 8479820090 |
2.Description | Designed according to 3A standard,widely used for transfer viscous media in food-processing,beverage,chemical,cosemtics and pharmaceutical industries |
3.Construction | Horizontal and vertical; Open lid, flat,disc,conical,shell cover; |
4.Material | SS304/SS316L/1.4301/1.4404 |
5.Seal Ring | Fluorine Rubber,EPDM,PTFE,Silicone(Standard, FDA approval) |
6.Mechnical Seal | SIC,Hard alloy,graphite |
7.Pressure | 0-20 bar depends customer production requirement |
8.Working temperature | 300 C / 572 F |
9.Jacket | Coil,dimple jacket,hollow jacket |
10.Cooling | water,coolant, compressor |
11.Heating | Steam, hot water |
12.Steam heating jacket tank Surface treatment | Inner and external polished and brushed,good welding and joints; |
13.jacket tank Accessories | Customizable support |
14. Tank input /output availably connection | Clamp, Thread, Butt weld, Flange |
availably standard | DIN, SMS, 3A, RJT, ISO/IDF |
15.Jacket tank application scope | Dairy, food, beverage, chemical, pharmacy, cosmetic, etc |
1) This is the first time I use this kind of machine, is it easy operate?
There are guide video that show how to use machine and english instruction book send to you with machine.
If there is still have any question, we will provide free professinal guide for you until you could use machine well.
2) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem.
3) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.

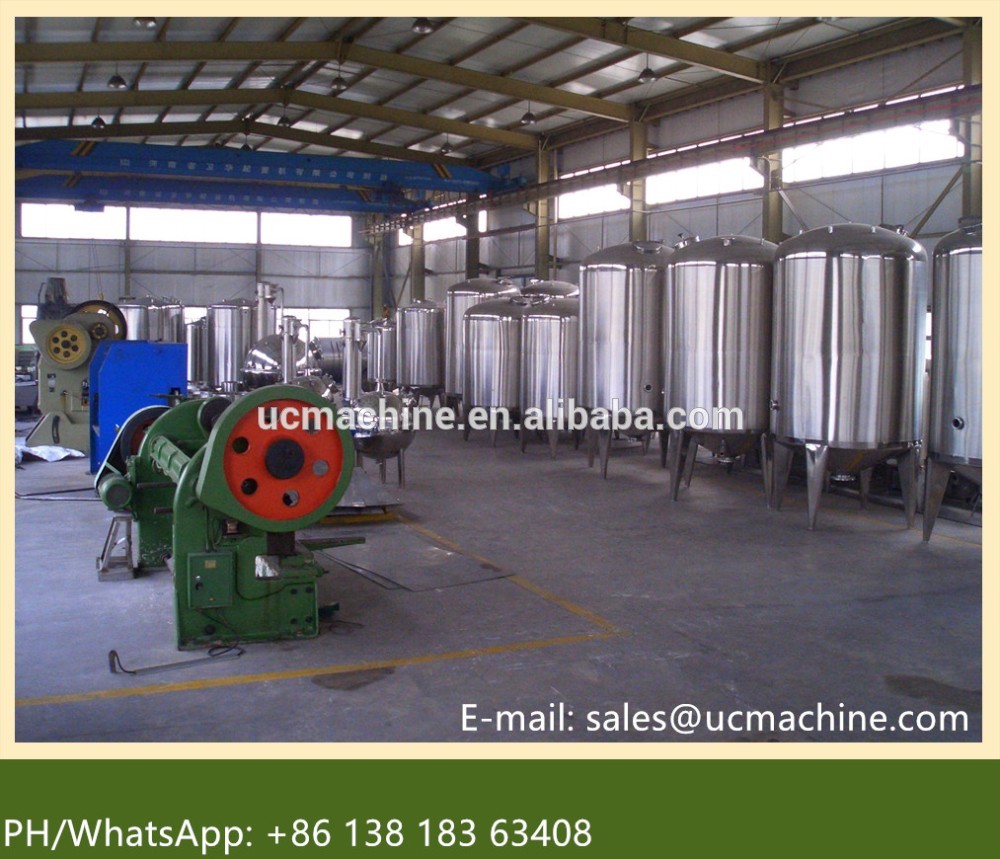

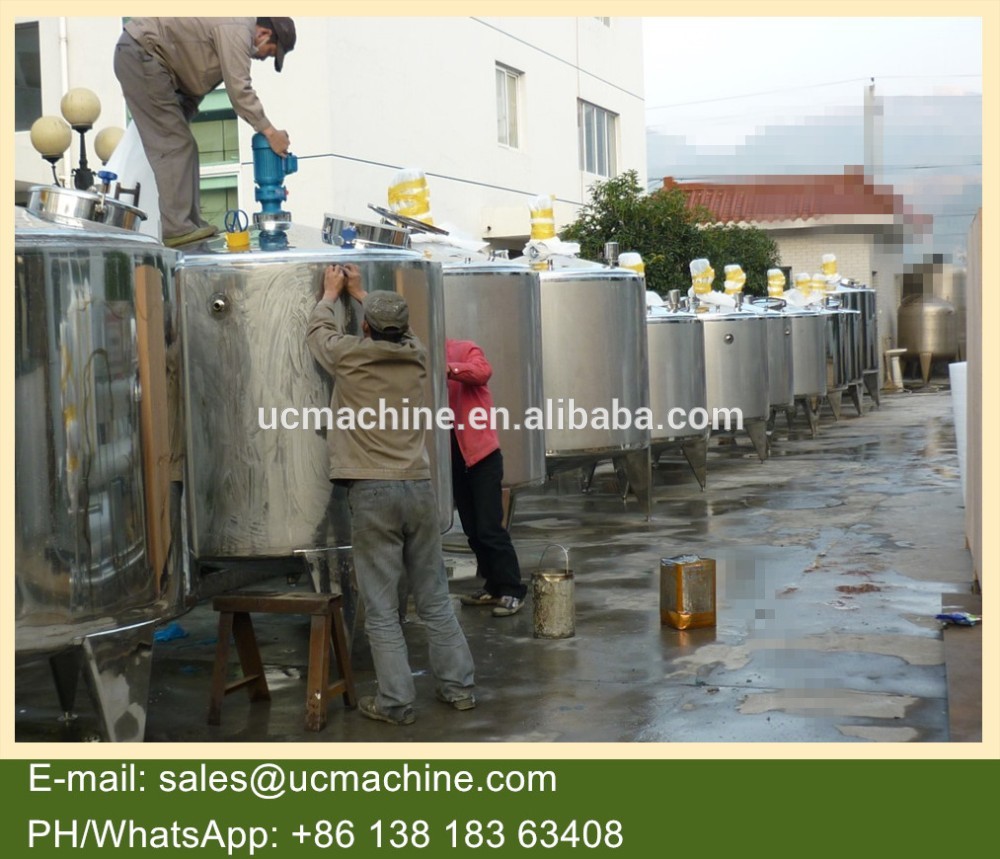

Welcome to Visit our factory: plz feel free to contact ph,whatsapp +86 138 183 63408
