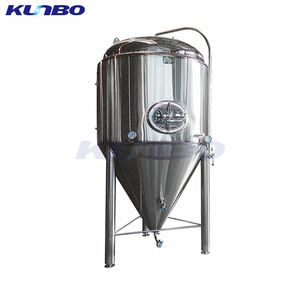

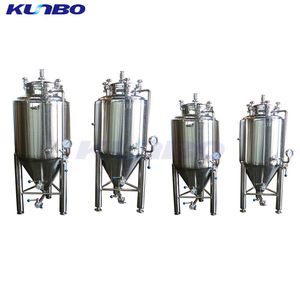

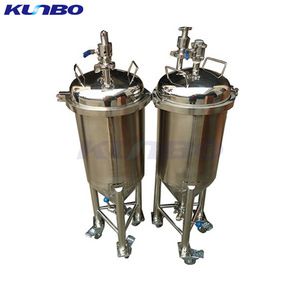

Homebrew Conical Fermentation Tank / Stainless steel Beer Fermenter / Brewery
| Beer Fermenter | |

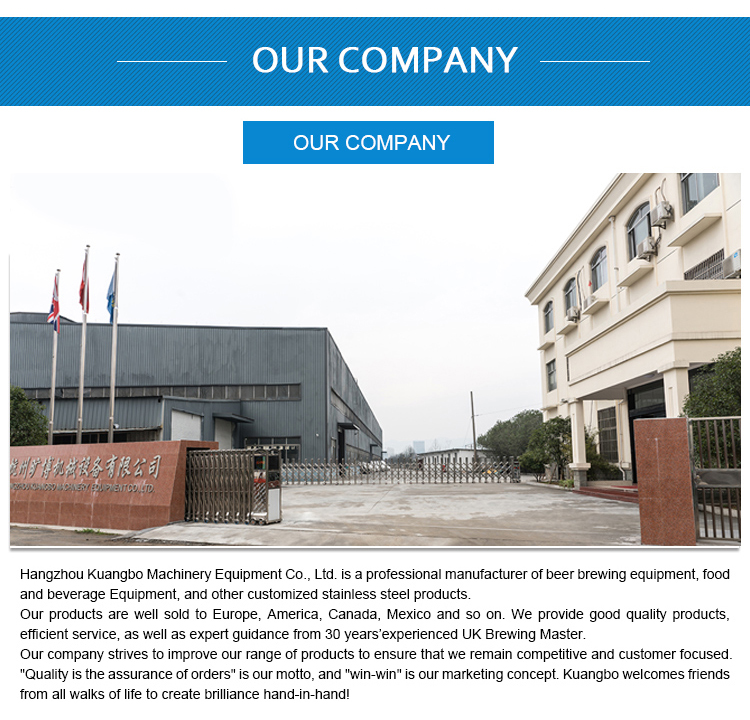

| Company introducation | We Kuangbo is a production enterprise of pharmaceutical, dairy, food and beer-making equipment, alongside biological engineering, chemical containers, and bespoke products. Our products are widely used in beer production, pharmaceuticals, beverage industries, biotechnology and other fields. |
| Usage | it is used for beer fermentation |
| Material | 1.SUS304, 316L |
| 2.jacket: dimple jacket | |
| 3.insulation layer: PU | |
| 4.as to the thickness, we can make it according to your requirement. | |
| Configuration | safty valve, CIP spraying ball and pipe at the side of the tank, outlet with valve and racking arm as your requirement, temperature gauge and sample valve |
| Our advantage | 1.we can supply various kinds of volume, minimum 50L, maximun 50,000L and even larger. |
| 2.PU insulation is adopted, jacket will be dimple jacket | |
| 3.interior surface is 3A finish and exterior is 2B finish | |
| 4.we also can equip you with a cooling system as your requirement. | |
| 5.competitive price and also higher quality tank. | |
| Minimum order | one unit |
| Payment term | T/T or L/C |
| Package | export standard package |
| Market | at home and abroad |
| Technical Parameters | |||||
| Working Volume (L) | Dimension of Tank(D*H)mm | Total Height(H)mm | Diameter of Inlet&Outlet(mm) | PU Insulation(mm) | Man Hole Size(mm) |
| 500 | 800*800 | 1750 | Dia 38 | 50 | 440*320 |
| 1000 | 1000*1200 | 2200 | Dia 38 | 50 | 440*320 |
| 1500 | 1100*1400 | 2500 | Dia 38 | 50 | 550*430 |
| 2000 | 1200*1500 | 2700 | Dia 38 | 50 | 550*430 |
| 3000 | 1400*1700 | 3150 | Dia 51 | 50 | 550*430 |
| 4000 | 1500*2100 | 3450 | Dia 51 | 50 | 550*430 |
| 5000 | 1600*2200 | 3590 | Dia 51 | 50 | 550*430 |
| 6000 | 1700*2200 | 3690 | Dia 51 | 50 | 550*430 |
| 8000 | 1800*2700 | 4350 | Dia 51 | 50 | 550*430 |
| 10000 | 2000*2800 | 4450 | Dia 51 | 50 | 550*430 |
FAQ:
1. Can your brewing equipment make both lager and ale?
A: Yes, our beer brewing equipment can make both lager and ale.
2. How to achieve temperature control?
A: The PLC or digital dispalyer could control the temperature by connecting with the PT 100 sensor.
The brewing tanks with rock wool to keep warm, the fermenters and bright beer tank with PU as
cooling jacket to keep cool.
3. Is it possible to supply installation in our country?
A: Yes, we could supply our clients over sea service and direct the installation and brewing.
