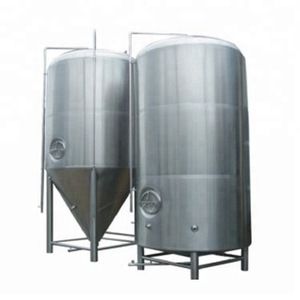

50l-6000l Jacketed Beer Fermentation Equipment/bright tank
1. High quality beer brewing equipment introduction:
Fermention tank
This series tank is composed by fermentation tank,beer storage tank/bright beer tank and yeast tank. We have specification of below form,and we can also customize specification according to clients order.

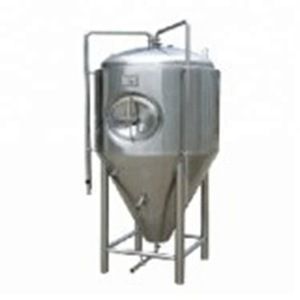

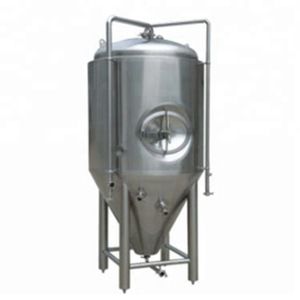

2. Specification of 2000L stianless steel beer conical fermentation tank of beer brewing equipment :
| Material: stainless steel 304 |
| Effective volume:2000L |
Thickness of inner body is 3mm, cladding is 2mm, insulation thickness: 100mm |
Top breather valve, top hop additional port |
Manhole; With rotary CIP spray balls |
Sample valve; Thermal well; Mechanical pressure adjustable valve |
Glycol solenoid valves; Bottom drain port and beer outlet |
Dimple type glycol cooling jacket, cooling jacket thickness is 1.5mm |
Parameters:
Fermentation Tank Series | Volume in US Gallon | Diameter | Height |
1HL Fermentation Tank | 26US Gallon | 620mm | 1600mm |
2HL Fermentation Tank | 53US Gallon | 820mm | 1800mm |
3HL Fermentation Tank | 79US Gallon | 960mm | 1900mm |
4HL Fermentation Tank | 106US Gallon | 960mm | 2100mm |
5HL Fermentation Tank | 132US Gallon | 1010mm | 2100mm |
6HL Fermentation Tank | 159US Gallon | 1060mm | 2150mm |
8HL Fermentation Tank | 211US Gallon | 1060mm | 2550mm |
10HL Fermentation Tank | 264US Gallon | 1210mm | 2550mm |
12HL Fermentation Tank | 317US Gallon | 1360mm | 2550mm |
15HL Fermentation Tank | 396US Gallon | 1560mm | 2620mm |
20HL Fermentation Tank | 528US Gallon | 1560mm | 3100mm |
25HL Fermentation Tank | 660US Gallon | 1560mm | 3450mm |
30HL Fermentation Tank | 793US Gallon | 1760mm | 3500mm |
