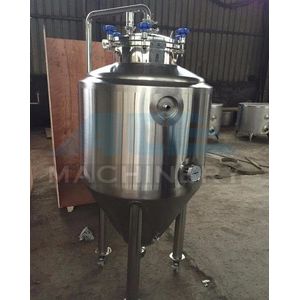

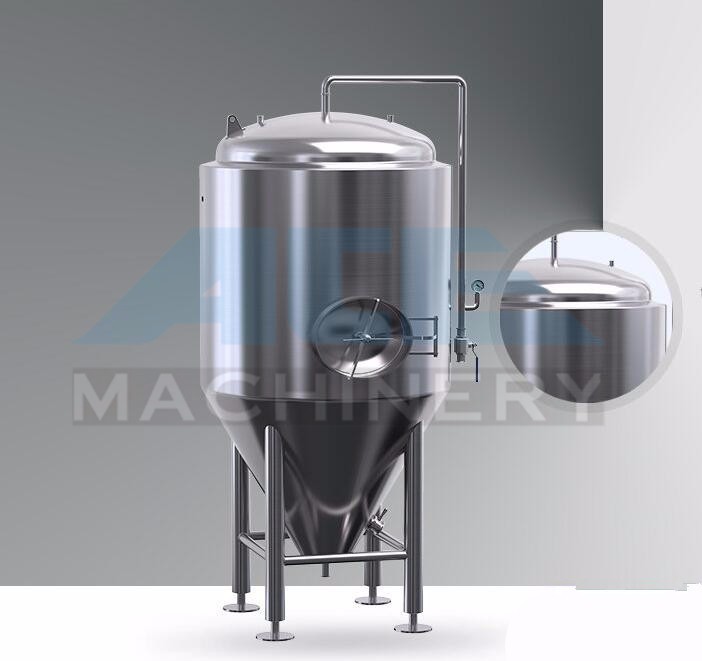

| Industrial Fermenter | |
| Company introducation | We ACE machinery is a production enterprise of dairy, food and beer-making equipment, alongside biological engineering, chemical containers, and bespoke products. Our products are widely used in beer production, pharmaceuticals, beverage industries, biotechnology and other fields. |
| Usage | It is used for beer fermentation & brewing. It applies in brewing industry. |
| Material | Stainless Steel 304 or 316L |

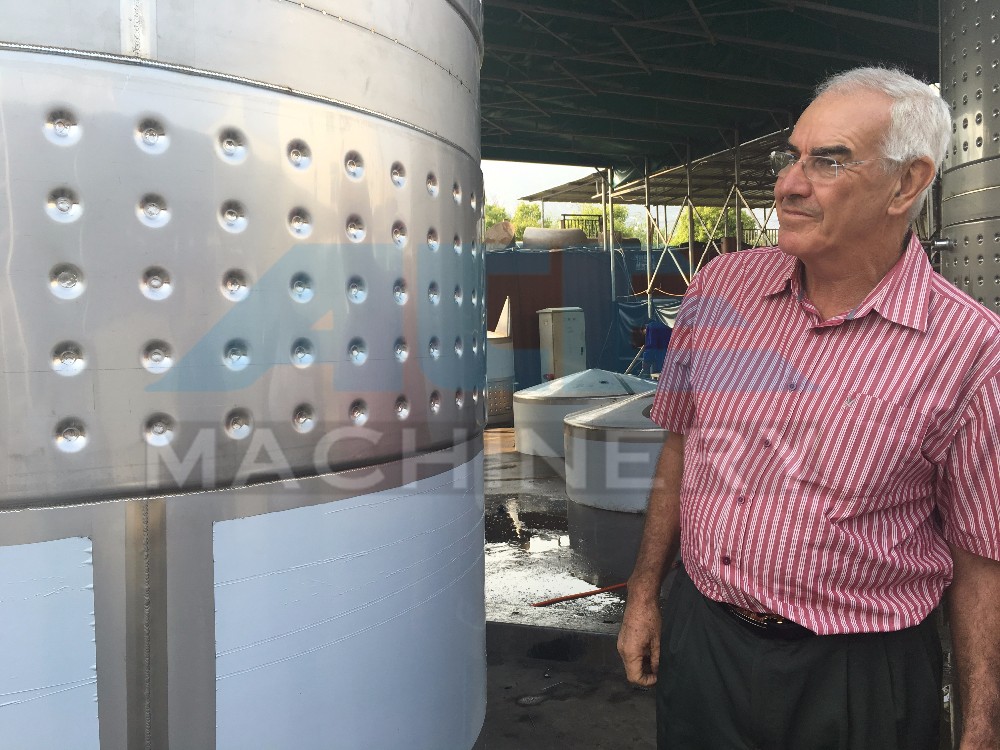

| Technology & Design | 1). It is made of double jackets with dimple jacket and insulation layer filled with PU which is imported from Japan. |

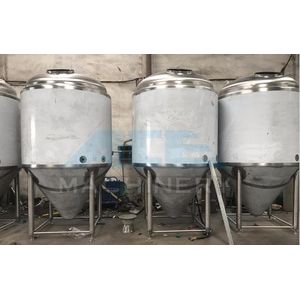

| 2). Dish top, conical bottom for good fermenting, improving the quality of beer as well as breeding yeast, cylinder body. | |
| 3). As to polish, interior layer and dish top will adopts 3A mirror polish while exterior layer and conical bottom adopts 2B satin polish. | |

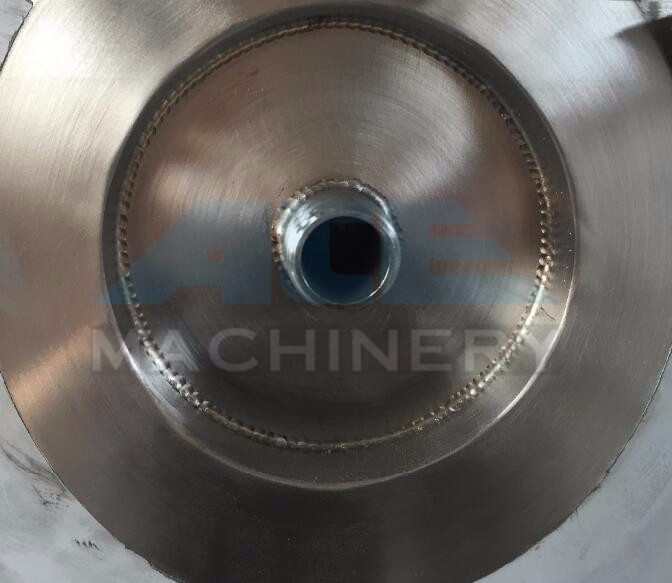

| 4). As to transition of interior, we will adopt arc to make sure that there is no dead corner of sanitation. | |

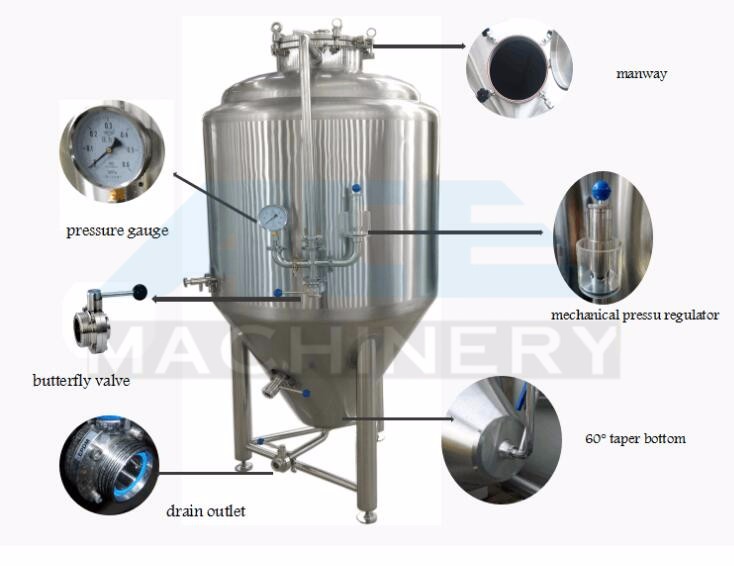

| 5). 10-30% headspace, 60 degree cone, rotating racking arm is designed according to your demands | |
| 6). All clamps valve and fittings except for cold water inlet and outlet which is Tri-clamp. | |
| 7). As to the thickness, we can make it according to your requirement. | |
| 8).etc | |
| Volume | 50L-20000L |
| Advantage | 1.Configuration details can be designed as your requirements |
| 2.Competitive price and also higher quality tank. | |
| Package | Export standard package |
| Market | At home and abroad |
| Working Volume (L) | Dimension of Tank (D*H) mm | Total Height (H) mm | Diameter of Inlet&Outlet (mm) | Diameter of Inlet&Outlet (mm) | Diameter of Inlet&Outlet (mm) |
| 500 | Dia 800*800 | 1750 | Dia 38 | 50 | 440*320 |
| 1000 | Dia 1000*1200 | 2200 | Dia 38 | 50 | 440*320 |
| 1500 | Dia 1100*1400 | 2500 | Dia 38 | 50 | 550*430 |
| 2000 | Dia 1200*1500 | 2700 | Dia 38 | 50 | 550*430 |
| 3000 | Dia 1400*1700 | 3150 | Dia 51 | 50 | 550*430 |
| 4000 | Dia 1500*2100 | 3450 | Dia 51 | 50 | 550*430 |
| 5000 | Dia 1600*2200 | 3590 | Dia 51 | 50 | 550*430 |
| 6000 | Dia 1700*2200 | 3650 | Dia 51 | 50 | 550*430 |
| 8000 | Dia 1800*2700 | 4350 | Dia 51 | 50 | 550*430 |
| 10000 | Dia 2000*2800 | 4450 | Dia 51 | 50 | 550*430 |
| Main Feature |
| 1). Made of single-layer,double layer or three layer stainless steel structure. |
| 2). Materials are all sanitary stainless steel. |
| 3).Humanized structure design and easy to operate. |
| 4).Transition area of interior wall on tank adopts arc fr transition to ensure no dead comer of sa |

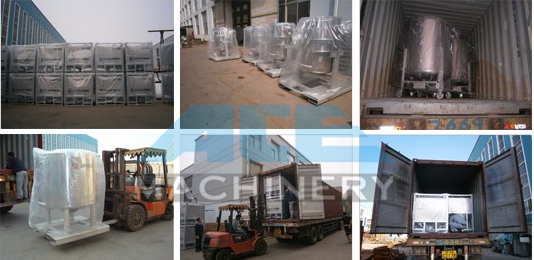

1). Main tanks, vessels and machines will be packaged with painted steel frames.
2). All spare parts, accessories and fittings will be packaged with painted steel box.
3). All items wrapped with soft package for protection.
4). Standard shipping containers will be used for general purpose.
5). All equipments will be loaded into containers according to exact container layout drawings.
6). After loaded into containers, all equipments will be well fixed to the containers.
Pre-Sales Service
1).Some clients are new in this field, they also no have ideas about how to confirm the configuration list, since we have experience, we can give some suggestions and also other clients for reference, then they will know what they will need exactly.
2).We also have the process video for the brewing equipment, if the client do not know the process, the video will be sent.
3).We will give the layout according to the client’s floor plan or their requirements.3D layout also can be provided. This can help the client to get a better understanding about the project.
4).We will give the detailed diagram of the tanks, this can help the client to know whether this is what they need and also can modify them before placing the order.
After-Sales Service
1).1 years warranty
2).Inner and outer of the tanks have been mirror polish
3).The materials of the tanks can be SUS304 Stainless
Steel with higher quality and affordable price
4).The capacity can be 50L---Customized per batch
5).Professional engineers going abroad to assist you setup the brewhouse
ACE Machinery specialize in sanitary valves,pipe fittings and pumps,which is applied for milk,food,beer,pharmaceutical and other fields.We can quote you favourable price&high quality&best after-sale services.
1.Brewery equipment
2.Sanitary Valves,such as butterfly valves,check valves,diaphragm valves,ball valves,pneumatic reversal valves,ect.
3.Sanitary Pumps,such as Sanitary Centrifugal Pumps,Sanitary Rotary Lobe Pumps
4.Sanitary Manhole Covers,such as square/round/elliptical manhole covers.
We have own factory. We get CE certification.We specialize in manufacturing beer brewing equipment.
2).Quality and price
We have professional purchasing team. Comparing multiple vendors,choose
best raw materials and the most preferential price. We have skilled worker and
strict quality control system,provide the best quality products to our customers.
3).Convenient transportation
Our company is located in Wenzhou Zhejiang. It just takes 15minutes from Longwan Internation airport to our factory or 50 minutes from the Train Station.
4).Clear order process
We have clear order process. From mails &calling→Order confirmed→Make advance payment→Workshop produce→Pay the balance→ Arrange goods delivery→Buyers receiving confirmation→Satisfaction survey.
5).Quality of service
We will provide photos make our customers to know the order status.Of course,we welcome our customers to our factory to inspect any time!Why choose us?
