450ml Triple Blood Bag 5ml Or 10ml 15 Ml Horizontal Rotor Lab Cells Centrifuge
450ml Triple Blood Bag 5ml Or 10ml 15 Ml Horizontal Rotor Lab Cells Centrifuge
Product Description

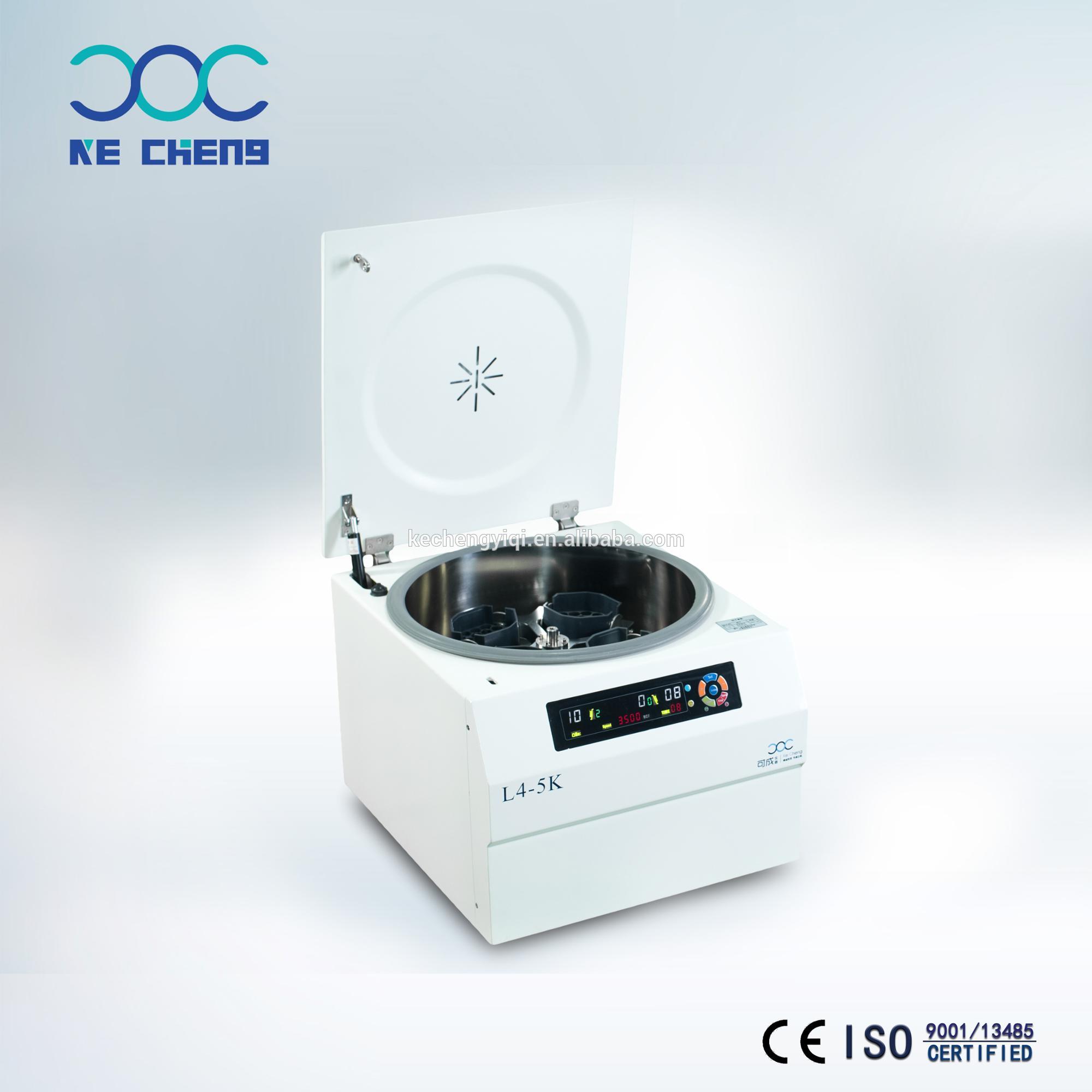

Technical Parameter for Automatic Uncapping Refrigerated Blood Plasma Separator Centrifuge
Model | L4-5K | ||
Max RPM (rpm) | 5500rpm | Noise Level | ≤ 65dB(A) |
Max RCF | 5310×g | Chamber diameter | φ420mm |
Max Capacity | 4×750ml | Outer Dimensions | 560×460×400mm |
Timer | 1min~99min | Packing Dimensions | 640×530×470mm |
Revolutions/min | ±20r/min | Net weight | 50kg |
Voltage | AC 220±22V 50Hz 10A | Gross weight | 55kg |
Power | 750W | / | / |
Rotor | No | Capacity | RPM/RCF |

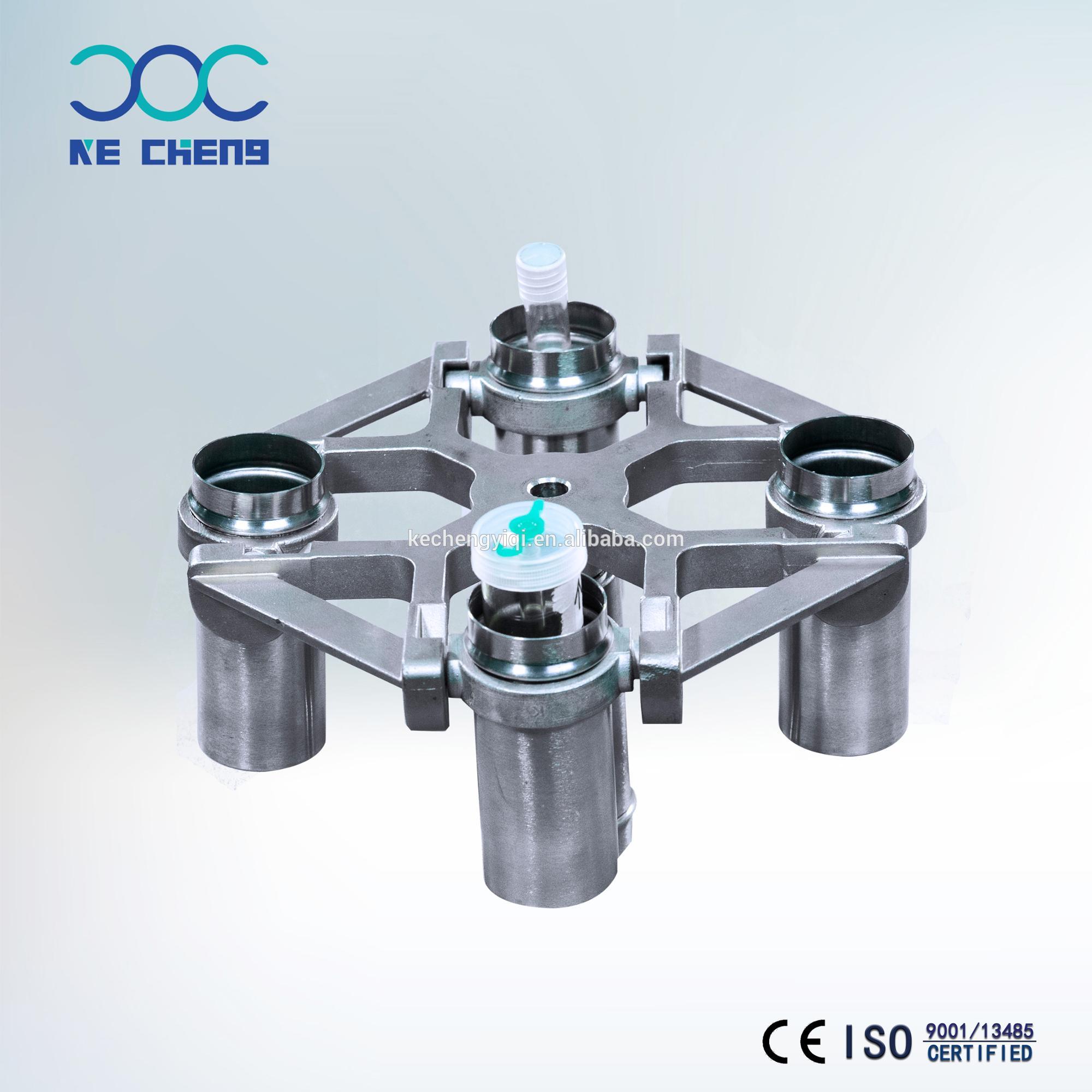

Swing-out Rotor | 1 | 4×50ml | 5500rpm/5310×g |
2 | 4×100ml | 5000rpm/4390×g | |
3 | 8×50ml | 4000rpm/2810×g | |
4 | 16×10/15ml | 4000rpm/2810×g | |
5 | 24×10/15ml | 4000rpm/2810×g | |
6 | 32×10/15ml | 4000rpm/2810×g | |
7 | 48×5/7ml | 4000rpm/2810×g | |
8 | 64×5/7ml | 4000rpm/2810×g | |
9 | 72×5/7ml | 4000rpm/2810×g | |
10 | 96×5/7ml | 4000rpm/3580×g | |
11 | 120×5/7ml | 4000rpm/3580×g | |
12 | 4×750ml | 4000rpm/3580×g | |
13 | 4×500ml | 4000rpm/3580×g | |
14 | 4×250ml | 4000rpm/3500×g | |
15 | 4×250ml/Sharp bottom | 4000rpm/3500×g | |
16 | 6×250ml | 4000rpm/3500×g | |
Automatic uncap basket | 17 | 48 tubes uncap basket | 4000rpm/3500×g Φ13×75-106 |
18 | 72 tubes uncap basket | 4000rpm/3500×g Φ13×75-106 | |
19 | 96 tubes uncap basket | 4000rpm/3580×g Φ13×75-106 | |
Micro plates rotor | 20 | 4×2×96 Hole | 4000rpm/3550×g |
21 | 2×2×96 Hole | 4000rpm/2300×g | |
22 | 2×2×48 Hole | 4000rpm/1700×g |
Product Features for L4-5K Automatic Uncapping Refrigerated Blood Plasma Separator Centrifuge :
1. Great space saver for the lab
2. Steel structure, longer service life.
3. Maintenance free brushless DC motor drive to enable stable and quiet operation
4. Multi-color LCD display, user-friendly, clearer and more direct display. .
5. Able to change parameters anytime during operation without stopping the machine
6. Automatic calculation and simultaneous display of RCF/RPM.
7. Up to 10 types of accelerating/decelerating control, 40 groups of programming space,
8. Electronic door lock, enhanced safety
9. This model is widely used in laboratories in hospitals and institutions due to its excellent performance and reliable quality
Certifications
Automatic Uncapping Refrigerated Blood Plasma Separator Centrifuge
Certifications
Packaging & Shipping
Company Information
Contact Us

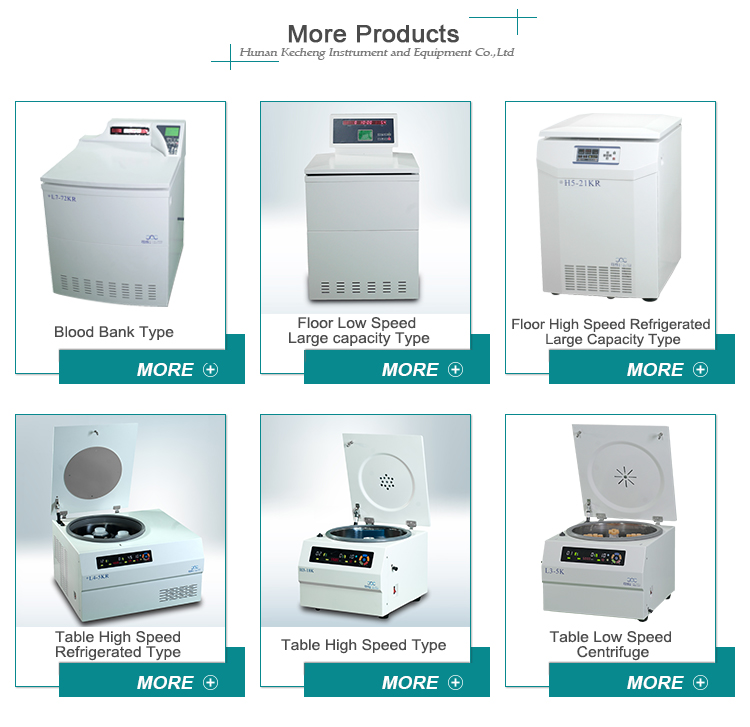

Related Product
