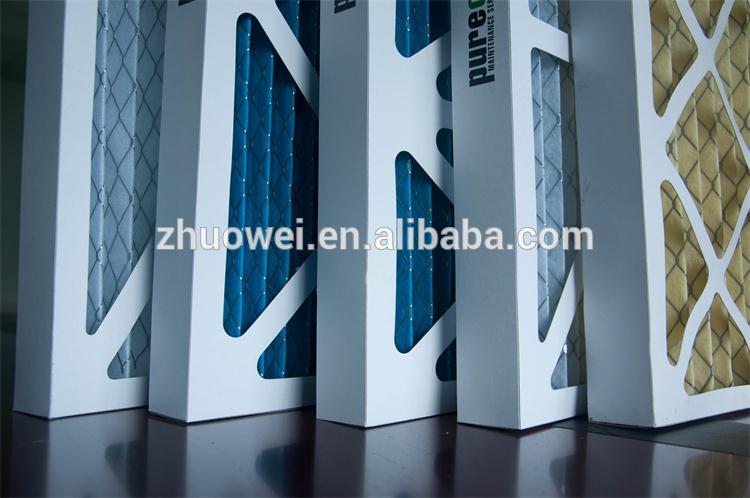

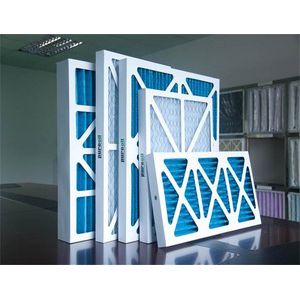

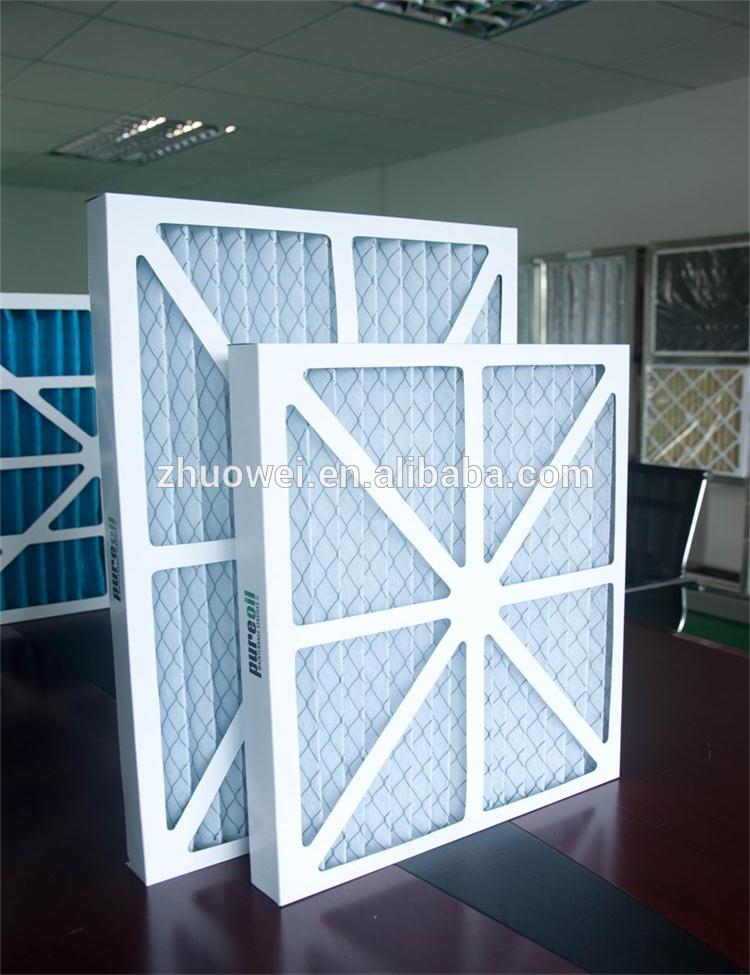

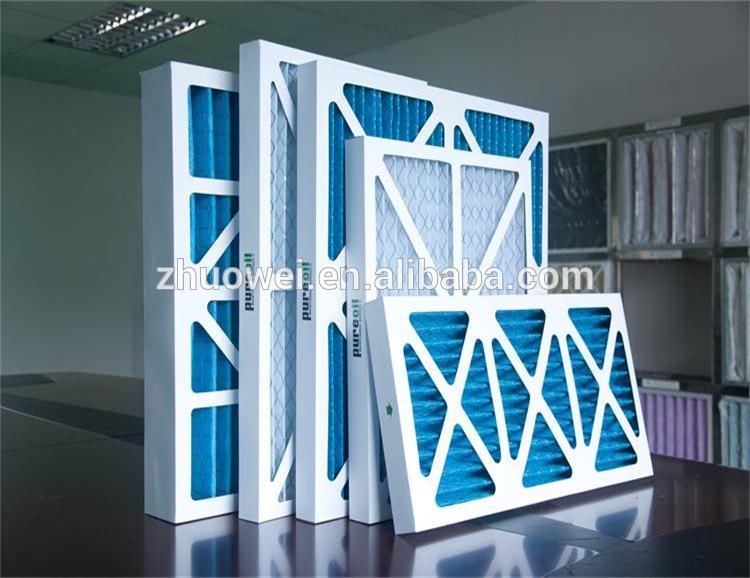

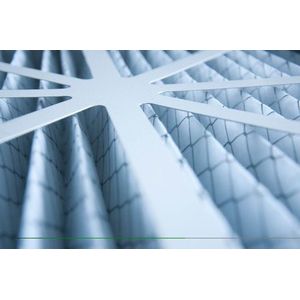

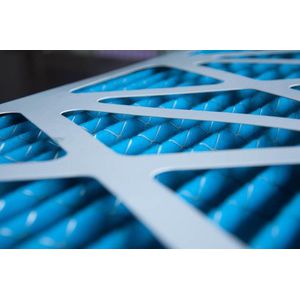

Cardboard pleated galvanized mesh Pre-Filter G2-G4
Filter efficiency: 40-90% @ 5micron
Media: 100% synthetic fiber
Max operation temperature: max continuous operating temperature of 1750F (80 ºC)
Max humidity: 100%
Recommended final resistance: consult factory. Rule of thumb, change filter when the initial pressure drop doubles
Frame: Cardboard/ galvanized steel/ aluminum alloy

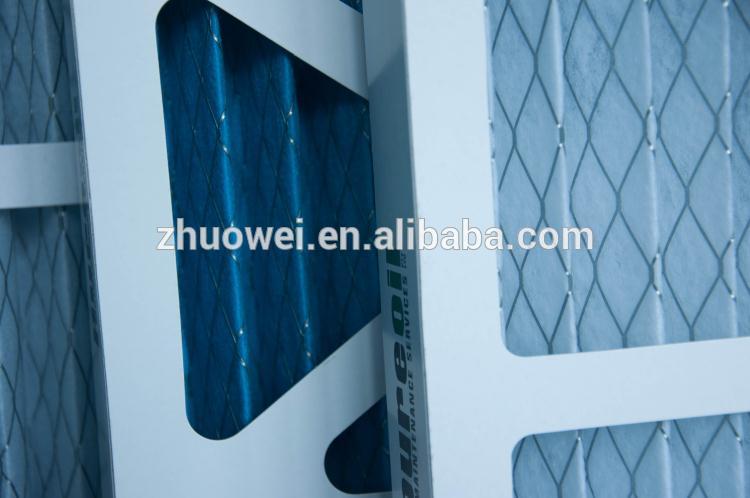

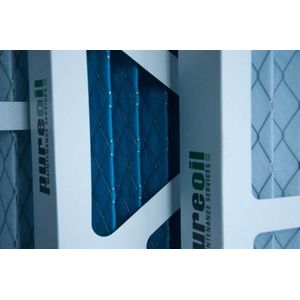

Protect net: Galvanized mesh in one side or double side
1. Adopt galvanized steel net rust prevention, pleated structure, no easy deformed when using.
2. Sealed connection between filter media and frame, protect air leakage
3. Hight quality synthetic fiber media, washable and reusable
4. Pleated structure can increase the filtration area, raise the dust holding capacity, lengthen the worklife
the pre filter is used first stage filtration of air conditioner system, widely used in food industry
hospital, museums, schools and universities,shipping malls, airport, commercial building, electronics, pharmacy etc
Customized:
we can customize any size if you advise your requirement

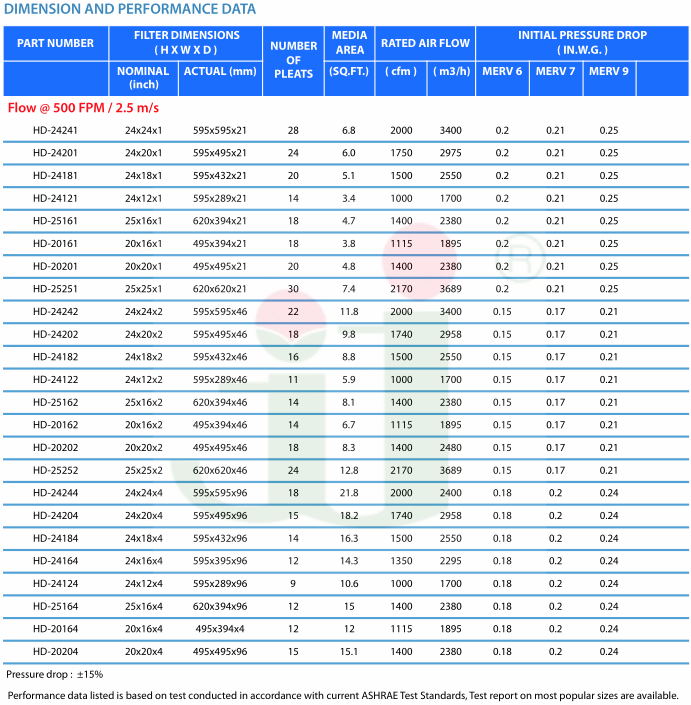

More size(other size can be customized):
| Model | Dimension(mm) W*H*D | Rated Air Flow (m3/h) | Initial Resistance(pa) | Efficiency % | Class EN779 | Frame | Media | Protective nets |
| Coarse air filter | 595*595*21/46/96 595*495*21/46/96 595*295*21/46/96 495*495*21/46/96 295*295*21/46/96 | 3200 2700 1600 2200 800 | 45 | 40-90 Arrestance | G2-G4 | Cardboard Aluminum alloy Galvanized sheet | non-woven fabrics | Galvanized mesh |

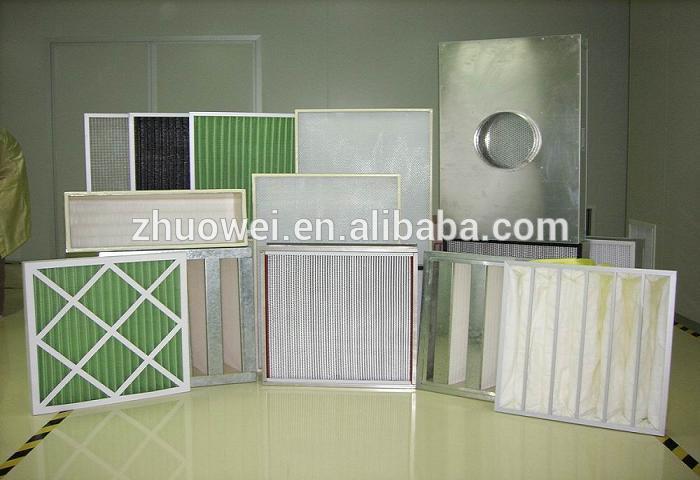

More products
FAQ
Q1: What’s the MOQ?
A1: The MOQ is 20pcs.
Q2: Can I make other different size?
A2: Yes, custom size is available
Q3:Can you send samples?
A3: Yes, we can send you sample for evaluating, free or not depend on products.
Q4: What’ s the payment terms can you accept?
A4: T/T, L/C, Western Union.
Q5: How about the shipment?
A5: By sea, by air or by express, according to Qty and your demand.
Q6: How long is the lead time?
A6: About 3-10 days.
Q7: Are you a factory or trading company?
A7: Surely professional factory, set design, manufacturing &sale in one, you can get best factory quote from us.
Q8: What information should I provide if inquiry your air filter?
A8: Size, efficiency, filter frame, media, application, type etc. So that we can offer you exact quote.
