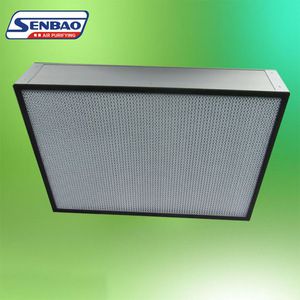

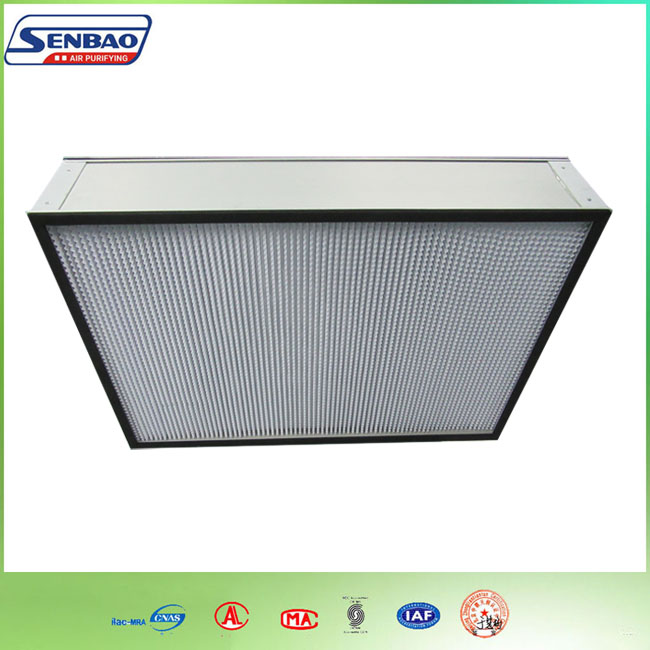

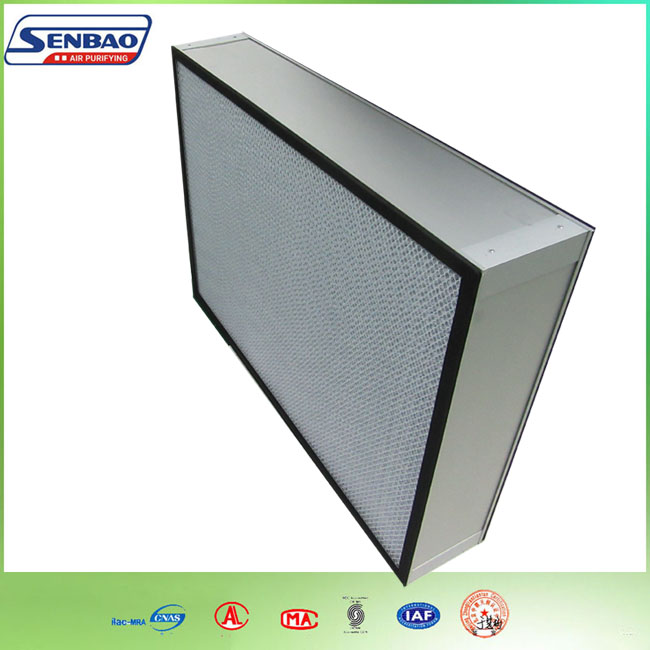

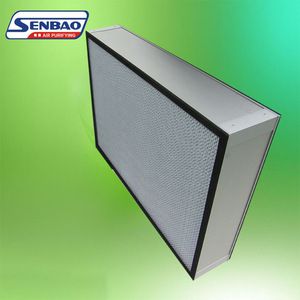

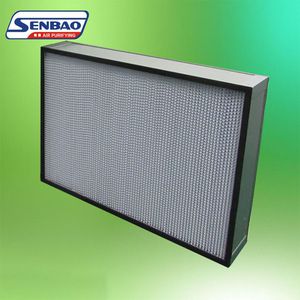

Cleaning Room AHU HEPA Filter For Air Filtration Systems
We are the leading air filter manufacturer in China! We are one of the first mover for air filters business in China! Just enjoy our First-class quality and VIP service when you choose us!! We committed to do the world's most influential suppliers for air filter!!!
Common applications:
Filtering 0.3 microns or less suspended particles in the air,it is widely used in the terminal filtration of the civil or industrial cleaner places requiring a higher degree of cleanliness such as electronics,semiconductor,precision machinery,pharmaceuticals,hospitals,food,etc.
Features:
Adopting the superfine fiberglass filter paper or PP high efficiency filter paper as the media,separated by folded glue paperboard,aluminum foil,sealed by the new polyurethane sealant.low loss,high efficiency,light weight,it is tested precisely one by one.
| Frame | Aluminum/stainless steel /wooden |
| Partition | paperboard |
| Max .Temperature | 85 degree |
| Max. Humidity | 80%RH |
Specification and technical parameters
Model NO. | Outsize L*W*H (mm) | Rated air flow (m³/h) | Initial resistance (pa) | Efficiency 0.3μm(flame method) |
GA | 320*320*220 | 400 | ≤220 | 99.99% |
GA | 484*484*220 | 1000 | ||
GA | 610*610*150 | 1000 | ||
GA | 630*630*220 | 1500 | ||
GA | 915*610*150 | 1500 | ||
GA | 595*595*290 | 2000 | ||
GA | 1220*610*150 | 2000 | ||
GA | 1260*630*220 | 3000 | ||
GA | 945*630*220 | 2200 | ||
special size can be according to customer special requirement |

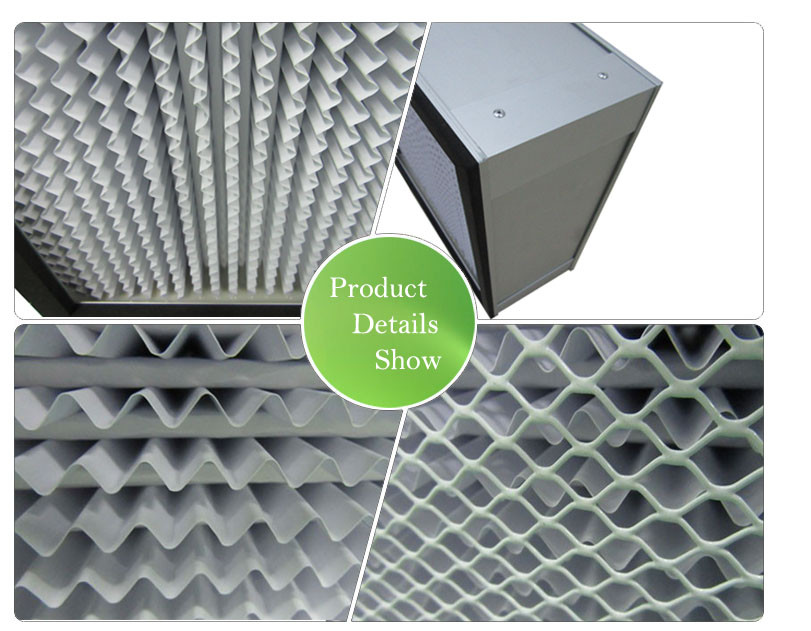

Product show
Our customers all over the world, Southeast Asia, Middle East, North America, European, etc. We cooperate with some famous customers more than 10 years, like Coca-Cola (China), Nestle coffee (China), DuPont electronics, Pepsi Cola, Master Kong, Lebaishi (Danone), etc...
Send your inquiry to us for free sample and big discount now!
