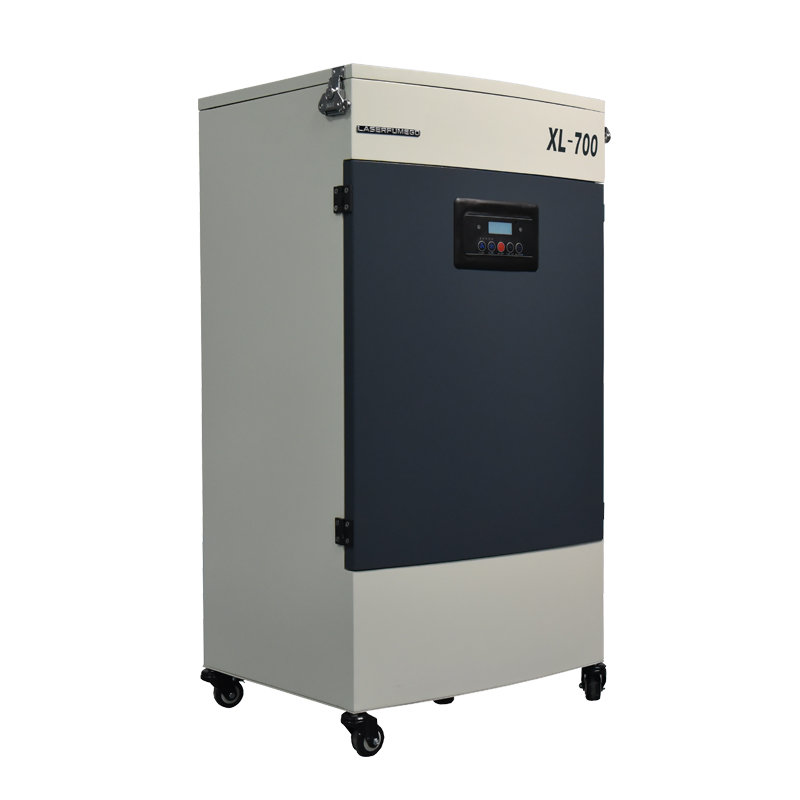

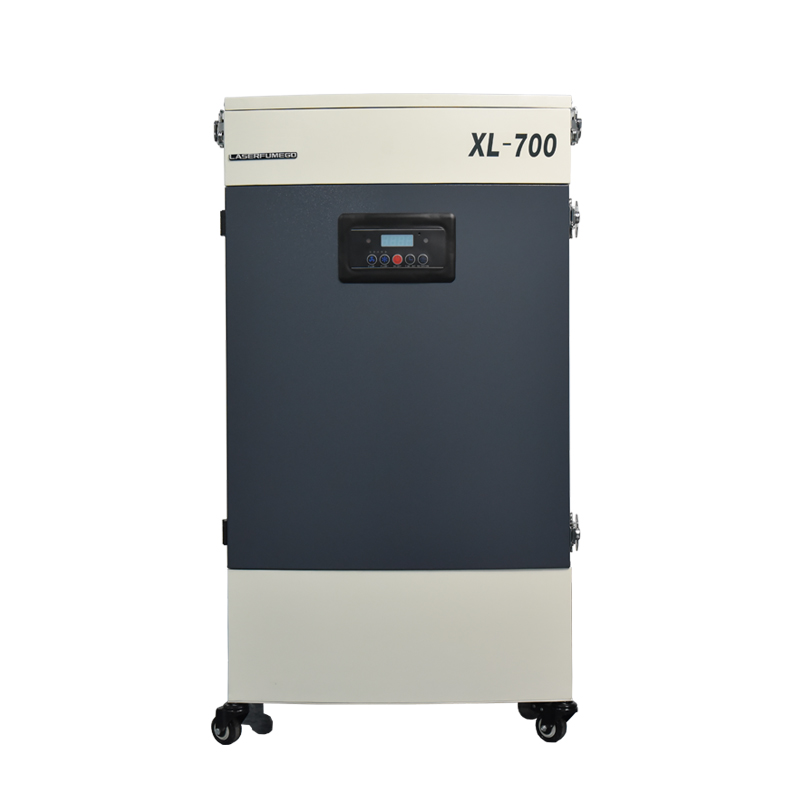

XL-700 Air Filtration System for Processing

PRIMARY PARAMETERS

Condition

New

Efficiency

99.9%

Construction

Multi layer different filter

Filtration Grade

Hepa Filter

Medium Material

Multi layer different filter

Porosity

0.3u

Place of Origin

Guangdong, China (Mainland)

Brand Name

Fume Clear

Model Number

XL-700

Dimension(L*W*H)

550*415*1070mm

Weight

70kg, 70kg

Certification

Warranty

1 Year

After-sales Service Provided

Overseas service center available

Modle

XL-700

Filter

6 Layers

Air Flow

570m3/h

Power

700W

Item Name

XL-700 Air Filtration System for Processing

Dimensions(L*W*H)

550*415*1070mm

Noise

<75dB

Voltage

AC 110-220V

DETAIL DESCRIPTION

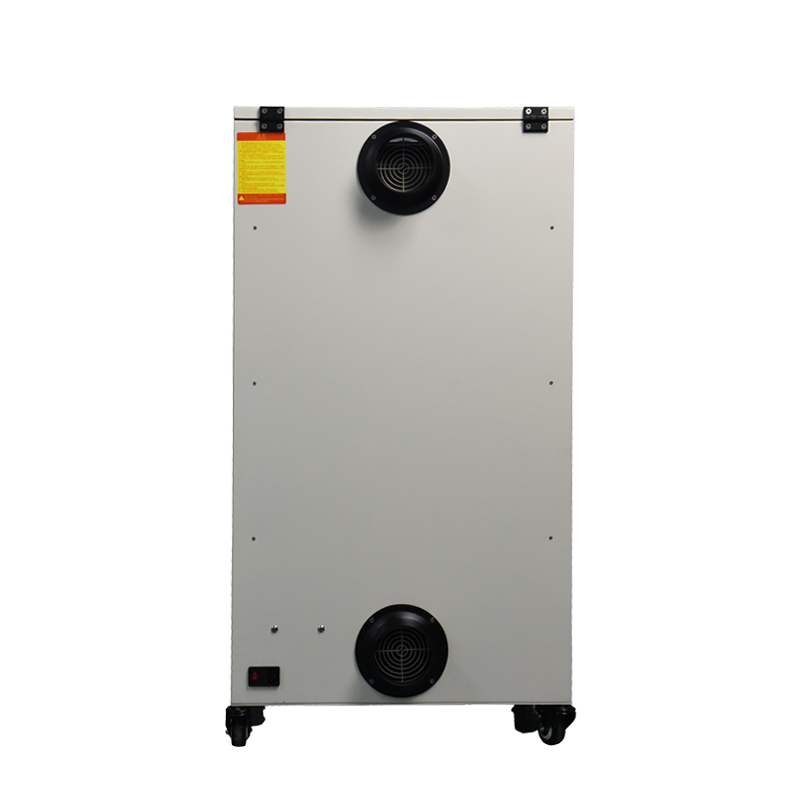

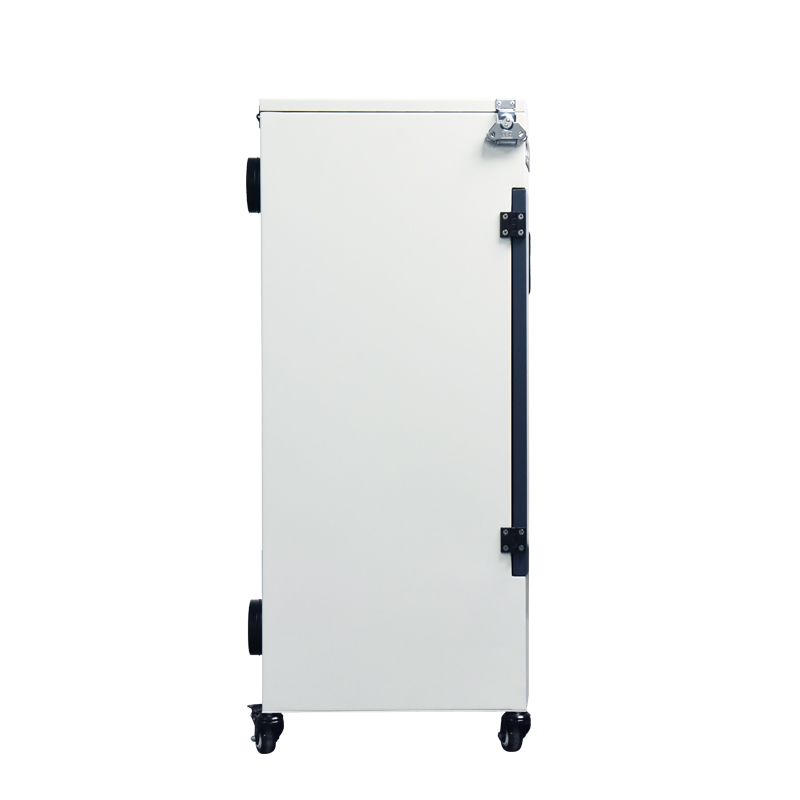

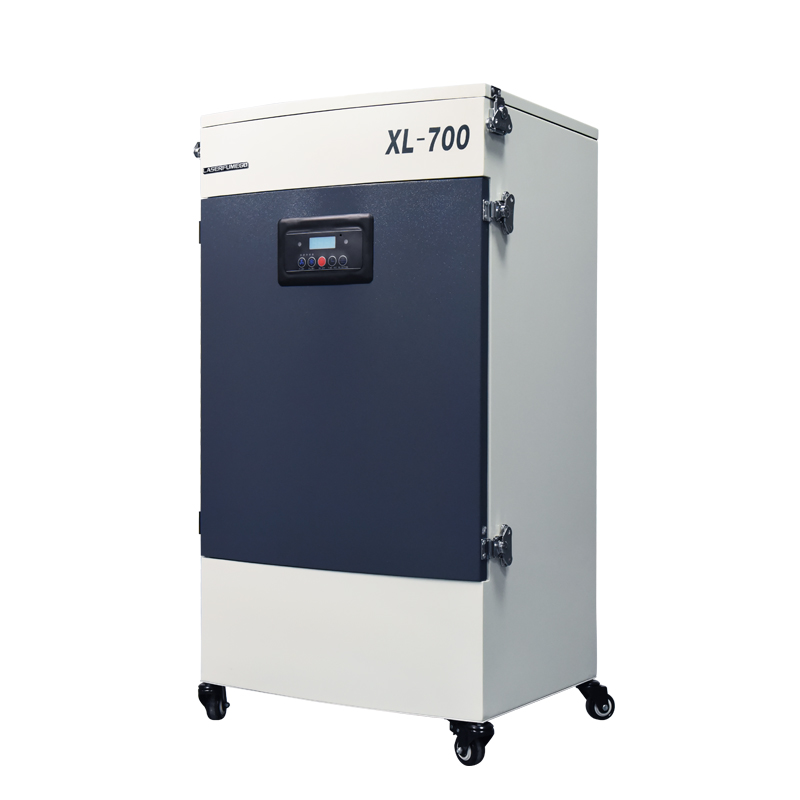

XL-700 Air Filtration System for Processing

Product Description

Features

1. With metal frame structure, it is durable in use.

2. Microcomputer chip control, digital display, remote control available.

3. Filter failure alarm system.

4. Multi-layer filtration and rapid purification.

5. DC brushless motor made it a stable performance and long life.

6. Impeller made of special alloy material, anti-corrosion and larger suction.

7. Dust collection and filtration, odor filtration, fire proof.

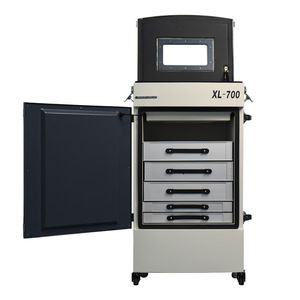

8. Equiped with observation widow, you can view the sevice condition at any time.

Specifications

Modle	XL-300	XL-500	XL-700
Filter	4 Layers	5 Layers	6 Layers
Weight	36.7kg	60kg	70kg
Dimensions(LWH)	425315700mm	550415920mm	5504151070mm
Air Flow	400m³/h	500m³/h	570m³/h
Noise	<59dB	<70dB	<75dB
Power	330W	450W	700W
Voltage	AC 110-220V	AC 110-220V	AC 110-220V
Size of Filter (can be customized)
Fireproof protection net	No	41533525mm	41533525mm
Primarry filter	450380100mm	450380100mm	450380100mm
PP Medium filter	450380100mm	450380100mm	450380100mm
Glass fiber filter	No	No	450380100mm
Activated carbon filter	45038050mm	45038050mm*2	45038050mm*2

Company Information

Fume Clear Technology Co.,Ltd was established in 2004, we are an air purification and enviromental protection enterprise which combines research and development, manufacturing , sales as a whole with more than 10 years of experience. There are more than 46 technical pateners, more than 400 strategic parteners around the world.

Our fume extractor have passed CE, PNY test, ROHS Standard and meet the industry standard such ad "National Air Quality Monitoring" and so on. Our comapny promise motor warranty 3 years for all products.

Fume Clear products can be widely used in:

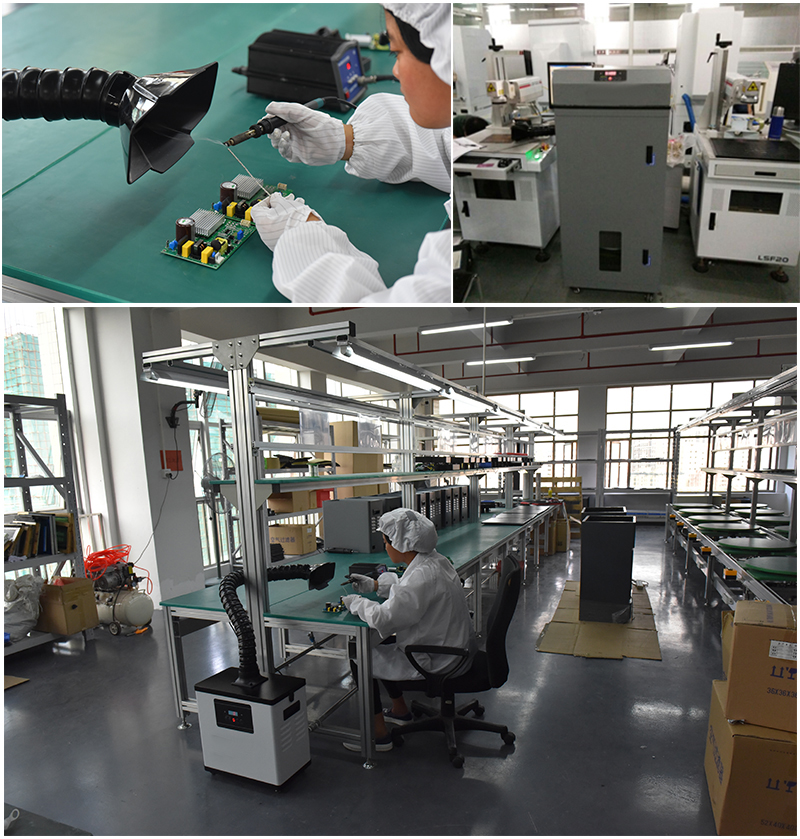

1. Electronics and appliances manufacturing: tin solder, immersion tin, reflow oven...

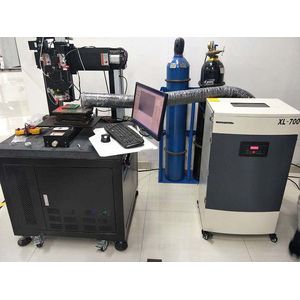

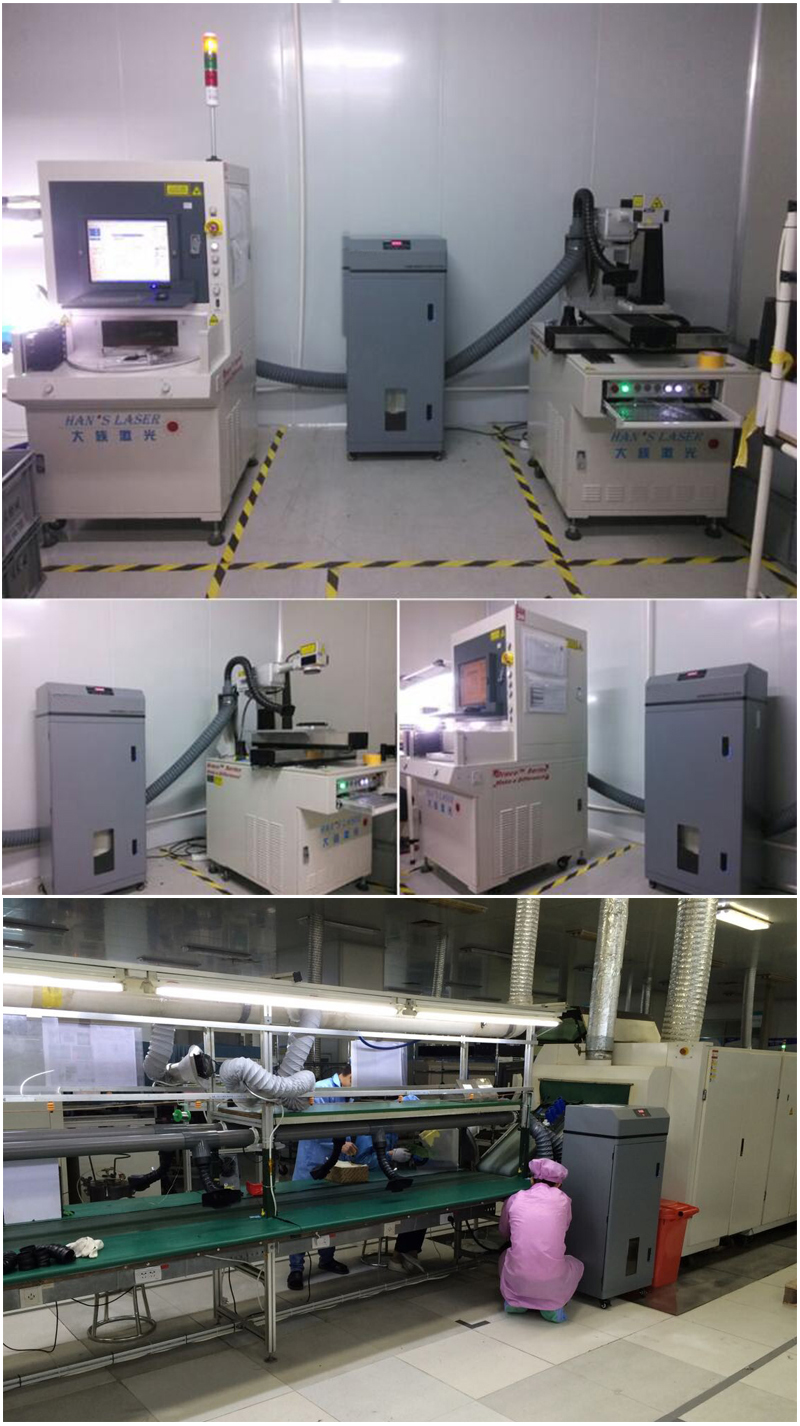

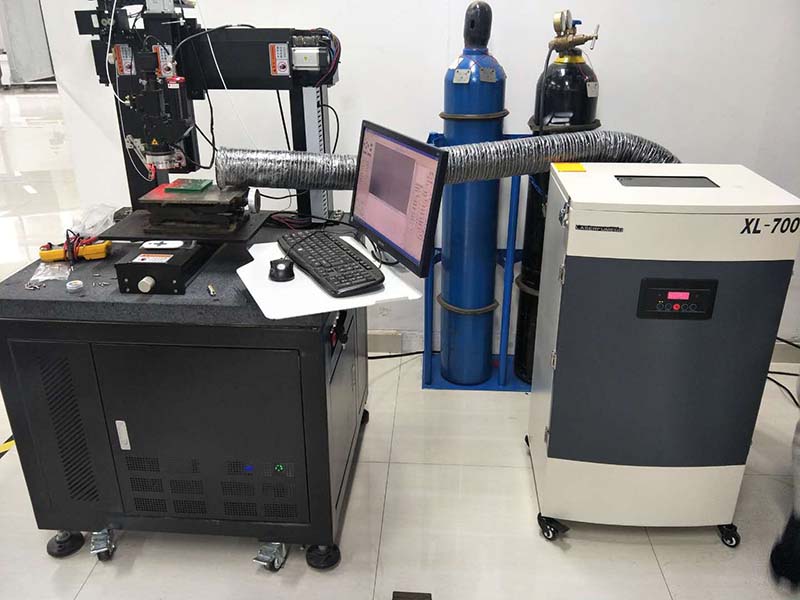

2. Laser operation: laser welding, laser cutting, laser printing, laser carving, laser coding...

3. Chemical laboratory: welding, argon welding, plasma cutting, metal polishing and turning...

4. LED manufacturing, automotive manufacturing, furnition, electroplating, jewelry manufacturing, commerce and many other use.

5. Beauty salon odor and fume remover.

Our Services

1. Your inquiry related to our products or prices will be replied in 24hours.

2. Well-trained and experienced staffs to answer all your inquiries in fluent English

3. OEM&ODM

4. Good quality paper box & carton packing

5. Double check before shipping

6. Safely Shipping method,such as DHL /EMS /FEDEX/TNT /UPS

7. Ocean Freight or cargo forwarder service

8. Sample order in small quantity is acceptable

For more detailed information or catalog, please kindly contact us!
