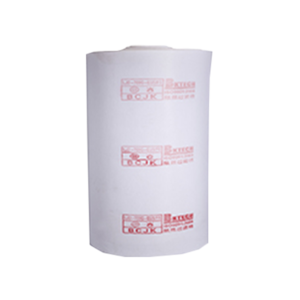

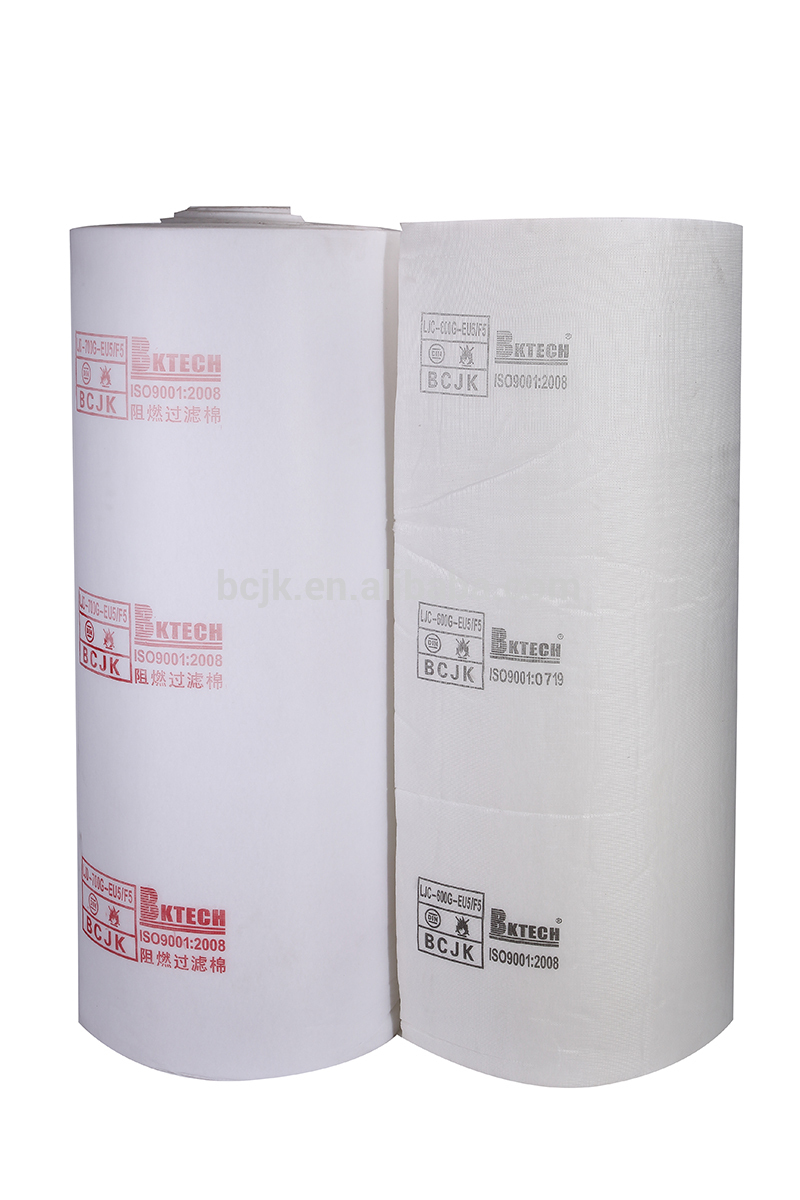

air filtration industrial system F5 ceiling filter
Speciality:
1.Retardant ceiling filter is made of super-long heat-welding and anti-breaking synthetic fiber and quality water soluble resin,no silicon.
2.In the method of whole stereoscopic gum-spraying; flame retardant; the flame can be automatically put out in 10 seconds; increased fiber density; high-strength fine fiber net in the sticky surface; efficiently absorbing the dust grain up to 100%.
3.The high efficiency and the super long service life not only assure the cleanness of the air, but also get enough airflow, which make the air distributed in the whole workspace evenly.
4.The quality of the product has passed the national quality supervision and inspection center and has won two of the related national patents.
Aplication:
Applied to the air filtration for the painting factory the spray workshop, baking varnish room and so on.
Applied to automotive factory , the automobile repairing shop, the motorcycle factory, the bicycle factory ,the operating system of the household appliances painting.
Performance parameters:
| Model | BJ-560G | BJ-600G | BJ-650G |
| Weight | 560g/m2 | 600g/m2 | 650g/m2 |
| Thickness | 18-20mm | 20-22mm | 22-24mm |
| Air Flow at Most | 950m3/h | 936m3/h | 900m3/h |
| The lowest pressure | 25Pa | 26Pa | 27Pa |
| The highest pressure | 380Pa | 400Pa | 400Pa |
| Filtration efficiency | 92.70% | 97.60% | 98.90% |
| Air Velocity | 0.25m/s | 0.25m/s | 0.25m/s |
| Dust holding | 600g/m2 | 650g/m2 | 700g/m2 |
| Temperature resistance | 110°c | 110°c | 110°c |
| Filtration class | F5(DIN24185) | F5(DIN24185) | F5(DIN24185) |
| Retardant class | GB8410-2006 | GB8410-2006 | GB8410-2006 |
1, Minimum order quantity:
Normally is 5 rolls.
2, Price terms:
EXW, FOB, CFR, CIF by T/T is all available and is up to you;
3, Sample terms:
We can supply 1-2 small samples for free but express cost is covered by your side;
4, Lead time:
Within 10 working days after the payment;
5, Your company is a factory or trading company?
We are a factory, can offer high cost-effective product.
