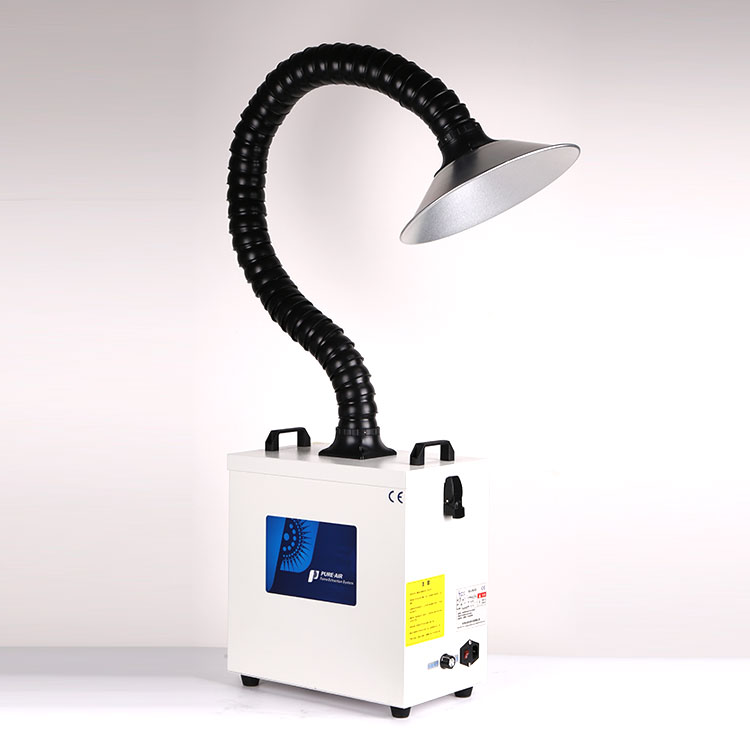

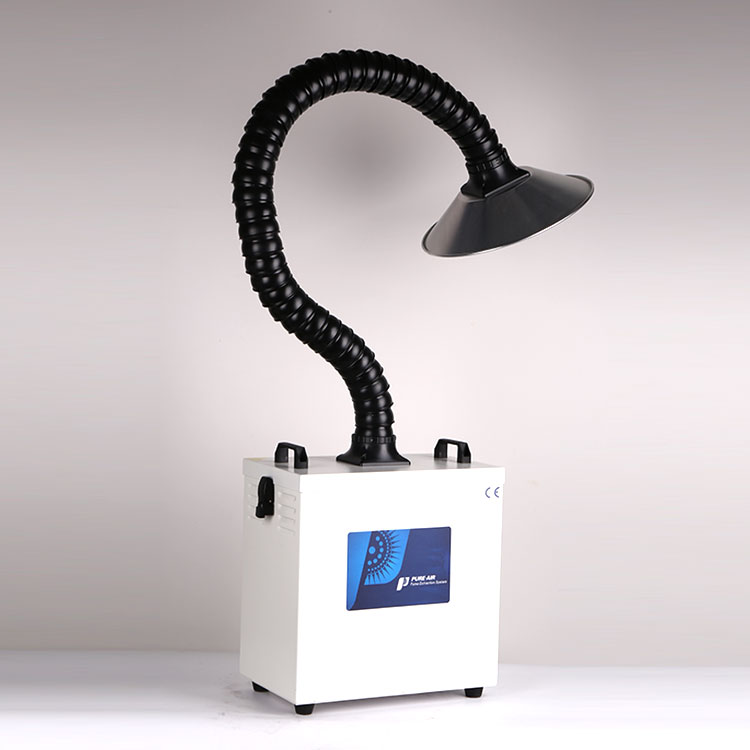

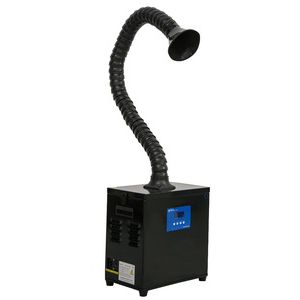

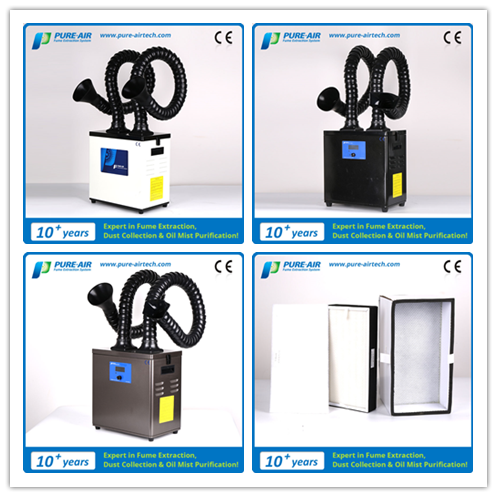

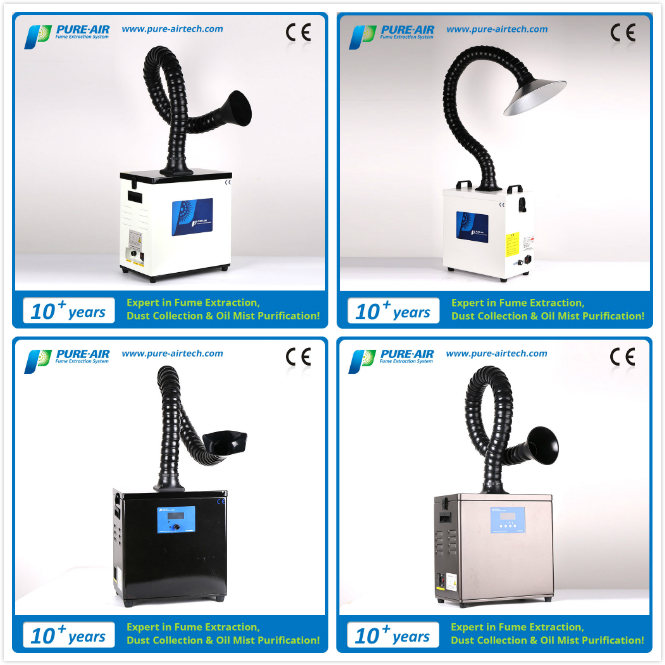

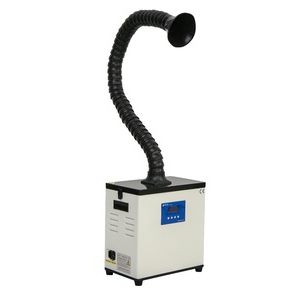

Pure-Air Air Filtration System for Beauty Salon/Nail Salon/Hair Salon
Product Application:
Our PA-300TS-B fume extractor suitable for air purification, fume filtration and dust collection for many different industry:
1) Soldering Process, like Electronics ; PCB board producting;
2) Laser marking metal process;
3) Beauty Salon, Nail Salon, Hair Salon;
4) Lab, University, School;
5) Printing ; AD processing;
6) Textile Processing;
7) Food, Pharmaceutical & Tobacco Manufacturing;;
8) Lab test;;
9) Medical.
Main Features:
Low noise, bigger suck power, high filtration performance,nice quality, easily move.
(1) Strict welding and painting technology achieve to high tightness and corrosion resistance cabinet;
(2) Special sound- absorbing materials reduce operating noise to improve working efficiency;
(3) Taiwan brushless blower, PWM speed control, Alarm system after filter block;
(4) Four layers filter modules to make sure most fumes & particles to be filtrated, protect environment
security;
(5) Integrated cabinet with trundle, more freely, small foot print, installed easily, decreasing energy consumption.

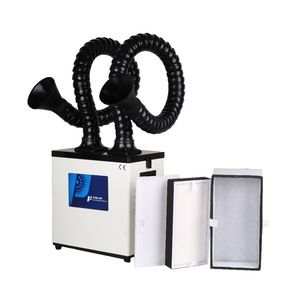

Filter Elements Data | ||
Item | Technical Data | Remark |
Pre-filter PA300-01 | G4 class Primary Filter | Cotton filter pad. |
F8 Filter PA300-02 | F8 Class medium efficiency filter | Filter can remove 90% of all particles above1 microns |
HEPA Filter PA300-03-1 | H13 HEPA filter | Filter can remove 99.997% of all particles above 0.3 microns and 95% down to 0.01 micron. |
Gas Filter PA300-03-2 | Chemical material, life-time 6-10 months | Chemical molecular,Oxidant & Active carbon adsorb noxious gas. |
Average filtration rate | ≥99.7% | It will be a little fluctuation according to different materials. |
Blower Technical Data | ||
Item | Technical Data | Remark |
Running period | more than 30,000h | One year guarantee |
Max. air flow | 300m³/h | Electronic speed control |
Input capacity | 200W | Low capacity |
Air pressure | 2500pa | High pressure |
Running sound | ≤50dBA | Low sound volume |
Input power | 110/220V, 50Hz/60Hz | International standard |

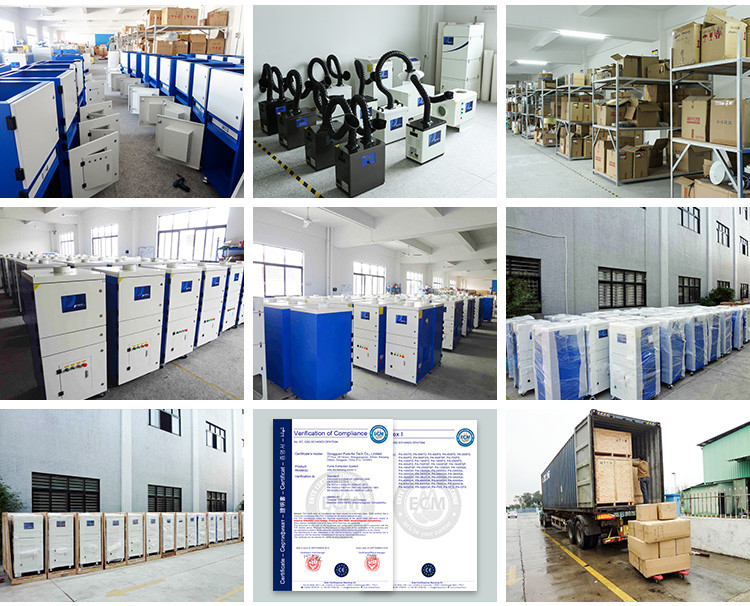

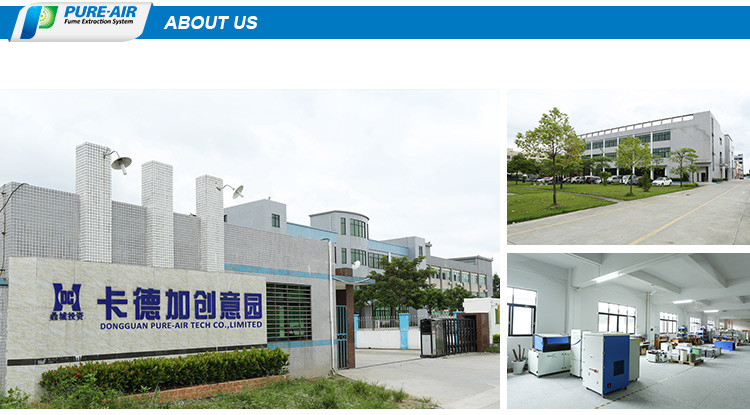

Dongguan Pure-Air Tech Co., Limited has well expertise in the field of fume extraction, dust collection and oil mist purification. With more than 10 years experience, we can offer different fume extraction systems, dust collectors, oil mist filters to meet our distributors and end users demands. Also we have full experience in manufacturing customized products. Pure-Air Fume Extraction System, Selling well more than 60 countries worldwide!
China
