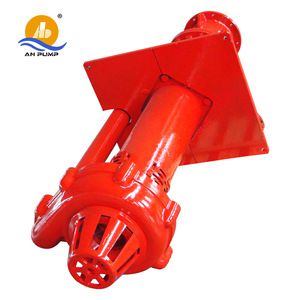

Submersible mining vertical suspended pump

Submersible mining vertical slag pump is cantilevered vertical slurry pump with rubber liners, impeller and other wet end parts.

Technical Feature

  • Hebei, China (Mainland)
  • An Pump
  • BP(R) vertical suspended pump
  • Centrifugal Pump
  • Single-stage Pump
  • Mining vertical suspended pump
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$1~150

PRIMARY PARAMETERS

Place of Origin
Hebei, China (Mainland)
Brand Name
An Pump
Model Number
BP(R) vertical suspended pump
Theory
Centrifugal Pump
Structure
Single-stage Pump
Usage
Mining vertical suspended pump
Power
Electric
Standard or Nonstandard
Standard
Fuel
Diesel
Pressure
High Pressure
Application
Pump slurry vertical suspended pump, Metallurgy, mine, coal, electric power plant, factory, & other
Type
Submersible vertical sump slurry pump
Medium
Slurry, pulp, sewage, trash
Concentration
To 60%
Material
Metal or rubber lined
Work condition
Can work under the liquid
Hose
Available
Agitator or stirrer
Available
Paint
Anti-dxidation paint primer, anti-corrosion on top
Also named
Submersible slurry pump

DETAIL DESCRIPTION

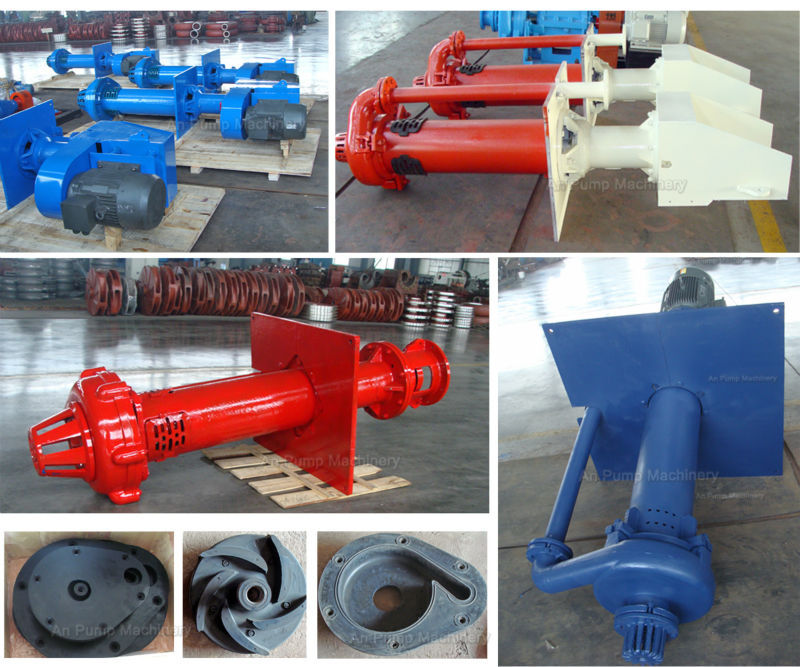

Submersible mining vertical  suspended pump

Product Description

                      Overview

Overview of suspended pump

Submersible mining vertical slag pump is cantilevered vertical slurry pump with rubber liners, impeller and other wet end parts.

Heavy duty cantilevered vertical slurry pump is designed for applications requiring vertical sump duties.

Fully elastomer lined or hard metal fitted.

No submerged bearings or packing.

Optional recessed impeller and suction agitator available.

This is the vertical slag pump, but same thoery with the horizontal pump.



                        Application

Application for suspended pump :

Chinese heavy duty vertical slag pump is mainly used for delivery the slurry which is strong corrosive with fine particles.

This kind of  pump is widely used to transport slurry with strong corrosion and high concentration for many industries, such as metallurgy, mine, coal, electric power and so on, for example the cracking operations.



Typical Application:



Iron Ore Dressing Plant



Copper Concentration Plant



Gold Mine Concentration Plant



Molybdenum Concentration Plant



Potash Fertilizer Plant



Other Mineral Processing Plants



Alumina Industry



Coal Washery



Power Plant



Sand Excavation



Building Material Industry



Chemical Industry



Other industries







                       Performance Data

Perfomance data about suspended pump :

ItemData
Capacity(Flow rate) (Q)

17~1267m3/h

4.7~352L/S

Head (H)4~40m
Speed350~2200rpm
Max Passed Particle Size65mm
Slurry Density60%
Slurry PH Rate:2~11

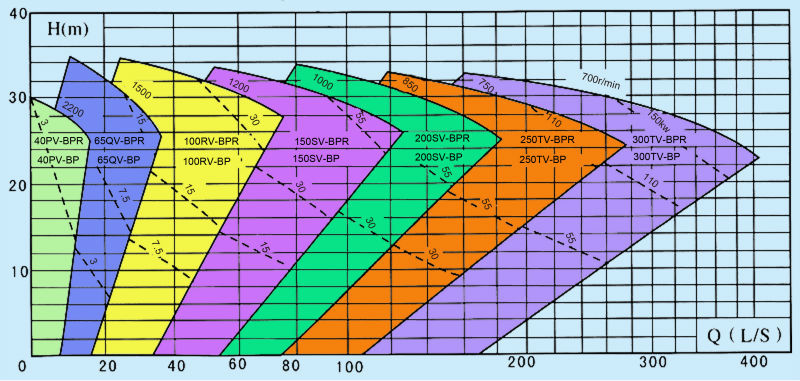

                       Performance Curve Chart

Operating performance curve chart can help the end user know much about all of the models of the vertical slag pump.



                          Materials

Materials of suspended pump :



Vertical sump slurry pump wet end parts material list

Metal material

Rubber Material

Item

Code

Item

Code

Chrome alloy

Cr

Natural rubber

Ru

Cast iron

-

Synthetic rubber











Ternary ethylene,

Nitrile rubber,

Neoprene rubber,

Butyl rubber

Grey iron

HT

Ductile cast iron

QT

Stainless Steel

SS304, SS306, SS316L

Duplex stainless steel

CD-4MCu

Bronze

-

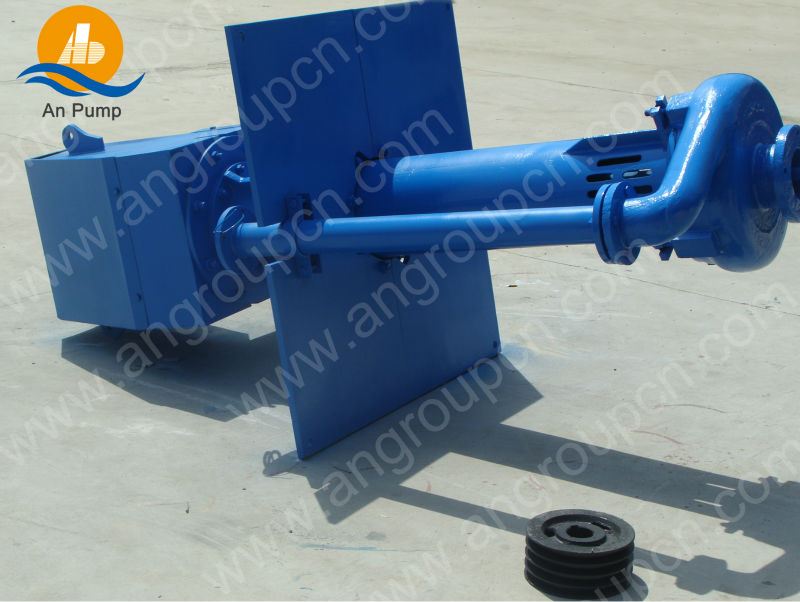

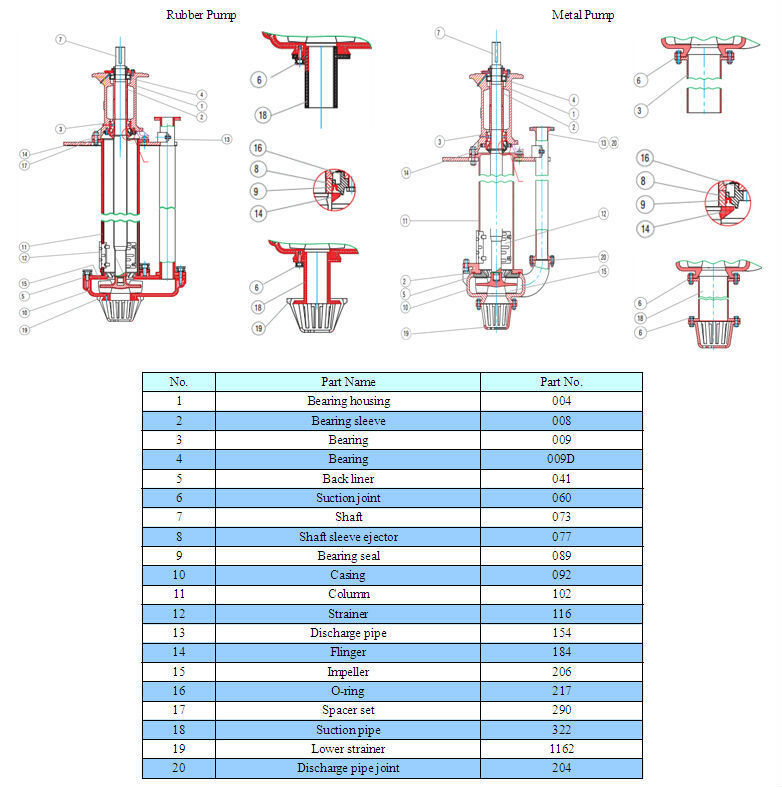

Construction about suspended pump :

vertical slurry pump







                           Feature

Key points of suspended pump

1.  It do not need any Shaft seal and Shaft seal water,it is still workable without enough water.

2. Work normally even if the suction volume is not enough;

3. Single casing structure with the advantages of light weight, small volume, easy installation;

4. Anti-corrosive wet parts made of natural rubber;

5. Transmission shaft and suction pipe could be chosen according to liquid surface of the slurry pool;

6. Able to run smoothly under various speeds.






Company Information

                    Company

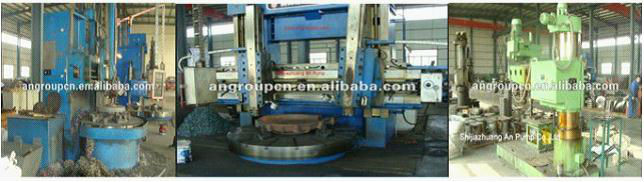

Shijiazhuang An Pump Machinery is the top manufacturer of the pump in China.




Our Services



1. Offer vertical sump slurry pump solution design as working condition,

2. Offer Installation & ajustment in working condition,

3. Accept OEM

4. Select centrifugal vertical sump slurry pump & related equipement,

5. Sample available.



Slurry pump services details:

Service

Specification

1. Slurry pump selection

Send us the slurry pump basic data (medium, head, flow rate...)

2. OEM/ODM

Please show us the slurry pump drawing

3. Process design

Offer process design as slurry pump working condition.




Packaging & Shipping

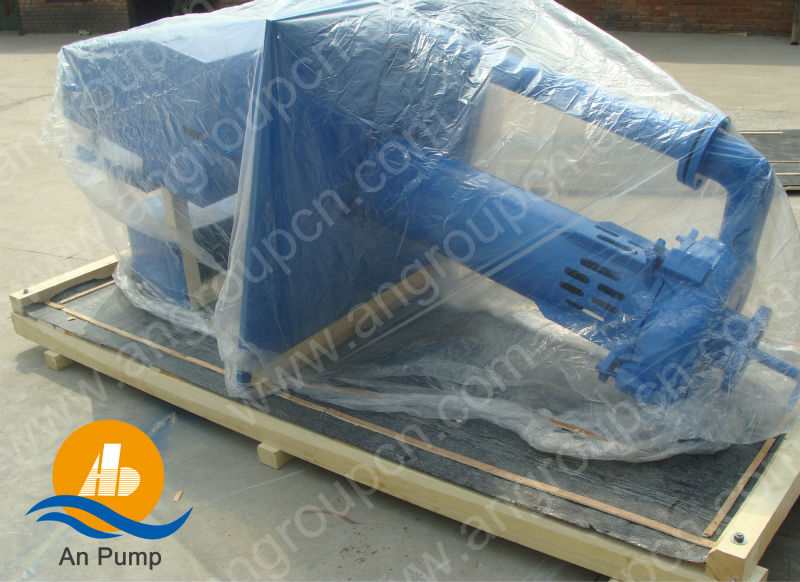

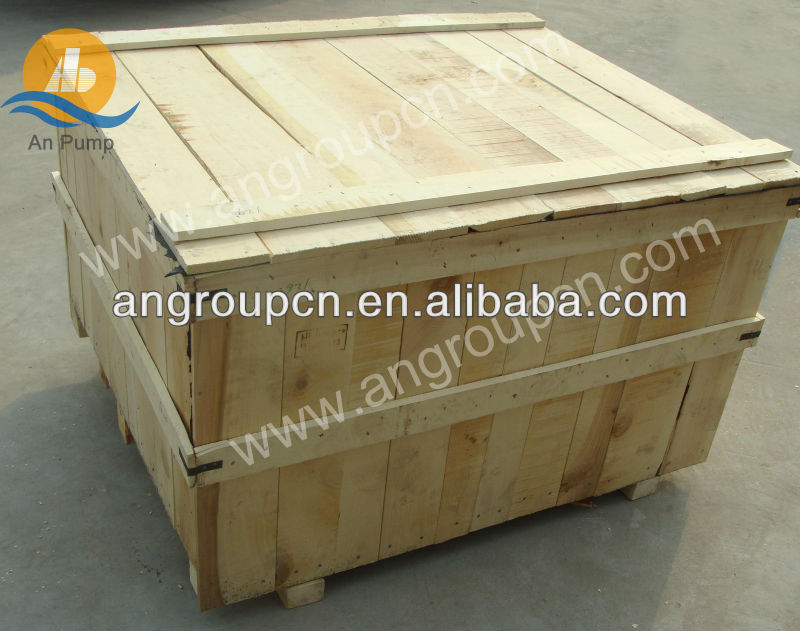

                   Packaging

Fumigated wooden case packaging



                    Shipping

Verticals sump slurry pump shipping can arrange by sea, air or express.




FAQ



1. Other suggested products?

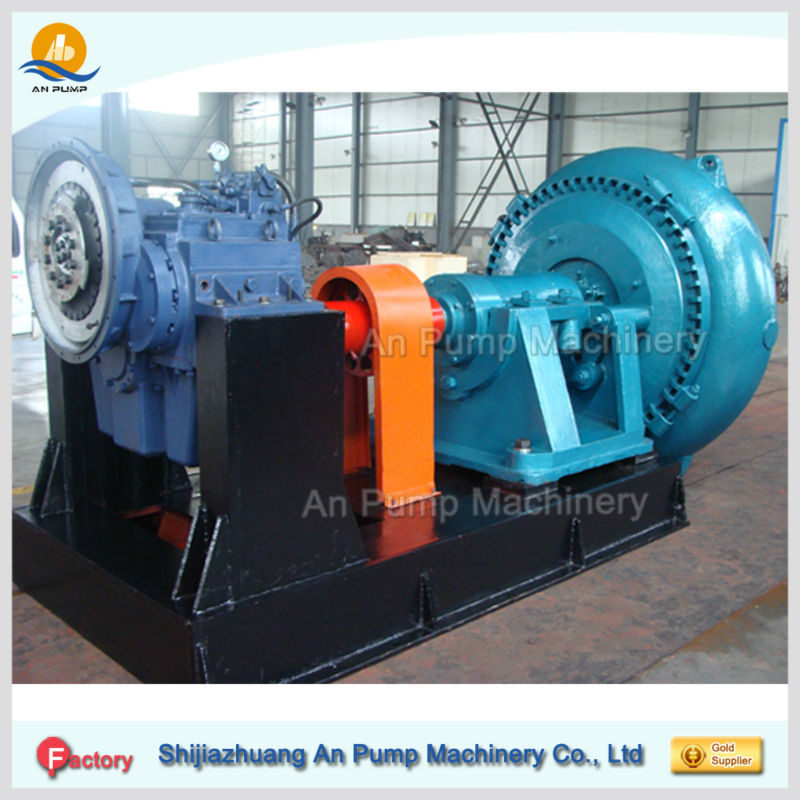

Sand gravel pumpHorizontal slurry pumpSubmersible slurry pump



2. How to get your price about the vertical sump slurry pump?

First, we must to make sure the model according your working condition, then the materials, shaft seal, painting and package specific need.



3. Is it avaliable to print our clients brand?

Totally accept as international rules.



4. How to connect you directly for the vertical sump slurry pump solutions?

 Leave message below.

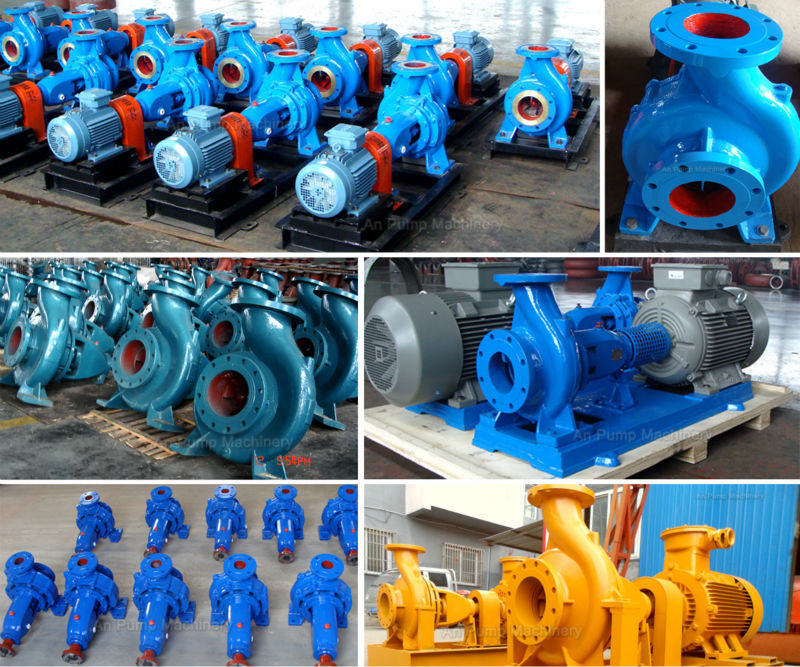

Other products:
