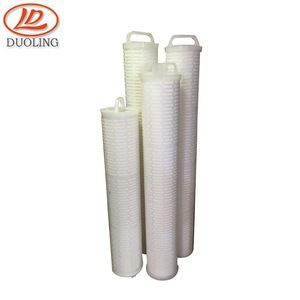

DL Top quality chemical membrane pleated cartridge filter

Max Flow high flow filter is suited for applications such as process cooling water, Industry RO water treatment, seawater Desalination and tap water pre filtration.

Technical Feature

  • Jiangsu, China (Mainland)
  • DL
  • DLFL
  • PP(Pleated Depth Polypropylene)
  • PP( Polypropylene )
  • Glass Fiber Reinforced Polypropylene
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~0

PRIMARY PARAMETERS

Place of Origin
Jiangsu, China (Mainland)
Brand Name
DL
Model Number
DLFL
Filter Media Material
PP(Pleated Depth Polypropylene)
Support/Drainage
PP( Polypropylene )
End Cap
Glass Fiber Reinforced Polypropylene
Seals Material
NBR,EPDM,Viton
Color
White
Outer Diameter
6''(152mm)
Length
20'',40'',60''
Micron
1-100micron
Function
Water Filtration
Customerized
Yes

DETAIL DESCRIPTION

Company Introduction

Changzhou Duoling Water Treatment Factory is specialized in researching, manufacturing and promoting filter cartridges, filters and filtration equipments, as well as improving filtration technology and filtration materials .


Our products are well applied in liquid purification, sterilization, separation, enrichment, depuration in the field of pharmaceutical, chemical, petroleum, electronics, environmental energy, etc.. All the products are featured with simplicity, high efficiency, reliability and environmental protection and have great market prospects.

With our excellent quality, professional service and good customer relationship, we have gained the trust and recognition from many well-known enterprises both at home and abroad. We will always devote to innovating and developing more and better products, and provide best service by holding the spirit of “ technology thrives enterprise, quality-oriented and integrity-oriented”.

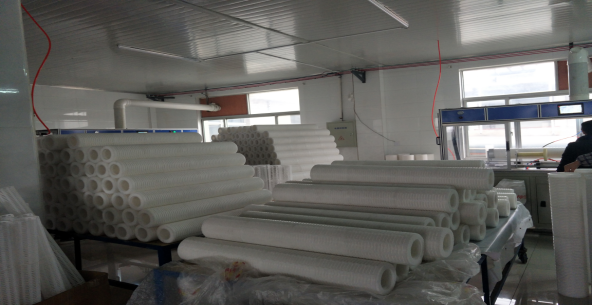

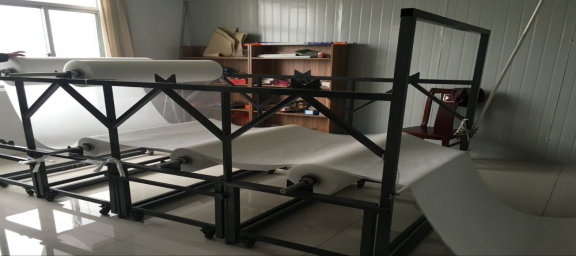

Croduction Workshop
Products Information

1. Outer diameter: 6'' (152mm)
Inner diameter: 3''
2. Length: 20'',40'',60''
3. Micron: 0.1um,0.5um,1um,5um,10um,15um,20um,40um,70um
4. Maximum operating temperature
      Pleated/melt-blown pp: 82ºC
      Pleated glass fiber: 121ºC
5. Maximum operating differential Pressure (inside to outside flow direction)
     Pleated/melt-blown pp: 3.4bar @82ºC
     Pleated glass fiber: 3.44bar @121ºC
6. Suggestion pressure for filter replacement: 2.5bar @20ºC
7. Suggestion design flow: 40''--18m3/h-25m3/h;60''--30m3/h-40m3/h
8. Suggestion Max flow:40''--78m3/h;60''--110m3/h
9.O-rings: EPDM, Viton, Silicon, PFA encapsulated Viton.
10.Material of Construction:
   Medium: Polypropylene
   Support/Drainage: Polypropylene
   Core/Cage/End Cap: Polypropylene

Description
Max Flow high flow filter is suited for applications such as process cooling water, Industry RO water treatment, seawater Desalination and tap water pre filtration.

The unique construction of Max Flow filter use weaves Belt Fixed on the Out layer makes the pressure resistance higher than competitor, It is easier and more economical to be installed in the LMF high flow filtration equipment.

Packing&Delivery

If your order is not big enough , Door to Door Service is the best choice via UPS,FEDEX,DHL,EMS.
For big quantity, by air or by sea through your forwarder is one Normal Way , we also can provide cost-effective forwarder for your reference.

FAQ

1.OEM service available for filter cartridge?

Yes, OEM service is available.

2.Payment Term

We can accept L/C, T/T, Western Union, MoneyGram, Paypal

3.Certicification

We had passed ISO9001,FDA certified, at the same time, our company had approved by Alibaba 7rd Party Certification of Production and Trading Assessment

4.Shipping

If your order is not big enough , Door to Door Service is the best choice via UPS,FEDEX,DHL,EMS.
For big quantity, by air or by sea through your forwarder is one Normal Way , we also can provide cost-effective forwarder for your reference.

5.Sample

Sample delivery date is within 3 working days, if have stocks; Customer design is about 7-10 working days

6. Lead time

The normal lead time for micron filter cartridge is 3-10 working days, which depends on your quantity.
