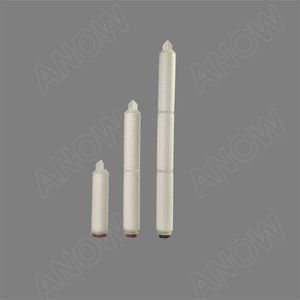

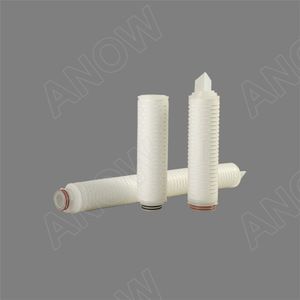

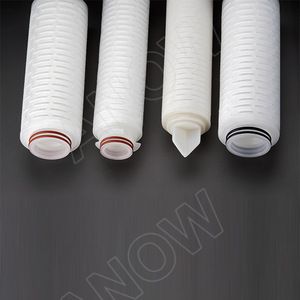

LP PP Pleated Filter Cartridge
Hangzhou Anow Microfiltration Co., Ltd. is a well-known filtration company in Asia who focus on research and development of MCE, Nylon, PES, PVDF, PTFE membrane, with pore size ranging from 0.03 μm to 10 μm, as well as design and production of various pleated filter cartridges, syringe filters and capsule filters. ANOW provides professional assistances to liquid and gas & air filtration, separation and purification solutions for customers around the world in biopharmaceutical, medical, food & beverage, microelectronic, chemistry, water treatment and laboratory applications.
Superior dirt-holding capacity
Broad chemical compatibility
Long service life and high flow rates
Especially suitable for viscous and gel liquids
Filtration for organic solvents
Filtration for oil in petroleum industry
Filtration for ink
Security filtration before reverse osmosis
Prefiltration for other chemicals
Prefiltration for gas & air
Materials of Construction | |||
Filter Media | PP | ||
Support and Drainage | PP | ||
Core, Cage | PP | ||
End Caps | PP | ||
O-rings/Gasket | Silicone | ||
Sealing Technology | Thermal Bonding, No Adhesives | ||
Dimensions | |||
Diameter | Φ70 | ||
Length | 10 inch, 20 inch, 30 inch, 40 inch | ||
Filtration Area, ft2 | |||
≥ 4.2 per 10-inch element | |||
Pore Size, μm | |||
0.45, 0.65 | |||
Maximum Differential Pressure | |||
Forward: 4.2 bar @ 23 °C; 1.5 bar @ 85 °C | |||
Flow Rate & Pressure Drop, per 10-inch cartridge | |||
0.45 μm | ≥ 15 L/min at 210 mbar | ||
0.65 μm | ≥ 25 L/min at 210 mbar | ||
Saccharomyces cerevisiae Removal Efficiency (%) | |||
0.45 μm | LRV >108 | ||
0.65 μm | LRV >107 | ||
Sanitization | |||
May be hot water sanitized for 30 cycles using purified water at 85 °C for 30 min | |||
Good Manufacturing Practices | |||
Manufactured in an ANOW facility which adheres to Good Manufacturing Practices. | |||
1.OEM service available ?
Yes, OEM service is available, but the ANOW brand price better than OEM
2.Payment Term
We can accept L/C, T/T, Western Union, MoneyGram, Paypal
3.Certicification:
We had passed ISO9001,NSF,SGS certified, at the same time, our company had approved by Alibaba 10rd Party Certification of Production and Trading Assessment
4.Shipping :
If your order is not big enough , Door to Door Service is the best choice via UPS,FEDEX,DHL,EMS.
For big quantity, by air or by sea through your forwarder is one Normal Way , we also can provide cost-effective forwarder for your reference.
5.Sample:
1) For our first cooperation, buyer afford the sample fee and shipping cost, and the cost will be refund when made formal order.
2) For our old customer, we will send free sample , even though new designs sample, when have stocks.
3) Sample delivery date is within 1-2days, if have stocks; Customer design is about 3-7 days
6. Lead time:
The normal lead time for PP filter cartridge is 5-10days, which depends on your quantity.
