EDI RO Water Purifier for 1000 L/H
The pretreatment steps of water treatment equipment using quartz sand filter, activated carbon filter, the softening system (optional) and the precise filter, the main purpose is to remove the suspended solids in raw water, including sediment particles ,organic colloids,organic matter,odor,chlorine and other impurities. Then the water enter the Reverse Osmosis system, most of the dissolved salts, bacteria, hot stream will be filtered out, to ensure production water quality meet the standards. All of our pure water equipment are designed according to the customer’s raw water analysis, capacity and product water requirements.
Parameters
| Product Name | RO+EDI+Polishing Resin System for Ultra Pure Water |
| Brand Name | Hongseng |
| Capacity: | 2000L/H Costomized |
| Desalting rate | 98% |
| Water Recovery Rate | 60% -- 75% |
| Conductivity of Pure Water | ≤0.05μs /cm Customized |
| Resistivity of Pure Water | >18.2 MΩ |
| Voltage | 220V/3phase/50Hz 380V3phase/50Hz Customized |
| Raw Water Temperature | 15℃ - 35℃ |
| Raw Water PH Range | 4 -- 9 |

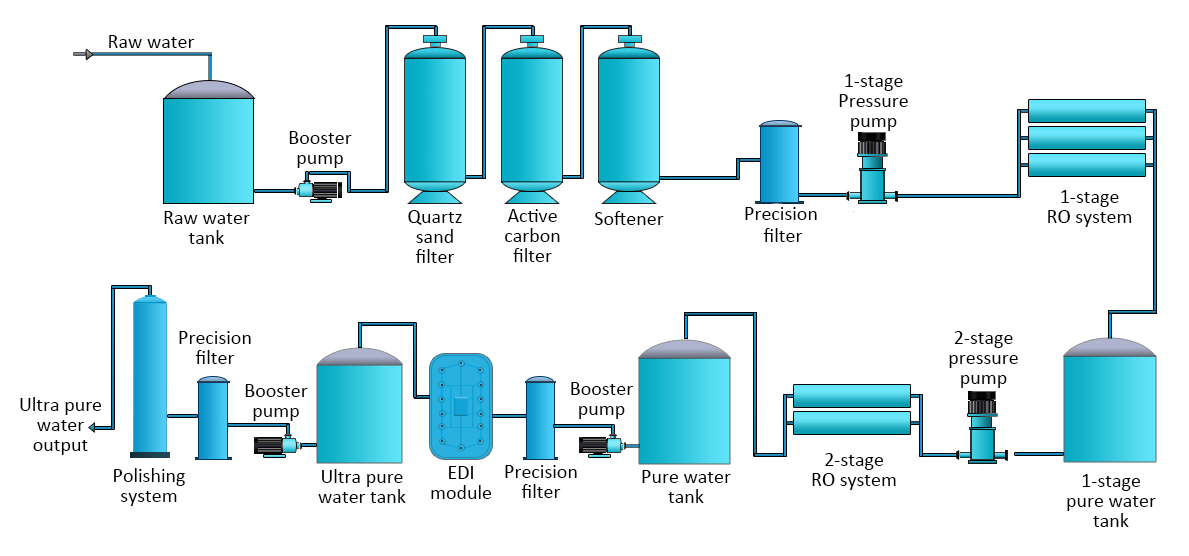

Working Process
Raw Water tank: For the storage of raw water, to solve the problem of insufficient raw water pressure and the back booster pump due to the impact of insufficient water, reduce the failure rate.
Booster pump: equipped with a stainless steel pump, to provide sufficient pressure for subsequent filtration.
Quartz sand filter: mainly remove the mud, suspended solids and large particles in the tap water.
Active carbon filter: mainly remove organic substances, residual chlorine and odor in tap water.
Softener: mainly remove the calcium and magnesium in tap water, reduce the hardness of water.
Presicision filter: further filtration, protection of reverse osmosis membrane.
Pressure pump: provide enough pressure for reverse osmosis system.
Reverse osmosis system: the core part of pure water equipment, the production of high-purity water.
Pure water tank: storage pure water, can change the size of the water tank,after the below process,The water result is pure enough for different application.

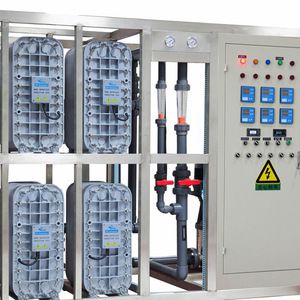

EDI module: It mainly utilizes electricity, ion exchange membranes and resin to deionize water and separate dissolved ions (impurities) from water.
Polishing resin: To move the remaining anions and cations in the pure water.

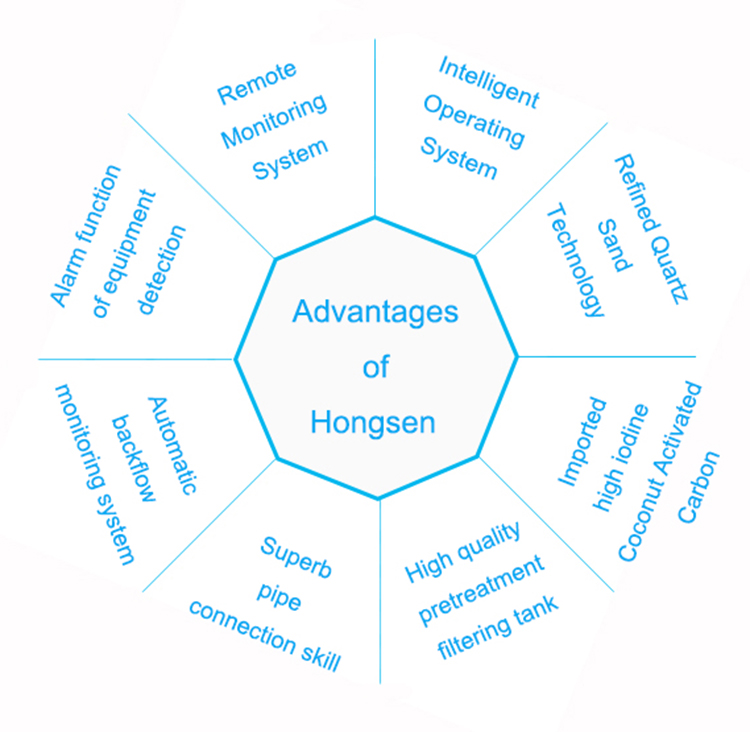

Remote monitoring by network or mobile phone, you can start or stop the device at any time, the operation became more convenient and faster.
2. Intelligent Operating System:
Fully intelligent operating system is applied to our water treatment equipment, with high level of automation, only regular inspection is needed.
3. Refined Quartz Sand Technology:
The filtering effect is 3 times that of ordinary quartz sand, extended the service life of RO membranes.
4. Imported high iodine Coconut Activated Carbon:
The adsorption capacity is 5 times better than normal activated carbon, prolonging the service life of RO membrane and EDI effectively .
5. High quality pretreatment filtering tank:
The material of filtering tank are glass fiber, Unsaturated resin, and 25% Acrylic, it is resistant to extremely cold and hot environments, even the earthquake.
6. Superb pipe connection skill:
Senior mechanic manual welding Or Using the imported Germany welding automatic welding machine, which make sure the solder joints are smooth, natural and neat.
7. Automatic backflow monitoring system:
Whether the water quality of the equipment after water purification is qualified or not can be monitored by the system.
8. The alarm function of equipment detection automatically:
During the automatic detection, if the device is found to be faulty, it will promptly alarm via mobile phone, voice or light control.
Hongsen Environment Protection Technology Ltd,. is a professional manufacturer in water treatment field, supplying industrial ultra-pure water equipment, sewage treatment equipment, seawater desalination equipment. Products are widely used in more than 300 industries, including power stations, polysilicon, petroleum, chemical, semiconductor, electroplating, food, laboratory research and so on. We continue to upgrade the technology, improve the service and devote ourselves to the water treatment field with the greatest enthusiasm.

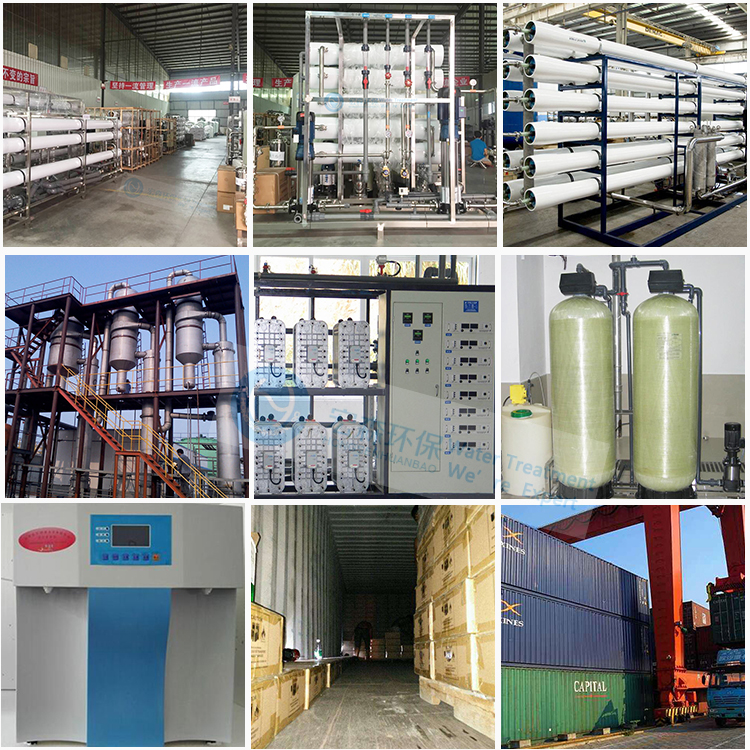

Our Factory
We design and custom the equipment based on your requirements for the water quality. Products including Ultra-pure water equipment, Reverse osmosis water equipment, Ion exchange system, EDI system equipment, Pre-treatment system equipment, Ultra-filtration equipment, Sewage treatment, Laboratory ultra-pure water equipment, Water softening equipment, MVR Evaporator, Sodium Chloride dedicated evaporator, Multiple-effect evaporator,
Heavy metal waste water treatment equipment, Chemical industry sewage treatment equipment, Electroplating sewage equipment, High salt waste water treatment and so on.
We have a complete system for after-sale service
(1)100% factory tested before shipment
(2) operation instruction and Circuit diagram,valve operation video
(3) 1 Year's Quality Warranty
(4) 2 Years of trouble free service offered
(5) Solve problems within 24 hours
1.Why we choose Hongsen ?
Hongsen mainly engaged in water treatment equipment and Ultra-pure water equipment , OEM & ODM service are offered, and we are committed to offer professional solutions and good service for you.
2.How about validity of quotation?
Usually 15 days after we offer the quotation.
3. How about the delivery time for Hongsen?
20 working days for pure water system.
4. What is the shipping port?
Shenzhen port, China.
5. How about the package?
Standard wooden pallet for water purification machine.
