Specifications

water sanitation equipment
1.Material: Stainless Steel 304
2.CE,ISO Certificate
3.Good after service
4.Warranty :1 year

Description:

The use of multi-medium quartz sand filters, main purpose is to remove the water contains sediment, manganese, rust, colloid material, mechanical impurities, suspended solids and other particles in the above 20UM of substances hazardous to health. The effluent turbidity is less than 0.5NTU, CODMN less than 1.5mg / L, iron content of less than 0.05mg / L, SDI less than or equal to 5. Water filter is a kind of "physical - chemical" process, the water through granular materials when isolated filter water impurities and colloidal suspensions. Filter is an effective water purification and treatment of the main process in the preparation of pure water is an indispensable process.

1.2 Second stage pretreatment (Carbon filter)

Activated carbon filters used to remove the pigment in the water, smell, a large number of chemical and biological organisms, reducing the residual value of water and pesticide pollution and other harmful pollutants.
The structure of activated carbon filters and quartz sand filters, the difference is placed inside the strong adsorption capacity of activated carbon for removal by the quartz sand filter without the filter out organic material, adsorption of residual chlorine in the water, using water more than less than or equal to chlorine 0.1ML/M3, SDI less than or equal to 4, are strong oxidants chlorine, there are various types of membrane damage, in particular, reverse osmosis membranes are more sensitive to chlorine. In addition, the activation process, the surface of activated carbon to form non-crystalline parts of some oxygen-containing functional groups, these functional groups can have a chemical adsorption of activated carbon catalytic oxidation of bad news, to restore the performance, can effectively remove a number of metal ions in water.

1.3 Third stage pretreatment (Resin softener)

Particle size in water to remove fine particles, sand filters can remove very small colloidal particles in the water, so that the turbidity reached 1 degree, but still per milliliter of water for hundreds of thousands of particle size 1-5 microns colloidal particles, the pressure on this filter to remove water after the particle size of 100 microns or less in small particles, to further reduce the turbidity, to meet the next process of the water requirements of the protection of the next long-running processes.

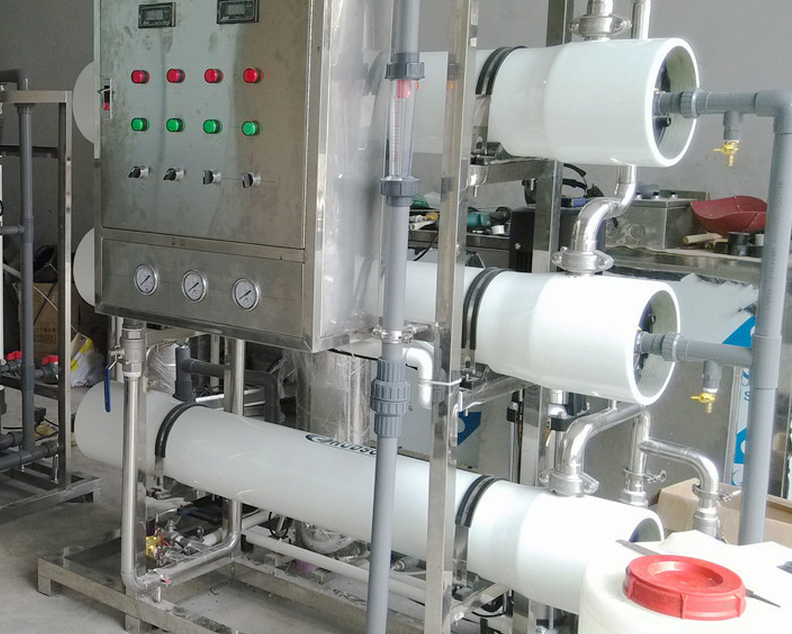

1.5 RO system

Using reverse osmosis technology for desalination, reverse osmosis membrane was only 0.001 micron pore size, can be harmful to remove dissolved solids and bacteria, viruses, etc., desalination rate of more than 99.6 percent, in line with national standards to produce pure water, the host section contains the security filter, high-pressure pump and reverse osmosis membrane, security filters for the fourth grade and above pre-treatment systems, high-pressure pump is the host of one of the core equipment for the reverse osmosis membrane elements to provide sufficient pressure to overcome the penetration resistance to pressure and run to meet the needs of a device to achieve the rated water.

Raw Water Tank → Pump→ Multi-Medium Filter→ Active Carbon Filter → Micro Filter → Reverse Osmosis System→ Purified Water Storage Tank

1.we are a professional manufacturer in every kind of beverage production machine.
2. We have the certifications of ISO, CE and so on.
3. Our company machines are exported to many countries abroad every year.
4. We can offer free technician support and consultation to help you to order a new equipment and start a new company.
5. We can offer one year guarantee for the machine you ordered freely.
6. W can send our technician to your country for machine commissioning and instruction.
7. Our machines are with good quality and good price.
8. Your inquiry will be replied within 24 hours, you are welcome to contact me in your convenience, please feel free to contact me if any question you have.

FILLEX is a professional filling,packaging,water treatment solution manufacturer from China with ISO9001:2000 & CE certification who dedicated to manufacture kinds of filling & packaging equipment & water treatment system for beverage & food field.

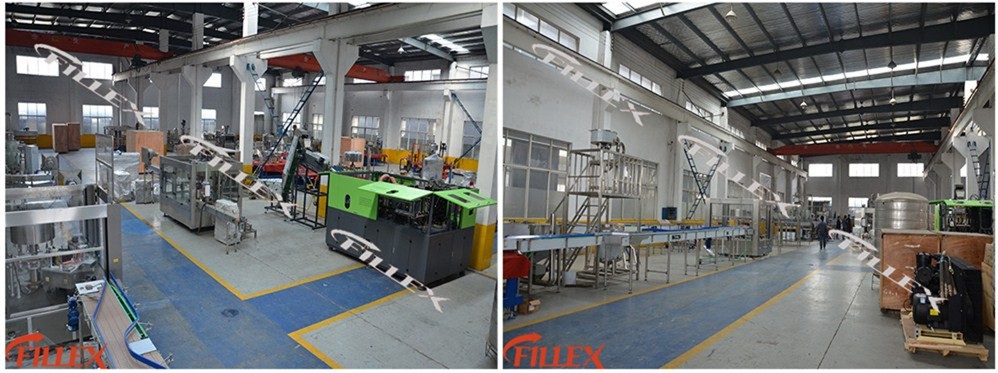

Built in 2006,Fillex have 4000 square meters modern standard workshop & 40 professional workers,integrate the R&D department,manufacturing department,technical services department and marketing department together,provide the reliable filling system & water treatment system worldwide.
Fillex Manufacture & Provide below filling & treatment system
*PET Bottle,Glass Bottle, Cans,Cups Filling & Packaging Line(Still water,Carbonated soft drink,Juice,Alcohol,Oil etc)
*1-2 & 3-5 Gallon Jar Bottle Water Plant
*Bottle,Kind of Container Labeling Solutions
* Water Treatment System(RO Pure Water Purifier,UF Mineral Water Purifier,Brackish & Seawater Desalination Plant,Water Softener)
