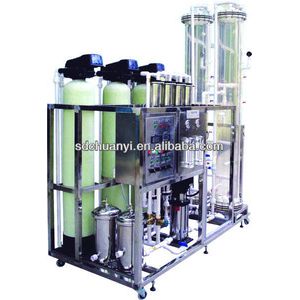

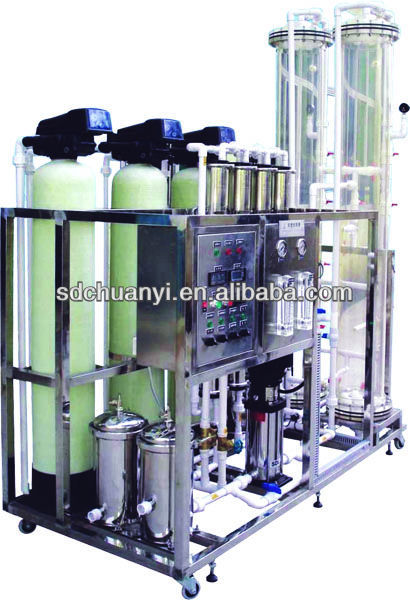

customized mix resin bed exchange deionized water
Features:
(1) Ion exchange mixed bed is deeply desalinate equipment, it is used to product high pure water.
(2) Resistivity of output water is 10-18 MΩ.cm(25 C), silicon dioxide content(SIO2) is equal or less than 0.02 MG/L;
(3) In order to improve water quality and effecitively using resin exchange volume, it can series connected using; when required output water is very large, it can parallel connected using,the operation is simple and convenient.
(4) Conductivity of output water is monitored by high precise resistivity instrument.
(5) Environmental regenerate system,high degree acid and alkali is disposing to regenerate liquid according to a certain properation by jet aerator
(6) Do not need acid and alkali pump, and prevent environment pollution from acid fog
Application:
(1) Medical pure water quality meet GMP standard in China
(2) In electronic lines, it is mainly used in the field of single crystal silicon semi-conductor integrated circuit modular and picture tube manufacture system
(3) Chemical raw material burden water
(4) Pure water for cleaning in electroplate lines
(5) Biological project
(6) Pure water for cleaning circuit chip
(7) Deionized water system which meet car body coating requirement in automobile lines
Ion exchange Device Order List
Order No. | Size(mm) | Output water Volume(T/H) | Material |
CLMB-300 | 300*2000 | 1 | Steel liner rubber;Organism glass;FRP;Stainless steel |
CLMB-400 | 400*2000 | 2 - 3 | |
CLMB-500 | 500*2000 | 3 - 5 | |
CLMB-600 | 600*2000 | 5 - 8 | |
CLMB-800 | 800*2200 | 10 - 15 | |
CLMB-1000 | 1000*2400 | 15 - 20 | |
CLMB-1200 | 1200*2400 | 20 - 30 |
