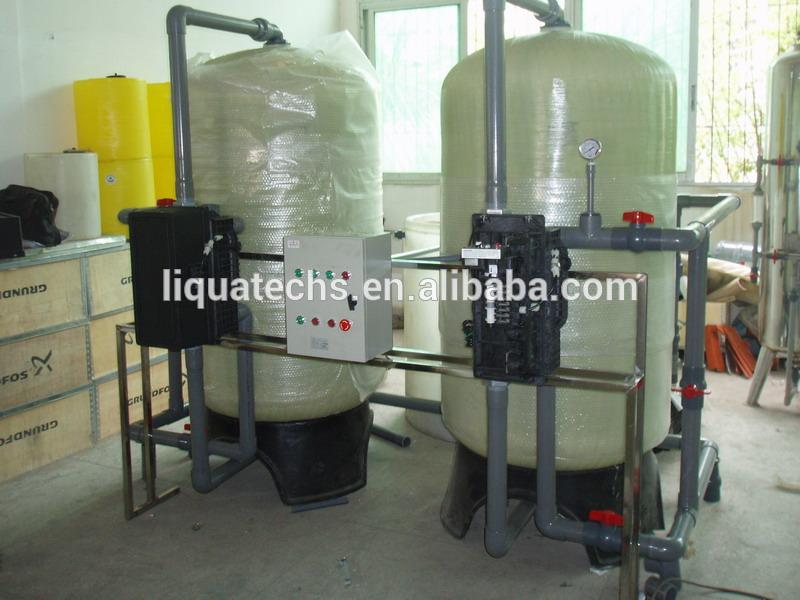

Fully Automatic Ion Exchange Mix Bed Deionized Water System

Product Description

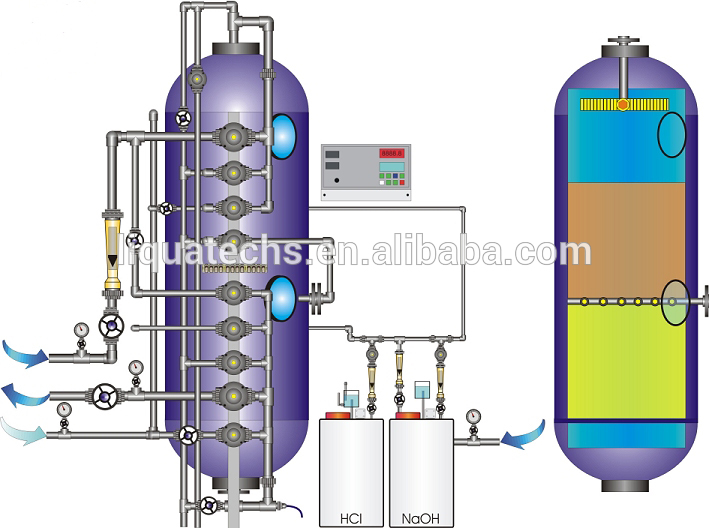

This equipment is ion and cation exchange equipment, which is stuffed by the ion exchange resin and cation exchange resin in a certain ration and mix the resins by compressed air. Two kinds of resin are stacked together tightly which equals to numerous ion exchange unit and cation exchange unit running in series. In mix bed system, the cation and ion exchange happened at the same time which contributes to the balance of exchange reactor, not only react fast, but also completely that is why it can produce higher purity water.

Technology Parameter:

For producing ultra-pure water the feed water should be the outlet water of first pass composite bed or RO system;

• Capacity: 1-100m3/h
• 0.25 Mpa≤ working pressure ≤0.6 Mpa,
• Filter speed:30-50 m/h;
• Resistance of output water≥5-16 MΩ•cm.

Main Applications:

The equipment always is set behind anion exchanger of first pass composite bed and used for further demineralization and the precision treatment for ultra-pure water. It also can be used separately, if the salinity containing rate of the raw water is not too high. The equipment widely applied in electronic industry, pharmaceutical industry, chemical industry, the feed water for high pressure and super high pressure boiler of mid-large thermal power plant, and the industries which have a higher water purity requirement.

  4. Packaging, Payment, Delivery terms

• Packaging: plywood case or container
• Payment: TT OR LC terms
• Delivery: Within 20-30 days

 5. After-sale Service Instructions for Cheap Pure Water Machine Price/Automatic Pure Water Generator

• Provide the entire system maintenance brochure and disk,which include P&ID+ Electrical drawing+ Operation manual+ PLC program.
• Provide common spare parts for one year for the new equipment, after one-year guarantee, we offer spare parts with preferential price.
• Design, installation, commissioning and tranning service.
• Provided lifelong network technical service, repond within 24 hours.
