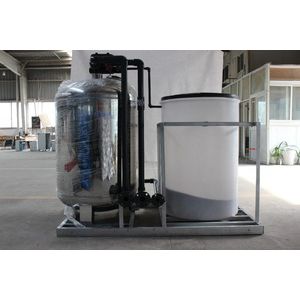

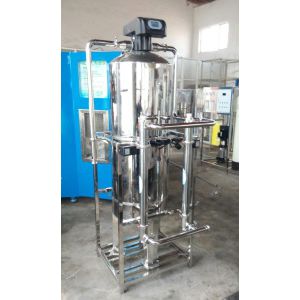

Automatic Ion Exchange Resin Stainless Steel Water Softener System

Brackish water is water which is more saline than fresh water.

Technical Feature

  • Sichuan, China (Mainland)
  • XiXi
  • XX-WS-5T
  • Automatic Ion Exchange Resin Stainless Steel Water Softener System
  • Stailess Steel Water Softener
  • tainless steel / FRP (tanks)
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$3~500

PRIMARY PARAMETERS

Place of Origin
Sichuan, China (Mainland)
Brand Name
XiXi
Model Number
XX-WS-5T
Product Name
Automatic Ion Exchange Resin Stainless Steel Water Softener System
Type
Stailess Steel Water Softener
Material
tainless steel / FRP (tanks)
Source of water
Tap water, well water, river etc
Production
5TPH
Power
100-240V/50-60Hz
Water-in Pressure
0.2-0.4Mpa
Max. Pressure
0.6Mpa
Water-in hardness
<8mmol/L
Water-out hardness
<0.13mmol/L

DETAIL DESCRIPTION

Product Description
Fully Automatic Sodium Ion Exchange Resin Water Softener

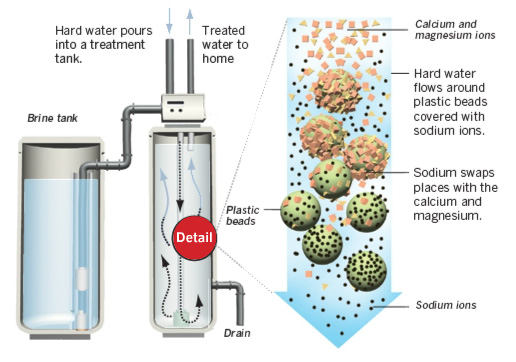

What is a WATER SOFTENER and How does it work ?

Brackish water is water which is more saline than fresh water. It is not quite as saline as seawater. It may result from the mixing of seawater with fresh water, as in surface waters such as estuaries or other watery ecosystems, or it may occur underground in brackish fossil aquifers.


A water softener is an appliance that uses sodium chloride, also known as salt, to treat hard water.
Hard water contains an excess of minerals such as calcium, magnesium, manganese, and iron that can be an expensive nuisance for a home. These minerals are taken up in the underground water supply and, as the water is heated in the home, they crystallize and stick to household surfaces. Sodium chloride, the effective component of water softener, works to replace these unwanted minerals

Function

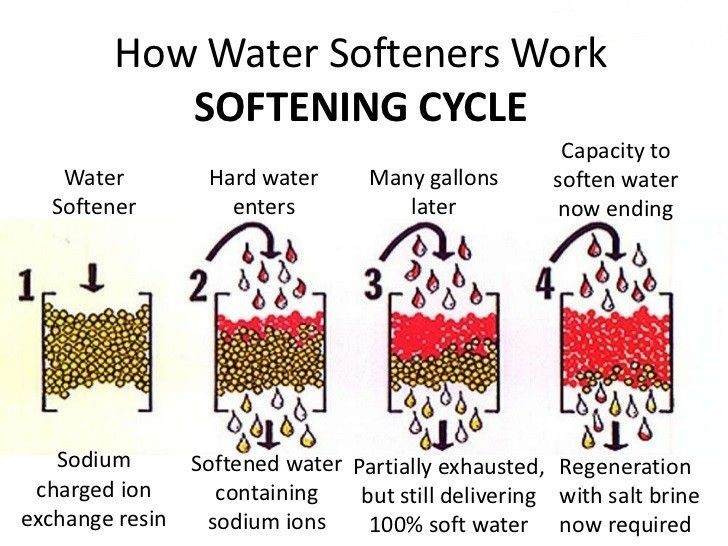

Water softener systems use a process called ion exchange to remove calcium and magnesium, which are the trademarks of hard water. Overly hard water can make household cleaning difficult, as it often leaves scum on kitchen and bathroom fixtures, dulls clothing, and leaves spots on dishes.
Water softening must be used with care, however, because it exchanges sodium for the minerals that give water hard characteristics, and it may be harmful for people on low-sodium diets. Sodium produced by softening water can also be harmful to plants. The different types of water softener systems all utilize ion exchange, but they vary in the amount of input they require from the operator.
Water softeners are fairly easy to operate and maintain. All that needs to be done after installation is to periodically add sodium chloride, and the appliance does the rest.

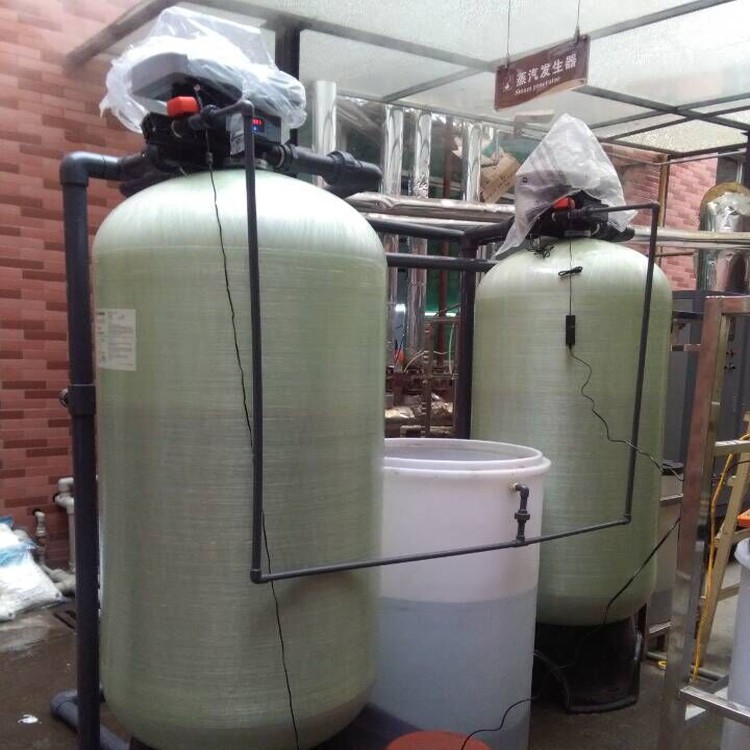

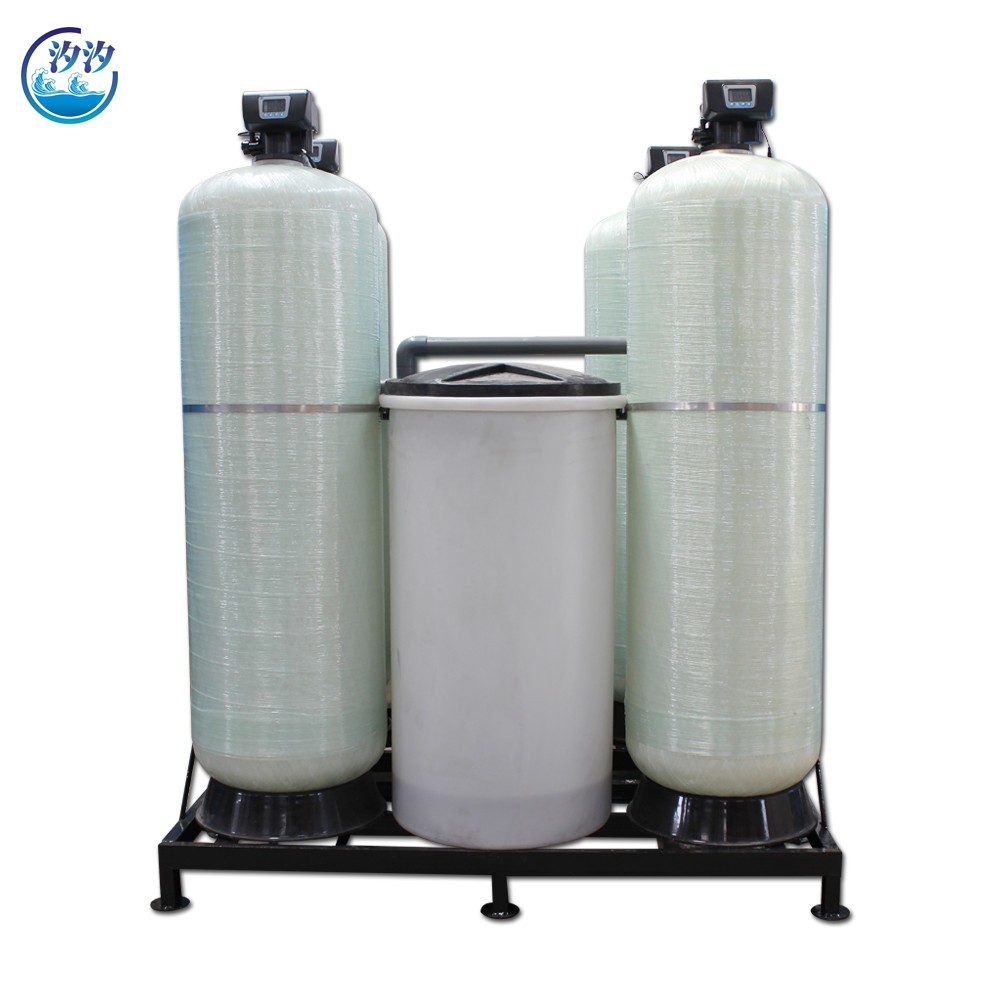

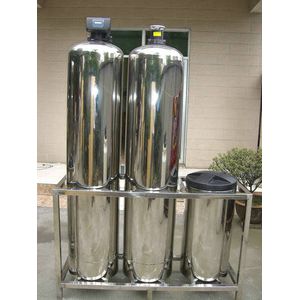

Twin System Water Softener

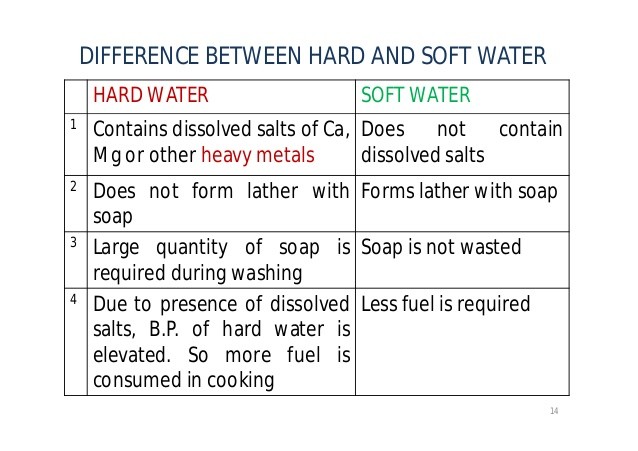

Hard water measurement

originates from groundwater sources, such as aquifers, because calcium, magnesium, and other minerals dissolve into the water from the surrounding rocks. The calcium and magnesium cause the characteristics that are referred to as hard. Hardness is measured in grains per gallon (GPG), with one grain of hardness equal in weight to one kernel of wheat. Any water with greater than 1 GPG of calcium and magnesium is considered hard, with greater than 10.5 GPG being classified as very hard.


How to tell hard water ?

One of the easiest ways to tell if family use hard water just by bathing. If the water is hard, soap will not lather well, and baths and sinks tend to have a build up of soap scum that is difficult to remove. The soap scum is actually the mineral deposits left by hard water. It may also build up on dishes, coffee makers and in dishwashers.

Though they are great indicators of hard water, soap scum and the inability for soap to lather properly are not the sole reasons a person might need a water softener.

These minerals can cause severe problems with plumbing and appliances that use water, such as water heaters and dishwashers. Calcium, magnesium, and the other minerals in hard water build up in pipes and will begin to interfere with pipe drainage and water pressure. Eventually, this build up can lead to completely blocked pipes.

Main Elements:

* Resin tank
* Control Valve (auto. or manual type optional)
* Brine Tank
* Plumpinbg


Key points for full auto water softener construction and installment
1.Install stress support for pipeline to avoid forcing control valve.
2.Set up backflow preventer when equipment water inlet connect to domestic/household water pipe.
3.Need pressure device/ water booster system when the water entrance pressure is < 0.15Mpa.
4.No valve for waste water pipe shorter than 6m. Exit is lower than vale body, terminal opening , avoid siphon.
5. Local power 220V, use liquamatic (hydraulic drive) multi-tandem valve.
6. Use industry Calcic salt as regenerant.

Application Cases

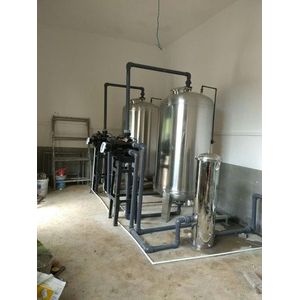

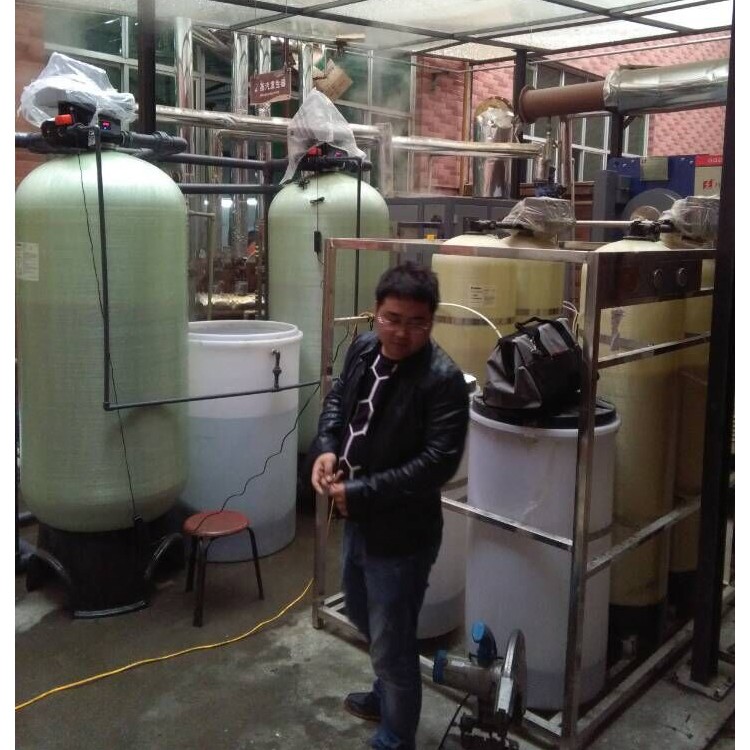

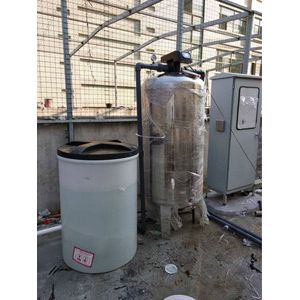

Water Softening Treatment Unit

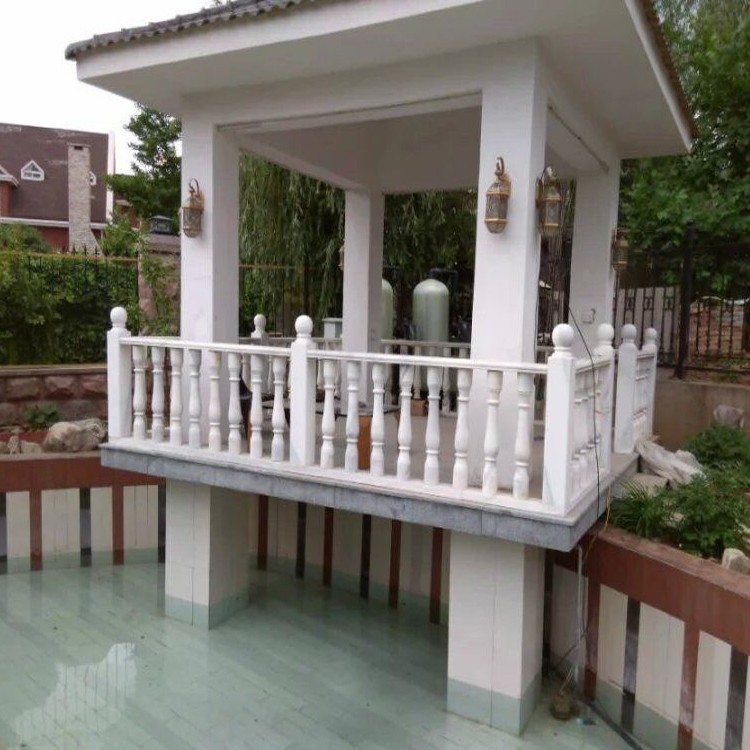

Swiming Pool Water Recyclying & Softening


10 T / H water softener units

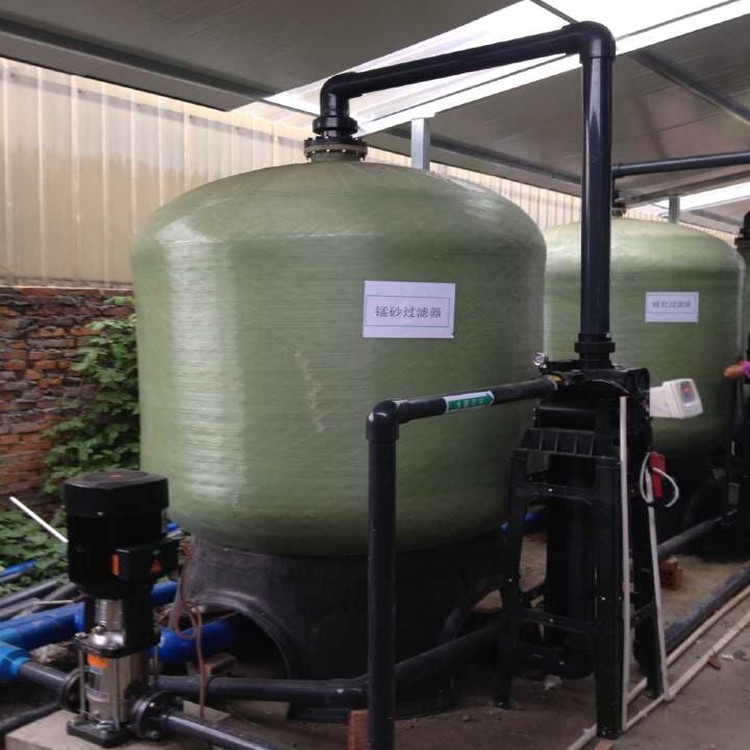

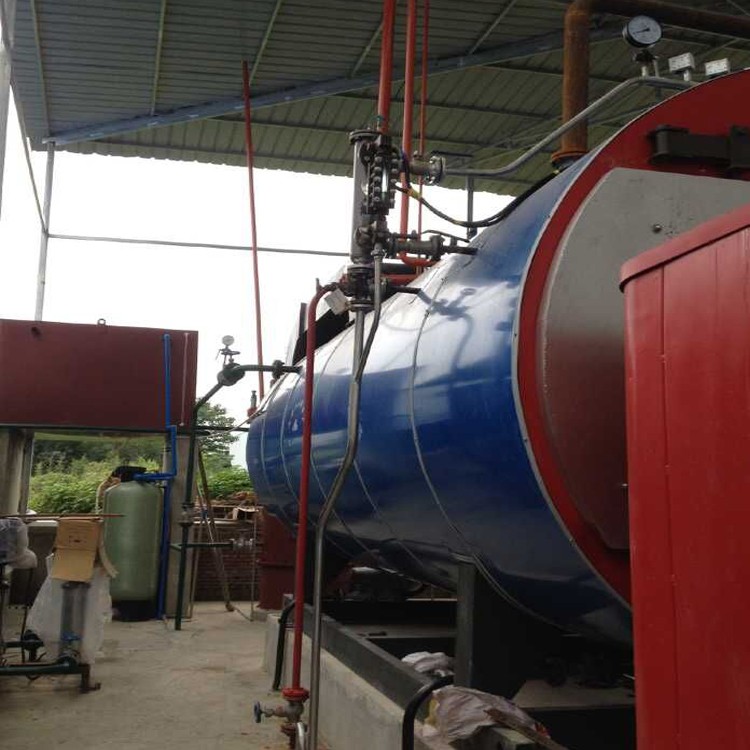

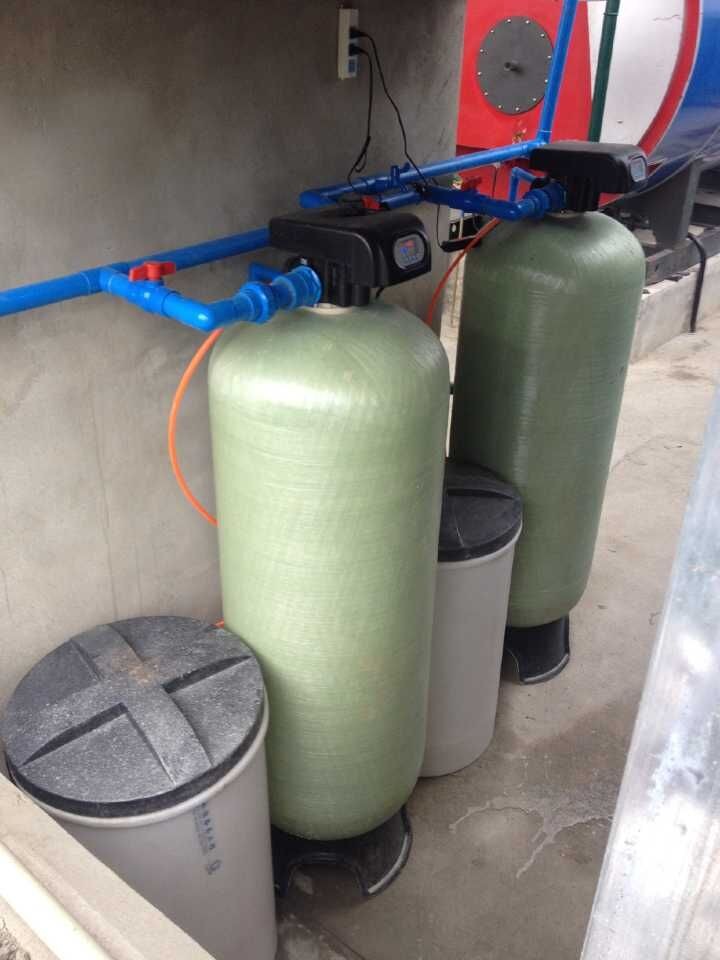

Boiler Water Softener

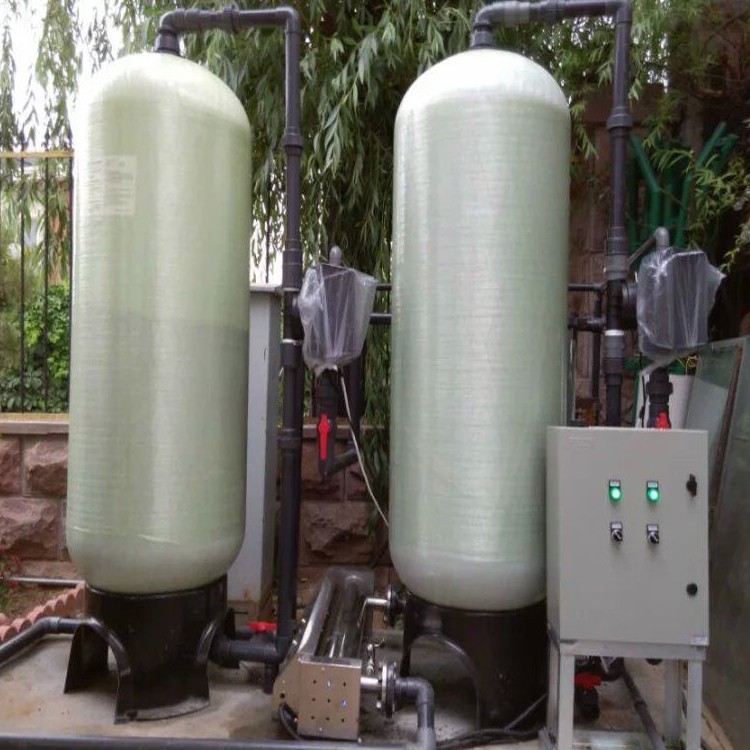

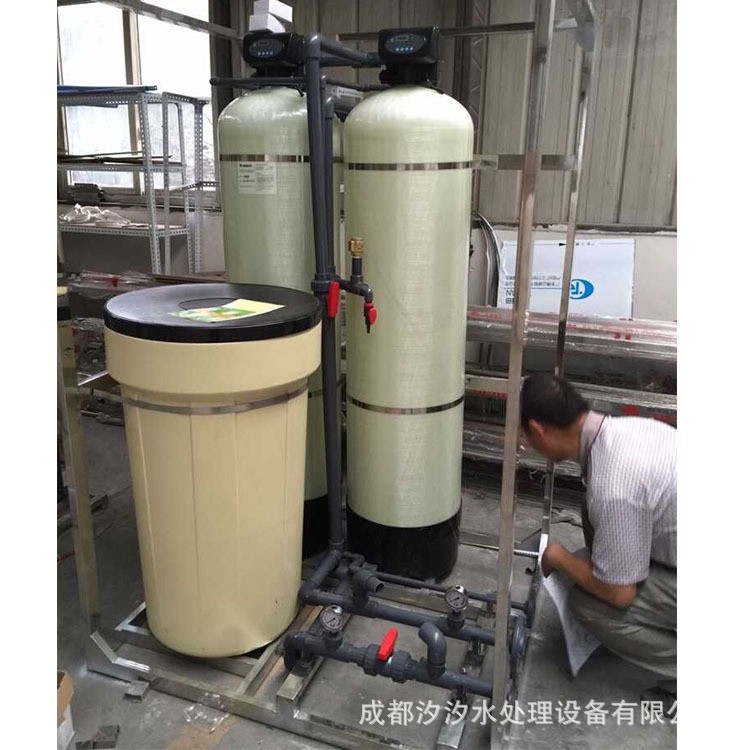

50 tons per hour - two-stage softening twith two FRP tanks

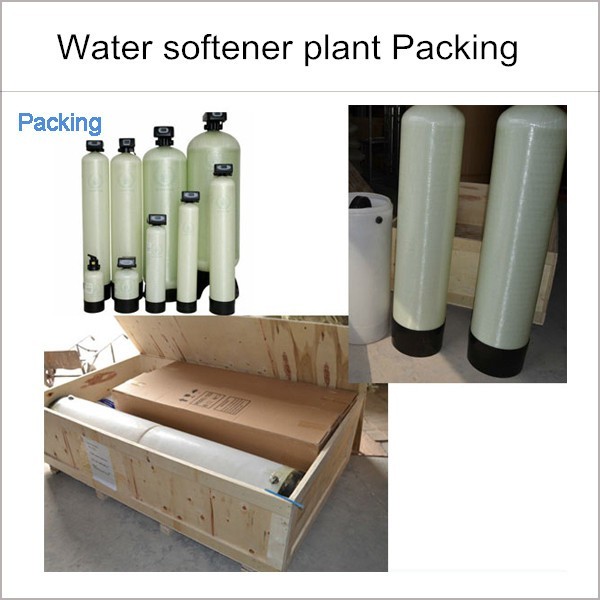

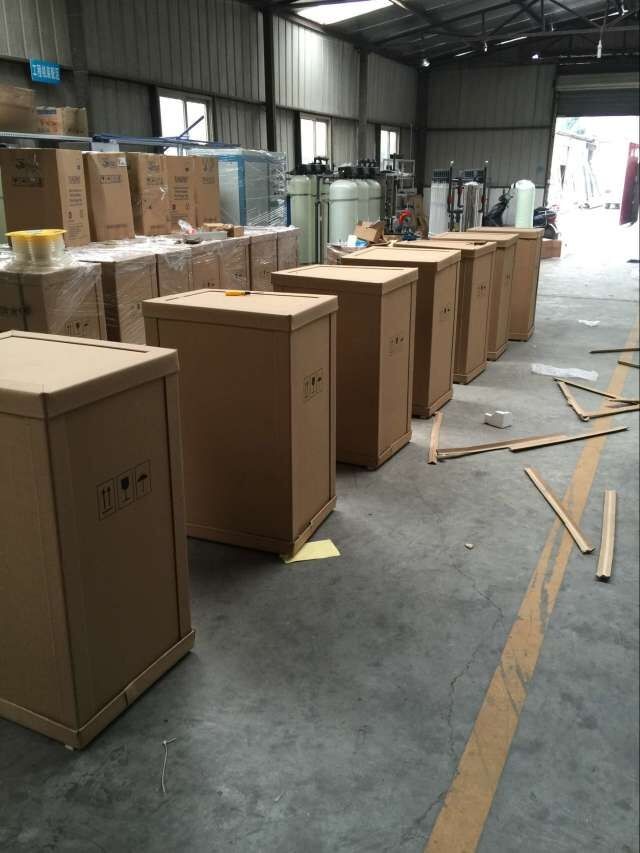

Packing & Delivery

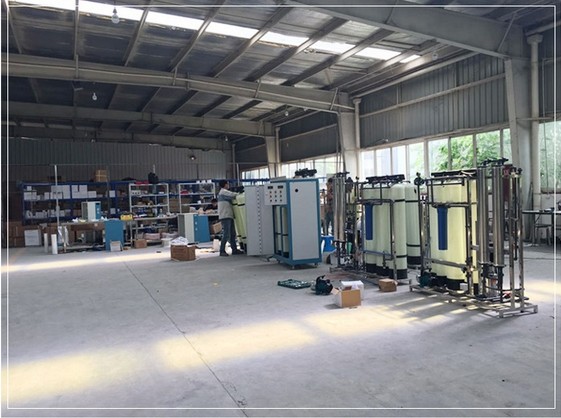

Our Company

Sichuan Xixi Science and Technology Co., Ltd. is one of the professional water treatment manufacturer in China, which has been engaged in wide range of water treatment applience for more than 10 years.
As one of professional manufacturer and solution provider of water treatment plants, we SCxixi has made installations and solutions for more than 4500 customers including Chinese government, institution, hospitals, schools, factories and so on.

We "SCxixi" mainly manufacture :
(1) reverse osmosis water purification plant
(2) seawater desalination equipment
(3) ultra pure water making machine
(4) Ultrafiltration (UF) system
(5) Water Softener
(6) Industrial / Commercial RO Drinking Water System
(7) EDI + RO system
(8) Water Recycling System

Innovation is our goal and pursuit, we are different !

FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral cartons and wooden cases. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment ?
A: For amount ≤US$5,000. 100% T/T in advance. For For amount > us$5,000. 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages even live video once request before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 5-7 days for sample order and15-30 working days for bulking order after receiving payment. The specific delivery time depends on the proeject items and the quantity of your order.

Q5. Do you test all your goods before delivery?
A: Yes,100% test before delivery

Q6: How do you make our business long-term and good relationship?
A1. We keep good quality and competitive price to ensure our customers benefit ;
A2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come. We are partner .

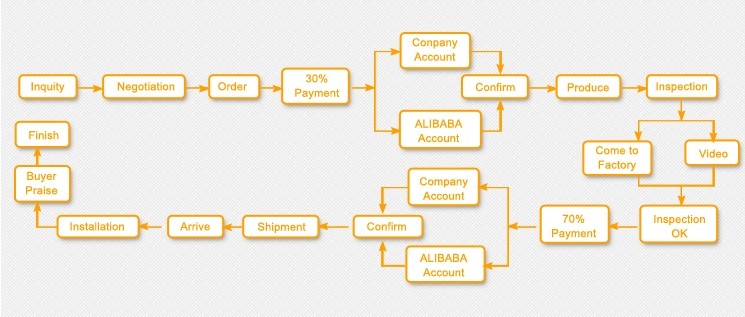

Q7. How do i order ?

Our Service

1. OEM Manufacturing welcome: Product, Package...
2. Sample order , MOQ : One set.
3. We will reply you timely in 24 hours for your inquiry.
4. After shipment, we will send you tracking details and we will also track the products for you once every two days, until you get the products.

When you get goods, test them, and give me feedback.

If you have any question, contact us, we will be pleased to help.
