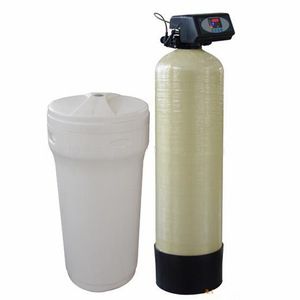

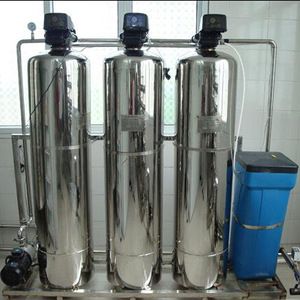

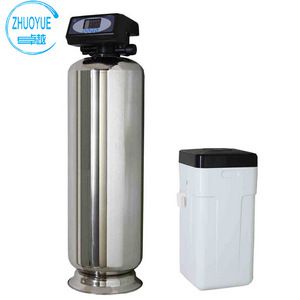

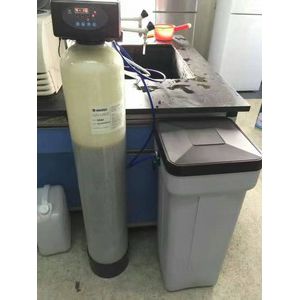

Automatic Ion Exchange Water Softener System
ZYRH Ion Exchange Water Softener System

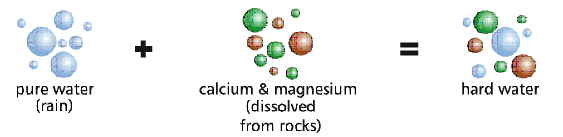

Hard water is water that has high mineral content (in contrast with "soft water"). Hard water is formed when water percolates through deposits of limestone and chalk which are largely made up of calcium and magnesiumcarbonates.
Hard drinking water may have moderate health benefits, but can pose serious problems in industrial settings, where water hardness is monitored to avoid costly breakdowns inboilers, cooling towers, and other equipment that handles water. In domestic settings, hard water is often indicated by a lack of suds formation when soap is agitated in water, and by the formation of limescale in kettles and water heaters.Wherever water hardness is a concern, water softening is commonly used to reduce hard water's adverse effects.

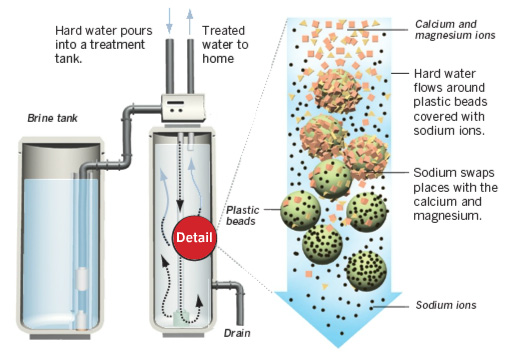

Fully automatic ion exchange water softener is a kind of system that operation and regeneration process automatic control , which use the cation ion exchange resin to remove calcium and magnesium in water, reduce water hardness, in order to achieve the purpose of softening hard water to aviod carbonate fouling in pipes, containers,boiler. Greatly reduce the cost of investment , but also to ensure the smooth progress of production.

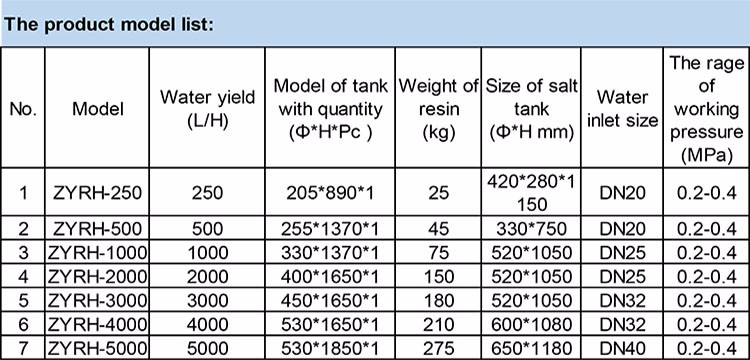

| Technical Parameters: | |
| Raw water hardness:<=8mmol/L | Power consumption:10-40W |
| Power supply: 220V+-22V/50Hz | Water inlet temperature: 2-38℃ |
| Water consumption: <2% of water production | Operating temperature:5℃-50℃ |
| Water pressure: 0.2-0.4Mpa | Total pressure loss of equipment:0.03Mpa |
Regeneration: dynamic downstream (countercurrent) timing regeneration | |
| Residual hardness of water: <=0.03 mmol/L | |
| Consumption of salt: 100-250g / mol (depending on source water source) | |
| Softening Resin Model: British drift Wright food grade cation exchange resin |
| Features: |
Fully automatic control. Softener through the program control device, automatically complete the softening work, washing, backwashing, salt, regeneration and other functions. |
| Only need to add the softener special regenerator rugularly. |
Efficient: The design of soft water heater is reasonable, so that softening resin works effectively and exchanges capacity to give full play. |
| Labor saving: No specialized pepole is needed to operate, easy to install. |
| Water saving : The water-marking rate is more than 98% . |
| Power saving: due to the use of rain absorption principle, regeneration without salt pump |
Period adjustable: according to the need to adjust the softening resin regeneration cycle at any time. |
| Pipeline simplification, compact structure covers an area of small, saving space |
Stable and reliable operation; saving regeneration agent; low operating costs; maintenance-free. |
Can be directly with municipal tap water or groundwater docking, deep softening, to ensure that soft water quality. |
According to the different degree of water hardness, can be pretreated after softening or secondary softening treatment, according to the actual situation can provide professional design 'installation, training. |

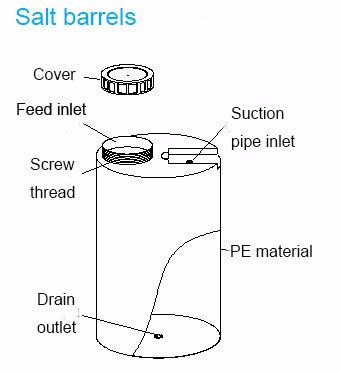

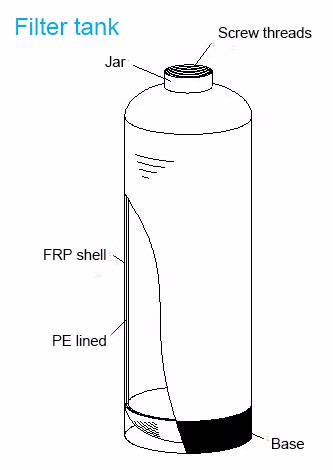

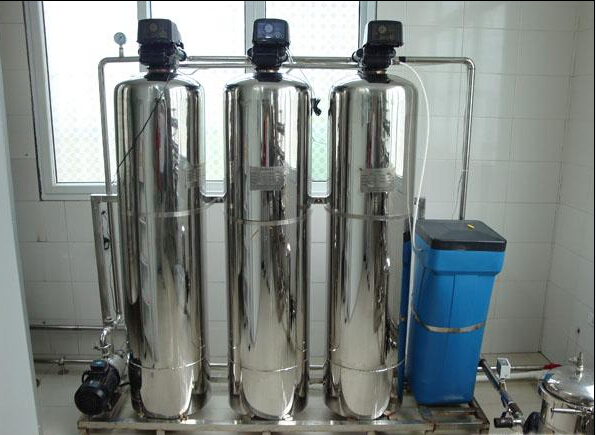

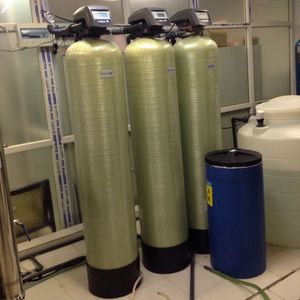

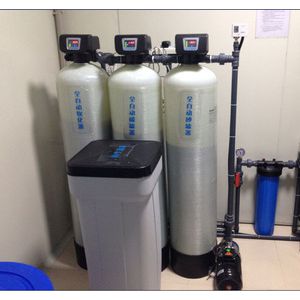

The Detail:

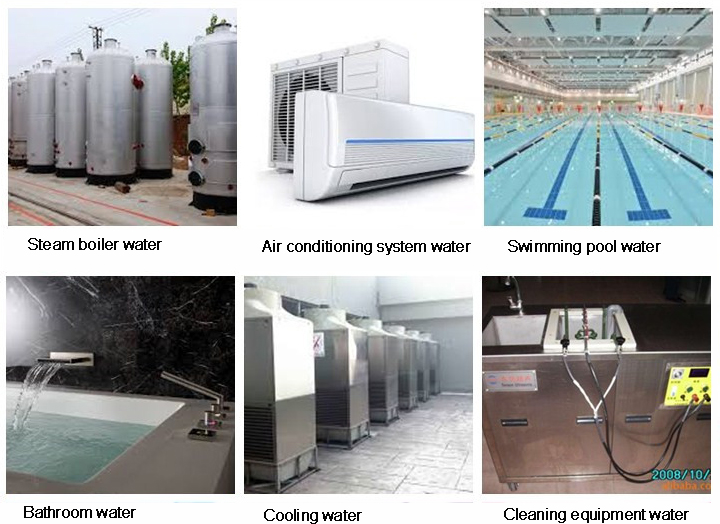

Application:
Industrial: steam boiler water, cooling water, cleaning equipment, water and food, beverages, wine, printing and dyeing, chemical, pharmaceutical, electronics and other industries softening treatment.
Household: air conditioning system water, hotels hotel bath water, laundry water, swimming pool water;
Our Servce:
1. We are professional manufacturer of water treatment system which has the professional engineers who can provide customized product.
2. Professional after-sale team.
Automatic Ion Exchange Water Softener System
Why choose us :
1. Professional manufacturer : More than 10 years experience in prodcuing pure water treatment system .
2. Strict time control : Ensure delivery time.
3. Factory strength: The factory area is more than 2000m3, more than 100 workers.
4. After-sales service : 24 Hours online for service.
5. Customized is available. Sample order is available.
