1). Product Description:

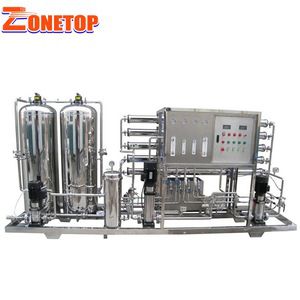

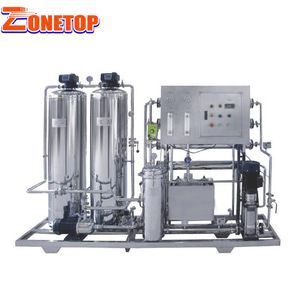

1.This mineral water plant includes raw water tank ,raw water pump,silica sand filter,active carbon filter,ion exchanger,high pressure pump,precision filter, security filter ,reverse osmosis,Ozone generator sterilizer,UV, Mixing tower ,water pump, water storage tank.
2.The raw water tank is made of SUS304 or PP  material. Raw water pump provide the pressure to silica sand filter / active carbon filter . Silica Sand filter get rid of turbidity, suspended matter, organic matter, colloid and so on.
Active carbon filter Remove the color, free chloride, organic matter, harmful matter and so on ion exchange prevent any deposition of large Particles, most of the bacteria, and viruses into the  RO membrane,The accuracy is 5um, for holding back any large particulates such as large iron, dust, suspended matter, impurity.
3.High pressure pump Provide the high pressure to RO membrane(at least 2.0 Mpa).RO system is the main part of pure water treatment plant. The RO membrane's desalt rate can reach as high as 99%.

2). Working Process:

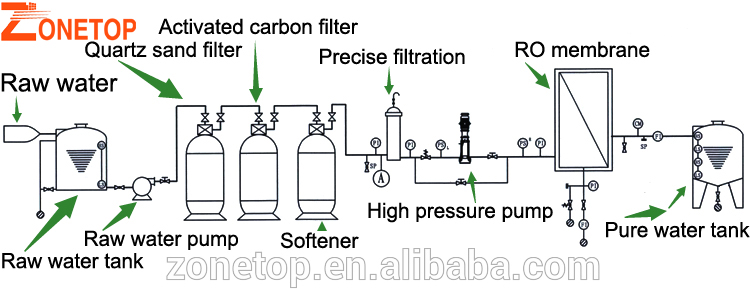

Raw water tank-raw water pump-multi-medium filter--active carbon filter -water softner (Sodium Ion Exchanger)-precision filter-RO mainframe(including chemical cleaning device)-ozone generator-finished product water tank
1. Raw water pump-- provide the pressure to quartz sand filter/active carbon filter
2. Multi-medium filter-- get rid of turbidity, suspended matter, organic matter, colloid, ect.
3. Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter, ect.
4. Softener--exchange "ions" of calcium and magnesium with the most common and easiest method.
5. Micron filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um,
6. High pressure pump-- Provide the high pressure to RO membrane
7. RO system-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions

3).Reverse Osmosis(RO) Water Application:
1. Preparation of beverage industry, drinking pure water, natural water, mineral water, distilled water, mineral water;
2. Pure water for food factory, pure water for milk, pure water for fruit juice, pure water for food additives;
3. Pure water for preparation of blending wine produced, pure water for beer saccharification cast materials and pure water for draft beer filtration;
4. Hotels, buildings, communities, high-quality direct drinking water;

4).Main Technological Data:

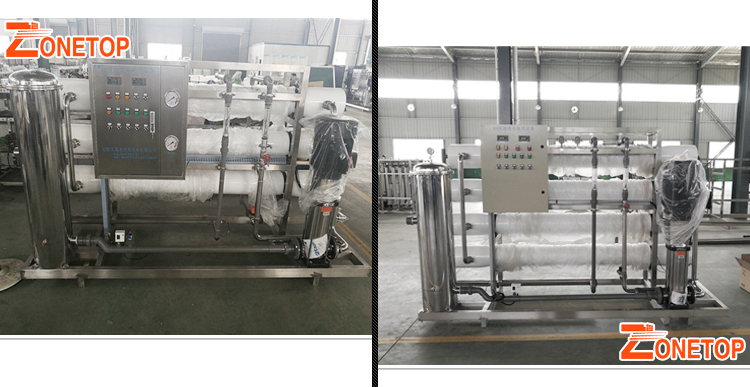

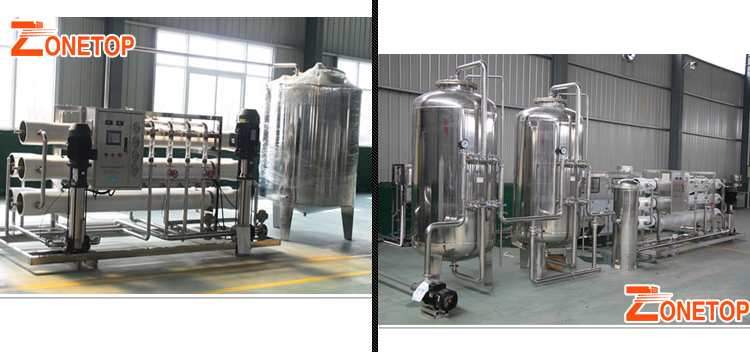

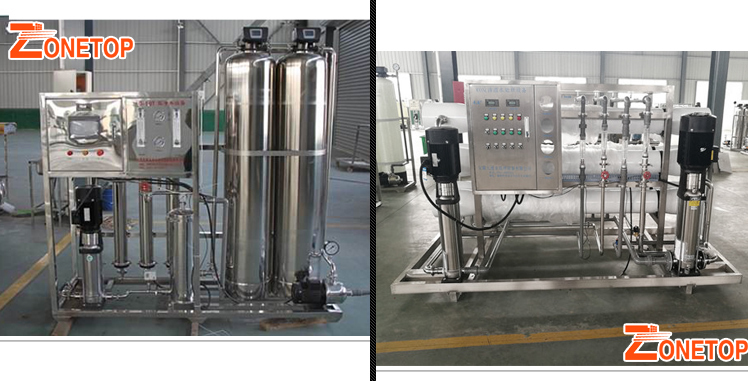

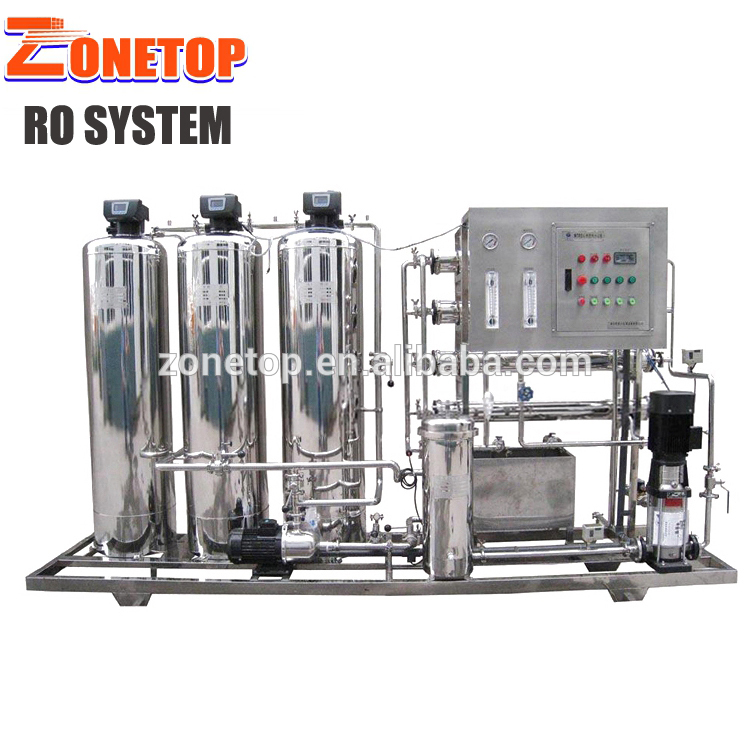

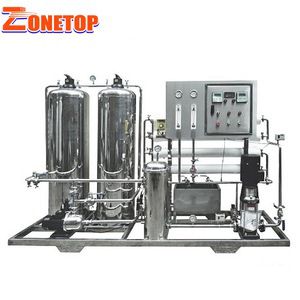

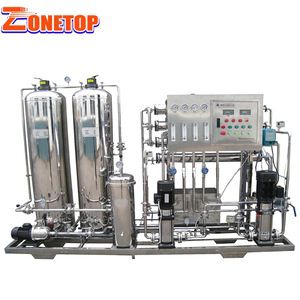

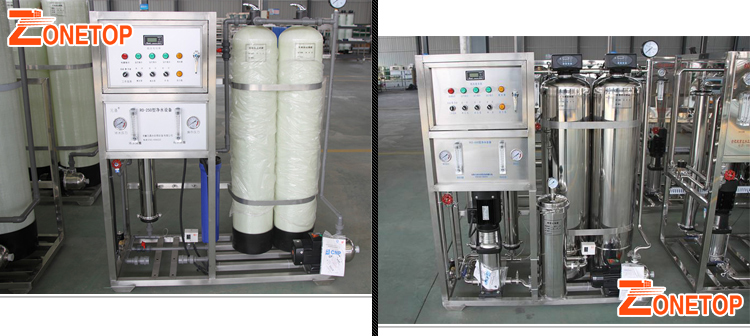

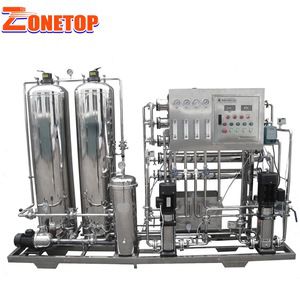

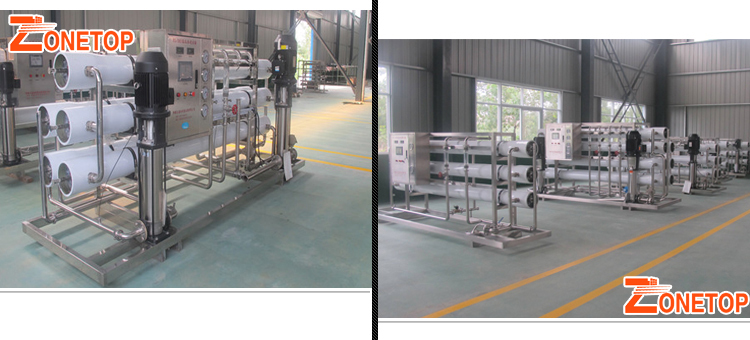

1).RO Water Treatment Machines

PS:

1. Please tell us the production capacity of the ro system (250L/H, 500L/H, 1000L/H,2000L/H,3000L/H...) you need,

2. Source water(tap water, well water, borehole water etc.) and application of output pure water from the ro system.

We will make a plan and quotation for the ro system immediately as your requirements.

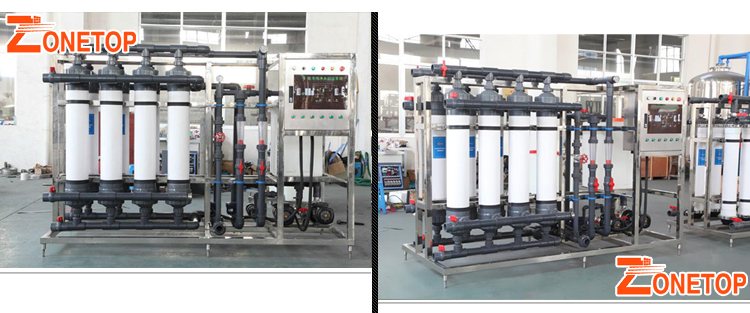

2).UF Mineral Water Filtration Machine

Click Here for More Information

Add to My Favorites<<

Good transportation service to ensure the safety of your goods.

1.Q: What price terms you offer ?

A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.

2.Q: What payment terms you take ?

A: We prefer T/T, but other terms also workable for us.

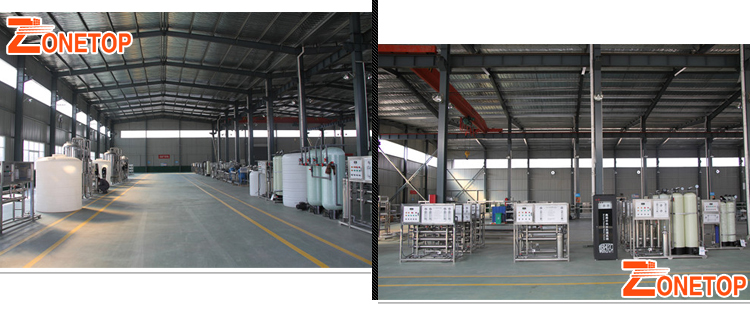

3.Q: How can I visit and check your company ?

A: Our factory is located in Our factory is located in No.478 Yinglang Industry Park, Shaping, Heshan, Jiangmen, Guangdong, China (Mainland). From Guangzhou International Airport to our office need only 50 minutes.

4.Q:How long is the warranty of your equipment?
A: 1 years warranty after receipt check upon delivery.And we will comprehensively provide you all kinds of technical support services in after-sale!

5.Q:Can you arrange the shipping for us?
A: Of course we can.

6.Q: What other service can you offer?
A: Besides the technical support, we can also help you to collect other water treatment products, and ship all of your goods together.

7.Q: What is the biggest water treatment RO plant can you offer?
A: The flow rate range of RO system we can offer toll now is 250L/H to 30000L/H.

8.Q:How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.

9.Q:What is packing of this machine? Is it suitable for shipment?
A: ZoneTop water treatment machine will be packed by standard wooden case. It is suitable for shipment. After you receive machine, you only need to open wooden case to pick up machine.
