It is a vertical dryer with spin crushing equipment,capable to realize the drying,crushing,classifying

simultaneously.

It is a continuous drying machine specialized for drying paste,cake,slurry shaped material,powder,

granule,etc.

Product Features

A.Double air duct,tangential air,uniform radical velocity.

B.Final moisture content and fineness effectively controlled by coordination between eddying

   blades and air inlet speed.

C.Small system resistance,high thermal efficiency,friendly operatingenvironment,low labor

   intensity.

D.New sealing structure,longer main engine bearing life,bearing block with

    water circulating jacket cooler.

E.Special blades distributed structure,larger contact area,less wearing,larger cutting force.

F.High efficiency for heat sensitive material.

    Protection device with cooling water is set at the bottom of the main engine,avoiding material

    searing phenomena.

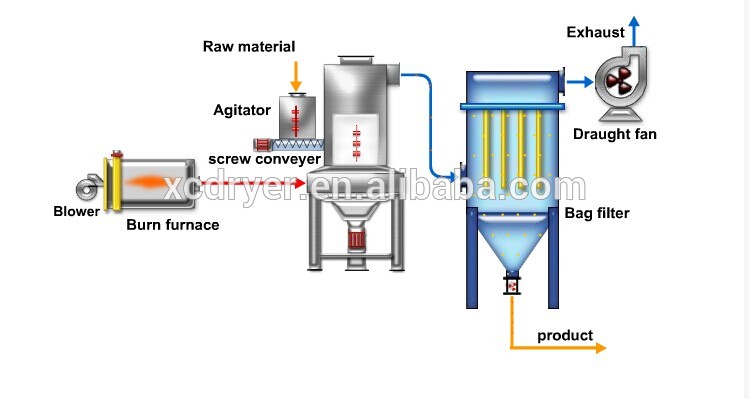

Working principle:

Hot air enters into the spin flash dryer tower tangentially from the air inlet at the dryer bottom and then forms into spiral flow with high speed rotation.

Annulus is adjusted according to the feed characteristics to give a optimal wind speed.

Feed enters into the spin flash dryer through a screw conveyor,and then disperses and spins with a

high speed under the high-speed air flow.

Big wet particles cluster fall due to the gravity,then being crushed and micronized by crushing device at the bottom of the dryer tower.

Micronized particles spin with the high air flow,then being dried.

Multiple eddying blades are set in the chamber to form steady fluidized bed,

which can minimize the final moisture content and protect the product from being effected by the initialmoisture content.In addition,eddying blades can also guarantee the residence time and classification.

Specifications:

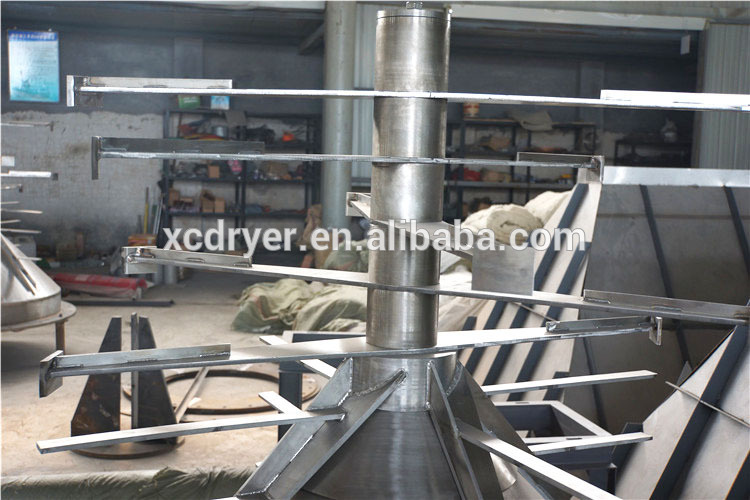

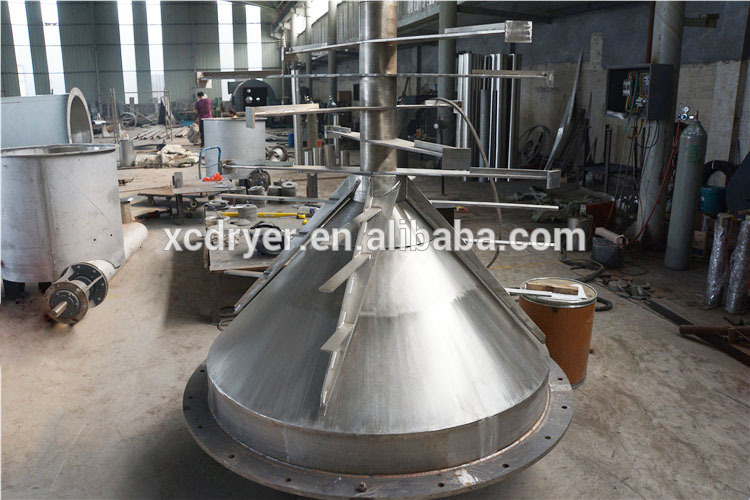

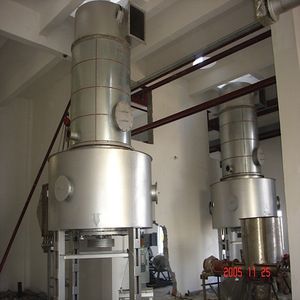

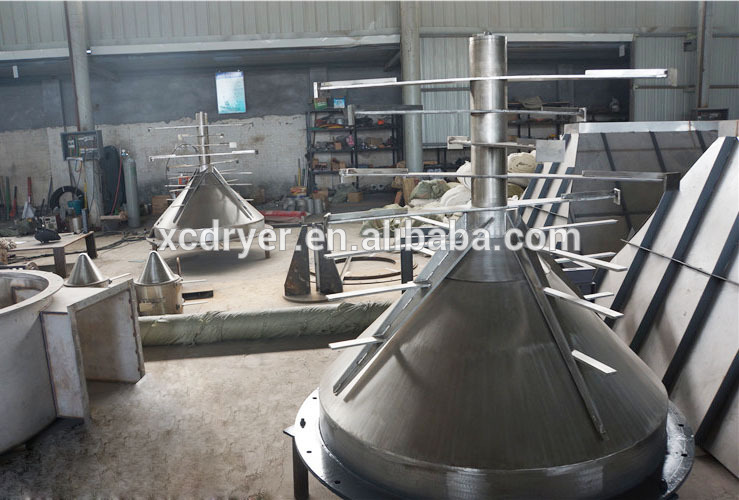

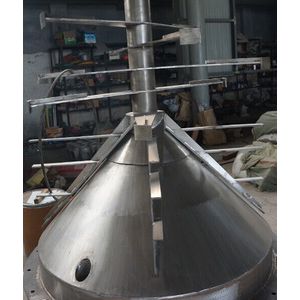

Main Photos

Packaging:wooden case or according to your customization

Delivery: within 30days after placing order.

Oversea service:available

Warranty: 1year

  Located in Jinan,Shandong province in China,Jinan Xichuan Environmental Protection Equipment

 Co.,Ltd is a professional drying equipment manufacturer specialized in manufacturing all kinds of

 drying equipment such as paddle dryers,fluid bed dryers, spin flash dryers,rotary dryers and dust

 collectors,which is widely used in chemical and food factories etc.

 We have established long-term good relationship with over100domestic and overseas companies.

 Due to the high quality and satysfing service,most of our products have won high praise among our  customers.

 We are honestly looking forward to cooperating with you.

1.Are you trading company or manufacturer?

   We are professional manufactuer with first-calss factory.

2.Why should I choose your products?

   We are professional manufacturer specialized in all kinds of industrail dryers and dust collectors.

   We have first-class design team with nearly 20 years as well as the high efficiency service team.

   We could provide suitable products with high quality and copetitive price.

   We are honest and patient,any your questions,we will try all our best to help you.

3.What about your after-sale service?

    All products are 1year guarateed.

    We hope to estalish long-term cooperation with you rather than for once.

     Credit the first,Quality the priority.

If you are interested in our product, pls kindly inform the following info:

1. what is the material to be dried?

2. what is the processing capacity and output?

3. what is the initial and final moisture content?

4. what is the heat source?(fuel,natrual gas,steam,coal)

5. what is the material of the machine?

Based on this,we can design or choose a suitable type for you.

If any questions,pls contact us without hesitation
