Model LLW Horizontal Spiral Discharging Filter
Description of Model LLW Horizontal Spiral Discharging Filter
Model LLW Horizontal Spiral Filter Centrifugal Solid Liquid Separator is a type of Horizontal Spiral Filter Centrifuge equipment with continuous operation. With the drum and the helix rotating in the same direction at high speed difference, the material is continuously led, via the feeding pipe, into the inner cylinder of the spiral feeder and, after acceleration, enters the drum. Under the action of the centrifugal force field, the liquid phase passes through the filtrating medium and is discharging out of the machine, while the solid-phase material is retained inside the drum and forms the filter residue. Under the combined action of the conic surface component force of the centrifugal force and the spiral feeder, the filter residue continuously moves towards the big end of the drum and is discharged out of the machine through the discharging trough. This Centrifuge Machine is capable of continuous feeding, separating, washing and discharging during the full-speed running. The Centrifuge Machine has such features as compact structure, small space occupancy, continuous operation, smooth running, strong adaptation, large handing capacity, low moisture content in the filter cake, etc.
Working Method of Model LLW Horizontal Spiral Discharging Filter
Applications of Model LLW Horizontal Spiral Discharging Filter
LLW Horizontal Spiral Filter Centrifugal Solid Liquid Separator is applicable to separate the solid material with the granule size greater than 0.1mm and suspension liquid or short fibers with concentration 25-75%. It has found widely applications in various industries like Chemical, Salt Making, Slkali Making, Environmental protection etc. For example: Adipic Acid, AHSalt, Amino Acid Ester, Ammonium Persulphate, Ammonium Phosphate, Ammonia Sulfate, Ammoonium Thiosulfate, Anthracene, Polyethylene etc.
Techincal Parameters of Model LLW Horizontal Spiral Discharging Filter

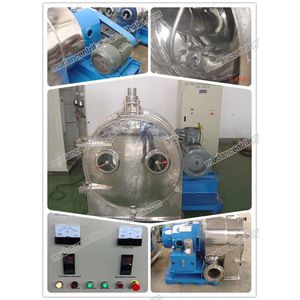

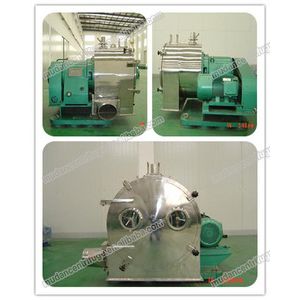

Outlooking of Model LLW Horizontal Spiral Discharging Filter

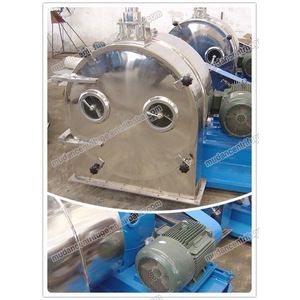

Bowl of Model LLW Horizontal Spiral Discharging Filter
Sieve of Model LLW Horizontal Spiral Discharging Filter

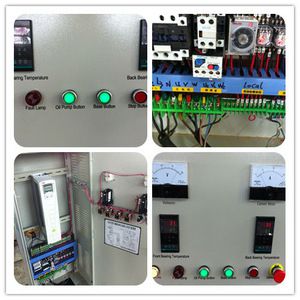

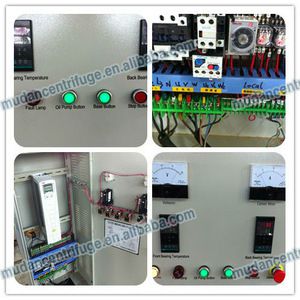

PLC of Model LLW Horizontal Spiral Discharging Filter
Product Drawing of Model LLW Horizontal Spiral Discharging Filter
1. The body of the machine covers with plastic film.
2. The machine installs into standard wooden case.
3. Container delivery.
Shipping of Model LLW Horizontal Spiral Discharging Filter
45 Days after down payment.
Land Transportation: By truck.
Sea Transportation: By ship
1: With the help of a strong group of engineers, we can Provide professional and technical support before/within negotiation.
2: Responsible master training to our customers, professional installation and adjustment.
3: 24 hours technical after sale service.
4: One year warranty of mechanical breakdown repair solution, such as disordered shut down, auto parts replacement, technical issues and readjustment.
5: Your 100% satisfaction would be our ultimate purpose .
1.Jiangsu Peony Centrifuge Manufacturing Co.,Ltd is one of the first manufacturers to pass ISO 900, CCMS/C0301 certification among centrifuge industry in China. We are the Vice Chairman Unit in China`s Separation Machinery Industry Association.
2. With more than 20 years experience in centrifuge industry, 25,000 square meter`s construction area, and 260 employee all over the world, Our company has becomes the leader of pharmaceutical and chemical machinery manufacturers and The Executive Council Member of Chinese Separator Machinery Industry. we are concentrating to provide technical and professional supports to our customers.
3. Located in the boom port of Zhangjiagang Port, Jiangsu province, the most developed and powerful city in Yangtze River Delta, we can provide convenient and fast transportation services.
4. For more than 20 years research and development, Jiangsu Peony Centrifuge Manufacturing Co.,Ltd is able to produce products more than 16 major series and 60 models, our products can widely used in many industries, such as Pharmacy, Chemical, Food, Light industry, Mineral and Environment industries.
Honors and Certifications:
Hornors represents the past, Peony is working for a brighter and more challenger future.
Sales network of Model LLW Horizontal Spiral Discharging Filter
Peony Centrifuge has been dedicated to producing machinery and equipments and carrying out facility construction,pursuing the best quality and producing the best product at the same time. We are committed to reward you with a better quality in return for our interest in and faith toward. We will do our utmost for one more stepping forward,based on our infinite services and trust to customers.
China
