Description of Model LLW Horizontal Spiral Discharging Filter Centrifuge

Model LLW Horizontal Spiral Filter Centrifugal Solid Liquid Separator is a type of Horizontal Spiral Filter Centrifuge equipment with continuous operation. With the drum and the helix rotating in the same direction at high speed difference, the material is continuously led, via the feeding pipe, into the inner cylinder of the spiral feeder and, after acceleration, enters the drum. Under the action of the centrifugal force field, the liquid phase passes through the filtrating medium and is discharging out of the machine, while the solid-phase material is retained inside the drum and forms the filter residue. Under the combined action of the conic surface component force of the centrifugal force and the spiral feeder, the filter residue continuously moves towards the big end of the drum and is discharged out of the machine through the discharging trough. This  Centrifuge Machine is capable of continuous feeding, separating, washing and discharging during the full-speed running. The Centrifuge Machine has such features as compact structure, small space occupancy, continuous operation, smooth running, strong adaptation, large handing capacity, low moisture content in the filter cake, etc.

Working Method of Model LLW Horizontal Spiral Discharging Filter Centrifuge

Applications of Model LLW Horizontal Spiral Discharging Filter Centrifuge

LLW Horizontal Spiral Filter Centrifugal Solid Liquid Separator is applicable to separate the solid material with the granule size greater than 0.1mm and suspension liquid or short fibers with concentration 25-75%. It has found widely applications in various industries like Chemical, Salt Making, Slkali Making, Environmental protection etc. For example: Adipic Acid, AHSalt, Amino Acid Ester, Ammonium Persulphate, Ammonium Phosphate, Ammonia Sulfate, Ammoonium Thiosulfate, Anthracene, Polyethylene etc.

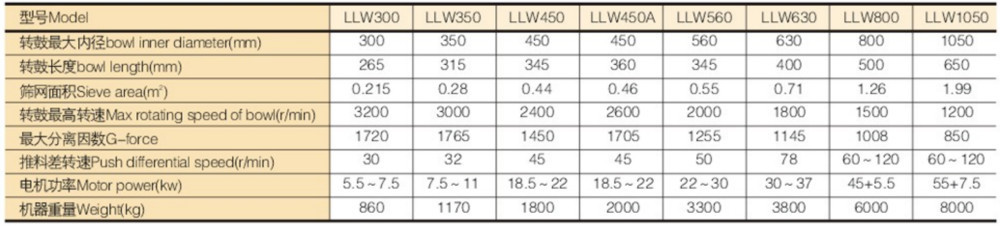

Techincal Parameters of Model LLW Horizontal Spiral Discharging Filter Centrifuge

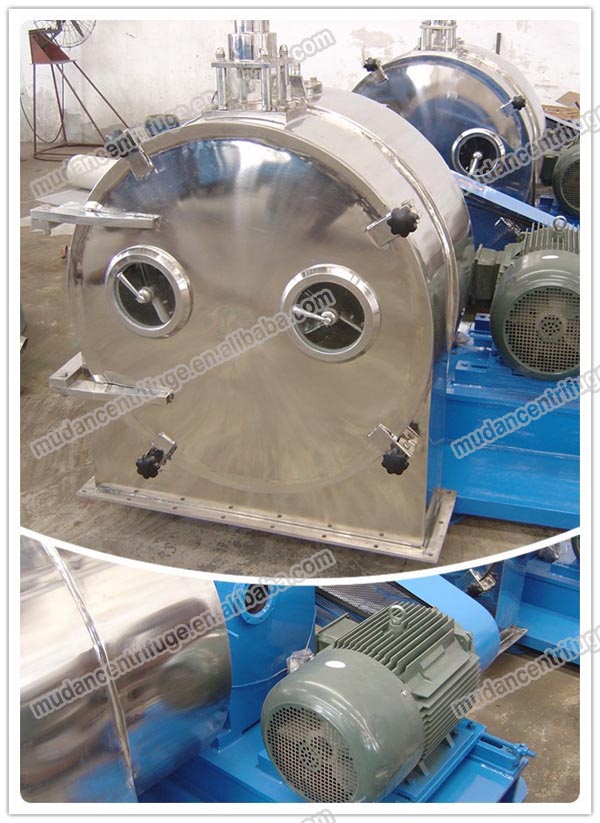

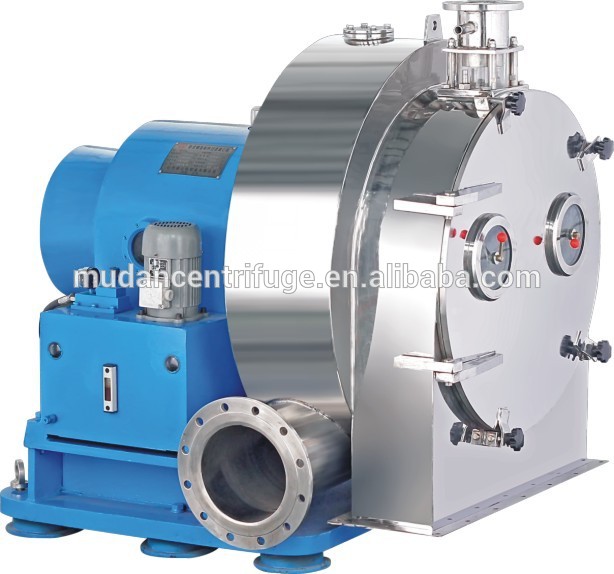

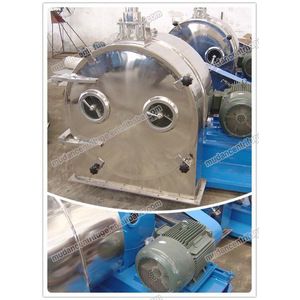

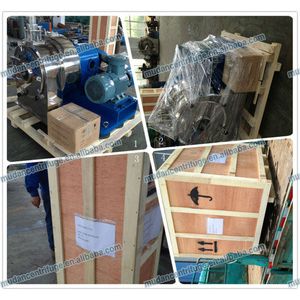

Outlooking  of  Model LLW Horizontal Spiral Discharging Filter Centrifuge

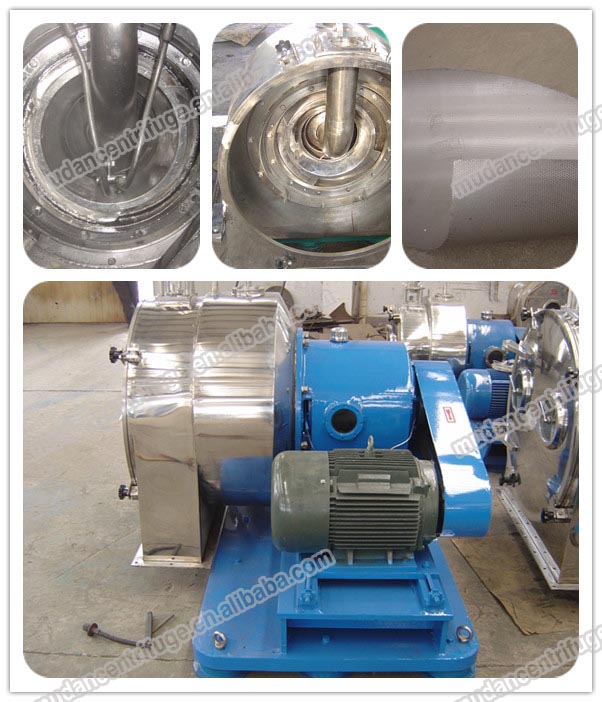

Bowl of  Model LLW Horizontal Spiral Discharging Filter Centrifuge

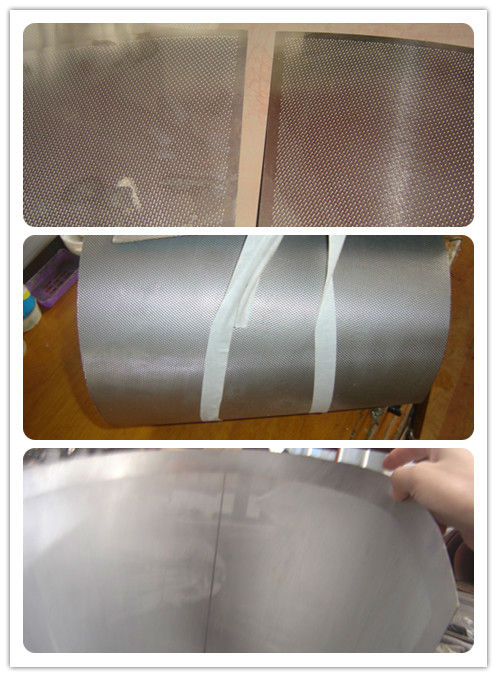

Sieve of Model LLW Horizontal Spiral Discharging Filter Centrifuge

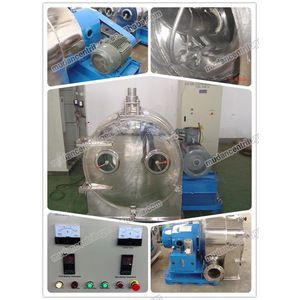

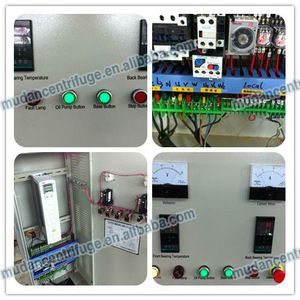

PLC of Model LLW Horizontal Spiral Discharging Filter Centrifuge

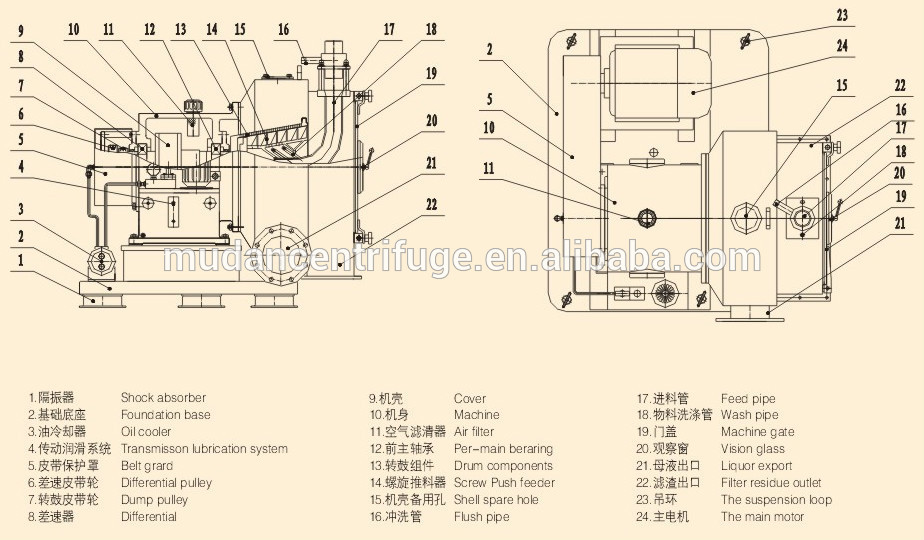

Product Drawing of Model LLW Horizontal Spiral Discharging Filter Centrifuge
