MVR evaporator system

The plate type evaporator is structure compact, and with good economic effeciency, so it replaced normal type falling film type equipment which is large, The plate evaporator has wide plate gap, wide access point and laser welding, these character make it

Technical Feature

  • Low running cost
  • Small space
  • Little utilities
  • Short staying time
  • Stably running
  • No need new steam
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$50000~500000

PRIMARY PARAMETERS

Brand name
ECOP
Application
Evaporating
Process input material
-
Process output material
-
Place of origin
China
Equipment material
SS & CS
Power (kW)
Depends
Weight (kg)
Depends
Outer dimension (mm)
Depends
Warranty
One year
Delivery
60 days
Main spare parts
-

MODEL SPECIFICATIONS

Model -
- -

DETAIL DESCRIPTION

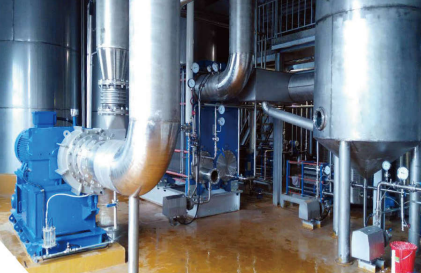

MVR evaporator system


The plate type evaporator is structure compact, and with good economic effeciency, so it replaced normal type falling film type equipment which is large, The plate evaporator has wide plate gap, wide access point and laser welding, these character make it execute vacuum evaporating in no matter water system or organics system.


MVR evaporator is a new type of high efficiency and energy saving equipment, using low temperature and low pressure steam and clean energy as electricity, produce high quality steam, and separate the moisture of the medium, is the internationally advanced technology, replace the traditional evaporator.

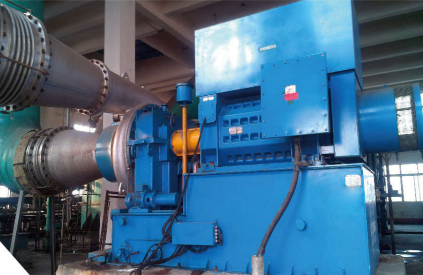

Secondary steam, after compressed by the compressor, pressure and temperature will increase, and enthalpy will increase, transfer it to the heating chamber as heated steam, to make the material stay evaporating, the heated steam will be condensed to water after the heat transferring. Then, the raw steam is used adequately, recycled the latent heat, and increased heat efficiency.


Character

  1. Low consumption, low running cost

  2. Small installing space

  3. Little utilities, low total cost

  4. Short product staying time

  5. Stably running, high automatic

  6. No new raw steam

  7. Simple process, high practicality, good part-load operation performance

  8. Low cost, can evaporate under 40℃ without freezing equipment, especially suitable for heat sensitive material.


Application

Evaporating and concentrating

Evaporating and crystalling

Low temperature evaporating


Technical spec.

Evaporating 1t water need 23-70kwh electricity.

17-40℃ low temperature evaporating, no need cooling water system.
