Product Description:
dryer
The method of boiling and granulating is a comprehensive fruit of spraying and fluidizing technology. It makes traditional mixing ,granulating and drying processes finish in the same closed container. So it is called as "one step granulator".
This machine has simple structure and is easy to clean and maintain .Not only it can make granule but also dry quickly. The process of mixing ,granulating ,drying will be finished in the same closed container at the same time. So it can prevent from pollution caused by contacting with environment and guarantee that the quality of medical granule is conformity with the requirement of "GMP"..
Scope of Application :
Medicine granulating Granulating ; granulator of tablet, quick solved drink, granule used for capsule.
Foodstuff granulating and coating: Sugar, coffee ,cocoa ,powder, cream ,powder syrup, amino acid, favoring,
puffed food.
Granulating for pesiticide ,pigment , dyertuff.
Drying for powder ,granule, block raw materials.
Coating: granulate, pill protection layer ,formulated color ,slow release ,film ,coating for intesting solving.

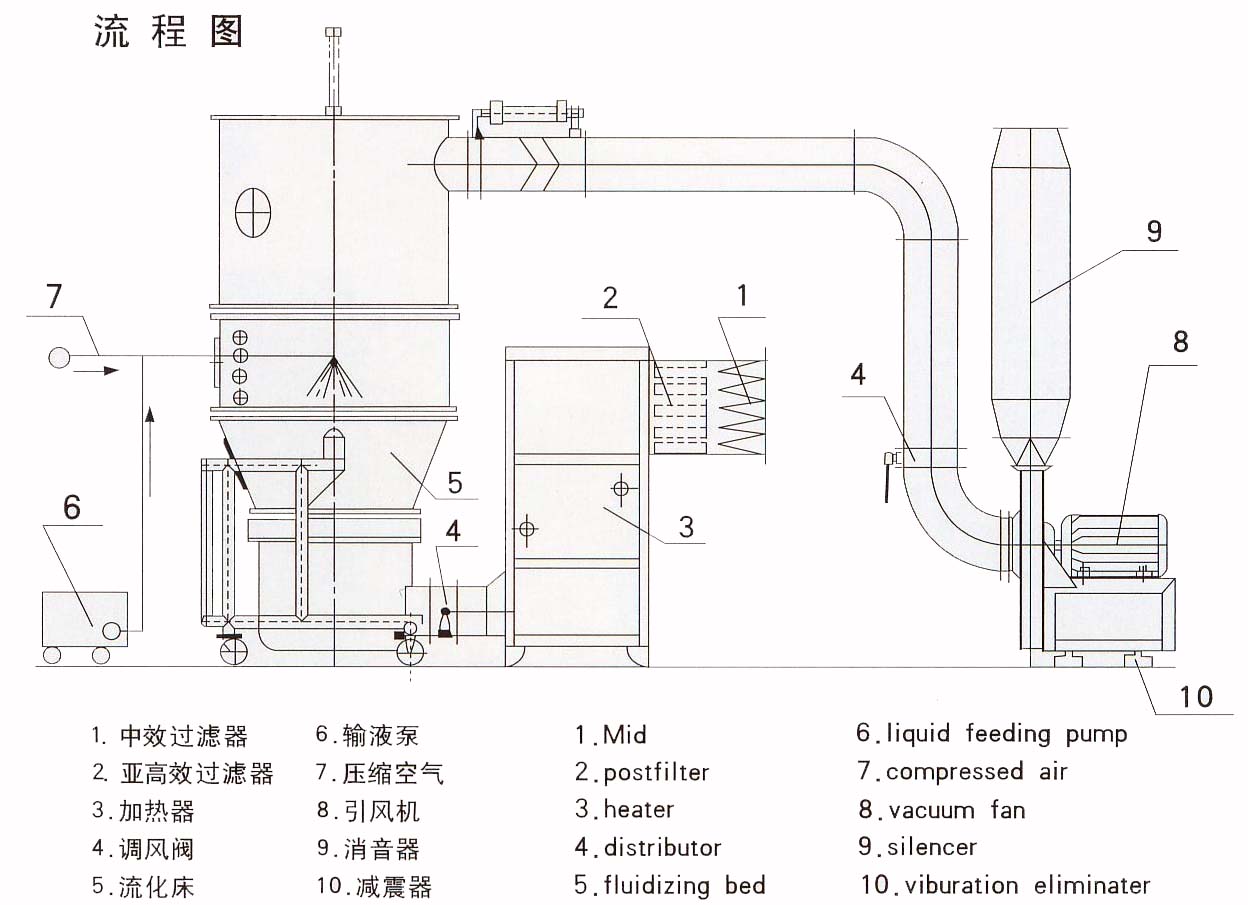

Schmatic of installation:
Tachnical parameters:
item | unit | type | |||||||||
3 | 2.15 | 15 | 30 | 60 | 120 | 200 | 300 | 500 | |||
container | volume | L | 12 | 22 | 45 | 100 | 220 | 420 | 670 | 1000 | 1500 |
diameter | mm | 300 | 400 | 550 | 700 | 1000 | 1200 | 1400 | 1600 | 1800 | |
capability | min | kg | 1.5 | 4 | 10 | 15 | 30 | 80 | 100 | 150 | 250 |
max | kg | 4.5 | 6 | 20 | 45 | 90 | 160 | 300 | 450 | 750 | |
fan | capacity | m3/h | 1000 | 1200 | 1400 | 1800 | 3000 | 4500 | 6000 | 7000 | 8000 |
pressure | mmH2O | 375 | 375 | 480 | 480 | 950 | 950 | 950 | 950 | 950 | |
power | kw | 3 | 4 | 5.5 | 7.5 | 11 | 18.5 | 22 | 30 | 45 | |
steam expenditure | kg/h | 15 | 23 | 42 | 70 | 141 | 211 | 282 | 366 | 451 | |
compressed air expenditure | m3/min | 0.9 | 0.9 | 0.9 | 0.9 | 1.0 | 1.0 | 1.1 | 1.5 | 1.5 | |
weight | kg | 500 | 700 | 900 | 1000 | 1100 | 1300 | 1500 | 1800 | 2000 | |
steam pressure | Mpa | 0.3-0.6 | |||||||||
temperature | .C | adjustable from ambient to 120.C | |||||||||
working time | min | decide in accordance with the properties of raw materials(45-90) | |||||||||
field | % | ≥99 | |||||||||
noise | db | When installation, main machine is separated form fan | |||||||||
size(L×W×H) | m | 1.0× 0.6× 2.1 | 1.2× 0.7× 2.1 | 1.25× 0.9× 2.5 | 1.6× 1.1× 2.5 | 1.85× 1.4× 3 | 2.2× 1.65× 3.3 | 2.34× 1.7× 3.8 | 2.8× 2.0× 4.0 | 3× 2.25× 4.4 |

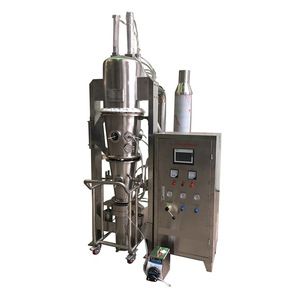

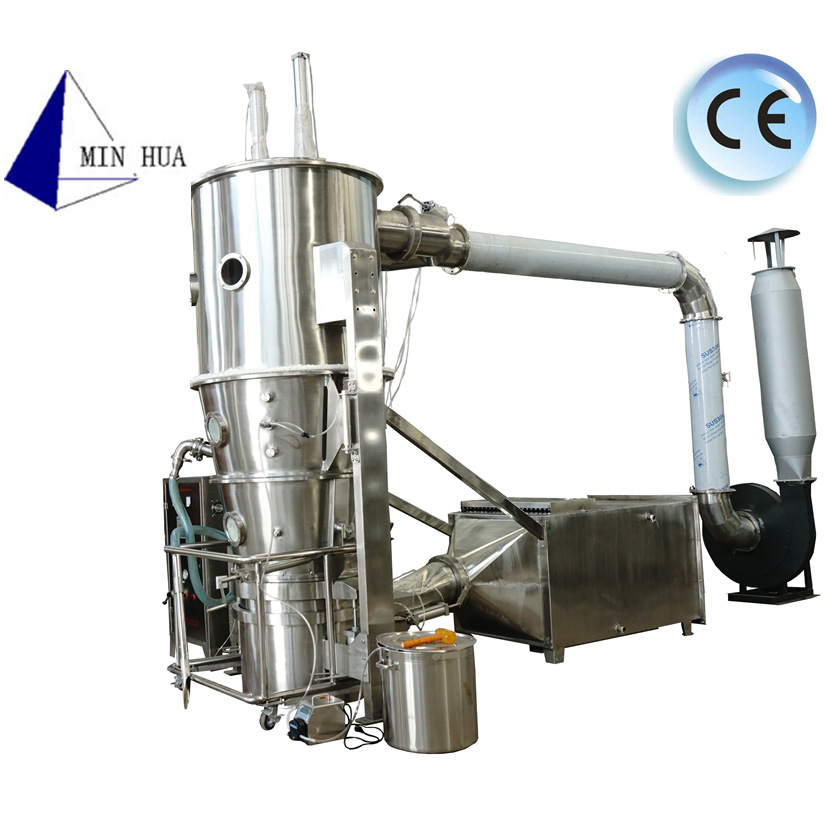

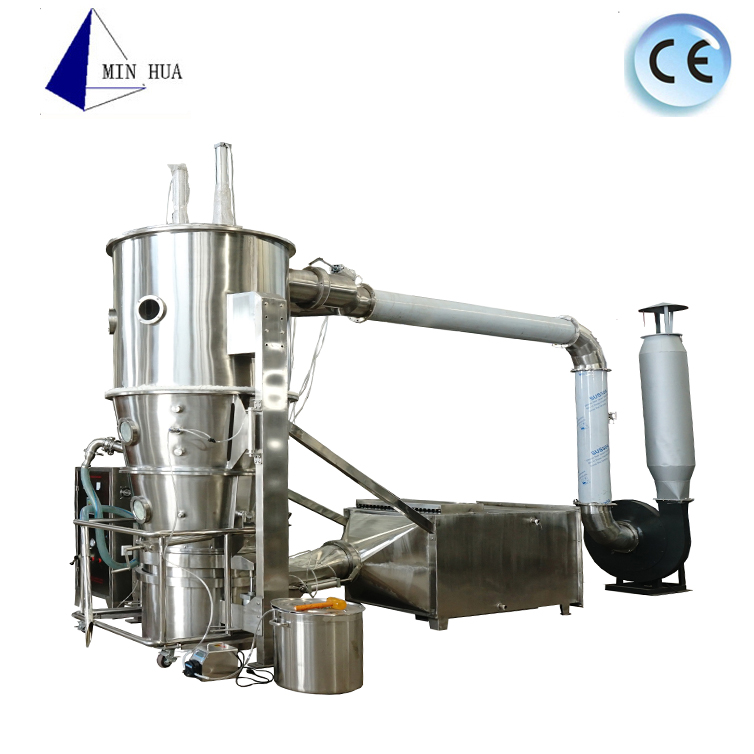

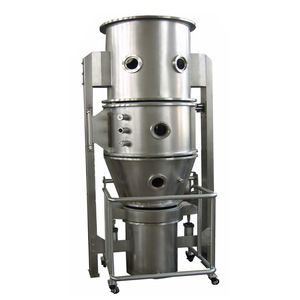

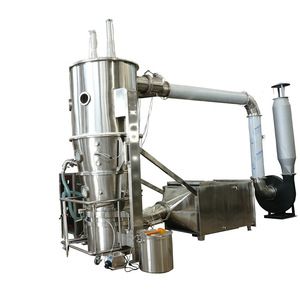

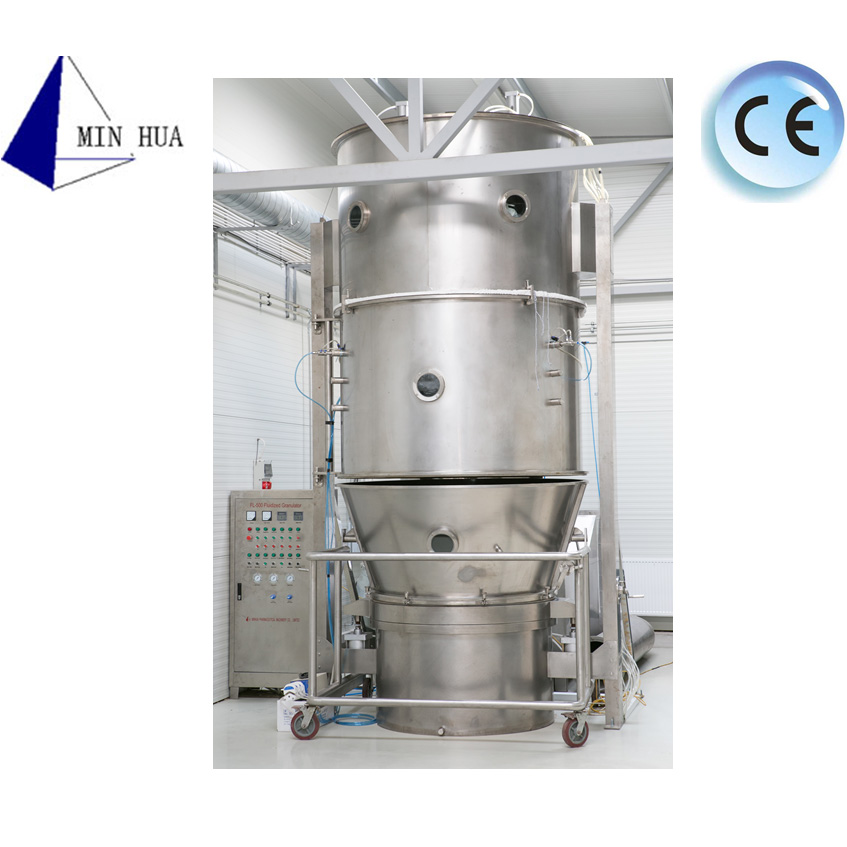

Product Pictures:

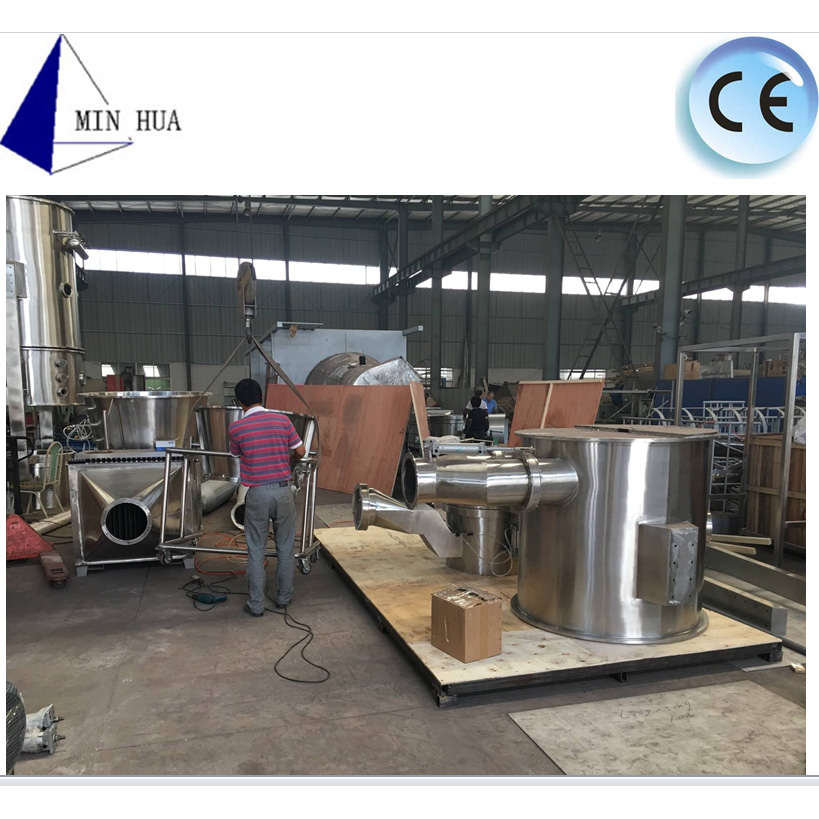

Details:
Product Samples:
Packaging & Shipping:
Our Company:
Shanghai Zixiong Pharmaceutical Machinery Co., ltd is a professional manufacturer and supplier of pharmaceutical and chemical machinery and equipment in China. We are located in Shanghai.
We have a disciplined factory and fairly professional technical engineers. We will provide personalized customized service for you. We have designed and developed many types of machinery and equipments, including tablet press, soft and hard blister packing machine, capsule filling machine,
clean-room project, soft-gel production line, glass-lined reactor, centrifuge, granulator, mixer, dryers, pulverizer, cartoner and rollers, etc.
Our products are of good quality and reputation. All customers have been quite satisfied with our products. We have established long-term business relations with many customers. Our products are exported to many countries & areas, such as the USA, Australia, Canada, the UK, Spain, Hungary,Russia,Germany, Sweden, Korea, India, Indonesia, Pakistan, Thailand, Vietnam, Iran, Japan, Denmark, Romania, Bulgaria, , South Africa, Nigeria, Argentina and Chile. Besides machinery and equipment, we also supply production lines and turn key projects.
In ZIXIONG you can get your desired goods with the best prices and good quality. Welcome your enquiries from all over the world.
Our Services:
Pre-sales service:
1.We provide presales service in various forms, making investment budge, manufacturing, planning, so that customers can make a reasonable plan with less cost.
2.We will fist check customer’s goods and goods size, then we will recommend suitable wrapping machine to 100% suitable.
3.We will recommend and offer machine according to customer’s use and purchase budget.
In-sale service:
1.We will supply each manufacturing step photo for customer checking on time.
2.We will prepare packing and shipment according to customer’s needing in advance.
3.Testing the machine and making video for customer’s checking.
After-sale service:
1.We will guarantee the machine quality for 1 year.
2.We provide free training and answer customer's question on technology in time.
Our Customer:
Welcome to Shanghai. Welcome to visit our company.

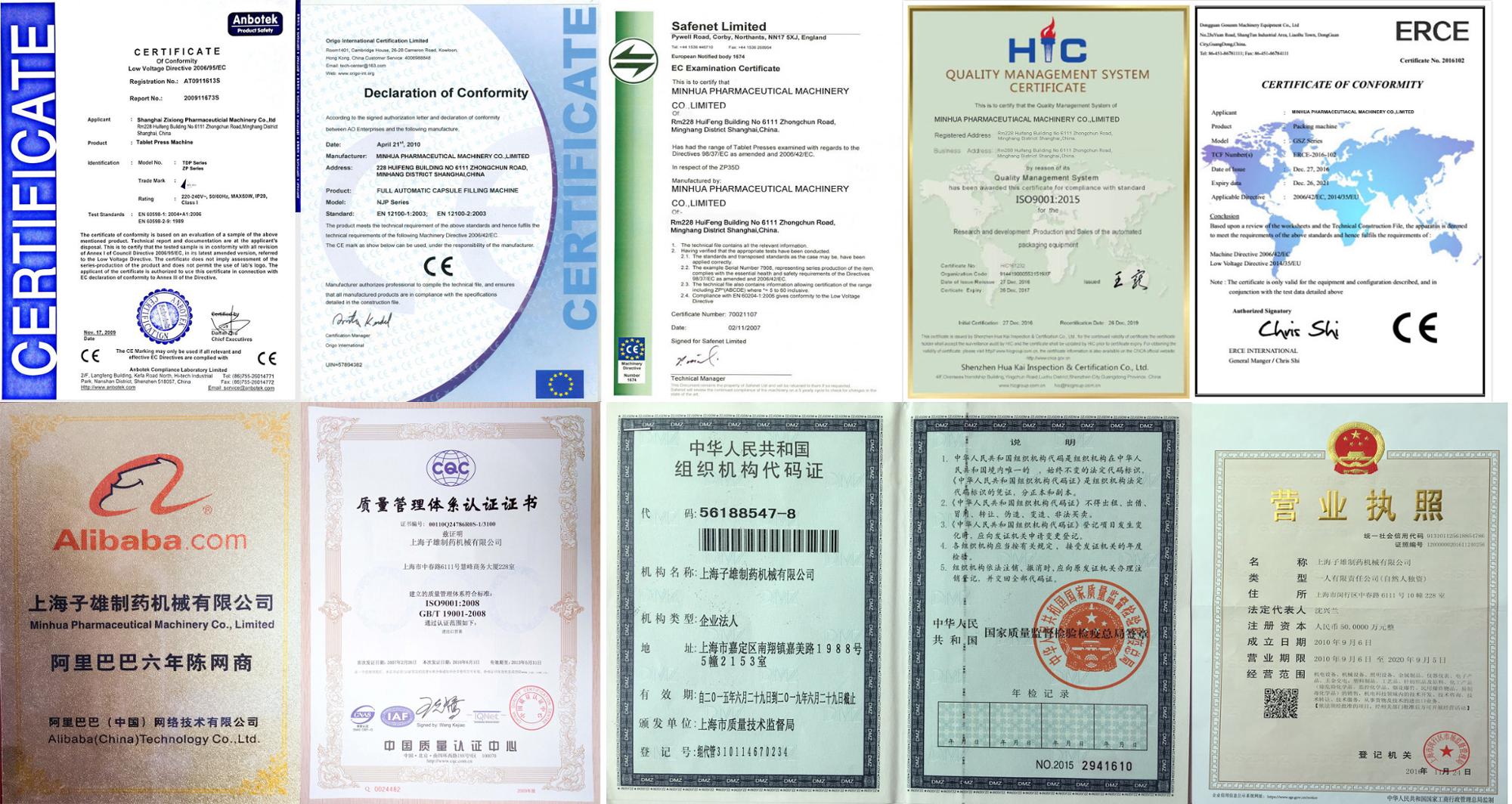

Certificate:
FAQ
1. What about your baling machine quality?
Our factory has more than 10 years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate; already exported into many countries and areas; already got customer’s good reputation.
2. What about your baling machine price?
Anytime we will make quality as factory life, no matter price is good or not for us. Quality is first, on the top quality basis, Sure you will get reasonable and satisfied price!
3. How can you ensure the machine’s quality after we put the order?
Before the delivery, we will send you machine’s pictures and videos, or you can come to us to have the quality checking by yourself, or by the third party inspection organization contacted by your side.
4.What about your installation service and sales service for baling machine?
1.Guarantee is one year, we will supply spare parts or send engineers to your side if you need, we will give you service anytime, 24 hours, 7days.
2.We already prepare technical manual and operation video to show our customers, then it will be easy to install and use the machine.
3.It is free to train your worker in our factory or in your side or by video.
