Factory price tapioca starch machine cassava equipment
Tapioca starch machine photo
Cassava starch is produced by the wet milling process of fresh cassava roots. There is high demand for cassava starch. It is widely used in industries such as: textile, pharmaceuticals, oil drilling, paper and packaging, gum and adhesives, chemical and household products manufacturing, battery, drinks and beverages, foods and so on.
Our company is professional manufacturing the complete set tapioca starch machine. Our tapioca starch machine is full automatic from washing fresh cassava until get the final dry cassava starch and packing into bags , the production time from washing fresh cassava until packing final dry starch into bags is less than 30 minutes .
Our company tapioca starch machine machine production process adopts Euro technology of full-hydro cyclone process for producing the high quality starch. The entire process is mature technology, advanced equipment, scientific, rational process.

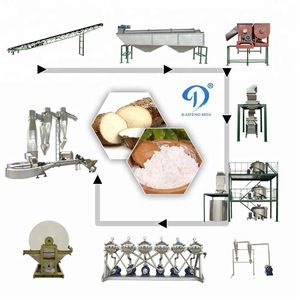

The tapioca starch machine production process :
1. Cassava cleaning and washing section of tapioca starch machine
Loose dirt, sand, and gravel are removed in cleaning and washing section. It will need some machine working together , include the cassava dry cleaning machine , paddle washing machine and rotation washing machine.

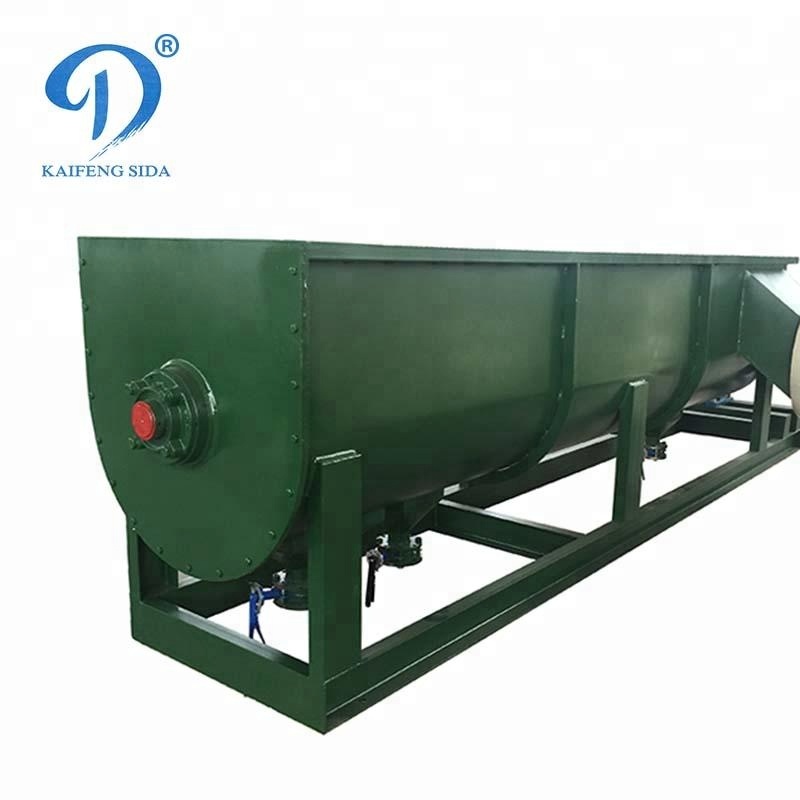

Cassava washing machine of tapioca starch machine

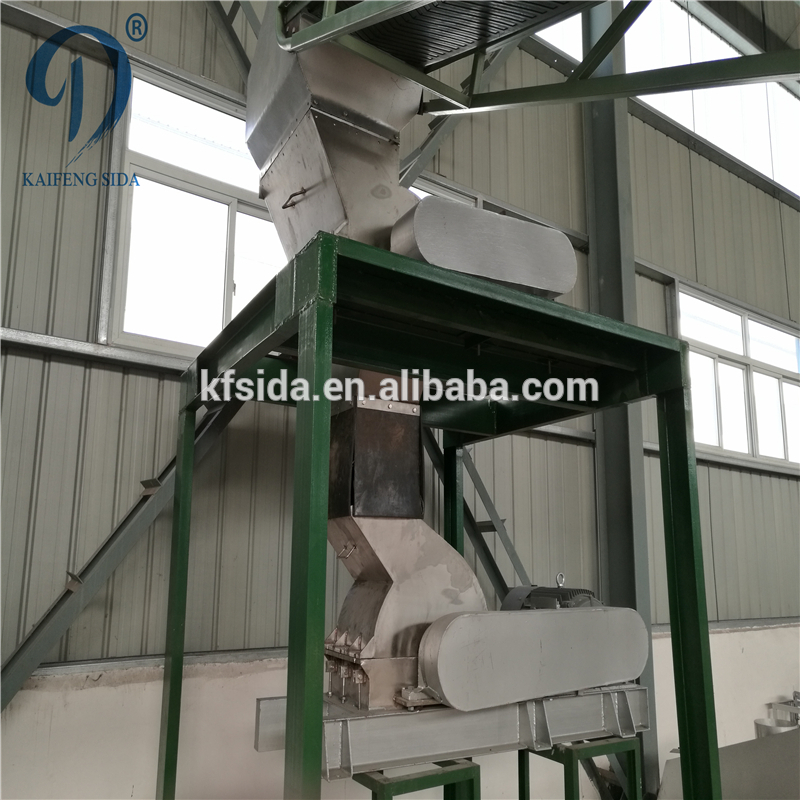

2. Cassava wet milling section of tapioca starch machine
The cassava milling section will mill the cleaned cassava with water into cassava slurry, Including free starch, starch, fiber, and combined with the cell suspension (containing protein, sugar and minerals, soluble) .

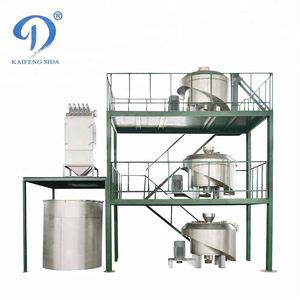

Cassava milling section of tapioca starch machine
3. Cassava starch extraction section of tapioca starch machine
The cassava slurry will be pumped into the centrifuge sieve for extract the starch three times. Fiber and other large particles are separated from starch in starch extraction process.
Cassava starch extraction process of tapioca starch machine

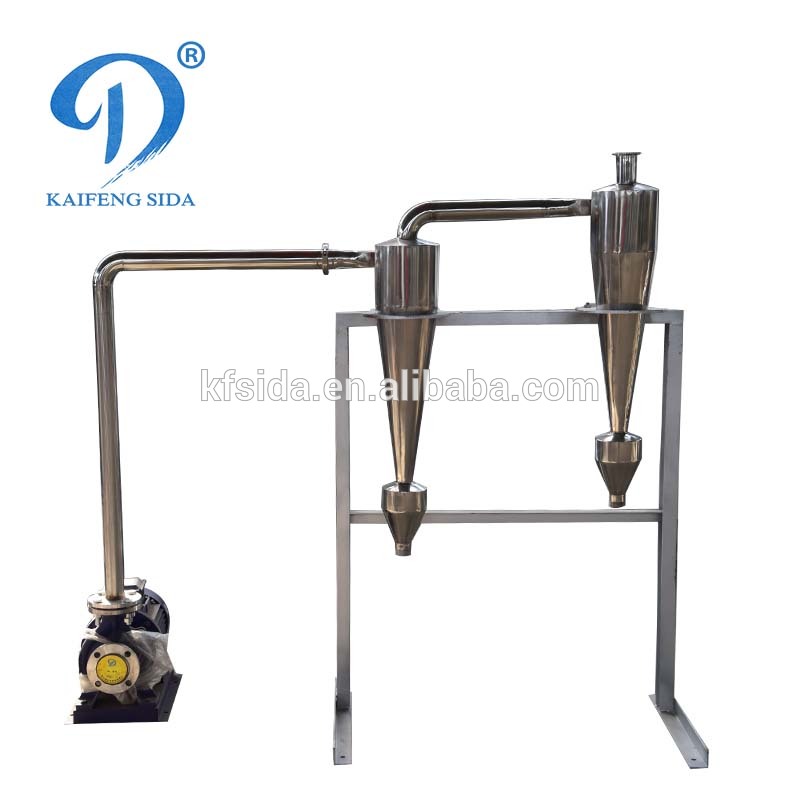

4. De-sanding section of tapioca starch machine
The Impurities heavier than starch such as sands and metal in starch milk will be separated by de-sanding machine.
De-sanding machine of tapioca starch machine

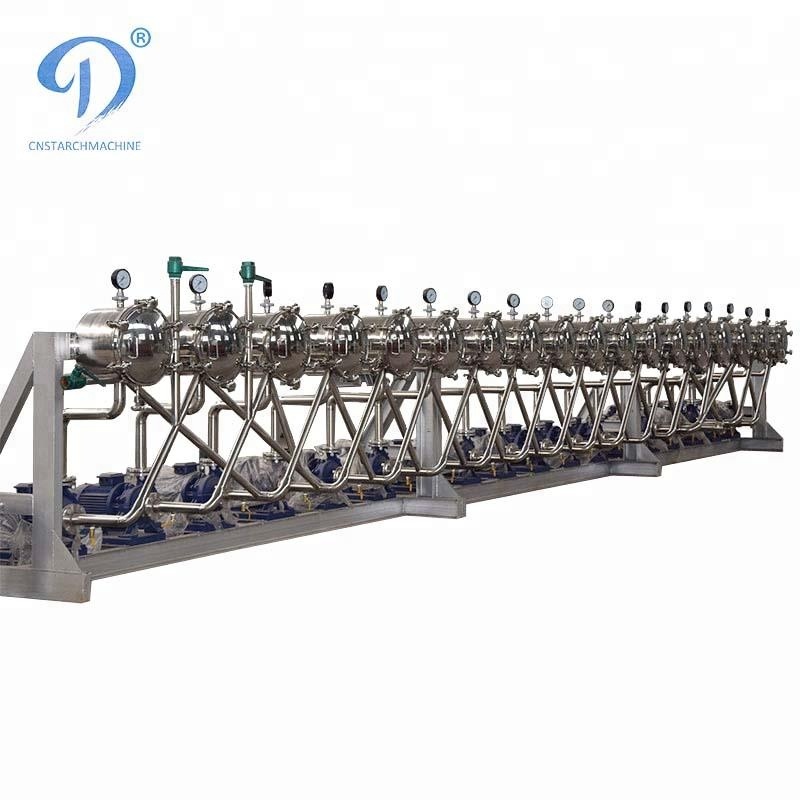

5.Starch concentration and purification section of tapioca starch machine
The hydro cyclones is the key equipment for making the high quality starch. Impurities in crude starch slurry will be eliminated thoroughly through physical method in hydro cyclone group, without influencing the quality of starch product. After concentration and purification, the purified starch milk is around 21 °Bé.
Starch concentration and purification section of tapioca starch machine

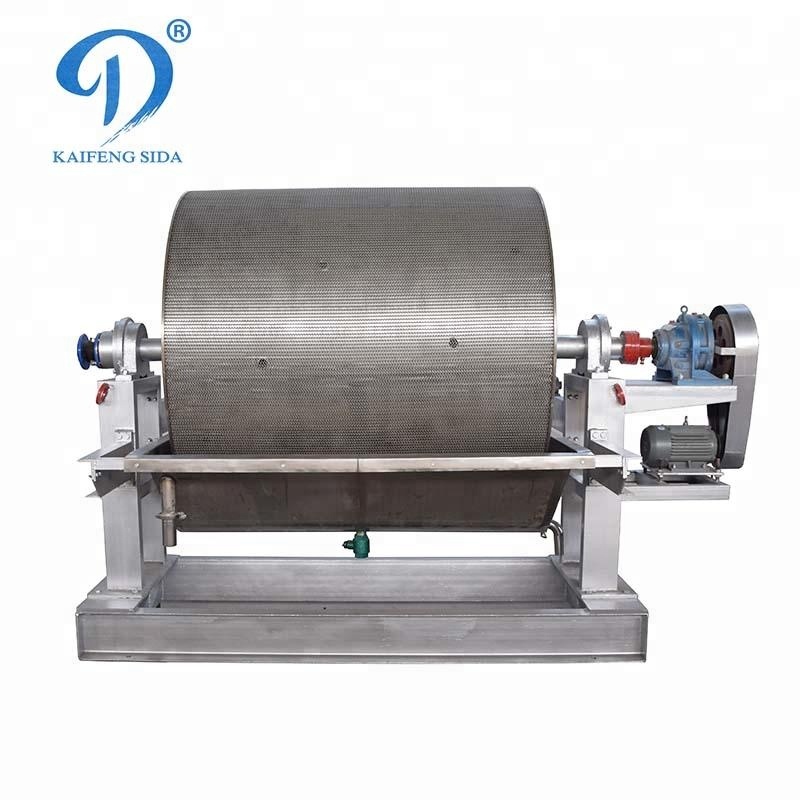

6. Starch vacuum de-watering section of tapioca starch machine
The purified starch milk will be dewatered on a continuous rotating vacuum filter. Then most of the water will be separated from the starch . After dewatering , the moisture content of the starch is around 38%~40%.
Starch vacuum de-watering section of tapioca starch machine

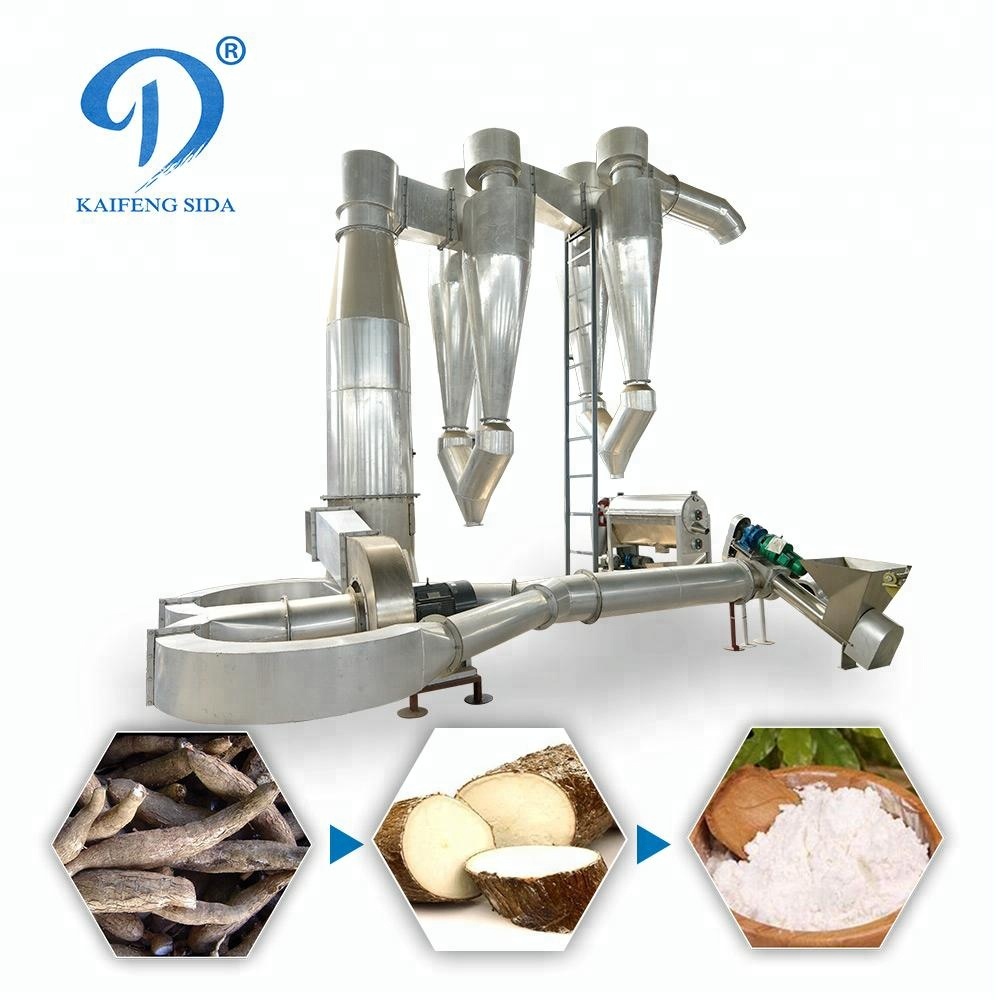

7. Starch drying section of tapioca starch machine
The dewatered starch is dried in a flash dryer with hot air. The inlet air temperature is moderate. High temperatures may increase cold-water soluble starch. The moisture of cassava starch after drying is normally 12%~13%.
Our company air stream crash flash dryer is special designed for starch drying with low temperature and low height. Saving power and easy maintenance .
Starch drying section of tapioca starch machine

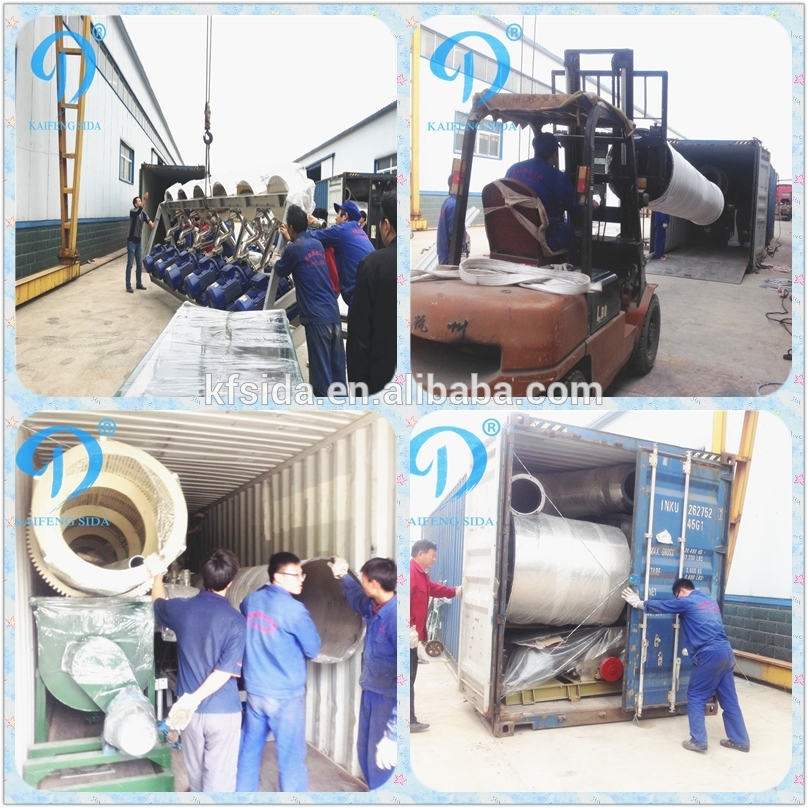

All the tapioca starch machine equipment machinery will be loaded into container for shipment .
Our services for the cassava starch project :
1. Pre-sale Service:
a. Our sale manager will give a detailed introduction and explanation to the whole project.
b. Our technical engineer will design the factory layout for you.
c. We can offer you the OEM, basis on your request if the buyer is not end user.
2. After-sales Service:
a. We can offer the Turkey Project according to the buyer request.
b. We offer you the whole factory design and machines' installation drawing .
c. You can sell your workers to our factory for learning before the machine shipping.
d. We will offer machine operation trainning and guide for free when machine under installation at buyer project site.
e. One year warranty.

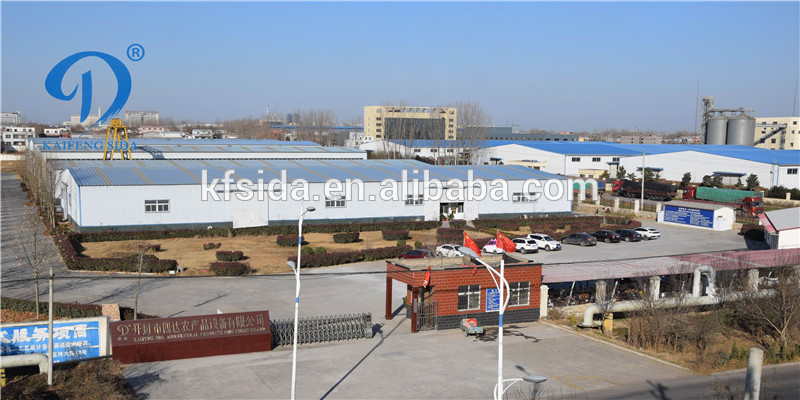

Kaifeng Sida Agricultural Products Equipment Co., Ltd is professional manufacturer for production of agriculture products deep-processing complete equipment. Possessing fixed assets of RMB 36 million, covering an area of 33,000 square meters, with an annual production value of RMB 50 million, the company has got a lot of awards. Owned 16 national practical patents, it passed the accreditation of ISO90001 (international quality management system certification) & BV certificate. Kaifeng Sida Agricultural Products Equipment Co., Ltd. It is the R & D base of agricultural products deep-processing complete equipment of Technical Institute of China Agricultural University.
1. Are you manufacturer or trading company ?
Reply : We are the real manufacturer . Welcome your visit our factory to check our company and our machine quality.
2. What information should I supply when I send inquiry to you ?
Reply : The information should included : the capacity of the tapioca starch machine you interested in ( it means how many ton cassava starch you want to get in one day or how many ton fresh cassava you want to process in one day).
3. How can I get to your factory?
Reply : You can get a flight to Xinzheng Airport of Zhengzhou city. We will pick you up from the airport.
4. How long time for your tapioca starch machine guarantee ?
Reply : One year(Calculated from the equipment arrives the customer site.). After this period we will definitely support you when needed. You will be welcome to contact us with any problem may happened.
5. Will you send engineers to install the plant ?
Reply : Yes. Our company will send one supervising engineer to project site for installation and commissioning , then train the buyer's workers.
6. How can I contact with you if have inquiry ?
Reply : Please find my contact information in below picture. Welcome you contact me for more information.
