Product Description

This machine is used to extract starch from sweet potato, potato, cassava, the root of kudzu vine, canna edulis ker, Acorn, lotus root and so on.

 It has two functions:washing and extract starch.

Low cost but  high output. it is ideal equipment in small plant to extract starch. Extracting rate can reach 98% and it can also be fixed with tractor. Easy operation/movable/easy maintainence

Washing and Peeling Machine , and also  Feeder Machine

Dryer Machine

Performance and technical parameters:

1, the whole closed body, no leakage, leakage residue, leakage slurry phenomenon.
2, the whole stable performance, low noise.
3, can be completed once slag, pulp separation, starch pure, slag does not contain slag, slag, diced.
4, saving supplies, automatic into the potato, broken, separation, pulp, slag.
5, tassel with water work, shorten the slag slurry in the air oxidation reaction, improve the starch whiteness. 7, production capacity: 1500 kg / hour.
8, pulp residue separation of more than 98%, the residual powder rate of about 2%.
9, matching power: medium speed 1440 rpm (380V) 7.5 kilowatts or 10 horsepower

10, speed: spindle 2000, vice axis 800 r / min
11, Luo screen: 80 head.
12, tattoo piercing high: 3MM

Introduction:

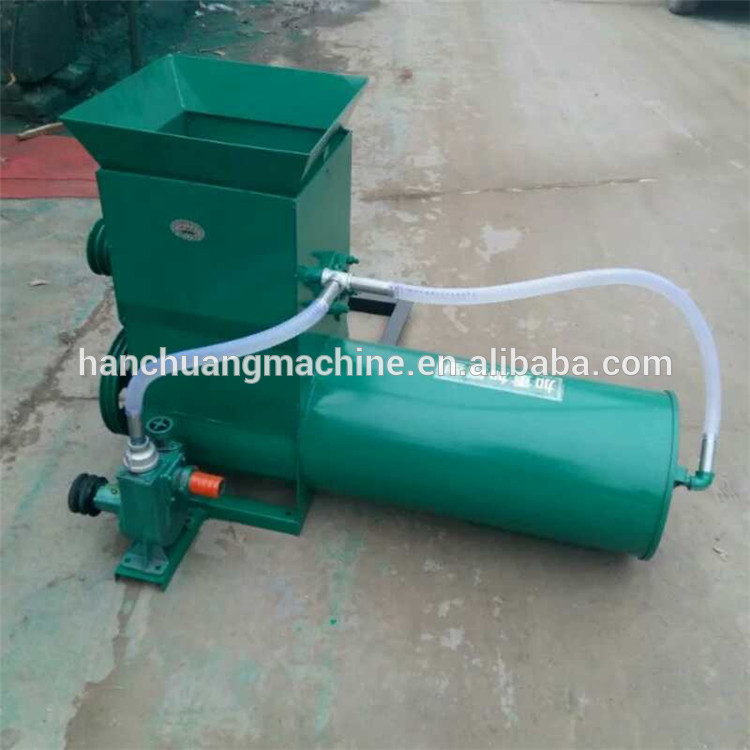

Cassava starch extracting machine , in its hopper within the lower part of the design has aruw roller machine, spine roller machine mounted on driveshaft, drive shaft bearing on the bearings, its end through the league

shaft institutions and single-phase motor shaft phase outfit coupon, hopper bottom for discharging mouth,

hopper, bearing,are packed in single-phase electric machine frame. When using, high-speed piece of short

roll machine core material involved in crushing aruw beating.

The structure is very simple. Compact, lightweight, low energy consumption, use very convenient, applicable

to the countryside to potato, potatoes, konjac, lotus root etc.

Process of starch processing equipment:

Raw material(sweet potato,cassava,potato)-----Washing and peeling----Crushing----Prefilter-----Sand eliminator------Secondary filter-----Drying-----Packing
