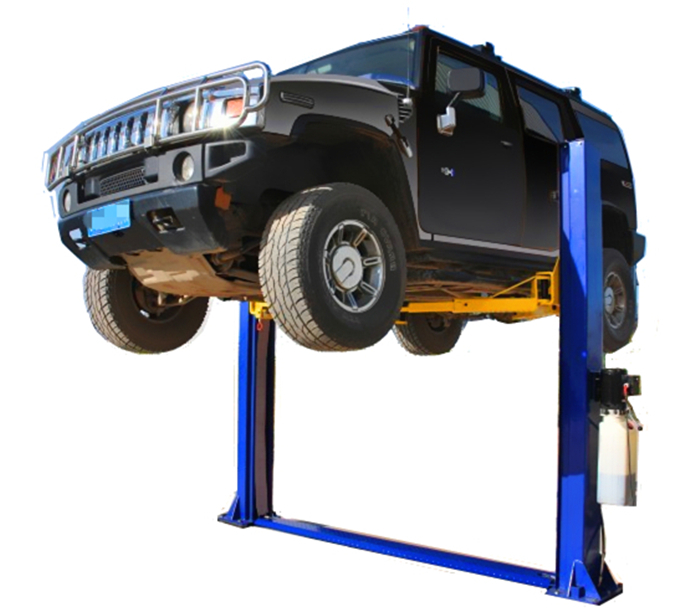

L-2-45D is a 4.5T / 10,000 lbs Quality discount! scissor lift. car lift. ps3600. The perfect choice for those customers who demand the most lifting capacity at the lowest possible price.J&F Lifts are designed with the features you need to concern, no matter what type of shop you have.
Quality discount! scissor lift. car lift. ps3600 L-2C-45E | |
Double Lock Release, Chain Drive Design System | |
Double S Manganese Steel Column | |
Lifting Capacity | 4.5T(10000lb) |
Max. Lifting Height | 2000mm( 6.6'/78.7" ) |
Rise Time | <50s |
Power of Motor | 2.2Kw |

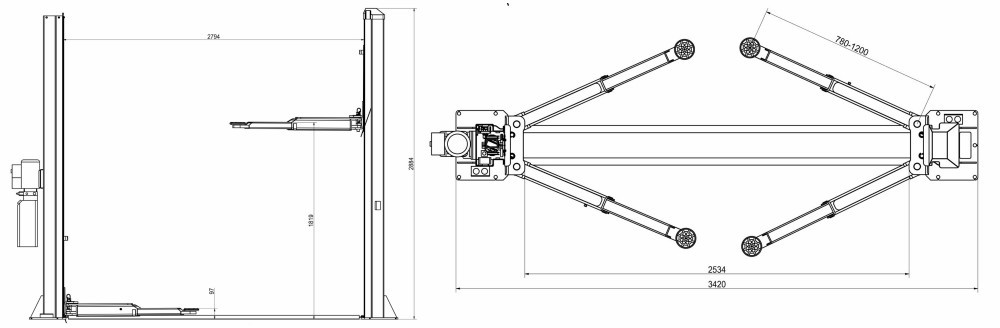

Total Height | 3620mm(11.9'/142.5") |
Width between Pillars | 2865mm(9.4'/113") |
Power Supply | 3PH/380V |
Standard Accessories | |
Stackable Pads | 4 pcs |
Short Truck Adapter(33mm) | 4 pcs |
Long Truck Adapter(127mm) | 4 pcs |
Optional Accessories | |
3-Stage Arms | 2 pcs |
2-Stage Screw Pads | 4 pcs |
3-Stage Screw Pads | 4 pcs screw pads 4pcs extensions |

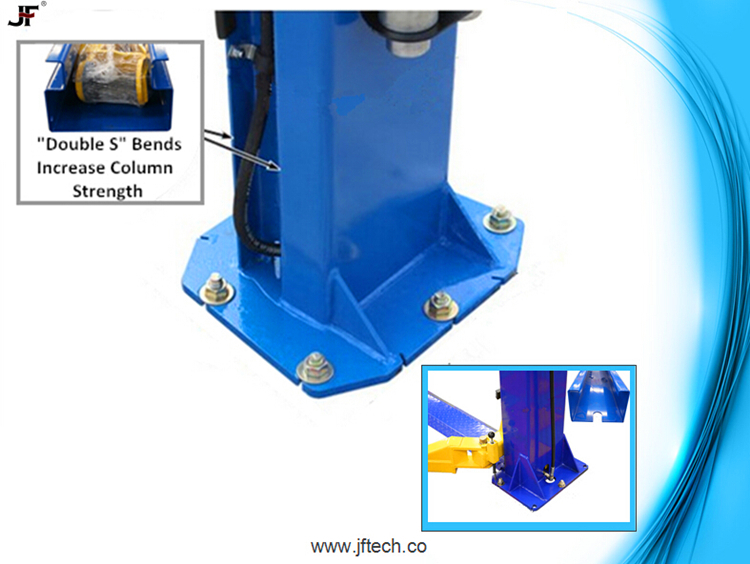

J&F Double "S" Column(Upper)
VS
Others Column(Lower)
Long lasting pad lift car Package | ||
Steel Frame A(Posts Lower Stage) | 1 pc | 2700*500*750mm |
Carton (Power Unit) | 1 pc | 800*250*300mm |
Net Weight | 570kg | |
Gross Weight | 590kg |
J&F 2 post lifts, alignment lifts, parking lifts, mid-rise lifts, scissor lifts, and highrise lifts are warranted
for five (5) years on structural components and one & a half (1.5) yearon electric or air / hydraulic power units
and cylinders effective from date of invoice.
Wholeheartedly Provide Quality Lifts

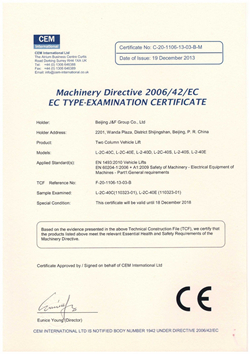

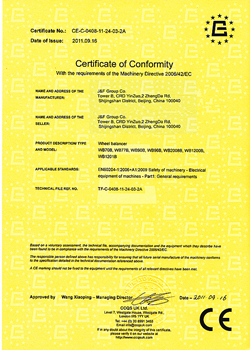

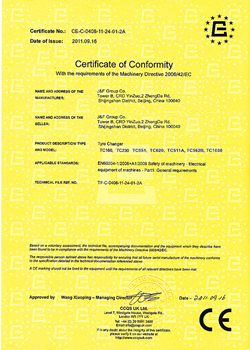

All Equipments CE Certified.
1. Why should I choose J&F Lift?
There are several reasons you should strongly consider purchasing a J&F Lift:

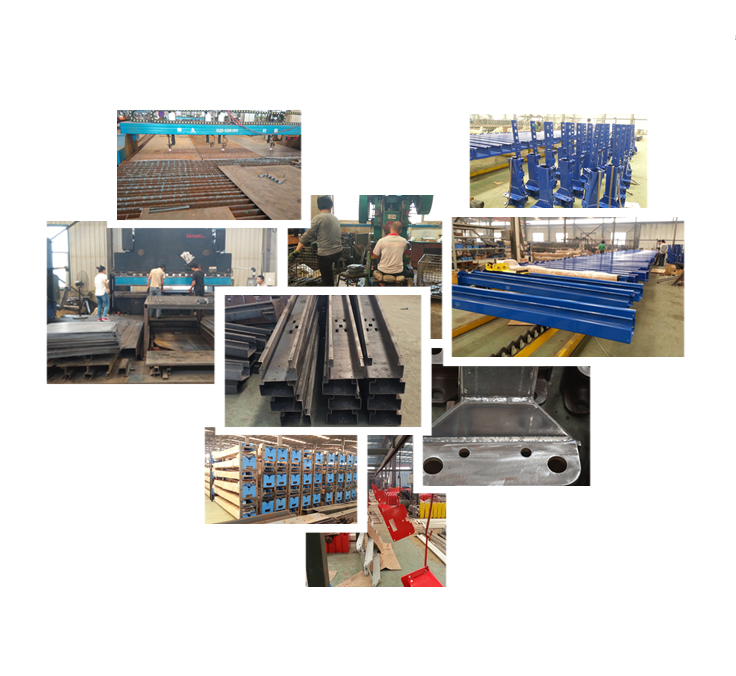

Top raw materials from only the finest plants
Only professional cost-effective equipment
Low prices with high quality revenue producing products
Increase productivity for your customers( Your customers gain more, they will enjoy buying from you.)
The best customer service. Quick reply within 24 hours and more.
Great Warranty
2. How safe are your lifts?
Our 2&4 post lifts have been tested and CE certified for safety . They also meet the American
and Australian Standard.
3. Shoul I keep repair and replacement parts in stock?
Yes, most all commonly required repair and replacement parts should always keep in stock.
4. What type of fluid is required for my lift?
We recommend use of a SAE10 hydraulic fluid that meets an ISO 32 specification, approximately
3 gallons / 12L are required.
5. Are J&F Lifts designed for commercial use?
All of our lifts can be used in commercial applications without any problems.
6. Do you offer any custom designs?
Yes,J&F Lift provide OEM/ODM services to top range partners.Produce a superior product
for you by your designs.
